Electromechanical relays

Power relay, 110 Vac, SPDT, 16 A, through-hole (THT), 40.61 series - Finder 40.61.8.110.0000

52.130.2436002

PCB mounting or plug-in on socket Series 95, 1 switch 16 A (5.0 mm pitch).Features:- Terminal length 5.3 mm for PCB mounting;- AC coil;- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;- Glow wire test compliance to EN 60335-1;- 95 series sockets for PCB, or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;- EMC...

€9.59

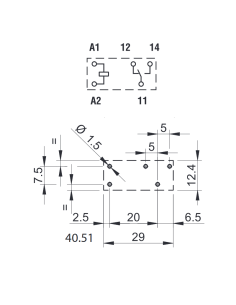

Power relay, 110 Vac, SPDT, 12 A, through-hole (THT), 40.51 series - Finder 40.51.8.110.0000

52.130.2436001

PCB mounting or plug-in on socket Series 95, 1 switch 12 A (5.0 mm pitch).Features:- Terminal length 5.3 mm for PCB mounting;- AC coil;- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;- Glow wire test compliance to EN 60335-1;- 95 series sockets for PCB, or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;- EMC...

Out-of-Stock

€9.20

View

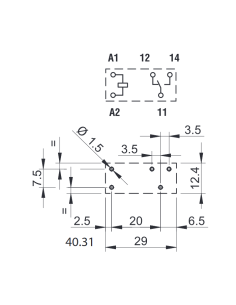

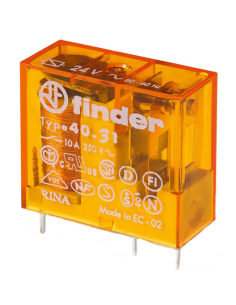

Power relay, 110 Vac, SPDT, 12 A, through-hole (THT), 40.31 series - Finder 40.31.8.110.0000

52.130.2436000

PCB mounting or plug-in on socket Series 95, 1 switch, 12 A (3.5 mm pitch).Features:- Terminal length 3.5 mm for PCB mounting;- AC coil;- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;- Glow wire test compliance to EN 60335-1;- 95 series sockets for PCB, or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;- EMC...

Out-of-Stock

€9.20

View

Power relay, 110 Vac, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.8.110.0000

52.130.2636002

PCB mounting or plug-in on socket Series 95, 2 exchanges 8 A (pitch 5.0 mm).Features:- Terminal length 5.3 mm for PCB mounting;- AC coil;- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;- Glow wire test compliance to EN 60335-1;- 95 series sockets for PCB, or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;- EMC...

€12.60
