Electromechanical relays

Showing 1-10 of 10 item(s)

Power Relays, RE030006, 6 Vdc, SPST-NO, 6 A, through-hole (THT), monostable, RE Series - TE Connectivity Schrack 1393217-2

52.130.2102000

Out-of-Stock

€4.00

View

Power relay, 6 Vdc, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.7.006.0000

52.130.2602001

PCB mounting or plug-in on socket Series 95, 2 exchanges 8 A (pitch 5.0 mm).Features:- Terminal length 5.3 mm for PCB mounting;- Sensitive DC coil - 500mW;- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;- Glow wire test compliance to EN 60335-1;- 95 series sockets for PCB, or 35 mm rail mounting (EN 60715) with Push-in, screw or spring...

€8.50

Power relay, 6 Vdc, SPDT, 16 A, through-hole (THT), 40.61 series - Finder 40.61.9.006.0000

52.130.2402010

PCB mounting or plug-in on socket Series 95, 1 switch 16 A (5.0 mm pitch).Features:- Terminal length 5.3 mm for PCB mounting;- DC coil - 650mW;- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;- Glow wire test compliance to EN 60335-1;- 95 series sockets for PCB or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;- EMC...

€8.22

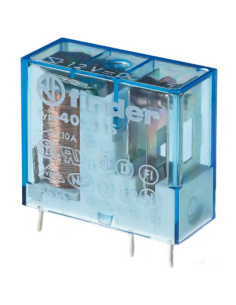

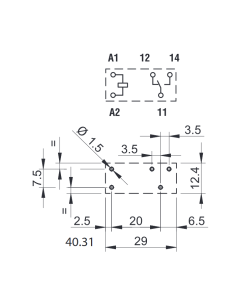

Power relay, 6 Vdc, SPDT, 12 A, through-hole (THT), 40.31 series - Finder 40.31.9.006.0000

52.130.2402004

PCB mounting or plug-in on socket Series 95, 1 switch, 12 A (3.5 mm pitch).Features:- Terminal length 3.5 mm for PCB mounting;- 650mW DC coil;- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;- Glow wire test compliance to EN 60335-1;- 95 series sockets for PCB or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;- EMC...

€7.20

Relay, 6 Vdc, SPDT, 10 A, through-hole (THT), 36.11 series - Finder 36.11.9.006.4011

52.130.1002003

Mini relay for printed circuit board, 1 changeover 10A.Features:- Small size;- 1 changeover contact;- Sensitive DC coil - 360 mW;- Washable: RT III;- Cadmium-free contacts.

€3.12

Signal relay, 6 Vdc, SPDT, 1 A, through-hole (THT), monostable

52.130.1402000

Out-of-Stock

€1.10

View

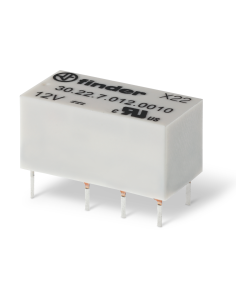

Dual in-line relays, 6 Vdc, DPDT, 2 A, through-hole (THT), 30.22 series - Finder 30.22.7.006.0020

52.130.1602001

Dual in-line relay for PCB mounting with two changeover contacts for switching low loads.Features:- 2 changeover contacts for switching low loads;- Subminiature relay for industry standard DIL type;- Sensitive DC coil - 200 mW;- Cadmium-free contacts;- Low power consumption;- Gold-plated contacts;- Printed circuit board mounting

€7.94

Power relay, 6 Vdc, SPDT, 12 A, through-hole (THT), 40.51 series - Finder 40.51.9.006.0000

52.130.2402000

Miniature Relays Type 40.51 for PCB and plug-in socket Series 95.1 switch, 12 A, PCB mounted, with socket 10 A, pitch 5.0 mm.

€6.08

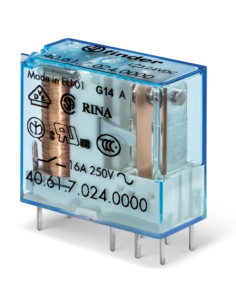

Power relay, 6 Vdc, SPDT, 16 A, through-hole (THT), 40.61 series - Finder 40.61.7.006.0000

52.130.2402008

PCB mounting or plug-in on socket Series 95, 1 switch 16 A (pitch 5.0 mm).Features:- Terminal length 5.3 mm for PCB mounting;- Sensitive DC coil - 500 mW;- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;- Glow wire test compliance to EN 60335-1;- 95 series sockets for printed circuit board or 35 mm rail mounting (EN 60715) with Push-in, screw...

€9.20

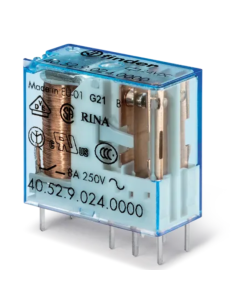

Power relay, 6 Vdc, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.9.006.0000

52.130.2602000

The Mini Relay Type 40.52 is a 95 Series plug-in and PCB relay.With 2 switches 8 A on a printed circuit board, 5.0 mm pitch, it is a versatile device suitable for many applications such as control panels, control and distribution boards, electronic boards, door and gate openers and more.

€5.17
