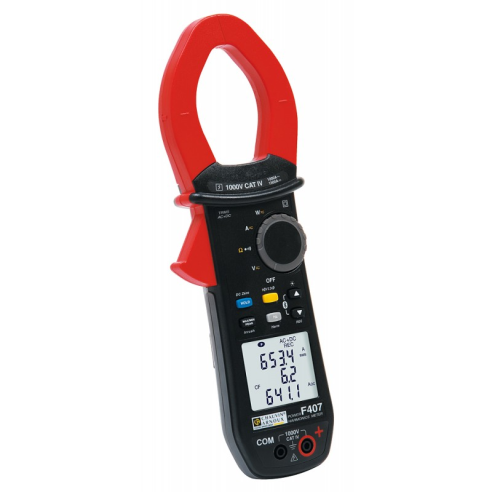

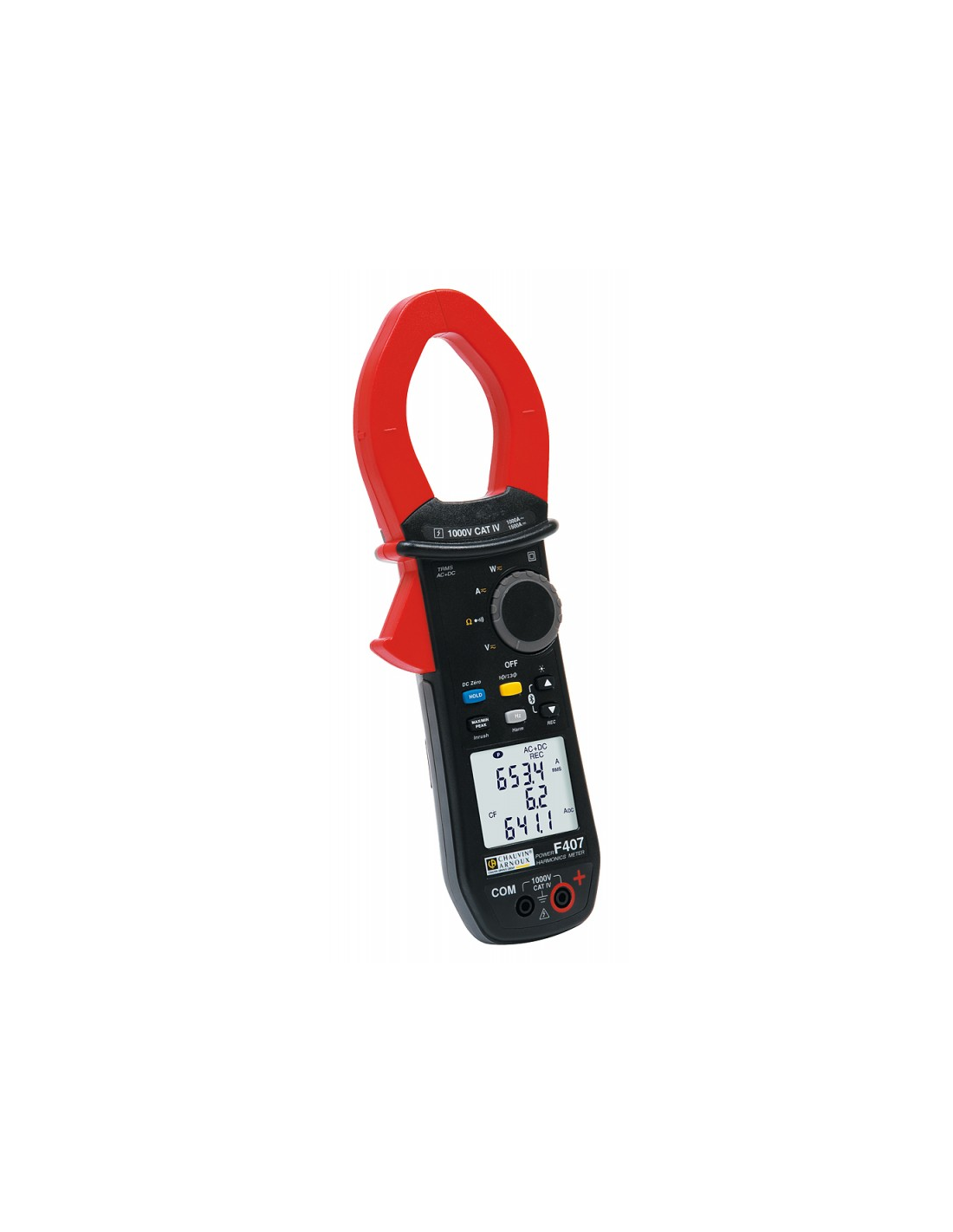

AMRA Chauvin Arnaux F407 CAT IV 1000V autorange current clamp

Name: AMRA Chauvin Arnaux F407 CAT IV 1000V autorange current clamp
Brand: Chauvin Arnaux
SKU: 40.001.0020014
Price: 879.9 EUR
Availability: InStock

SKU 40.001.0020014

In stock 3 Items

€879.90

VAT included

Functions: DC voltage, AC voltage, AC current, true RMS, frequency, resistance, diode test, continuity test.

Equipped with a fast TRMS AC+DC digital acquisition system, 12 bits, a high crest factor bandwidth, these clamps realise precise measurements, whatever the nature of the signal.
Automatic AC/DC detection is standard on all models in this range, as is IP54 protection.
The large, backlit 10,000 pt LCD display offers excellent readability in all light conditions.
Simple to use, each switch position corresponds to one of the measurement functions.

Description

Rating
AC amps	0.15 to 1000 A (1500A peak)
Ampere DC	0.15 to 1500A
Ampere AC + DC	0.15 to 1000 A (1500A peak)
Accuracy	1% of reading + 3 dgt
Volts AC	0.15 to 1000 V (1400 V peak)
Volt DC	0.15 to 1400 V
Volts AC + DC	0.15 to 1000 V (1400 V peak)
Accuracy	1% of reading + 3 dgt
Frequency	Ampere: 5.0 Hz to 3000 Hz
	Voltage: 5.0 Hz to 2000 kHz
Ohm	0.1 Ω to 99.99 kΩ
Functions	Continuity test
	Diode test
	Active, reactive, apparent power
	Phase rotation
	Value analysis
	TrueInrush, Inrush and Ripple function
	TrueInrush, Inrush and Ripple function
	PC software and Android system application
Visualisation	10000 points
Opening jaws	48 mm
Dimensions	92 x 272 x 41 mm
Weight	600 grams
Power supply	1 9V battery
Manufacturer	AMRA Chauvin Arnaux
Manufacturer code	P01120947
Model	F407
