Name: Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 8A, fast, UL-CSA - Littelfuse KLKR008
Brand: Littelfuse
SKU: 61.001.3903300
Price: 21.5 EUR
Availability: InStock

SKU 61.001.3903300

In stock 23 Items

€21.50

VAT included

The KLKR series of fast-acting fuses are designed for general-purpose circuit protection.
Their compact size, fast overload response and current-limiting design make them ideal for use in OEM equipment and control panels.
They are widely used in lighting circuits and control transformer circuits where quick response to overload is required.
Due to their compact size, these fuses provide superior branch circuit protection in a fraction of the space required by other fuse classes.
The KLKR series fuses comply with UL and CSA standards.

Description

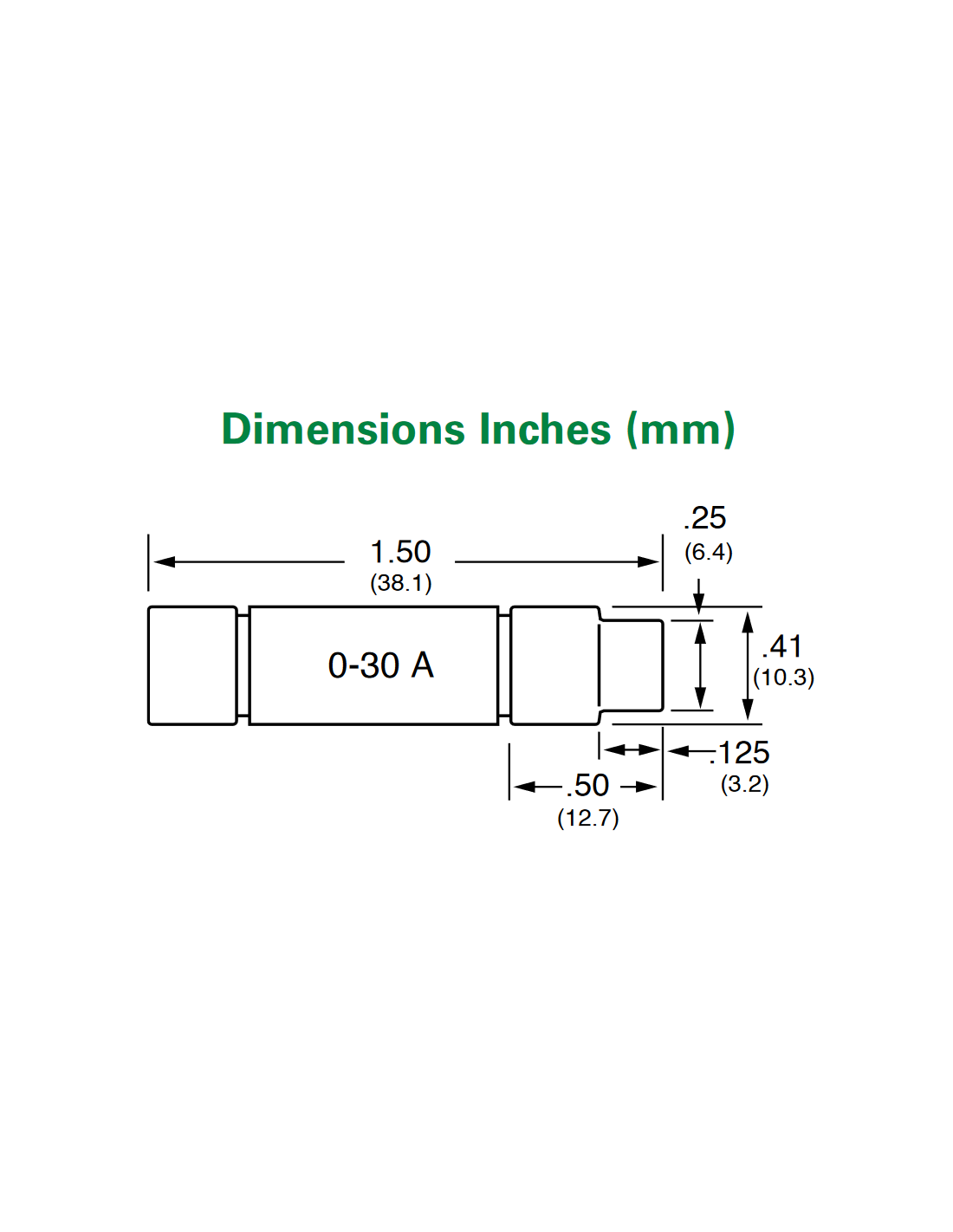

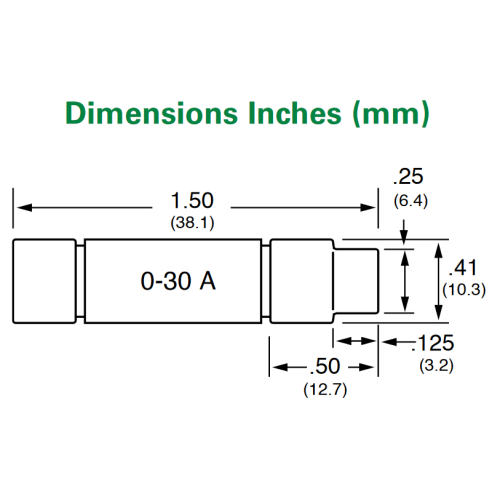

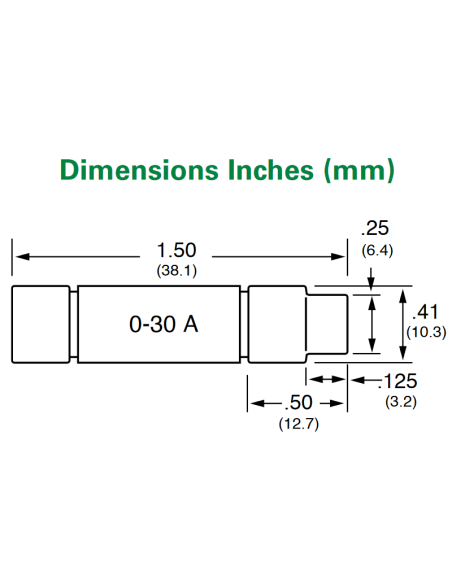

Dimensions	10.3 x 38 mm
Intervention characteristic	Quick
Rated voltage	600 Vac; 300 Vdc
Rated current	8 A
Interrupting power (lk)	200 KA 600 Vac
Reference Standards	UL 248-4, CSA C22.2
Model	KLKR008
Manufacturer	Littelfuse
