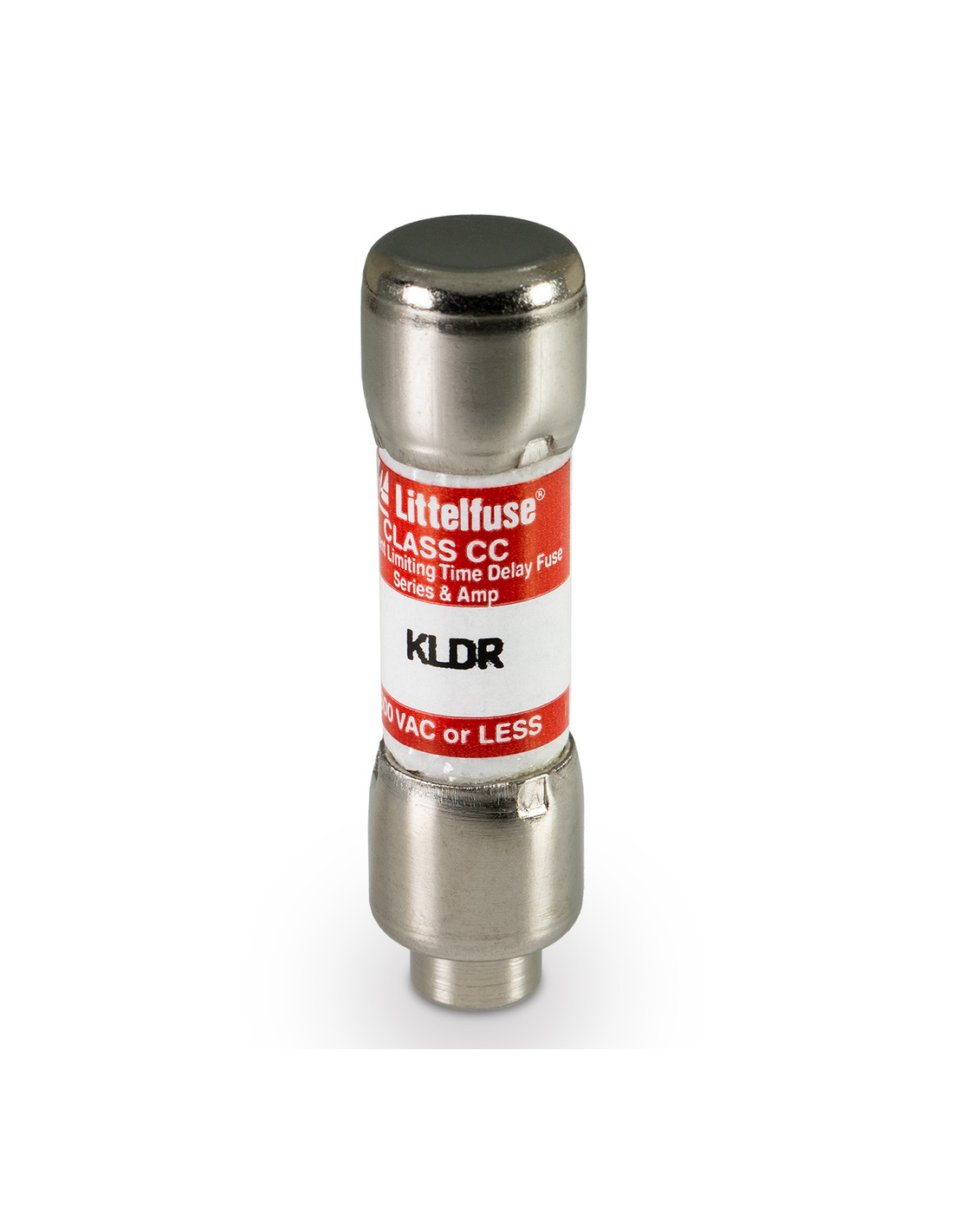

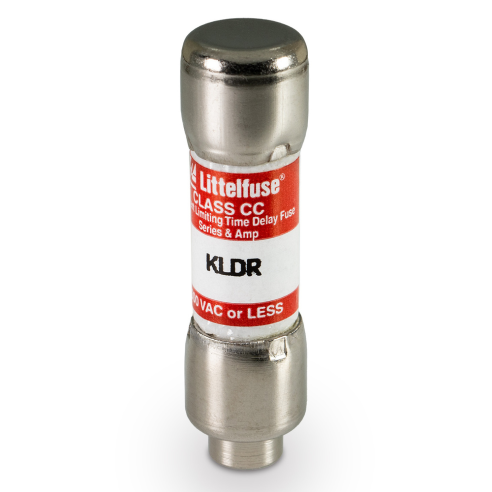

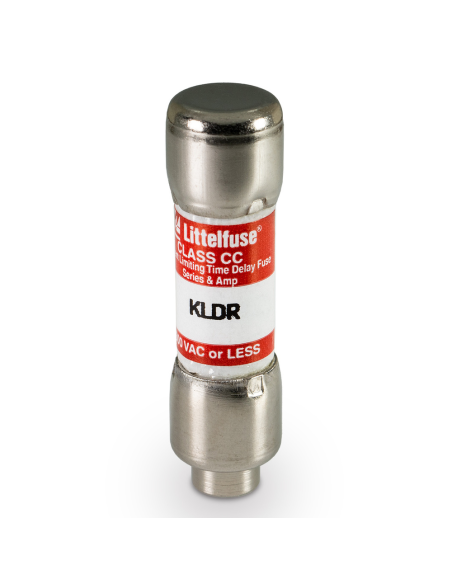

Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 30A, delayed tripping, UL-CSA standard - Littelfuse KLDR030

Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 30A, delayed tripping, UL-CSA standard - Littelfuse KLDR030

Name: Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 30A, delayed tripping, UL-CSA standard - Littelfuse KLDR030
Brand: Littelfuse
SKU: 61.001.3904001
Price: 24.5 EUR
Availability: InStock

SKU 61.001.3904001

In stock 10 Items

€24.50

VAT included

The KLDR series of time-delay fuses are designed to protect control transformers, solenoids and similar inductive components with highly magnetised currents during the first half-cycle.
These small fuses provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors.
The KLDR series fuses closely match the characteristics of most power transformers, allowing them to be sized in accordance with the latest revisions of UL 508 (industrial control) and UL 845 (motor control centres).

Description

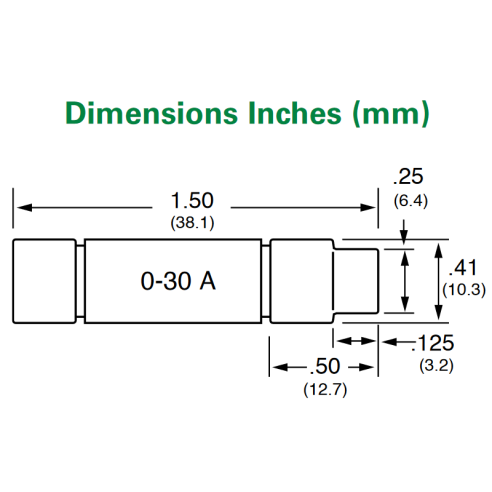

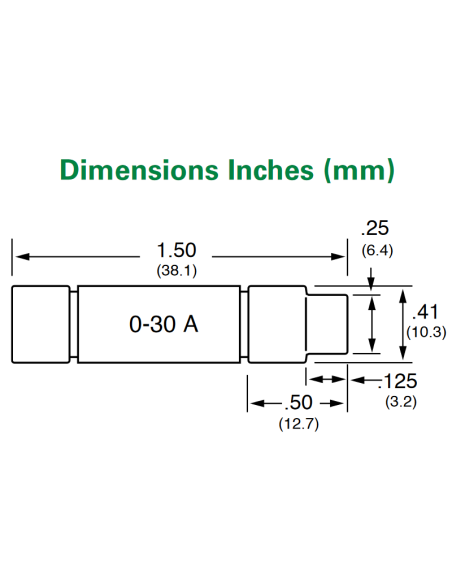

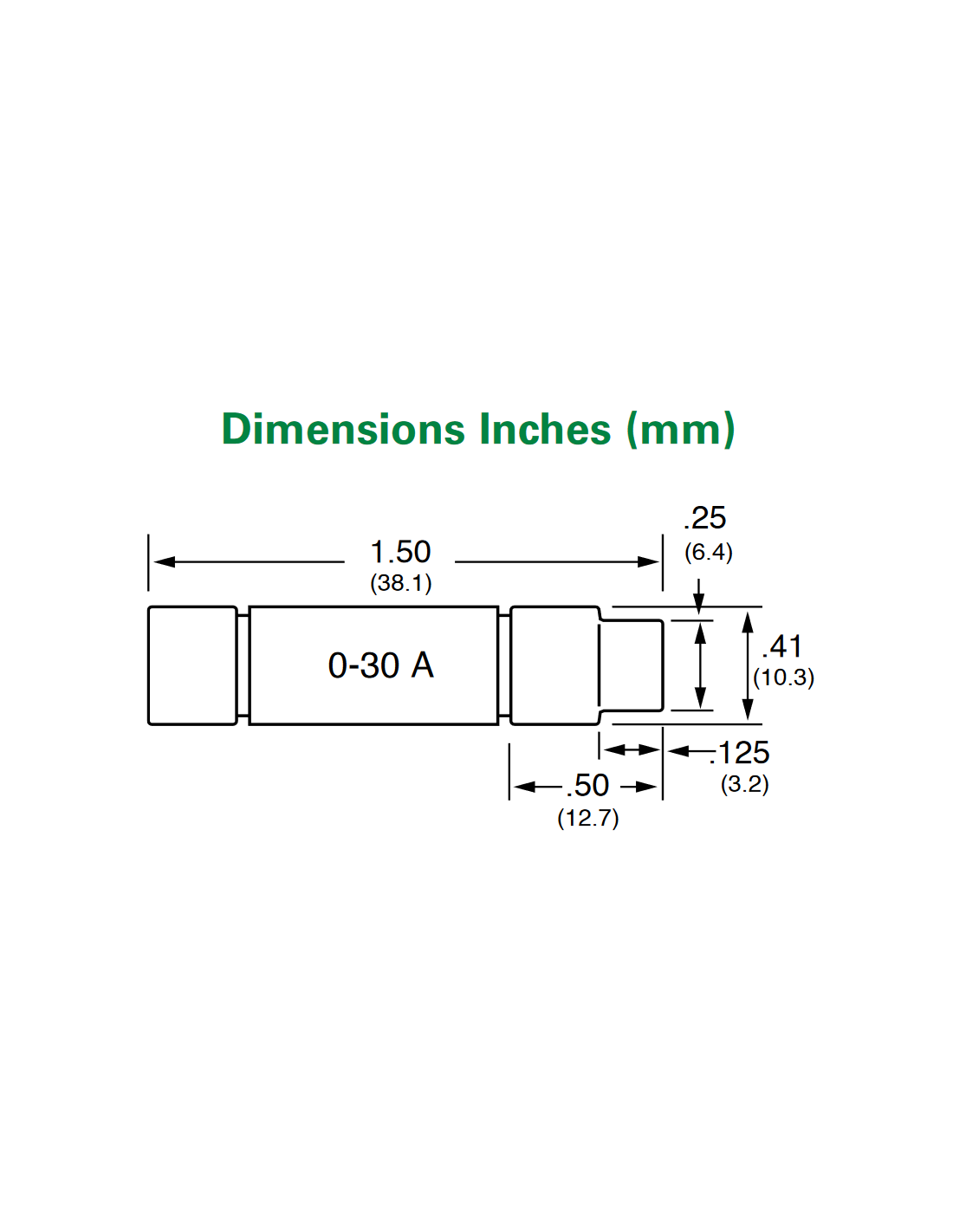

Dimensions	10.3 x 38 mm
Intervention characteristic	Delayed
Rated voltage	600 Vac; 300 Vdc
Rated current	30 A
Interrupting power (lk)	200 KA 600 Vac
Reference Standards	UL 248-4, CSA C22.2
Model	KLDR030
Manufacturer	Littelfuse
