| Contact configuration | |
| Contact configuration | 1 NO contact |
| Rated current/maximum instantaneous current | 6A / 10A |
| Rated voltage / maximum switchable voltage | 250Vac / 400Vac |
| Nominal load in AC1 | 1500VA |
| Nominal load in AC15 | 300VA |
| Minimum switchable load | 500mW |
| Contact material | AgNi |
| Coil characteristics | |
| Nominal supply voltage | 24Vdc |
| Nominal power | 0,17W |
| General features | |
| Mechanical durability | 10 x 10⁶ cycles |
| Electrical durability | 60 x 10³ cycles |
| Switching time: excitation/de-energization | 5ms / 3ms |
| Insulation between coil and contacts | 6KV |
| Dielectric strength between open contacts | 1000Vac |
| Operating temperature | -40°C ~ +85°C |
| Protection category | RTII |
| Product information | |

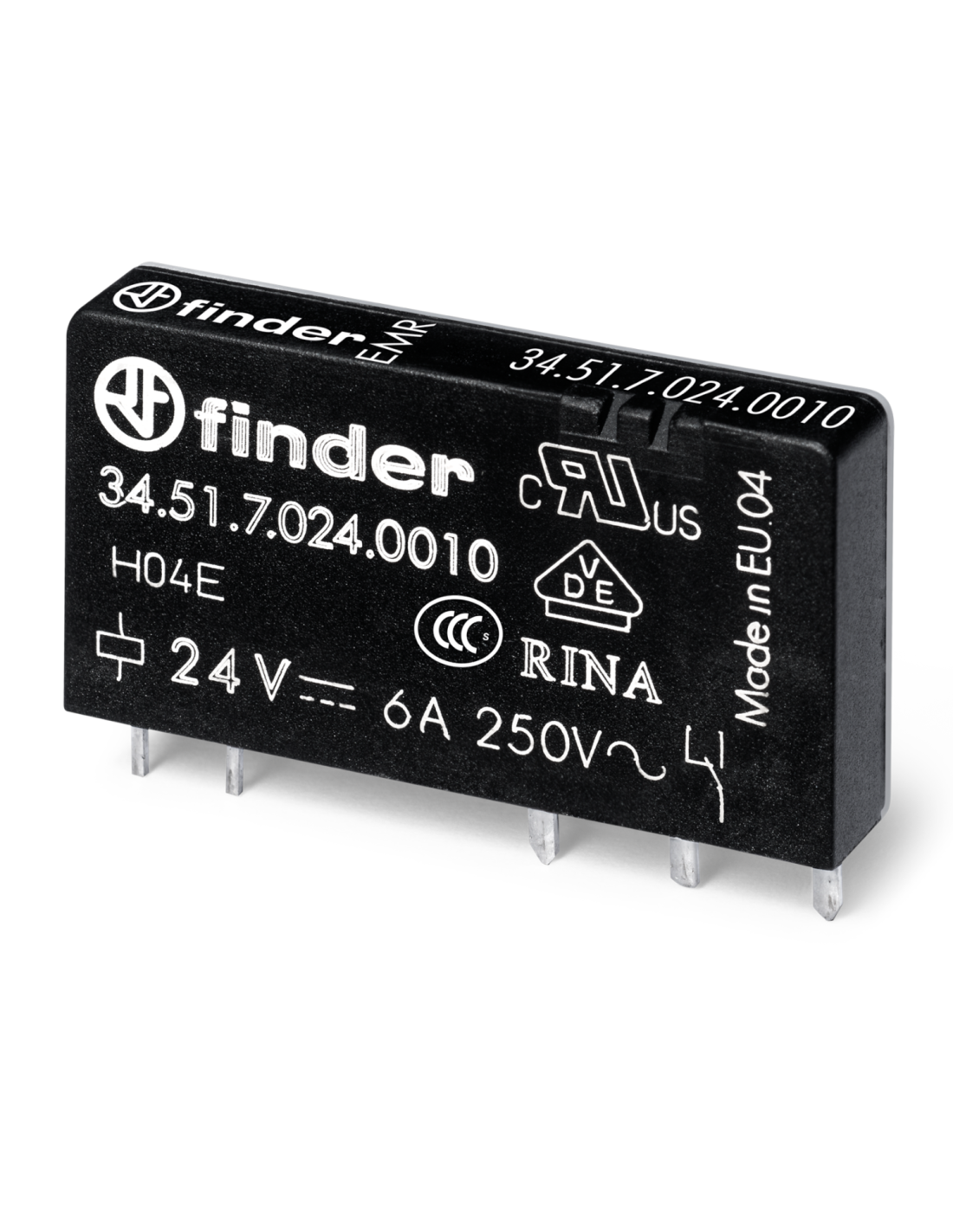

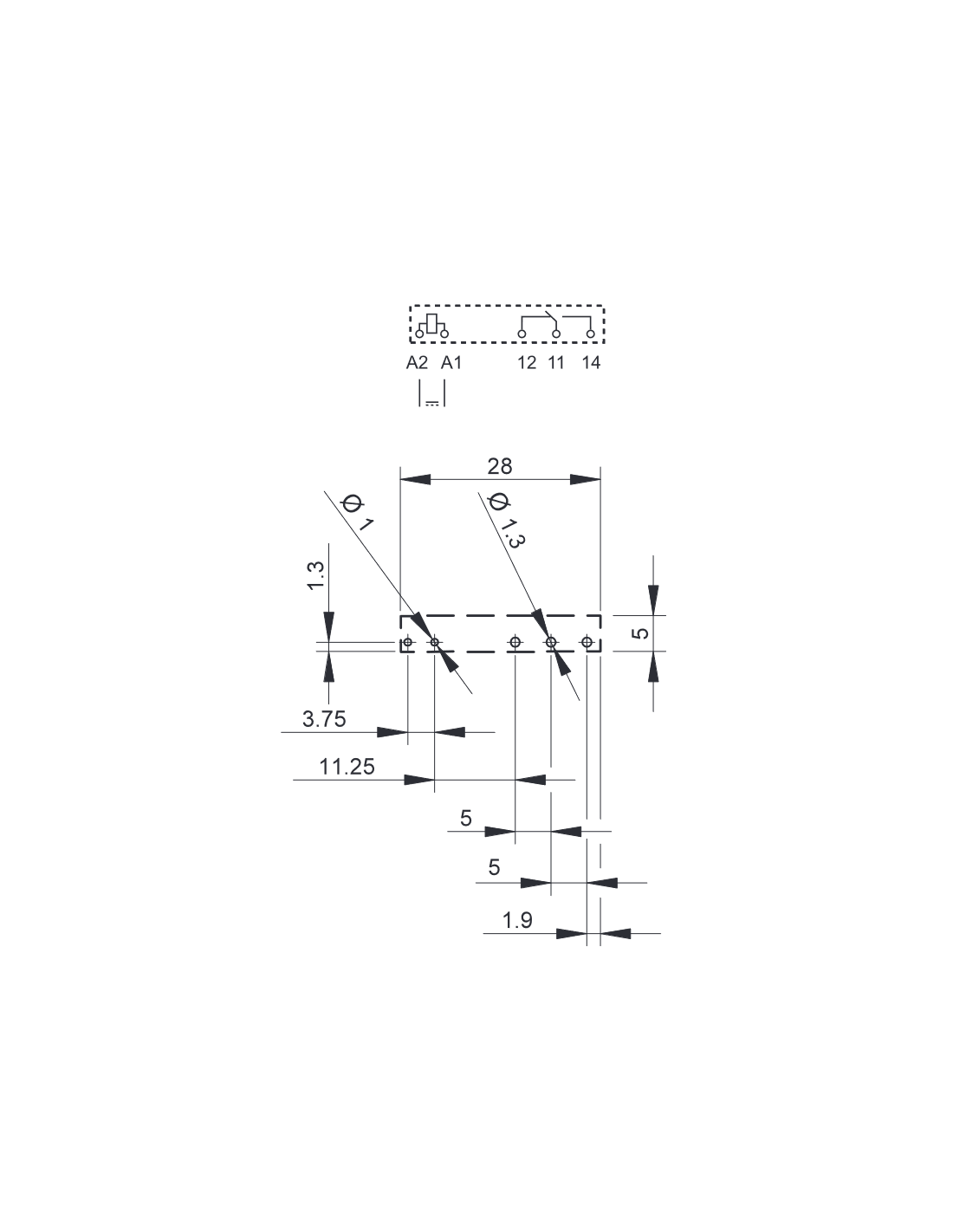

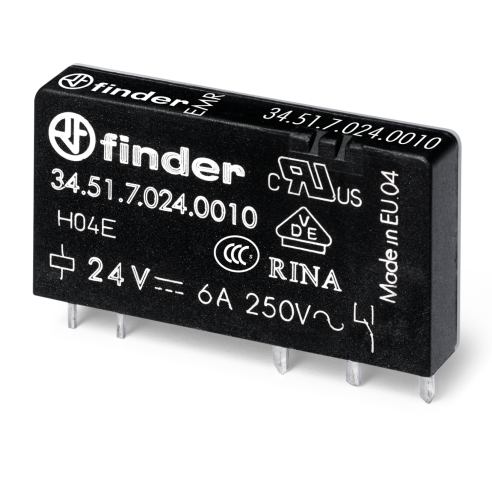

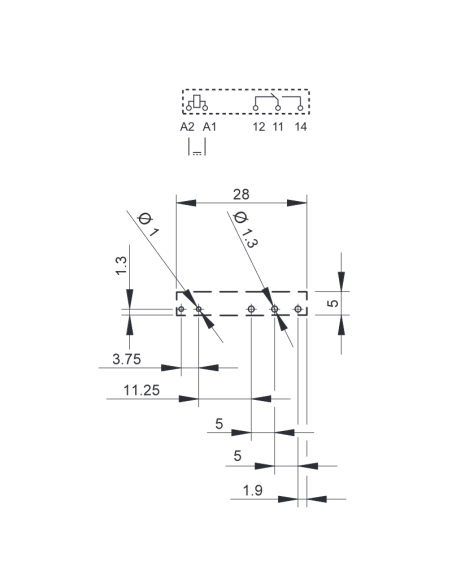

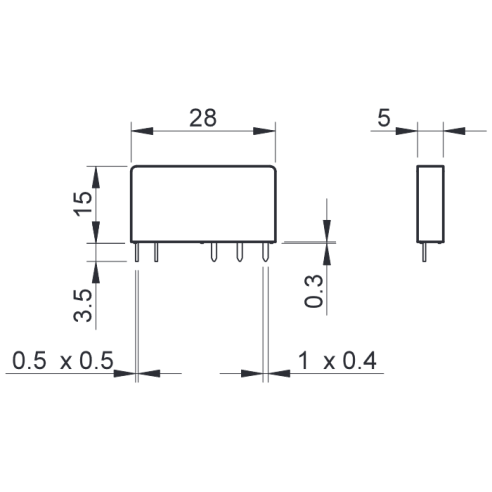

| Model | 34.51.7.024.0310 |
| Manufacturer | Finder |
