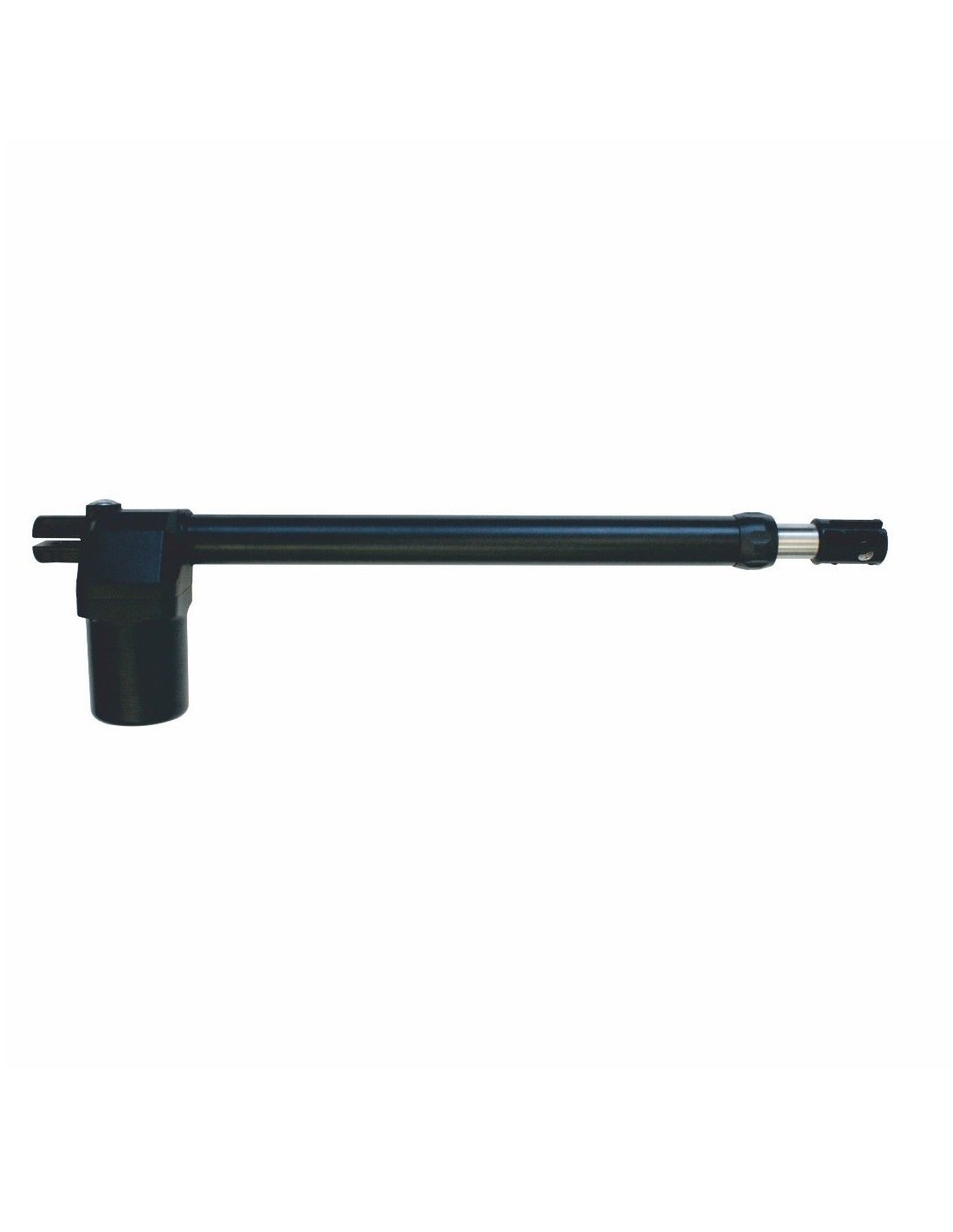

T3 400 electromechanical motor for swing gates, 230Vac, max 300Kg / 2.75mt - Tecno Automazione MDDQ4BT / MSDQ4BT

T3 400 electromechanical motor for swing gates, 230Vac, max 300Kg / 2.75mt - Tecno Automazione MDDQ4BT / MSDQ4BT

Name: T3 400 electromechanical motor for swing gates, 230Vac, max 300Kg / 2.75mt - Tecno Automazione MDDQ4BT / MSDQ4BT
Brand: TA Tecno automazione
SKU: 12406
Price: 184.7 EUR
Availability: InStock

SKU 25.005.1520700

In stock 1 Items

Last items in stock

€184.70

VAT included

Made in Italy.

The direction of the right or left gate is determined by considering the engine seen from inside the property.

Powered at 230V, it can be used for gates with a single leaf length of no more than 2 metres.

Supplied with brackets, installation accessories and release key.

Mounting side

Right
Left

Description

Supply voltage	230Vac
Absorption	1,2 ~ 1,7A
Power	280W
Capacitor	8 µF
Thermal protection	150°C
Maximum thrust	2800 N
IP Rating	IP44
Engine weight	5.2 kg
Working temperature	-20°C ~ +55°C
Maximum leaf length	2.75 metres
Maximum leaf weight	300 kg
Maximum stroke	400 mm
Maximum opening angle	110°
90° opening time	22 seconds
Work cycle	40%
Engine revs	1400 rpm
Model	Item 25.005.1520700	MDDQ4BT
	Item 25.005.1520701	MSDQ4BT
Manufacturer	T.A. Tecno Automazione
