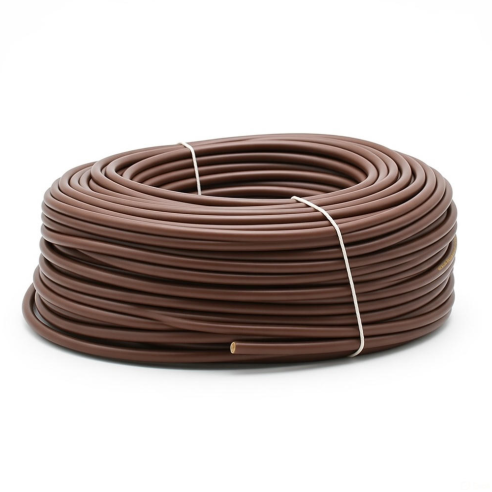

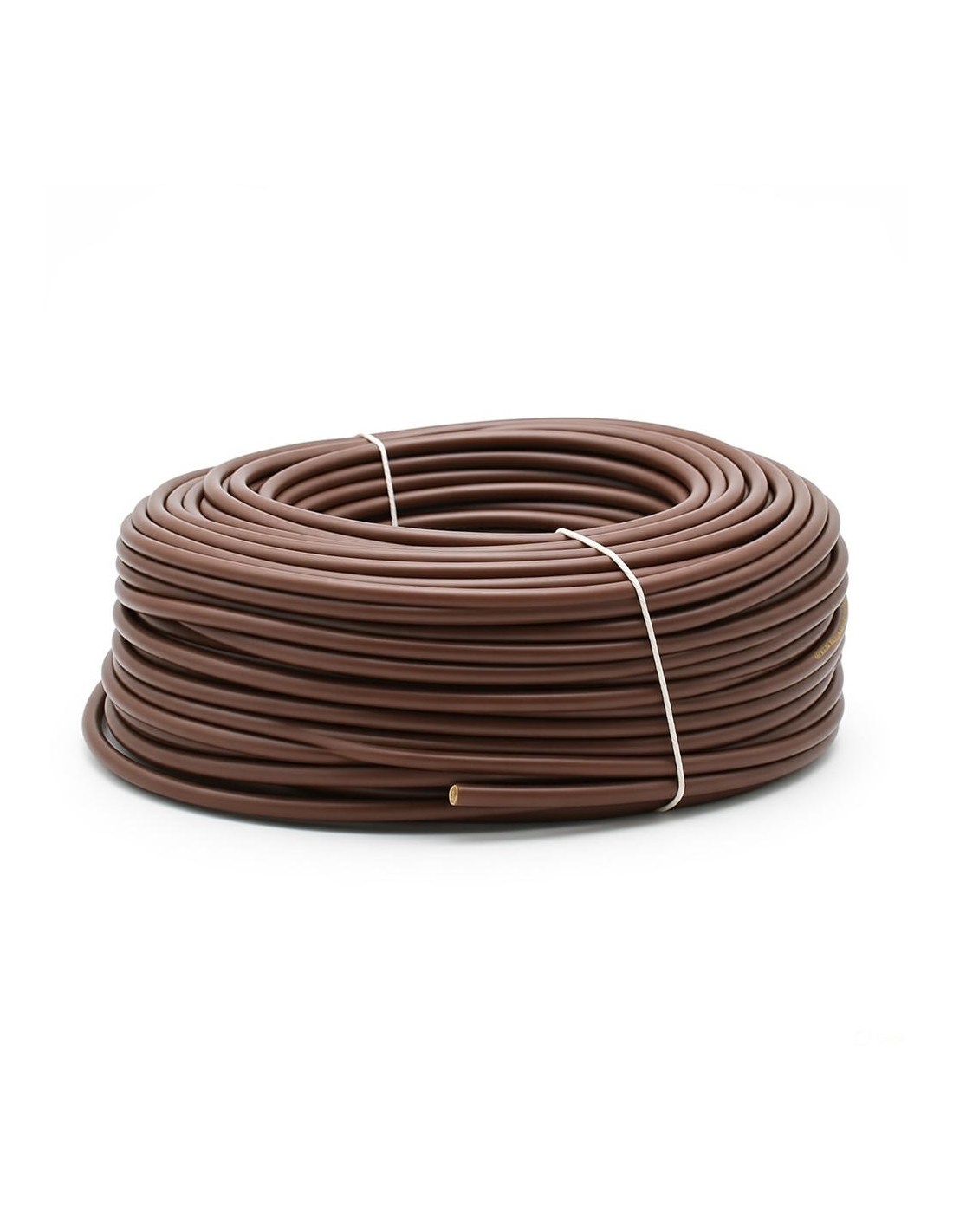

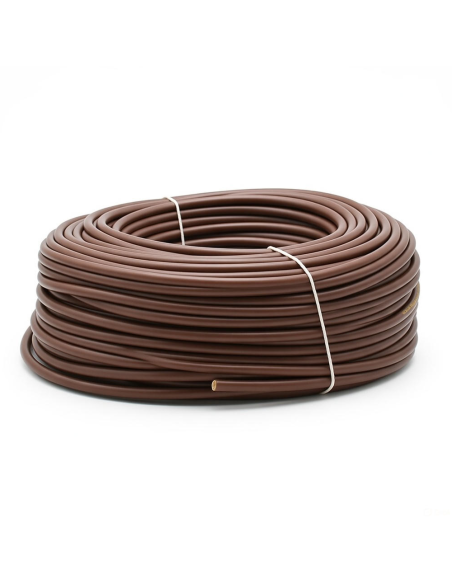

Available in hanks of 100 metres and by the metre.

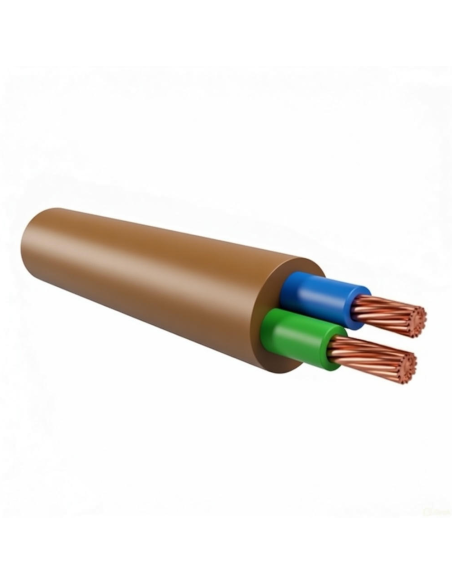

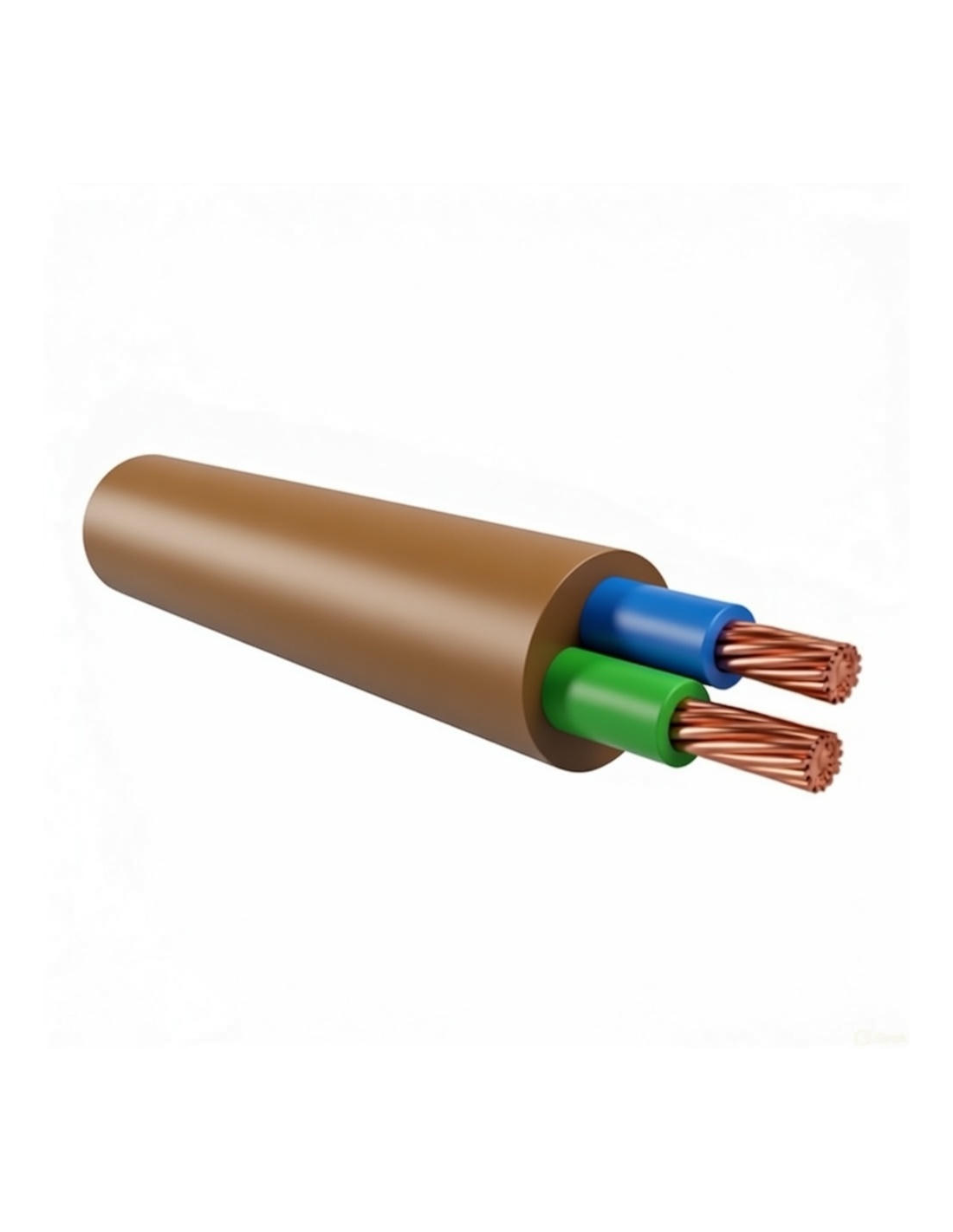

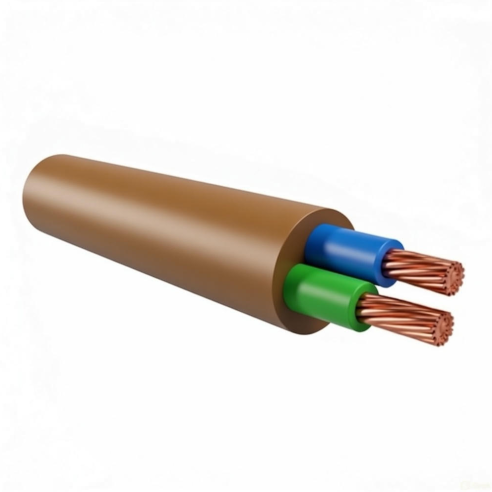

Multicore power cables, insulated with PVC of S18 quality, sheathed in PVC of R18 quality, with flexible conductors for fixed laying. Fire retardant, low halogen emission (corrosive gases). Signalling and control cable for connections to mobile equipment. Suitable for installation in places with fire hazards such as trade fairs, civil, commercial and public buildings. Can be installed indoors in normal or damp environments and temporarily outdoors. Underground installation is not permitted, even if protected.
| Number of conductors | 2 |
| Conductor material | Flexible annealed red copper rope, class 5 |
| Insulation | S18 quality PVC compound |
| Outer sheath | R18 quality PVC compound |
| Rated voltage | 450/750V |
| Operating temperature: | -15°C ~ 70°C |
| Minimum installation temperature: | 0°C |
| Maximum short-circuit temperature: | 160°C |
| Maximum tractive effort: | 50 N/mm2 |
| Colour of outer sheath | Brown |
| Conductor diameter | 1.9 mm |
| Average insulation thickness | 0.5 mm |
| Average sheath thickness | 1.0 mm |
| Outer diameter | 6.9 mm |
| Regulations | CPR (EU) No. 305/11 Cca - s3, d1, a3; CEI UNEL 35720; CEI EN 60332-1-2; 2014/35/EU; 2011/65/EC |
| Manufacturer | According to stock availability. Main suppliers: La Triveneta, Prysmian, Baldassarri Cavi. |
