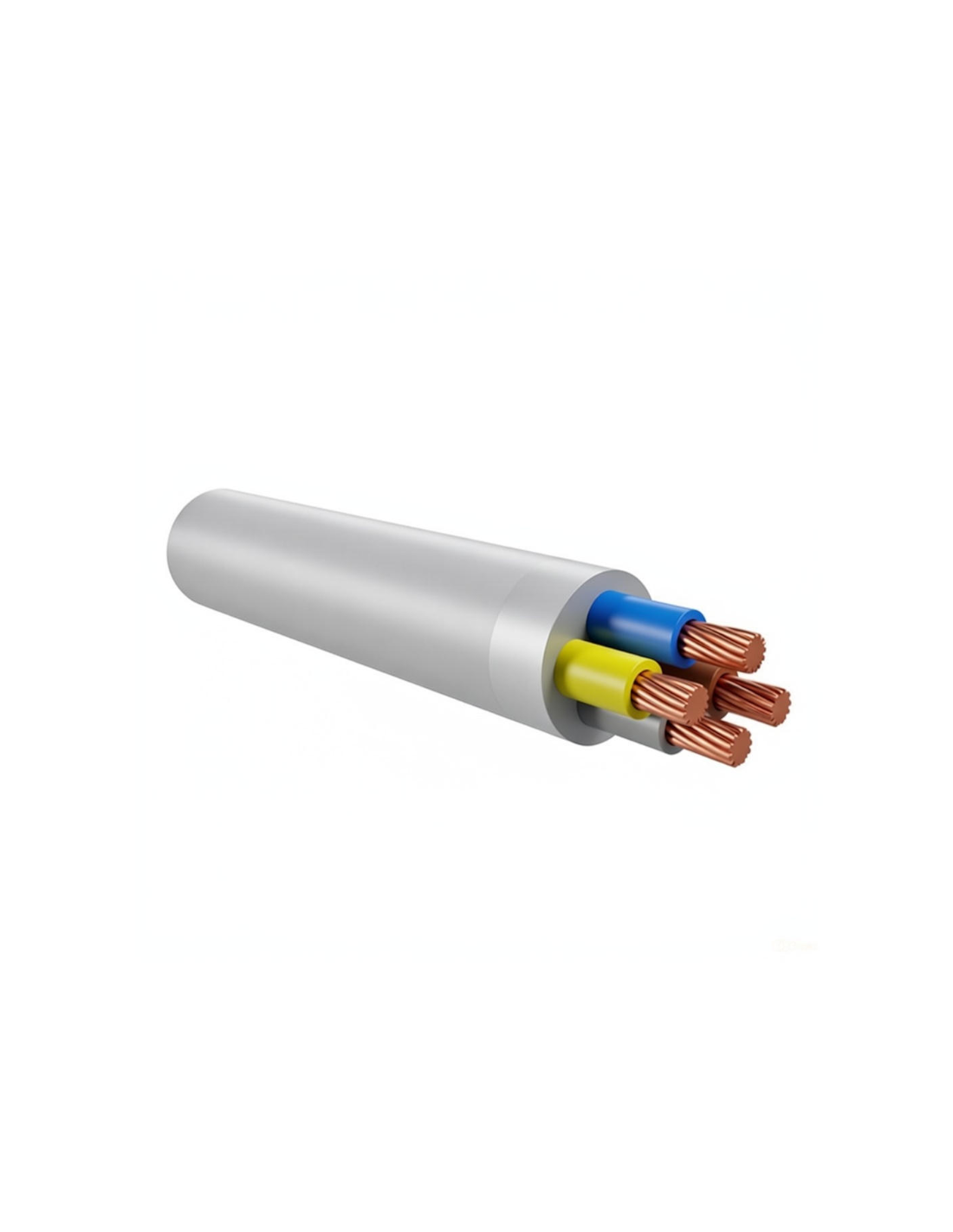

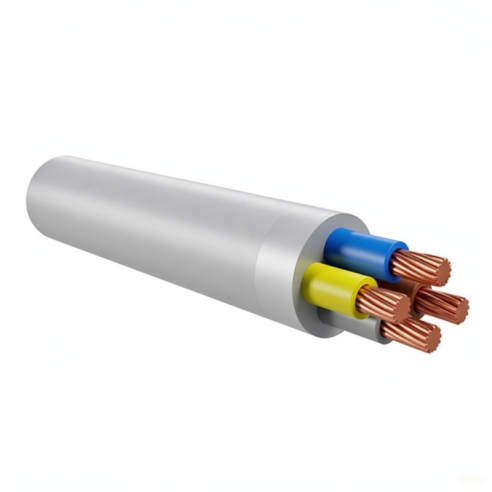

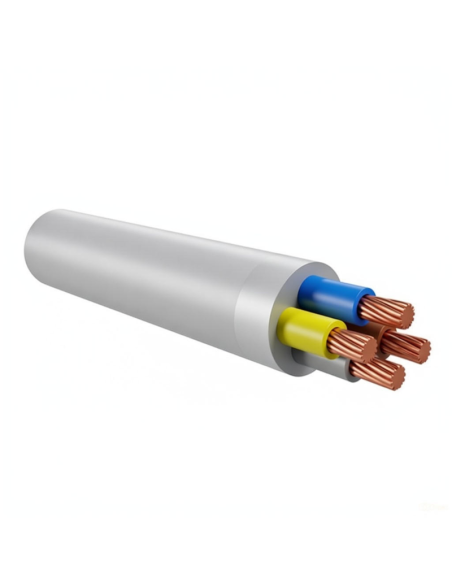

Cable H03VVF 4G0.5, cross-section 4x0.5 mm2, 4 conductors, 300/300V, CPR, white
Cable H03VVF 4G0.5, cross-section 4x0.5 mm2, 4 conductors, 300/300V, CPR, white

Cable H03VVF 4G0.5, cross-section 4x0.5 mm2, 4 conductors, 300/300V, CPR, white

62.501.3128060
17 Items
€94.80
VAT included

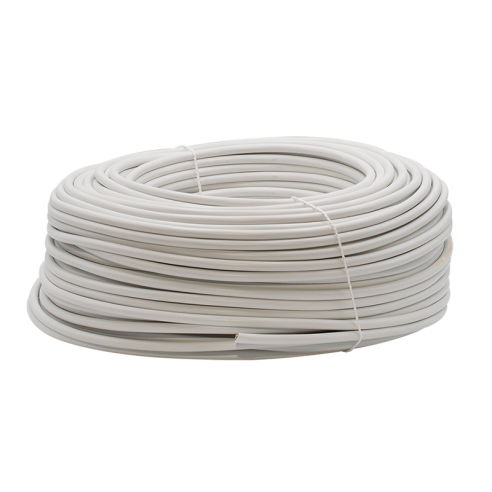

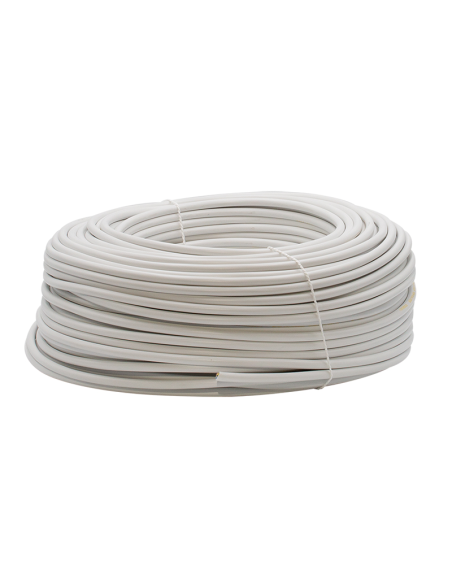

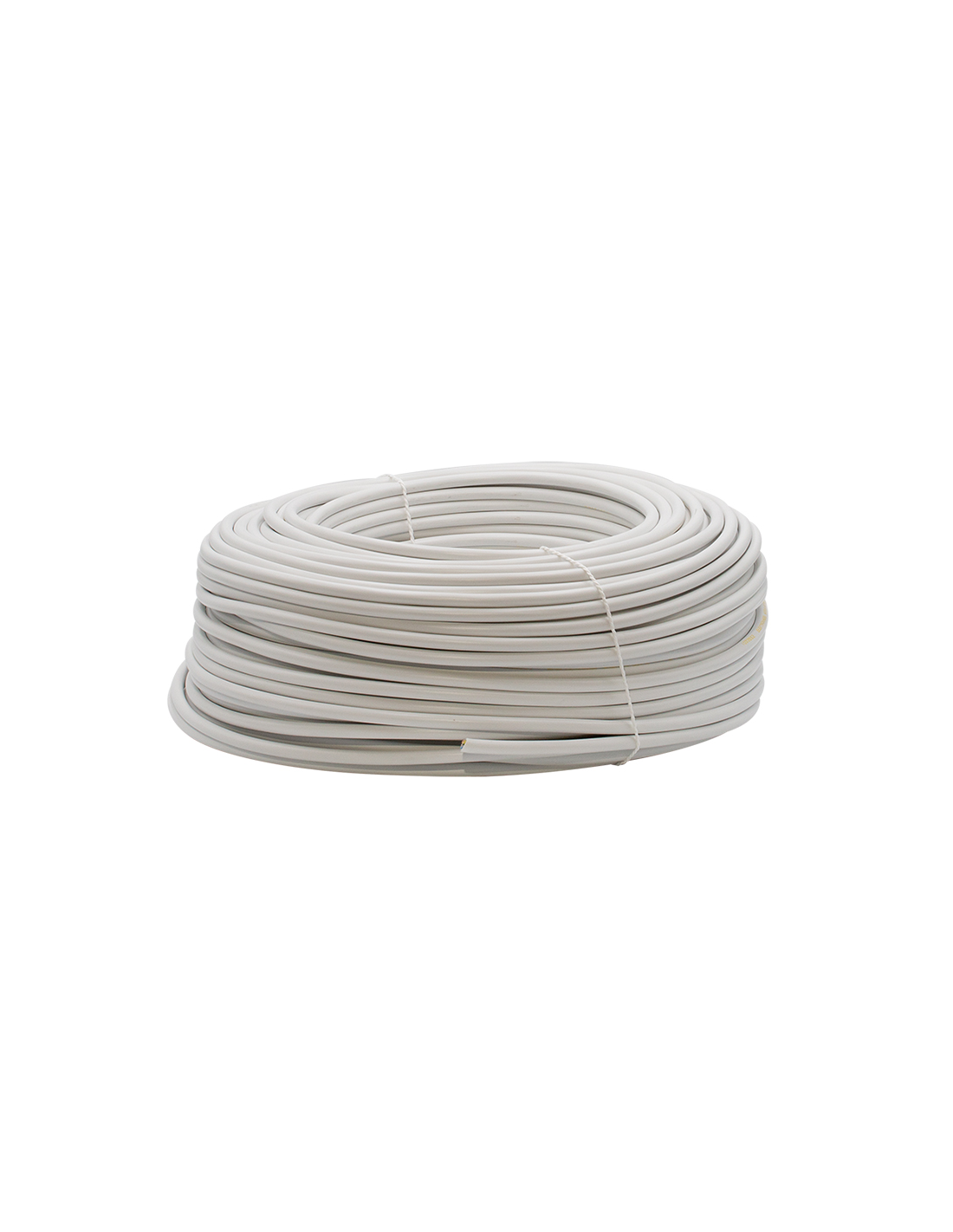

Available in hanks of 100 metres and by the metre.

Flexible PVC-insulated power cables, under lightweight PVC sheathing. For mobile laying. Use in domestic and office premises, for light-duty applications and appliances (e.g. stereo sets, table and standard lamps, office machines).


Packaging

Description

Number of conductors2
Conductor materialFlexible annealed red copper rope, class 5
InsulationTI2 quality PVC compound
Outer sheathTM2 quality PVC compound
Rated voltage300/300V
Maximum operating temperature:60°C
Minimum installation temperature:5°C
Maximum short-circuit temperature:150°C
Maximum tractive effort:15 N/mm2
Colour of outer sheathWhite
Conductor diameter0.9 mm
Average insulation thickness0.5 mm
Average sheath thickness0.6 mm
Outer diameter6.9 mm
RegulationsCPR (EU) No. 305/11, EN 50525-2-11 - CEI 20-107/2-11, 2014/35/EU, 2011/65/EC
ManufacturerAccording to stock availability. Main suppliers: La Triveneta, Prysmian, Baldassarri Cavi.

Product Details

Cable type
H03VV-F
Colour
White
Section (mmq)
4x0,5
