Name: HDMI 1.4 Matrix with 4 inputs and 2 outputs, 4K UHD, 3D, Deep Colour 12 bit and analogue audio output - Techly 309883
Brand: Techly
SKU: 27.005.0040003
Price: 120.79 EUR
Availability: InStock

SKU 27.005.0040003

In stock 4 Items

€120.79

VAT included

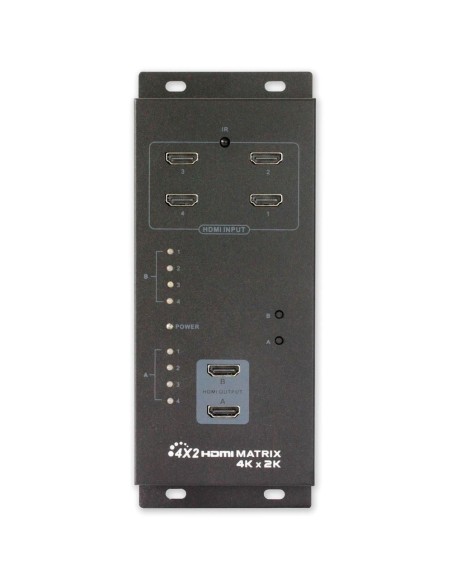

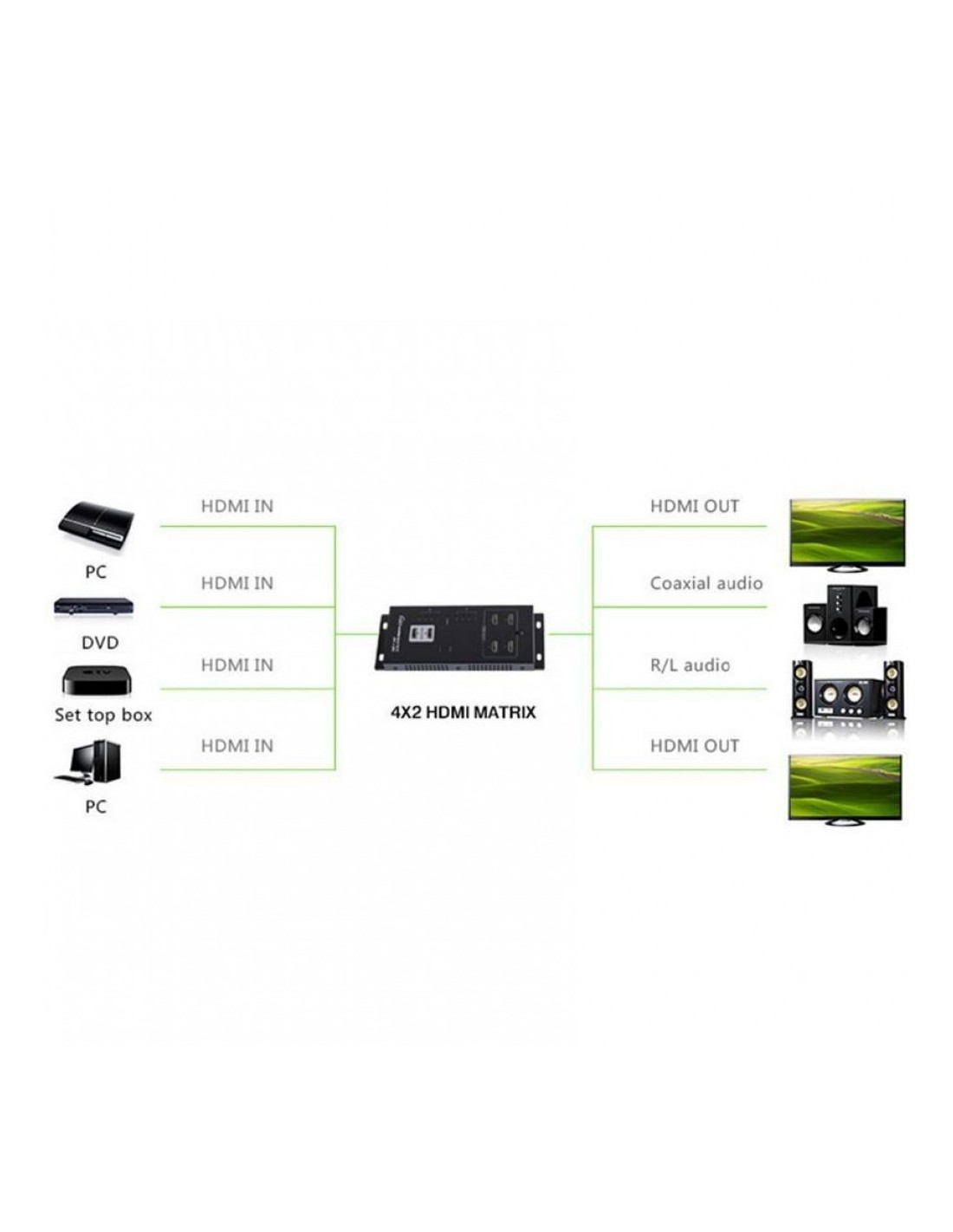

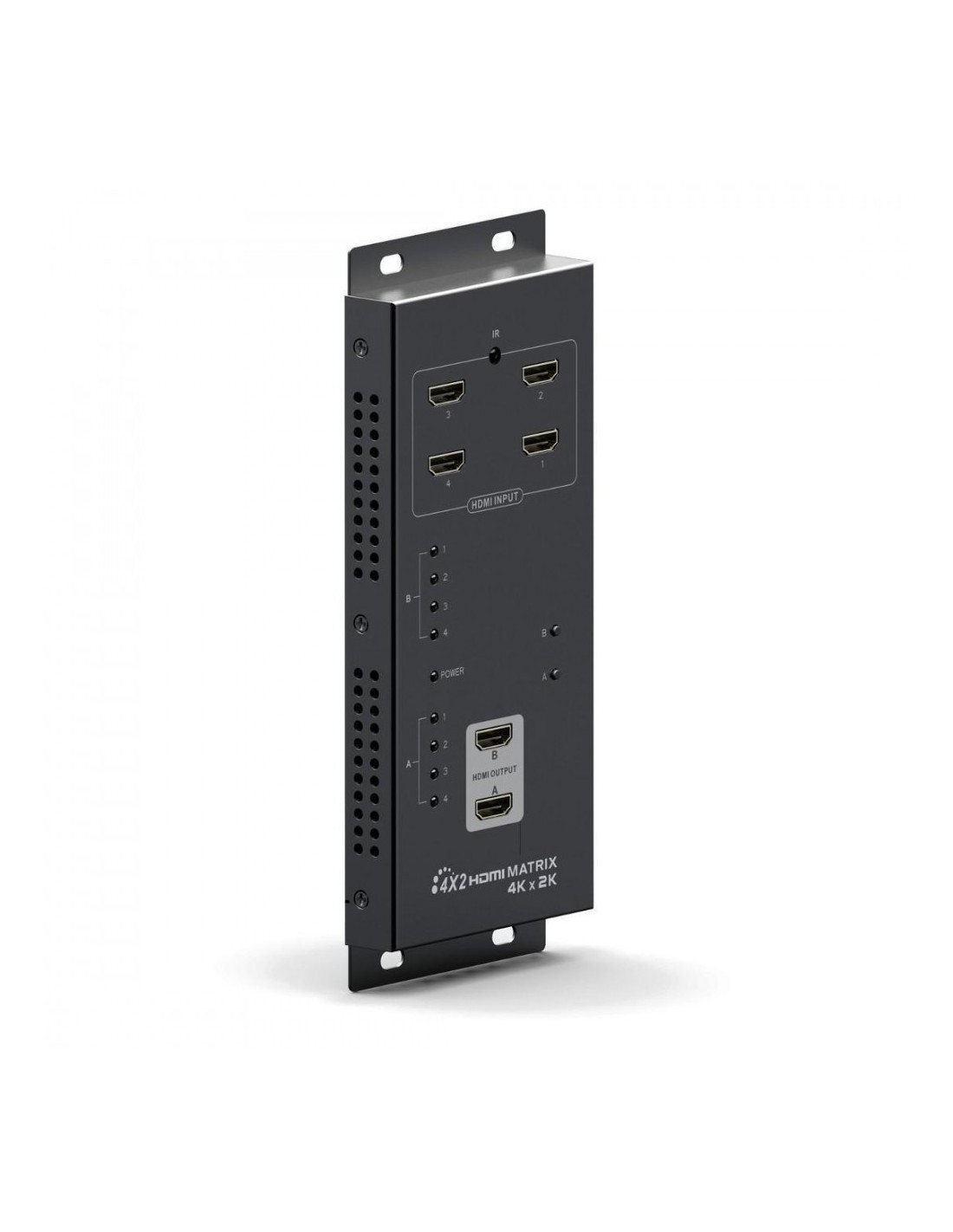

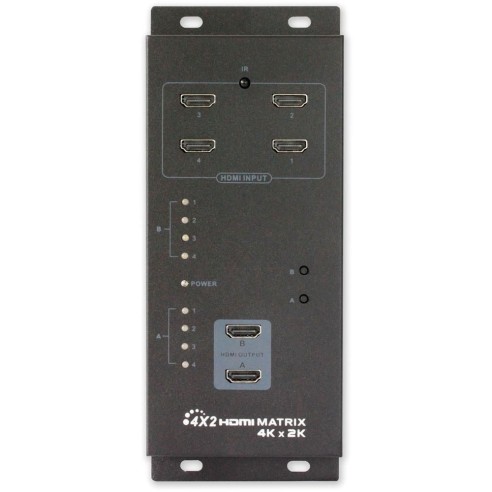

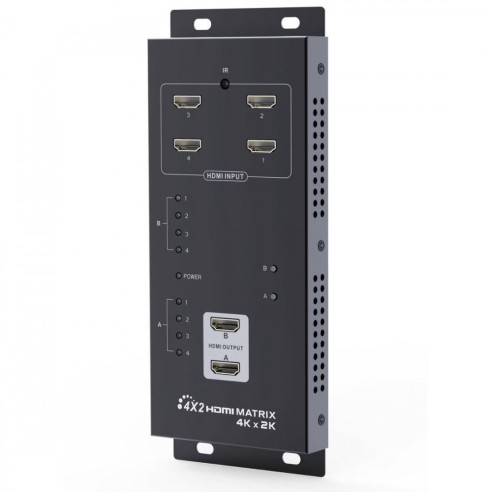

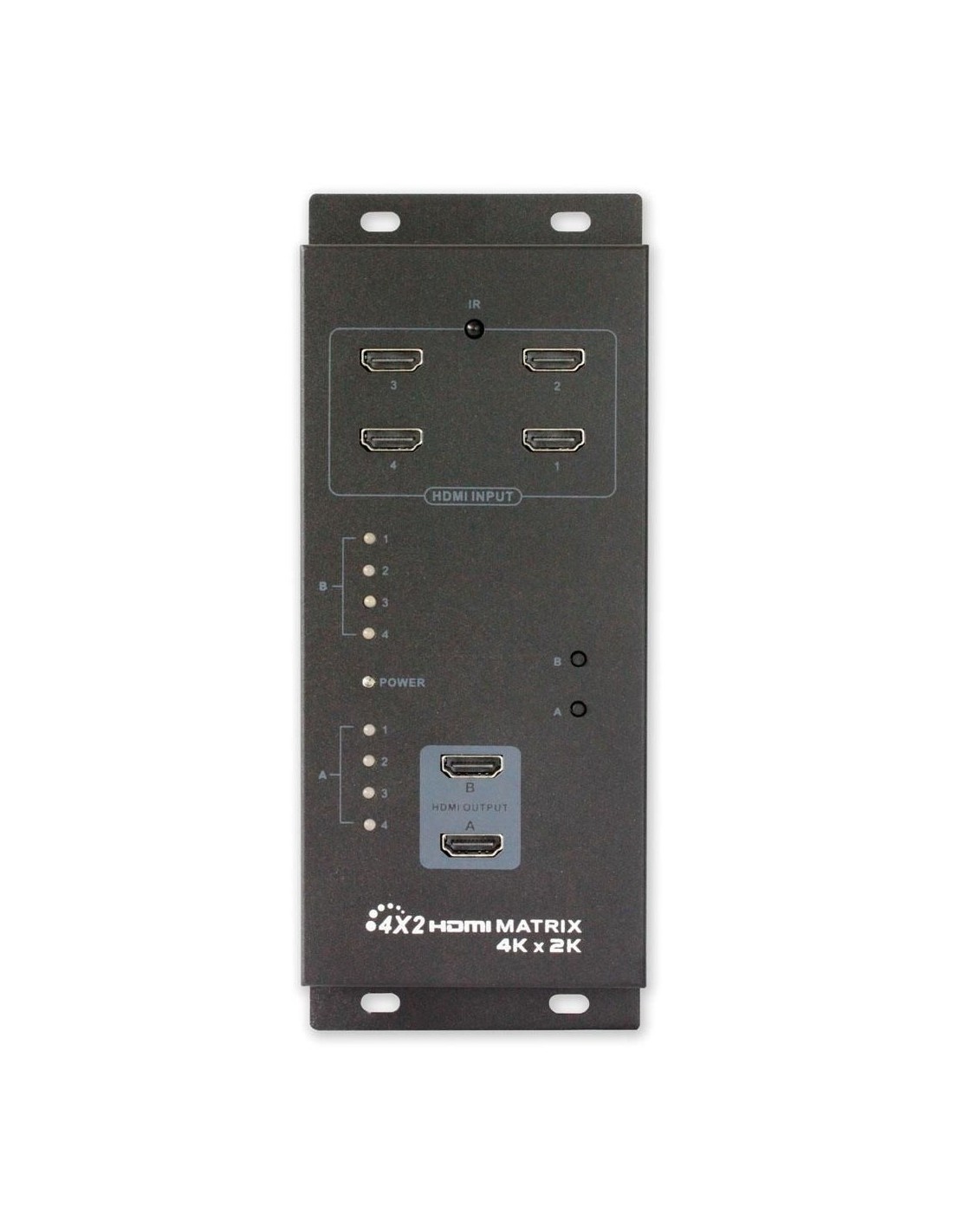

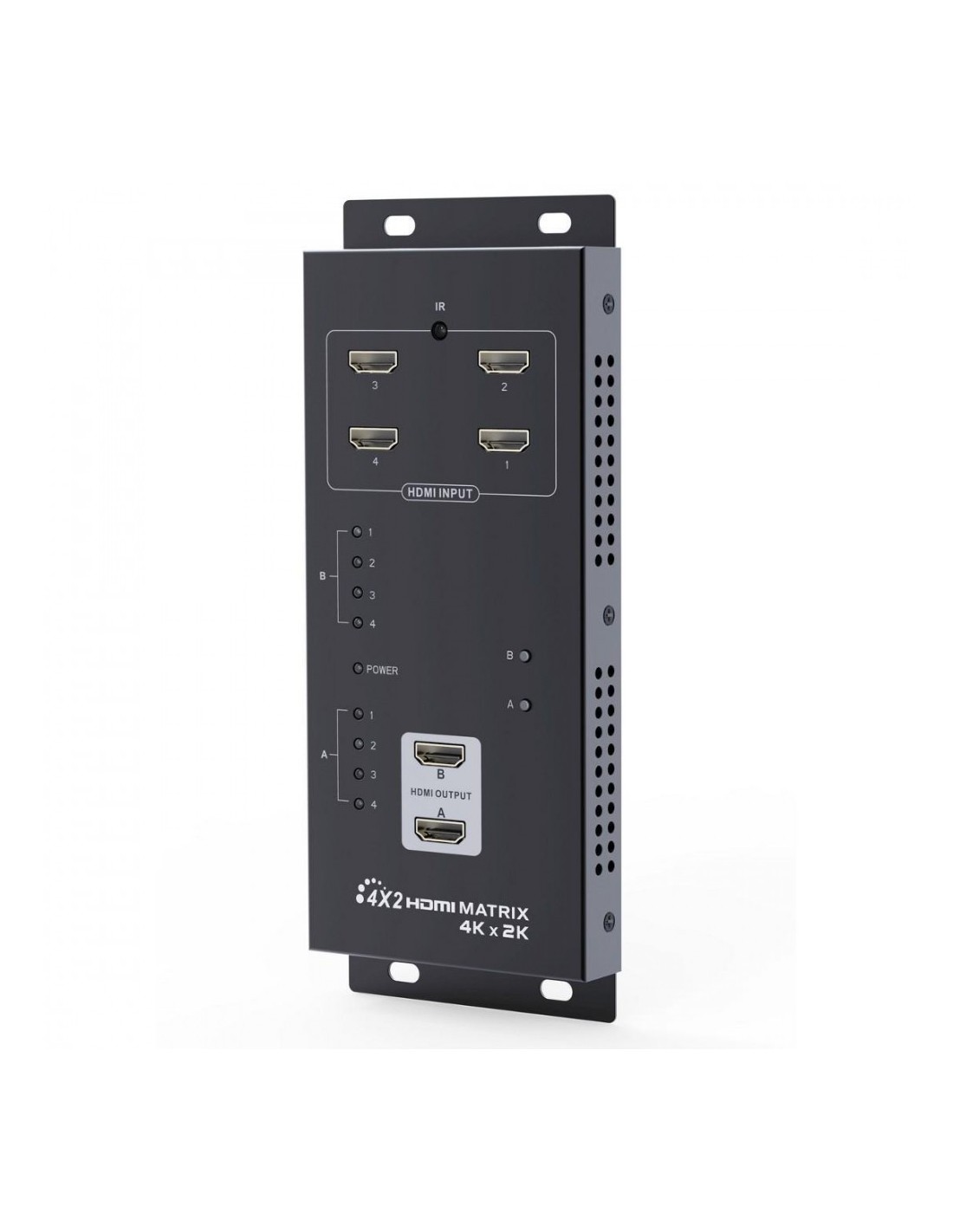

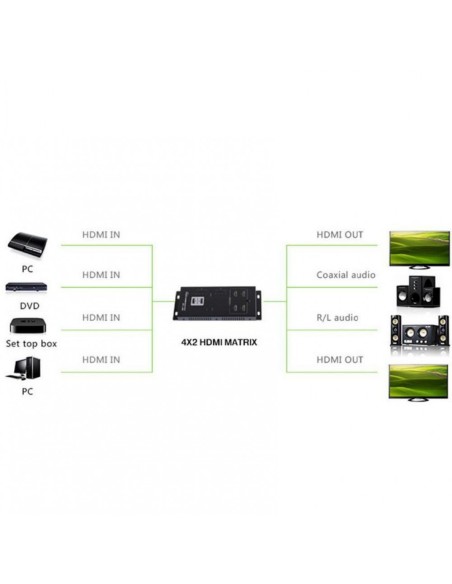

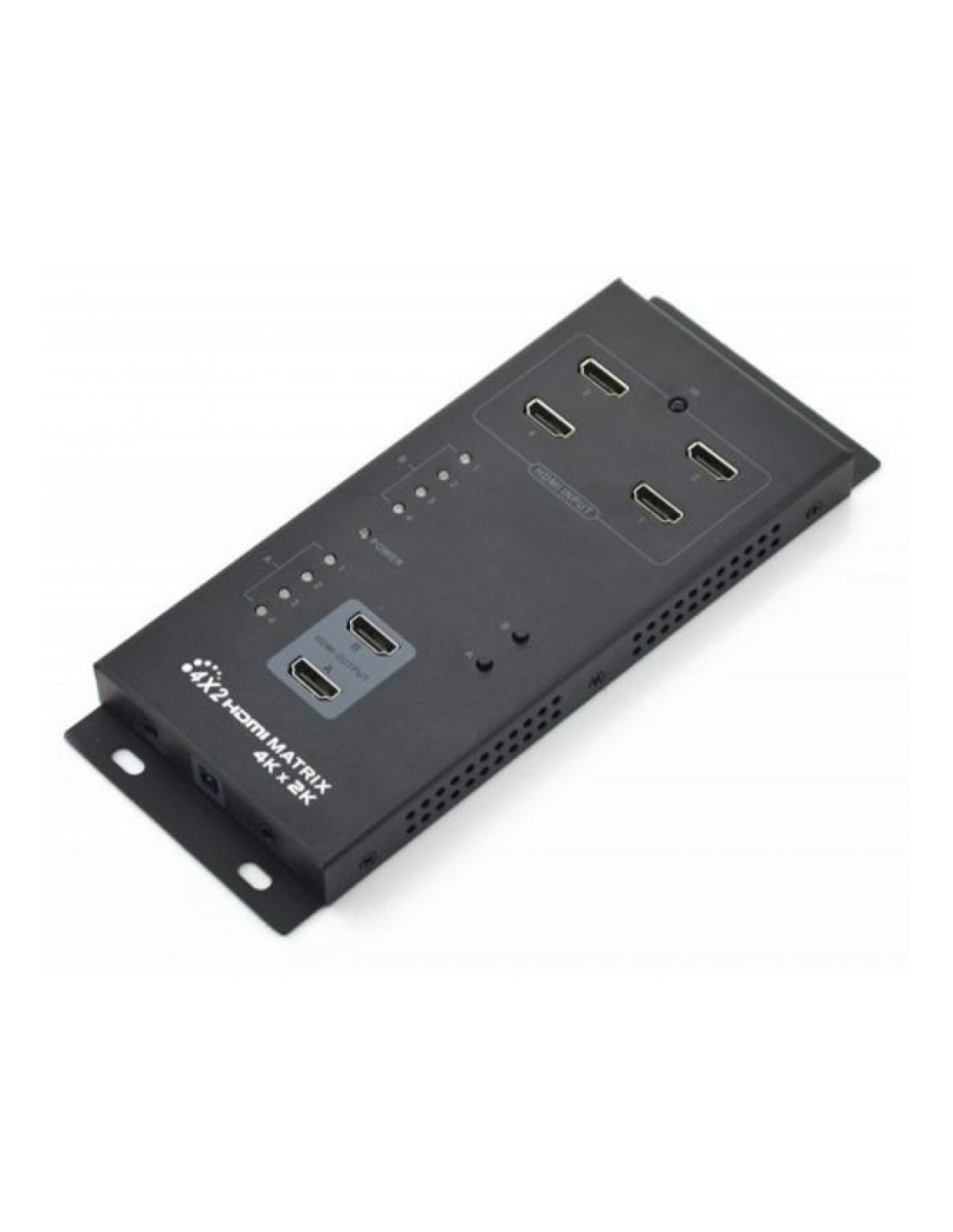

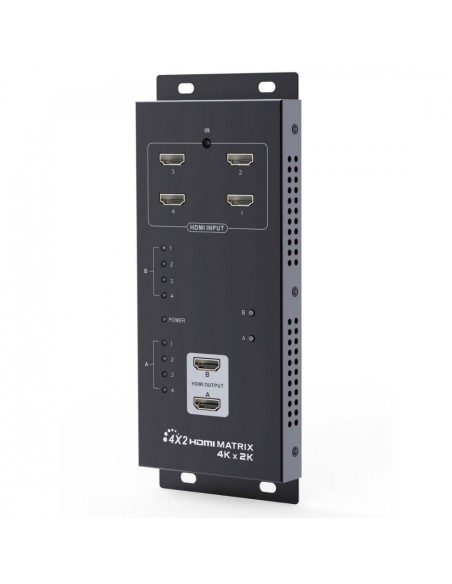

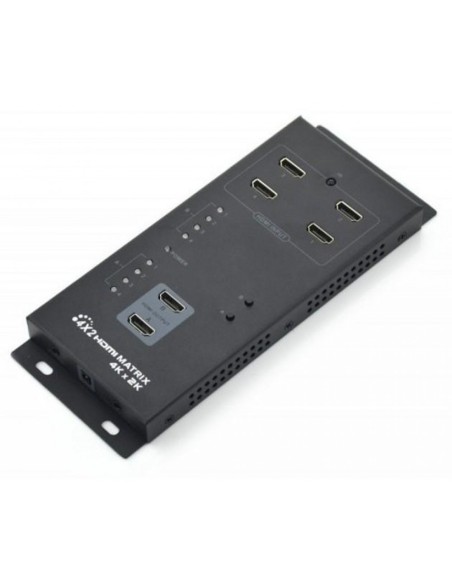

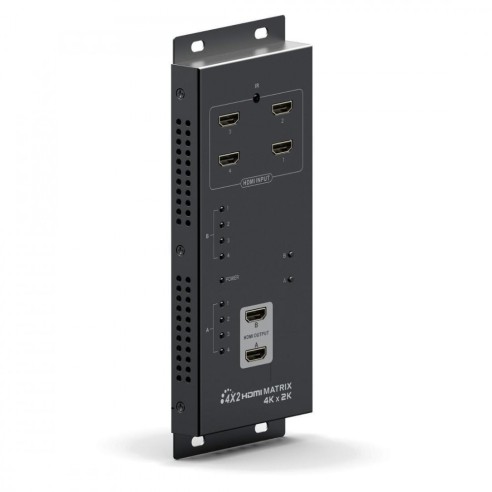

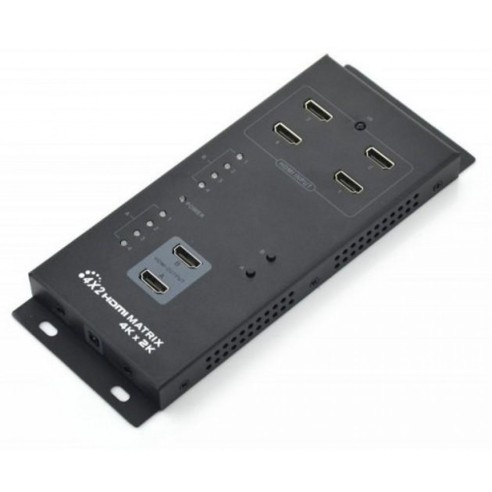

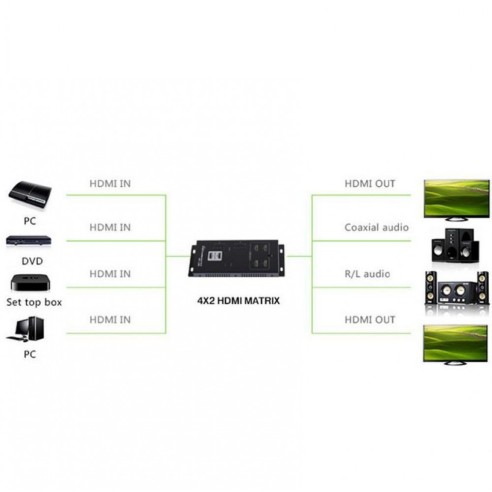

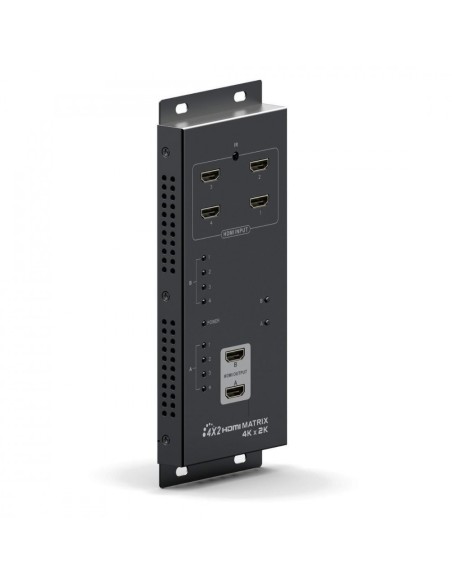

The Techly IDATA HDMI-MX42 is an HDMI 1.4 matrix with 4 inputs and 2 outputs that allows any of four sources to be displayed on one of the two connected monitors, or the same source to be shown on both displays simultaneously as a splitter. It supports 4Kx2K, Full 3D and 12-bit Deep Colour video.
Analogue R/L and digital S/PDIF audio signals can be extracted from the HDMI signal. Audio is compatible with standard, DSD (Direct Stream Digital) and HD audio (HBR) formats. The internal IR receiver amplifies the signal to ensure reliable response to the remote control. The supported frequency range is from 25 MHz to 340 MHz with HDCP compatibility.
Source switching is via IR remote control or buttons on the front panel. Ideal for home cinemas, meeting rooms and multiple monitors.

Description

HDMI version	HDMI 1.4
HDCP compatibility	HDCP Yes
Type	Matrix
Maximum resolution	1080i , 1080p, 3840 x 2160, 720p , 480p , Ultra HD 4K 2160p
Bandwidth / Speed	340 MHz
Audio Supported	Yes
3D compatible	Yes
Connectors	4x HDMI-A female (input), 2x HDMI-A female (output)
Power supply	Required (included)
Power consumption	15W
Dimensions (W x D x H)	340 MHz x 19 mm x 213 mm
Colour	Black
Certifications	CE , FCC , RoHS

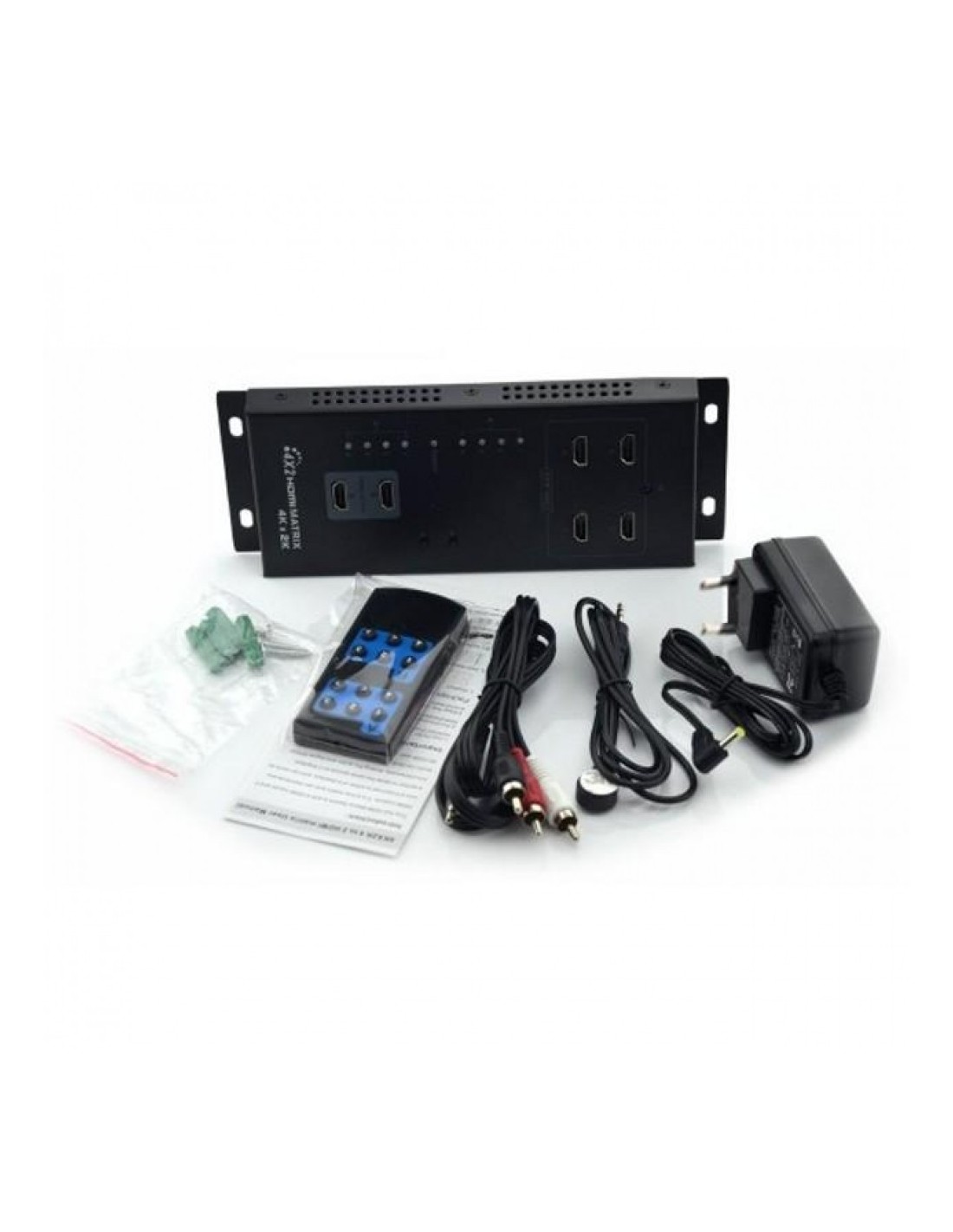

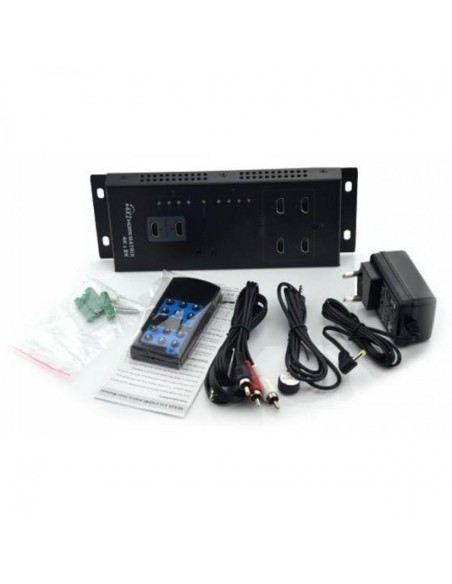

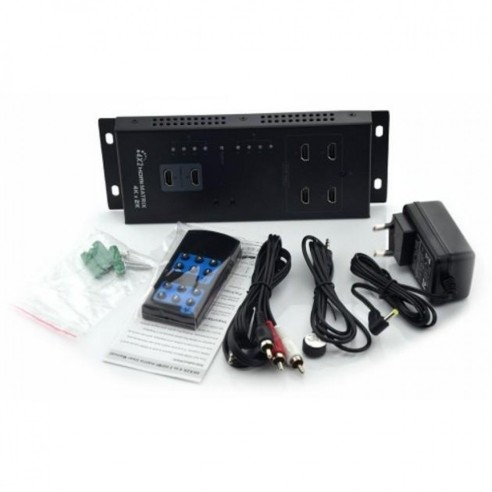

Package Contents	- IDATA HDMI-MX42 matrix - Remote control (battery included) - 5V/3A power supply - R/L audio cable + SPDIF audio cable - Wall mounting screws - IR reception extender - Instruction manual
Model	309883
Manufacturer	Techly
