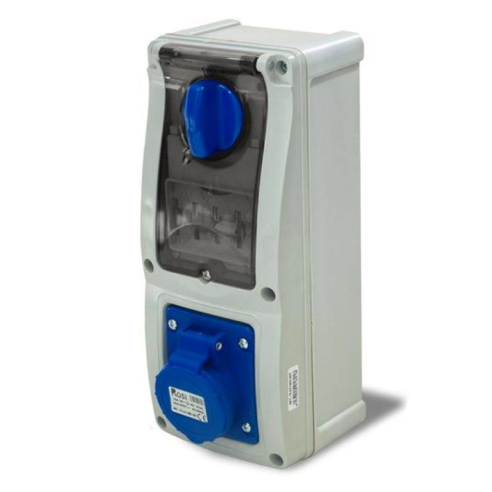

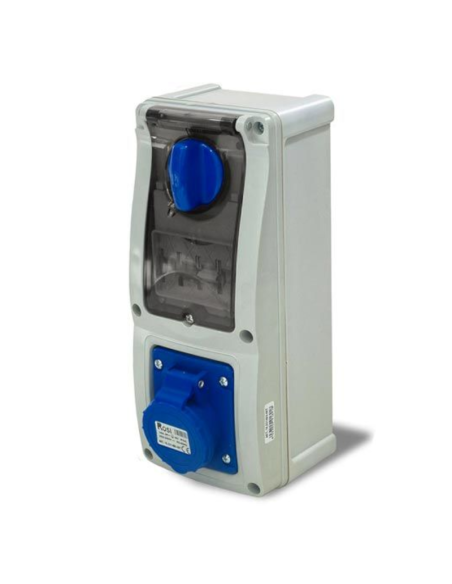

Vertical interlocked socket outlet, with base, with thermal-magnetic circuit breaker, 230V, 3 poles, 16A, IP54-Rosi 16.3214B6MT
Vertical interlocked socket outlet, with base, with thermal-magnetic circuit breaker, 230V, 3 poles, 16A, IP54-Rosi 16.3214B6MT

Vertical interlocked socket outlet, with base, with thermal-magnetic circuit breaker, 230V, 3 poles, 16A, IP54-Rosi 16.3214B6MT

61.402.0450012
14 Items
€67.90
VAT included
The thermal-magnetic circuit breaker is operated and reset directly via the external knob without the need to open the door or covers.

Description

Commercial seriesSeries 16 IEC 309 IP54
Number of poles2P+E
Current16 A
Voltage200 ~ 250 Vac
Thermal-magnetic circuit breakerCurve C, 6kA
IP RatingIP54
IK Rating8
Operating temperature-25°C ~ +70°C
Glow wire+650 / +850 °C
MaterialAbs, nylon, rubber

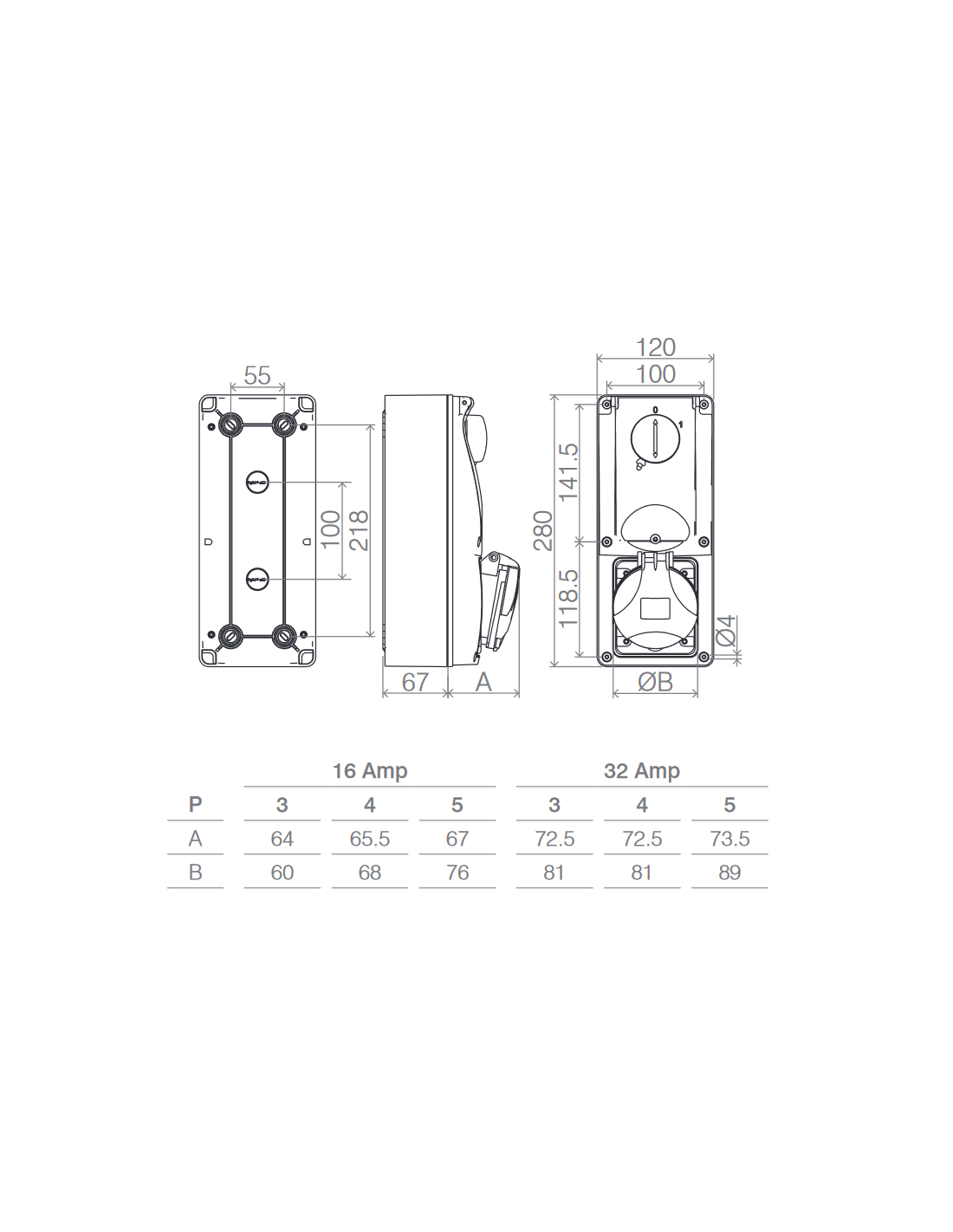

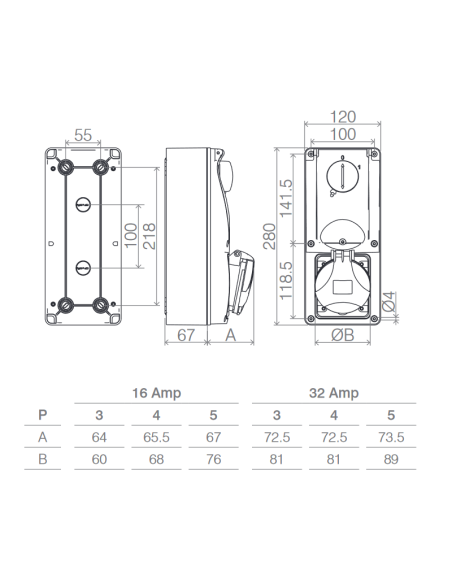

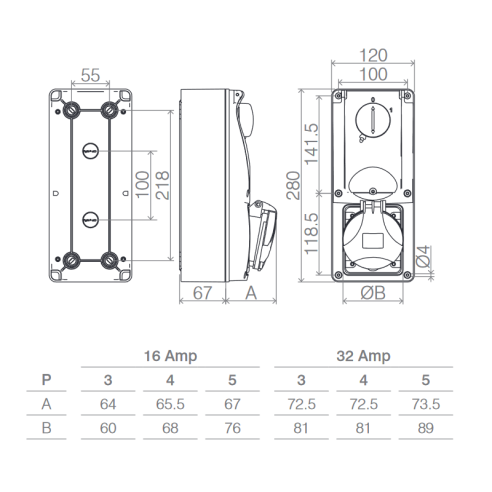

Dimensions28 x 12 x 14 cm
Weight0.91 kg
EAN8033509916925
Model16.3214B6MT
ManufacturerRosi srl

Product Details

Brand
Rosi
Mounting
Wall mounting
Voltage
200 ~ 250 Vac
Number of poles
3 poles
Corrente
16 A
Protection devices
Switch magnetermic
Accessories
No
IP Rating
IP54
