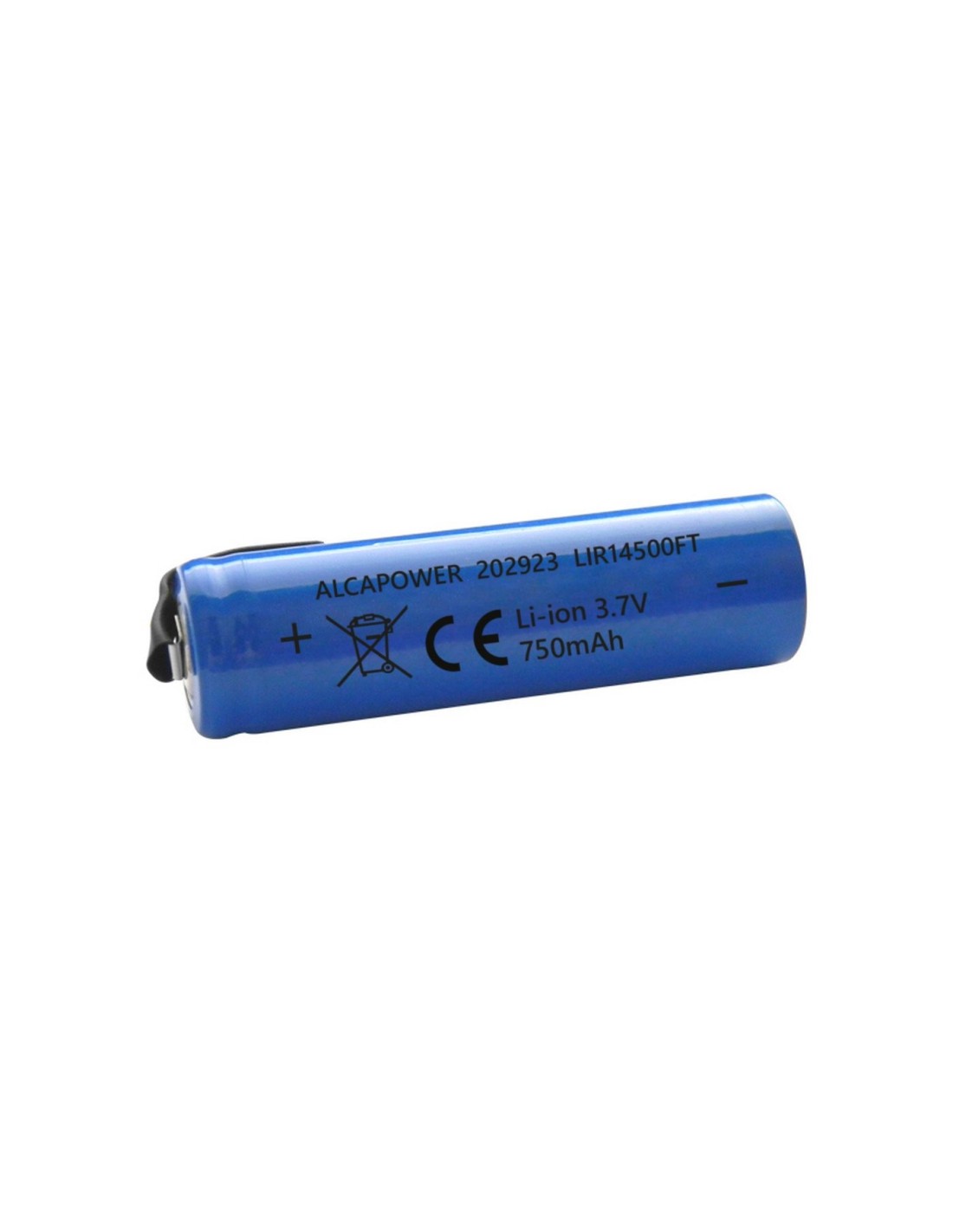

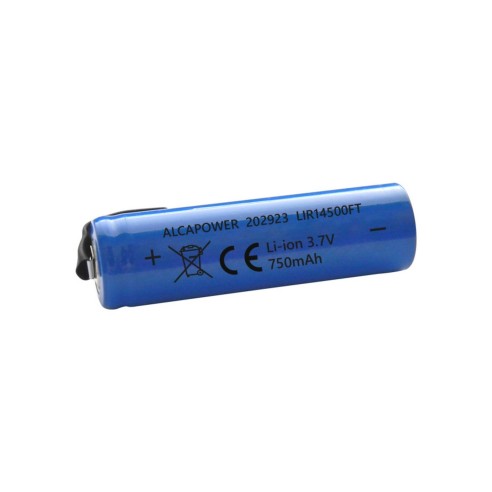

Rechargeable Li-ion 14500 3.7V 750mAh battery with soldering tabs - Alcapower LIR14500FT

Name: Rechargeable Li-ion 14500 3.7V 750mAh battery with soldering tabs - Alcapower LIR14500FT
Brand: Alcapower
SKU: 01.012.2104300
Price: 5.4 EUR
Availability: InStock

SKU 01.012.2104300

In stock 4 Items

€5.40

VAT included

The Alcapower LIR14500FT rechargeable Li-ion battery in 14500 format is designed for applications requiring high energy density in a compact size.
It provides a typical capacity of 750 mAh (minimum 700 mAh) and nominal voltage of 3.7 V, with soldering tab terminals for easy integration into custom battery packs.
Dimensions are 51 ± 0.5 mm height and 14 ± 0.5 mm diameter, with an approximate weight of 18 g.
Supports standard charging at 0.2C (about 4 hours) and fast at 1C (about 2.5 hours), maximum continuous discharge of 1.5C and pulse up to 2C.
LiCoO₂ chemistry ensures good performance, but no built-in protection circuit is present: strong recommendation to use an external BMS for safe operation.
Charge temperature 0 to 45 °C, discharge -10 to 60 °C, ideal for LED flashlights, portable electronics, sensors, and DIY projects.
Reliable product compliant with European quality standards.

Quantity	Unit price	You Save
10	€4.86	€5.40
40	€4.32	€43.20

Description

Chemical composition	LiCoO₂
Capacity	750 mAh (typical) / 700 mAh (minimum)
Nominal voltage	3.7 V
End-of-charge voltage	4.2 ± 0.03 V
End-of-discharge voltage	3.0 V
Internal resistance	≤ 65 mΩ (AC 1 kHz at 50% SOC)
Max continuous charge current	1C (750 mA)
Max continuous discharge current	1.5C (1125 mA)
Max pulse discharge current	2C (1500 mA)
Charge temperature	0 ~ 45 °C
Discharge temperature	-10 ~ 60 °C
Dimensions	51 ± 0.5 × 14 ± 0.5 mm
Weight	approx. 18 g
Terminals	Soldering tabs
Protection circuit	Not present (external BMS recommended)
Product code	202923
Model	LIR14500FT
Manufacturer	Alcapower
