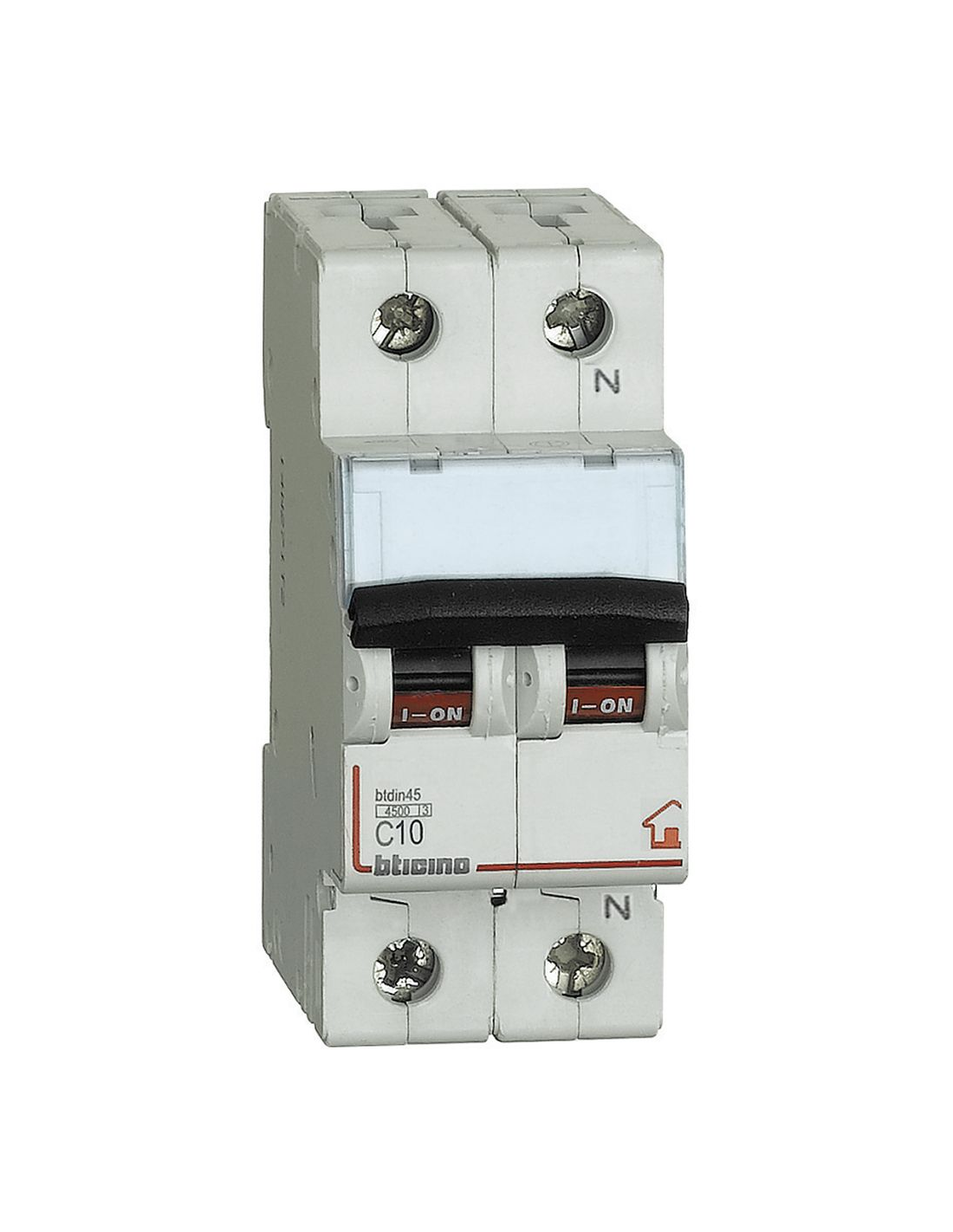

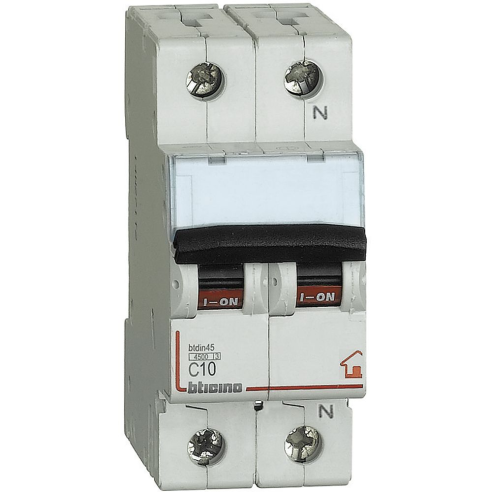

Miniature circuit breaker 1P+N, 2 modules, 230Vac, 10A, C curve, 4.5kA - BTicino BTDIN-RS FC810NC10

Name: Miniature circuit breaker 1P+N, 2 modules, 230Vac, 10A, C curve, 4.5kA - BTicino BTDIN-RS FC810NC10
Brand: BTicino
SKU: 61.471.1610019
Price: 9.04 EUR
Availability: InStock

SKU 61.471.1610019

In stock 1 Item

Last items in stock

€9.04

VAT included

BTDIN-RS modular MCB 1P+N C curve for overload/short-circuit protection in residential/tertiary installations. Rated current 10A, breaking capacity 4.5kA (Icn), voltage 230Vac, 2 DIN modules. Neutral right, positive contact indication. IP20 degree, DIN rail mount. Dimensions: 83x35.6x76 mm. Max cable section 25/35 mm². Compliant CEI EN 60898-1, EU directives 2014/35/EU (LVD), 2014/30/EU (EMC). IMQ certified.

Description

Reference Standard	CEI EN 60898-1
Rated Voltage	230 Vac
Rated Current In	10A
Breaking Capacity Icn	4.5 kA
Trip Curve	C
Modules	2
Poles	1P+N
Protection Degree	IP20
Height	83 mm
Width	35.6 mm
Depth	76 mm
Max Cable Section	25/35 mm²
Product Code	FC810NC10
Model	BTDIN-RS
Manufacturer	BTicino
