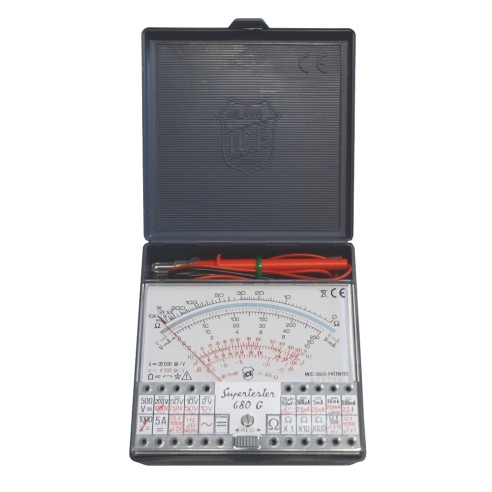

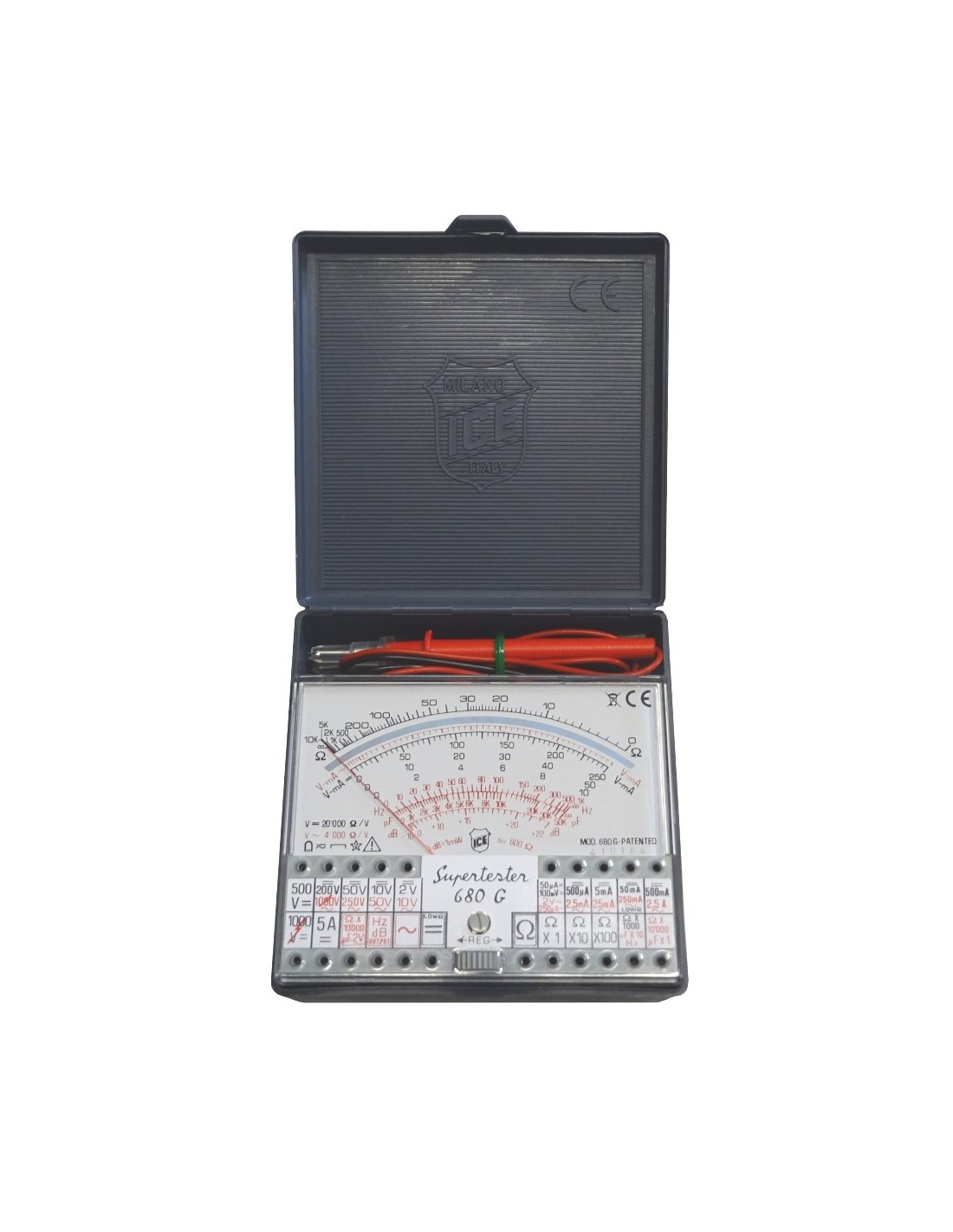

ICE 680G analogue multimeter

Name: ICE 680G analogue multimeter
Brand: ICE
SKU: 40.001.0012000
Price: 100.4 EUR
Availability: InStock

SKU 40.001.0012000

In stock 18 Items

€100.40

VAT included

Functions: DC voltage, AC voltage, DC current, AC current, resistance, capacitance, decibel, frequency, diode and transistor test

The ICE Analogue Multimeter mod. 680G is a pocket-sized instrument that, like the larger models, guarantees high accuracy.
The tips are housed in a special compartment in the classic ICE instrument box shell.
Features:
- Small size (pocket-size)
- High accuracy (2% DC/AC - Ω)
- Large selection of accessories for analogue measurements
- Tips with ultra-soft, heat-resistant silicone cable
- Complies with IEC 1010 CAT. II 750V AC - 1000V DC

Description

Sensitivity	20 kΩ/V DC - 4 kΩ/V AC
Volt-Ampere DC	±2%
Volt-Amp AC	±2%
Ohm	±2% of the angular width of the scale
Volt DC	100 mV - 2V - 10V - 50V - 200V - 500V - 1000V
Ampere DC	50 μA - 500 μA - 5 mA - 50 mA - 500 mA - 5 A
Volts AC	2V - 10V - 50V - 250V - 1000V (2500 V with ferrule mod.19)
AC amps	250 μA - 2.5 mA - 25 mA - 250 mA - 2.5A
Ohm	Ωx1 - Ωx10 - Ωx100 - Ωx1000 - Ωx10000 with mains power supply
Capacity	0-500000 pF with mains power supply, 0-20000 μF with internal battery power supply 1.5V (ballistic method measurement)
Decibel	range in four ranges ( -10 + 62 dB)
Frequency	0-5000 Hz with mains supply
Functions	diode and transistor testing
Protections	galvanometer with silicon diodes, Ω measurement with fuse
Power supply	1.5V battery type R14P
Dimensions	105 x 83 x 32 mm
Weight	250 g
Accessories included	pair of test leads, spare fuse, shockproof case, instruction manual
Model	A1 680G
Brand	ICE

Product Details

Brand: ICE
Functions: AC current
AC voltage
Capacity
Continuity test
DC current
DC voltage
Decibel
Diode test
Frequency
Resistance
Transistor test
Type of instrument: Analog
