Name: Solid-state slim relay, 60Vdc, SPST-NO, 0.1 A, switching voltage 48Vdc, 34.81 series - Finder 34.81.7.060.7048
Brand: Finder
SKU: 52.130.7105002
Price: 23.9 EUR
Availability: InStock

SKU 52.130.7105002

In stock 6 Items

€23.90

VAT included

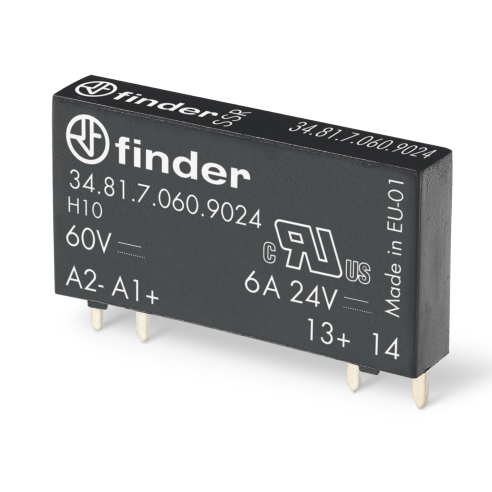

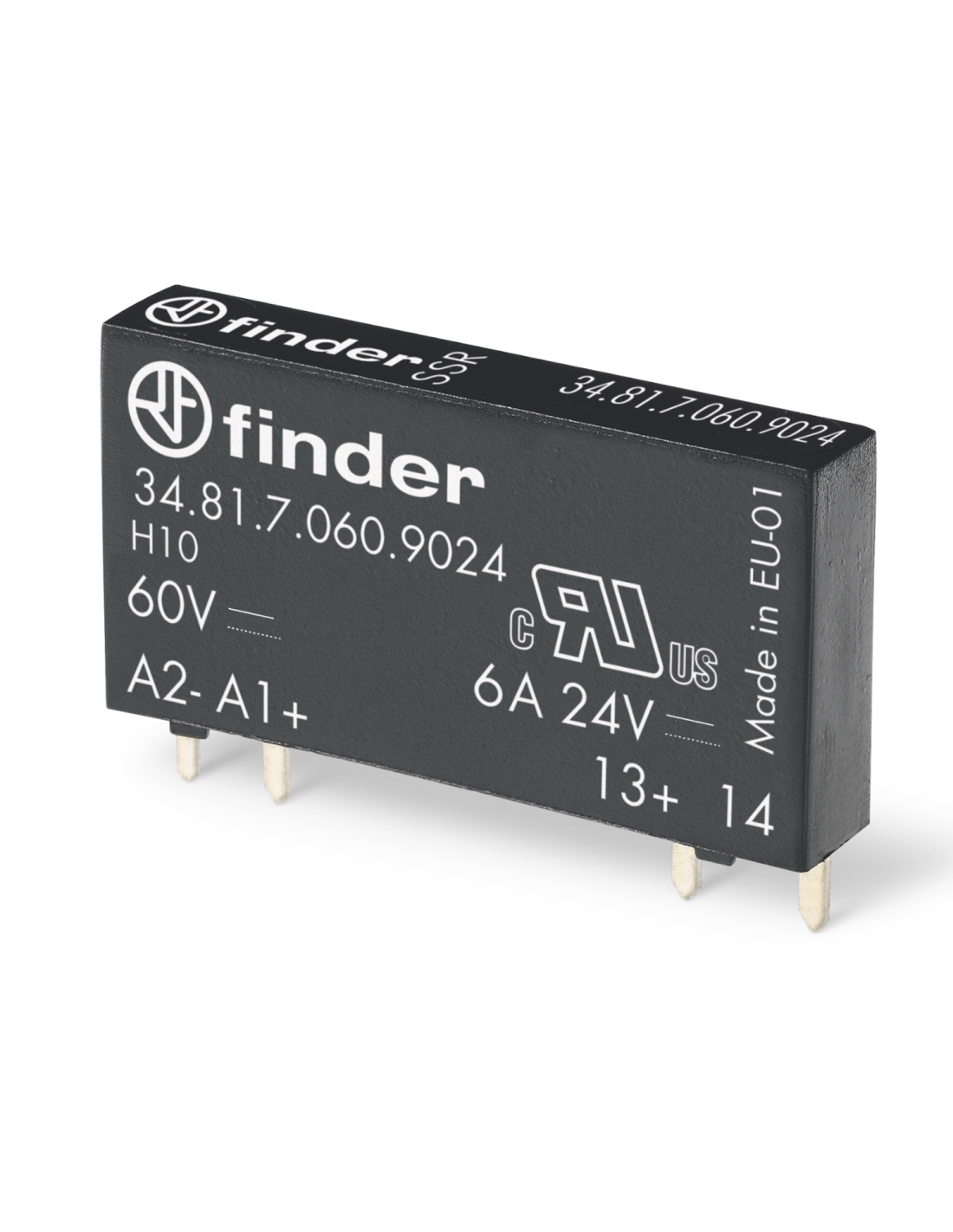

Solid State Relay (SSR) for PCB or 93 series sockets.
Quiet, high switching speed and long electrical life, ultra-slim.

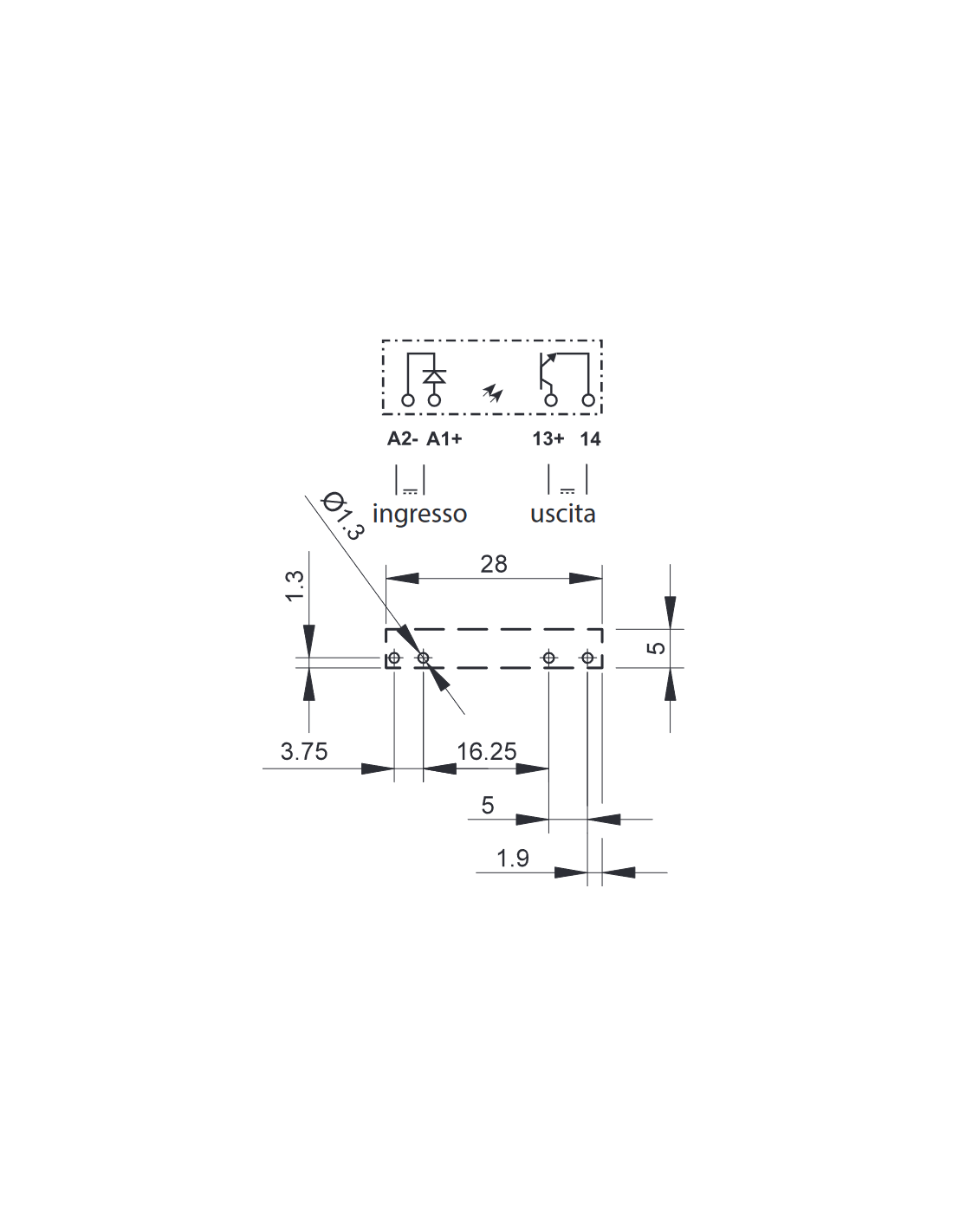

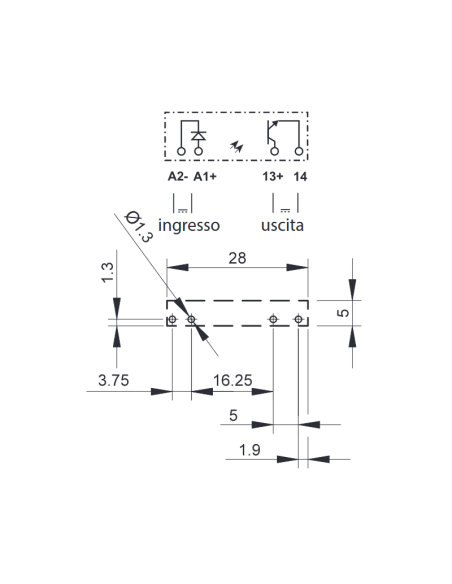

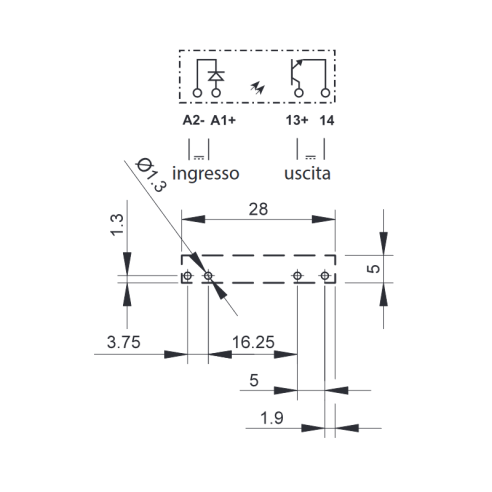

Suitable for PCB mounting.

Features:
- PCB mounting (direct or on PCB sockets) or 35 mm rail mounting (EN 60715) on sockets with socket, spring or push-in terminals;
- Single output circuit 0.1 A, 48 V DC;
- Noiseless, high switching speed and electrical life;

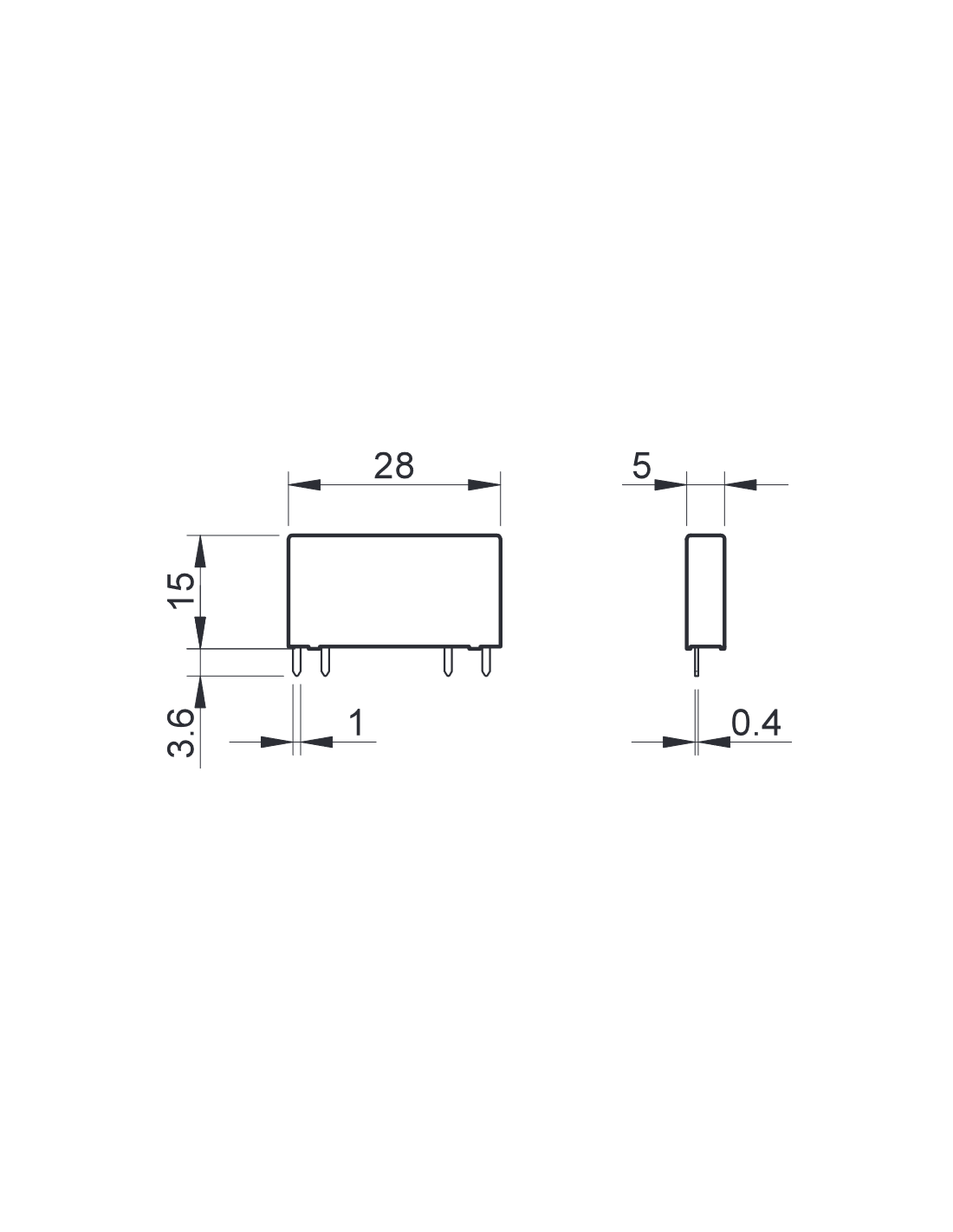

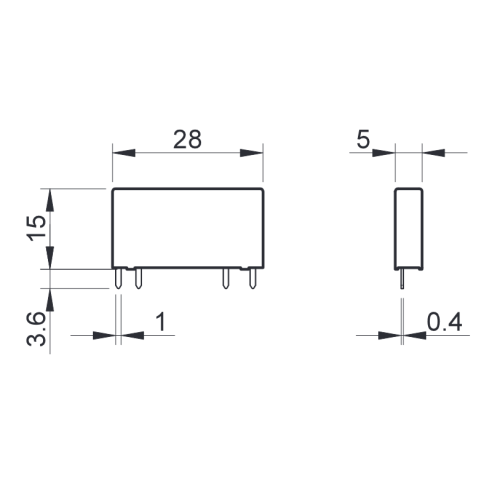

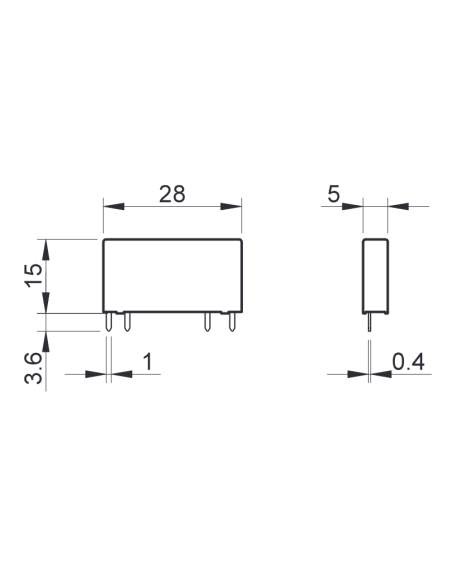

- Ultra slim, 5 mm wide;
- Sensitive DC coil, input circuit (AC/DC power supply possible using 93 series sockets);
- UL Listing (relay/socket combination);
- Washable: RT III;
- Input-to-output isolation 3000 V AC.

Description

Output circuit
Contact configuration	1 NO contact
Rated current/maximum instantaneous current	0.1A / 0.5A
Rated switching voltage	48 Vdc
Switching voltage	1.5 ~ 53 Vdc
Maximum blocking voltage	53 V
Nominal load in DC13	2,4 W
Minimum switching current	0.05 mA
Maximum output drop-out voltage ON	1 V
Input circuit
Supply voltage	60 Vdc
Nominal power	0,21 W
Operating range	35 ~ 72 Vdc
Nominal absorption	3.5 mA
Release voltage	20 Vdc
General features
Electrical service life at rated load	> 10⁶ cycles
Tripping time: ON/OFF	0.03 / 0.06 ms
Isolation between entrance and exit	4 KV
Operating temperature	-20°C ~ +70°C
Protection category	RTIII
Product information
Model	34.81.7.060.7048
Manufacturer	Finder
