Essenza switchboard front panel, ultra-thin 11 mm, 36 modules (3x12), white, IP40, equipped - Elettrocanali EC63236CE

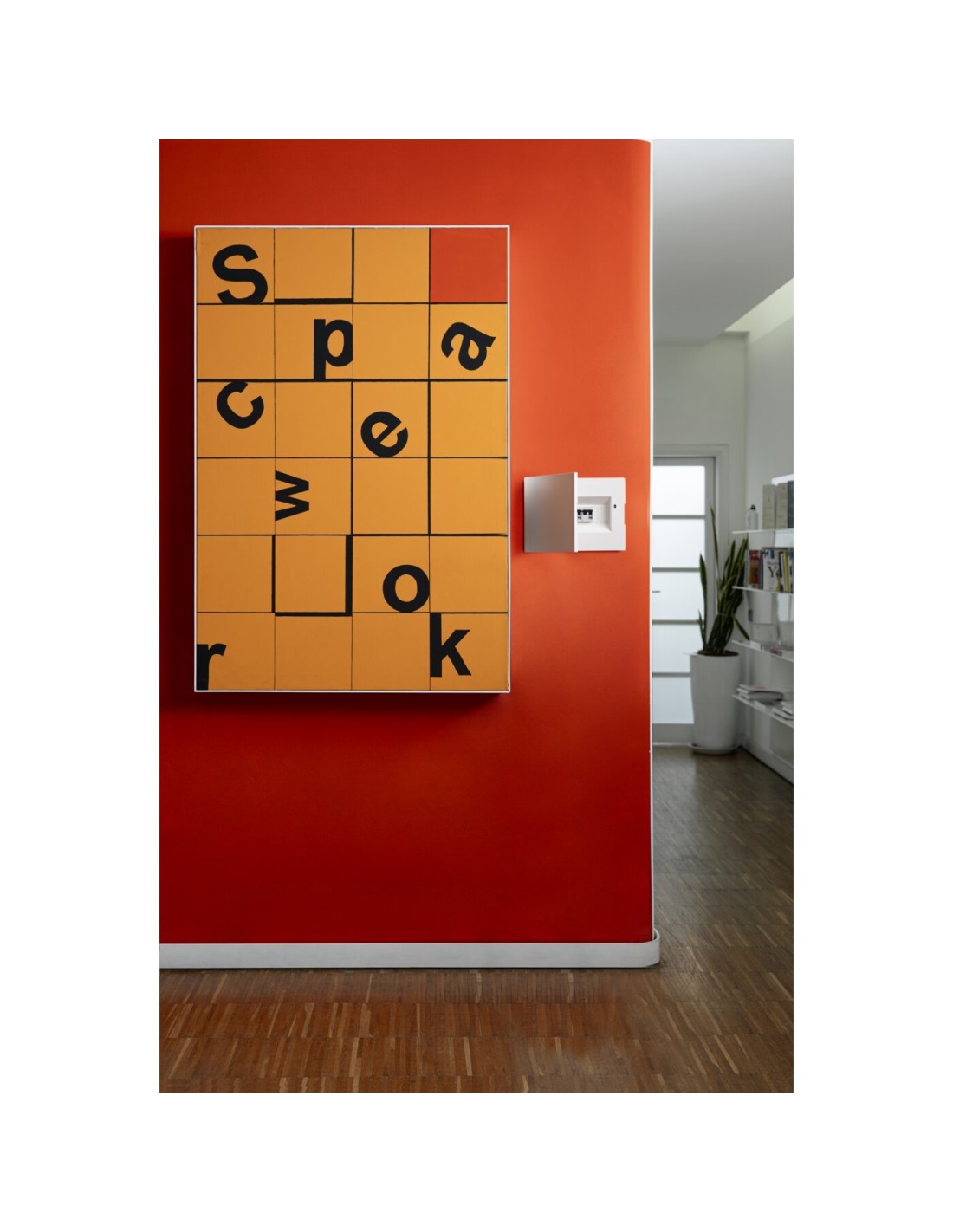

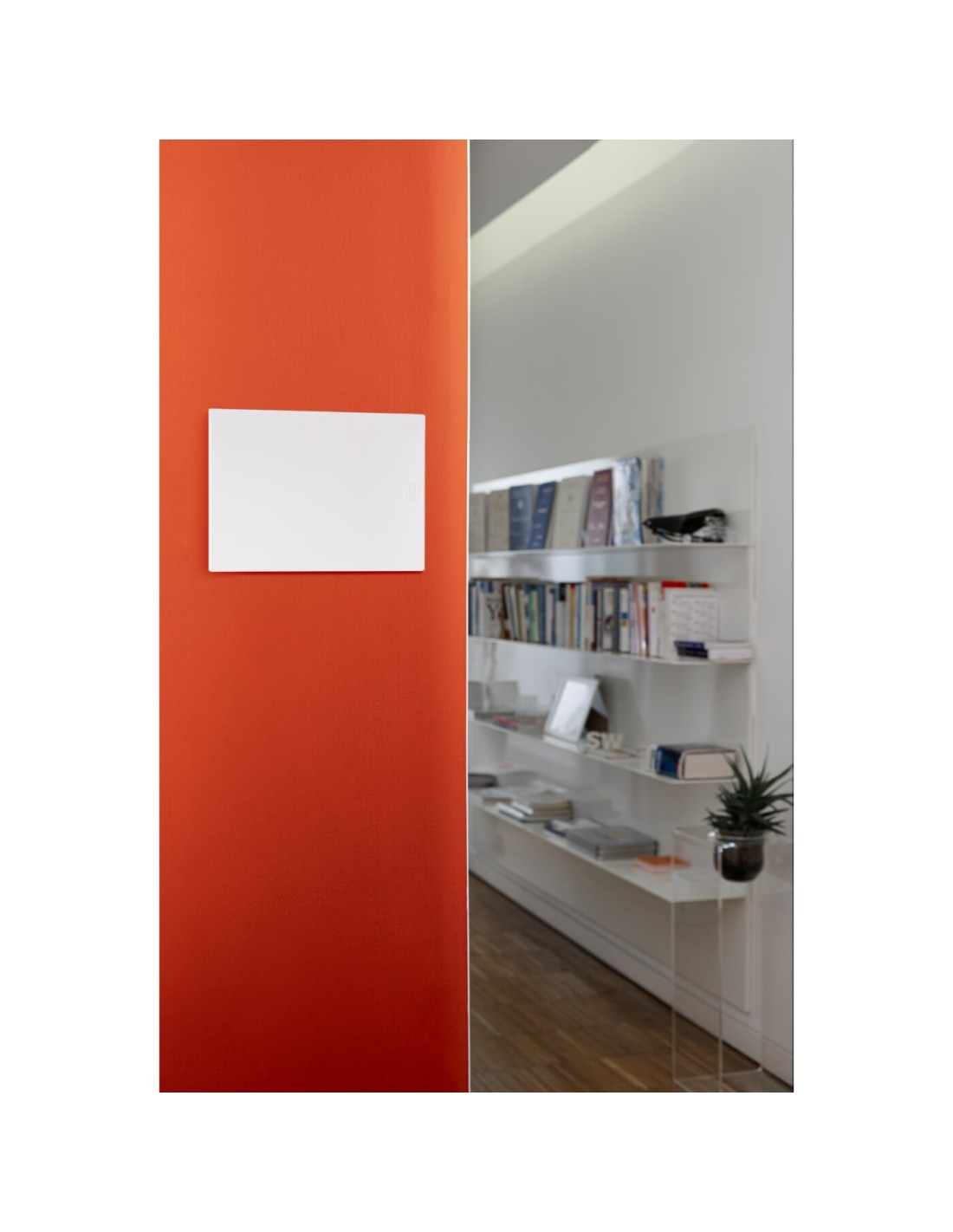

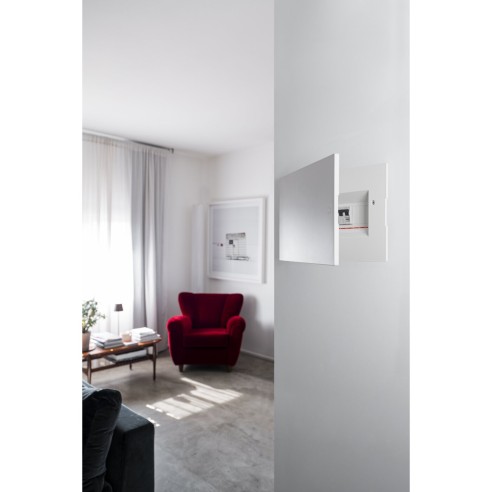

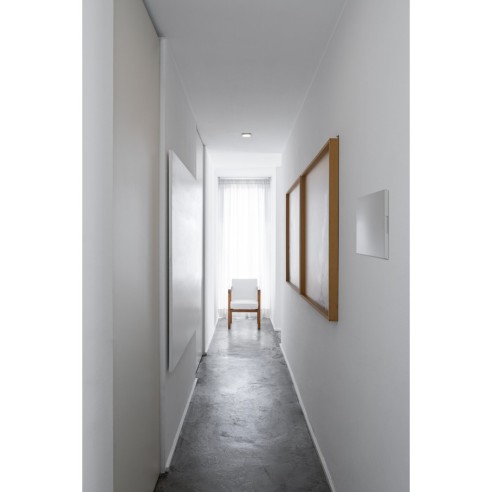

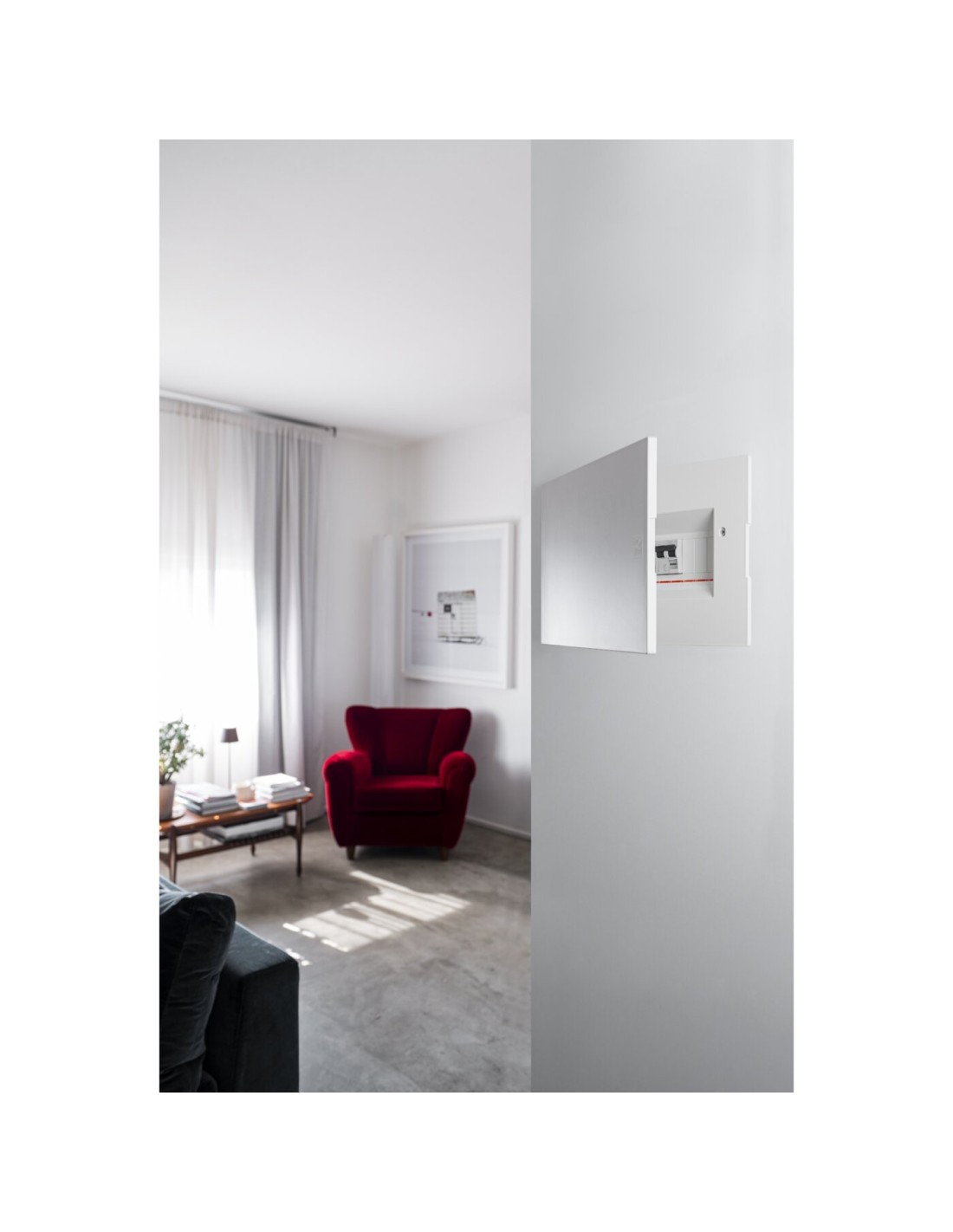

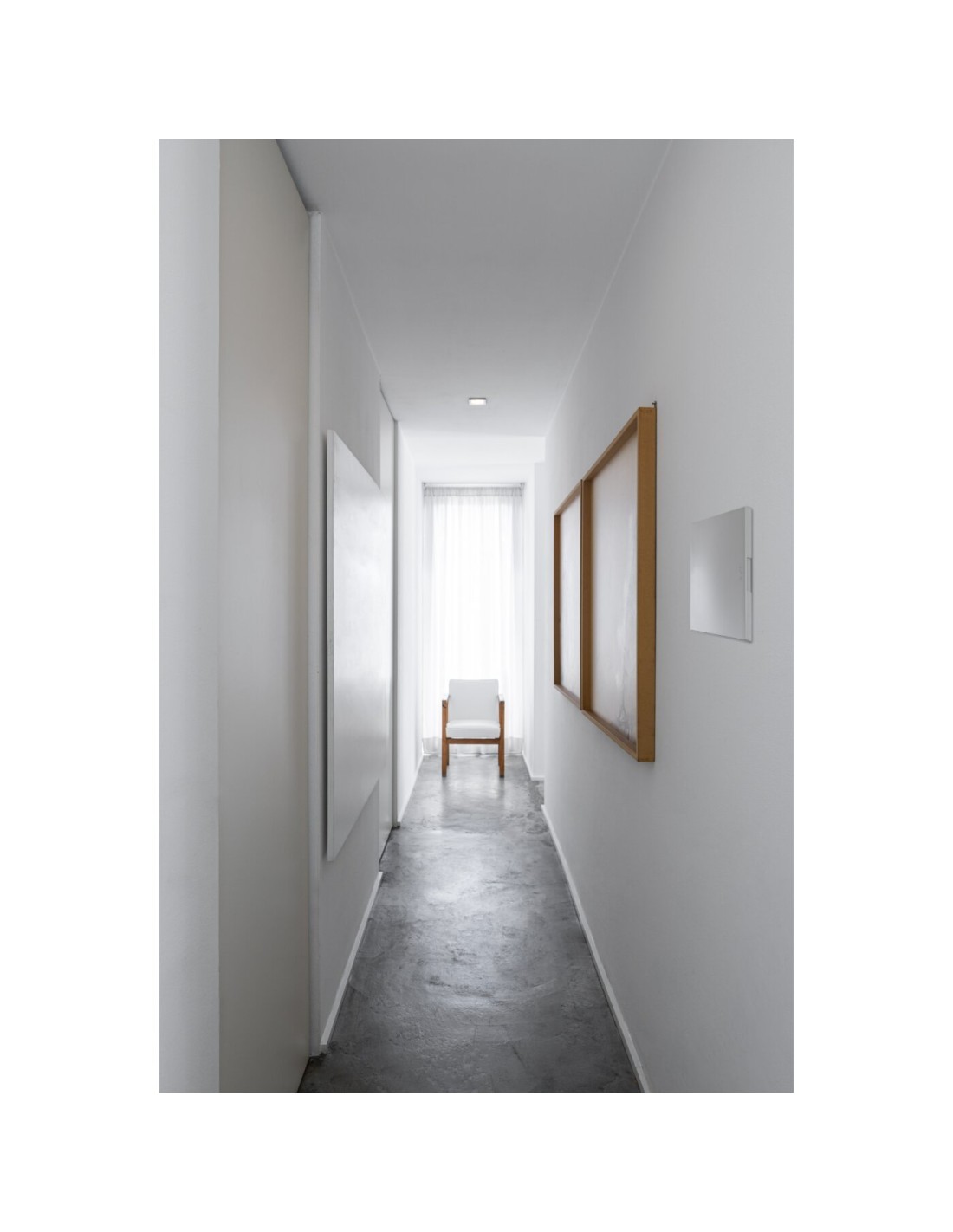

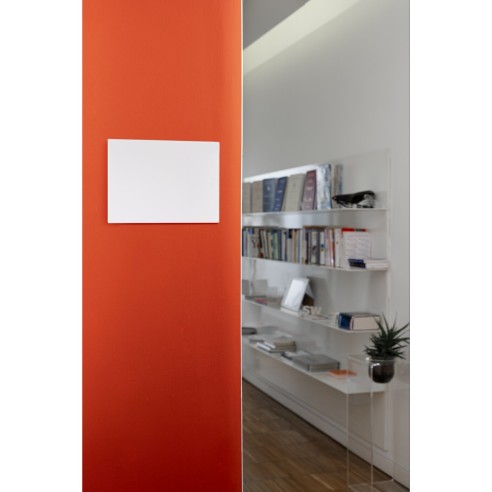

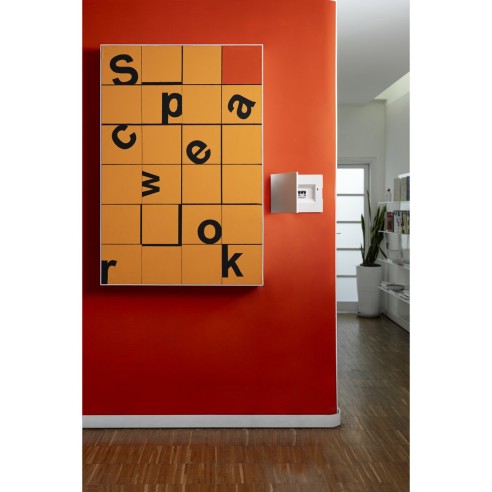

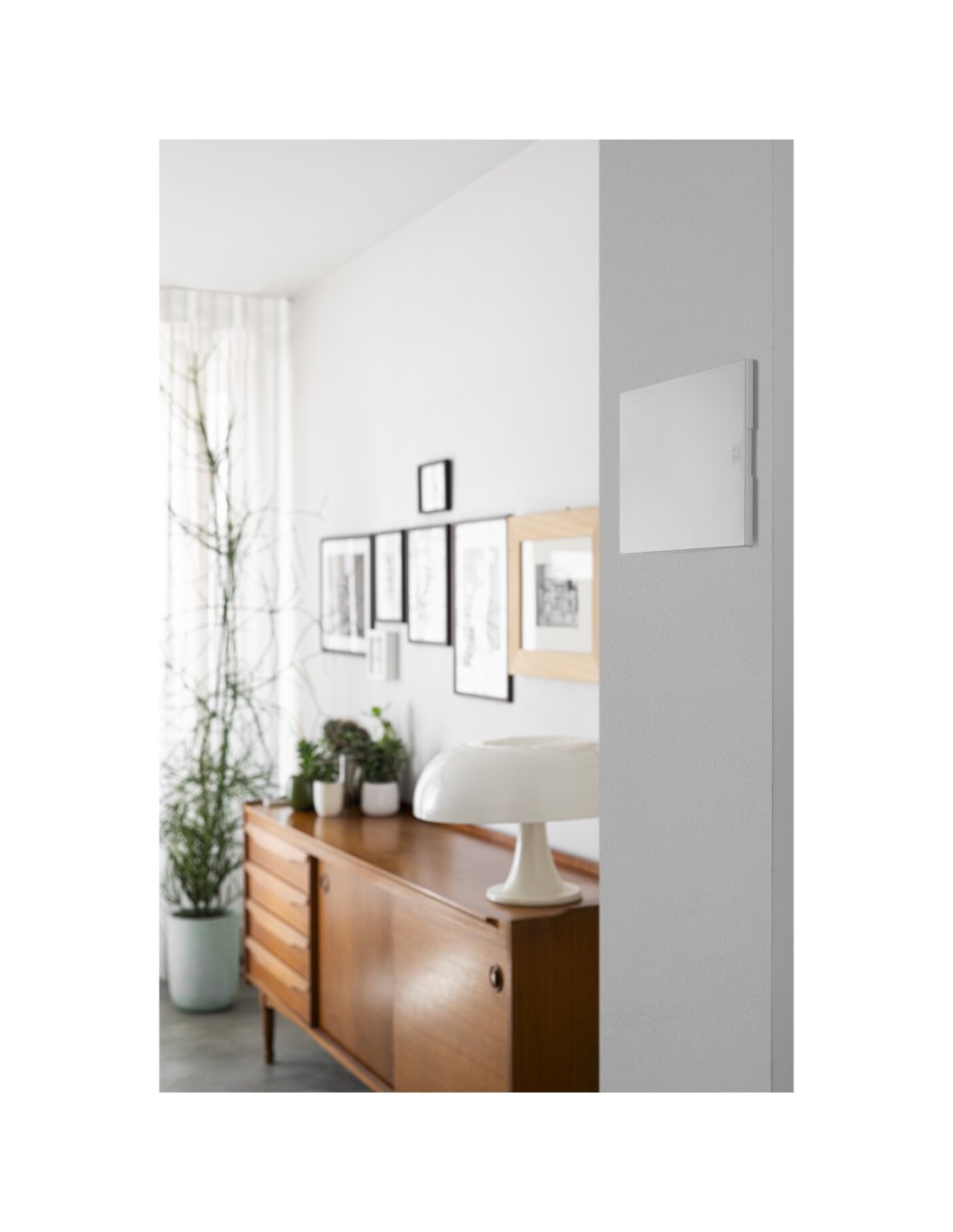

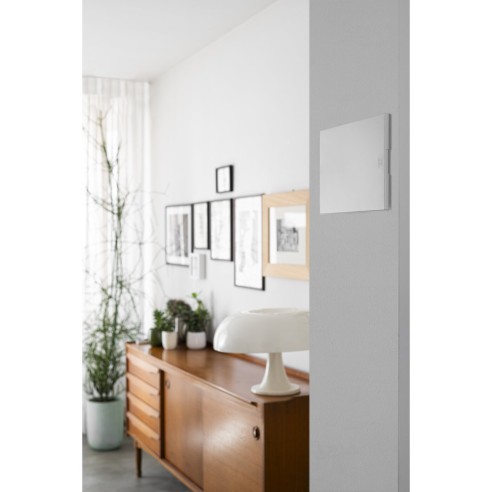

The Elettrocanali front panel is designed for flush-mounted switchboards intended for masonry or plasterboard walls. Its ultra-thin thickness of only 11 mm makes it completely flat and unobtrusive to the eye, guaranteeing an elegant and modern aesthetic result.
Made of ABS-based halogen-free technopolymer, it guarantees high resistance to abnormal heat up to 650°C (GWT), making it suitable for installation in residential and tertiary environments. The reversible cover offers installation flexibility, while the self-adhesive label for circuit identification and cover caps for unused modules are already included. The galvanised steel DIN rail is mounted on a pull-out bracket to ensure perfect horizontal alignment of the modular luminaires.

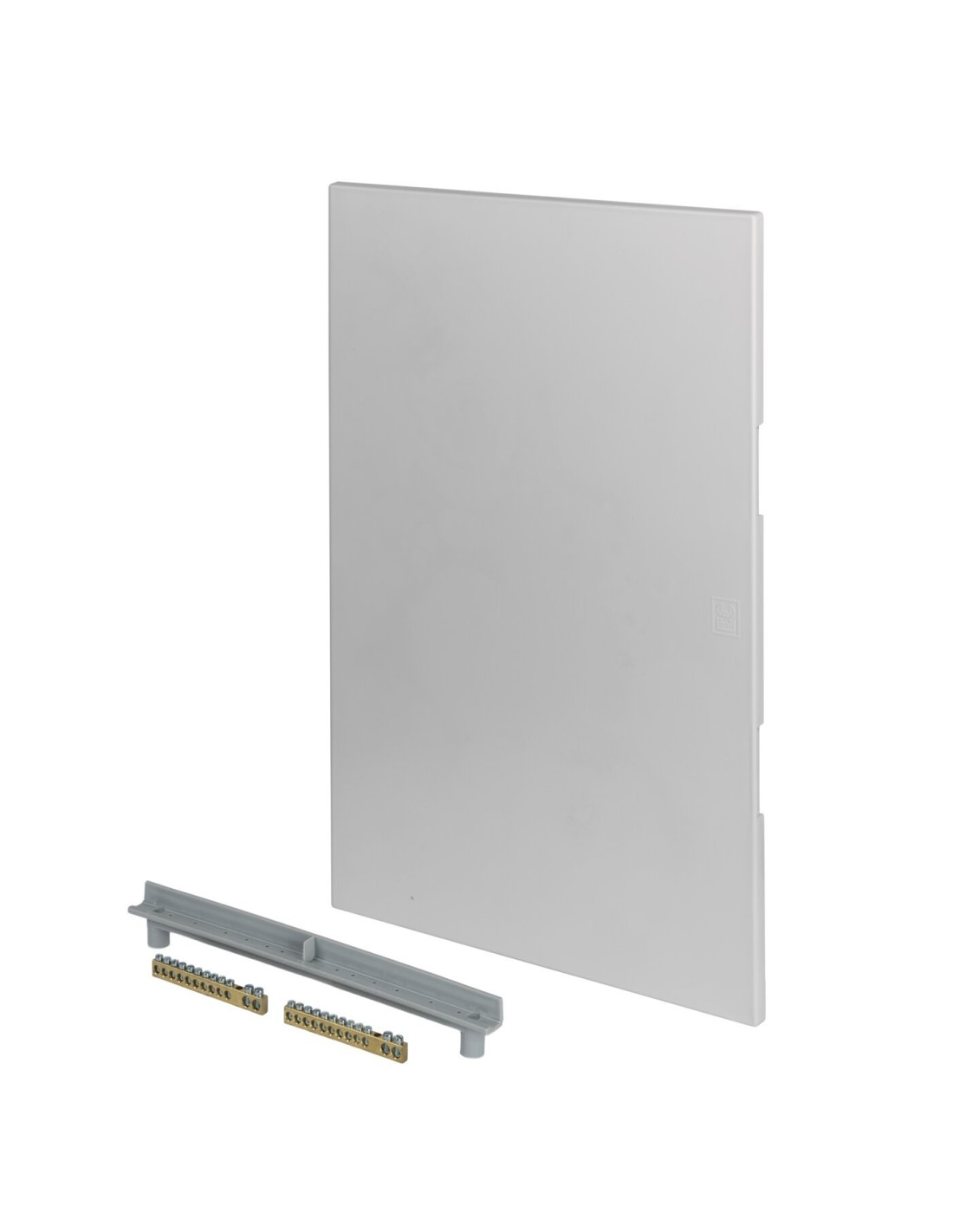

The front is supplied already equipped with 4 terminal blocks 6×10 mm - 12 holes, 4 terminal blocks 6×10 mm - 4 holes, ready for connecting the conductors without the need for additional accessories.
The product is manufactured in accordance with EN 60670-1:2005, EN 60670-22:2013. Permissible installation temperatures range from a minimum of -15°C to a maximum of +60°C. External dimensions: 328x541x11 mm. Capacity: 36 DIN modules (3x12). Power dissipation: 52 W. Degree of protection IP40.
