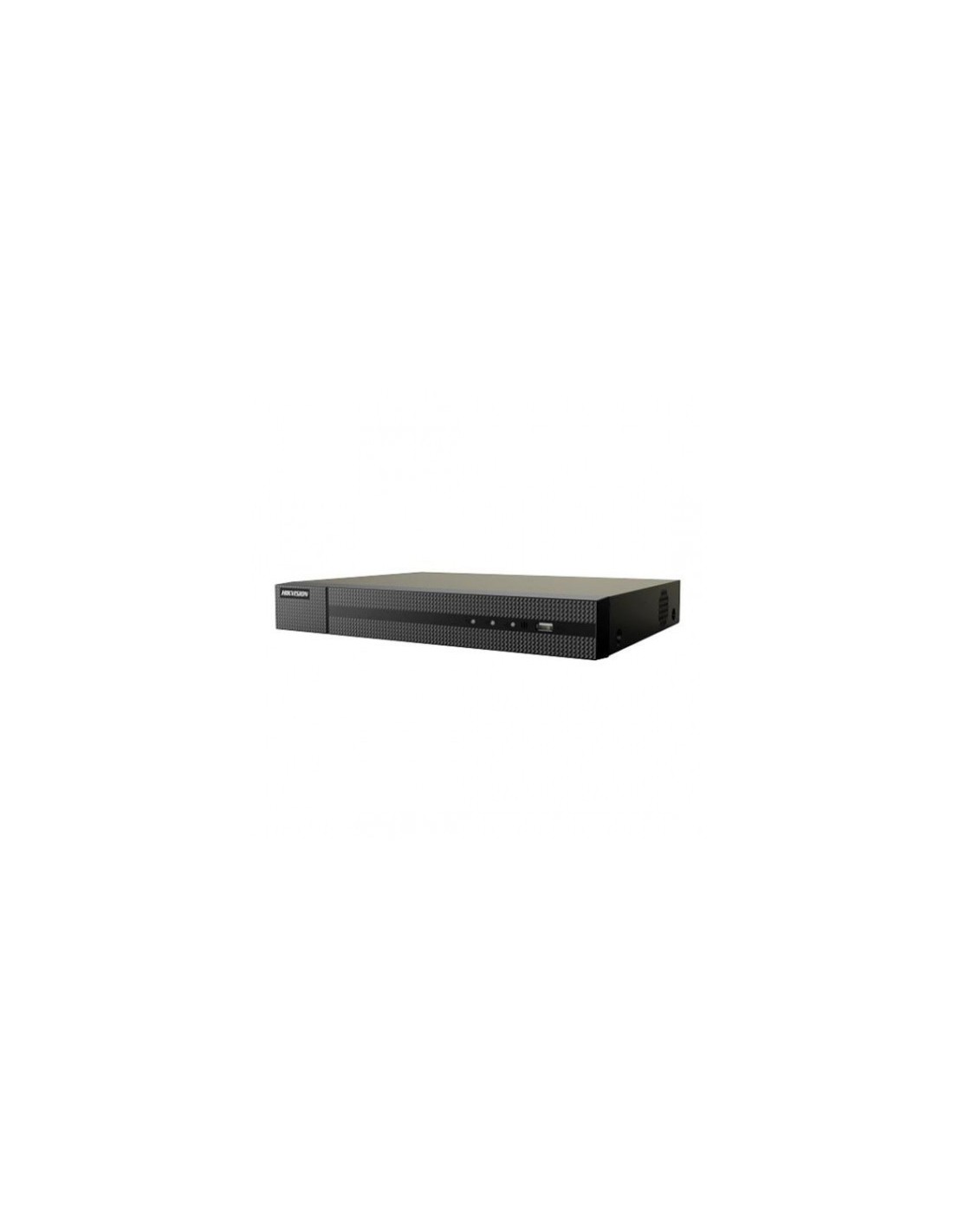

Hikvision HWN-2108MH-8P Hiwatch series 8-channel digital NVR with PoE.
HD+ resolution at 6mpx (40Mbps input bandwidth) with H.265+ video compression technology, Onvif (multi-brand) compatibility protocol and P2P QR scan facilitated configuration system with dedicated HIK-Connect Cloud service.
HD+ video recording is processed by the H.265+ compression system. This technology saves up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.
The menu is designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings.
The DVR offers connectivity from any device including Windows, Mac, iPhone and Android applications.
The video security system is ideal for a wide range of applications: from companies to public administrations, from parks to institutional venues, from museums to airports, from villas to small contexts.
Specifications:
- NVR 1U 8Ch channels with high performance processor;
- Integrated 8 ports PoE+ switch ≤ 75W (802.3af/at).
- Resolution supported up to @4 Mpx
- Playback of one channel at 4Mpx or 2 channels at 1080P
- H.265+/H.265/ H.264+/H.264 Video Compression
- Max 60Mbps input bandwidth
- Simultaneous HDMI / VGA video output
- Supports 1 SATA HDDs up to 6TB, 2 USB(USB2.0);
- Mobile viewing on iPhone, iPad and Android;
- Supports multi-brand network cameras - Onvif protocol;
- 1 connectable SATA interface for recording and backup;
- 1 self-adaptive 10/100/1000 Mbps network interface;
| Ingresso video/audio | |
| Ingresso video IP | 8-ch, fino a 6 MP di risoluzione |
| Rete | |
| Larghezza di banda in entrata | 60 Mbps |
| Larghezza di banda in uscita | 60 Mbps |
| Connessione remota | 16 |
| Uscita video/audio | |
| Risoluzione di registrazione | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Risoluzione dell'uscita HDMI | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Risoluzione dell'uscita VGA | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, uscita simultanea HDMI/VGA |
| Decodifica | |
| Formato di decodifica | H.265+/H.265/ H.264+/H.264 |
| Risoluzione live view/Playback | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Riproduzione sincrona | 8-ch |
| Capacità di decodifica | 4-ch@1080p (25 fps), 1-ch@6 MP (25 fps) |
| Tipo di flusso | Video, Video & Audio |
| Gestione della rete | |
| Protocolli di rete | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
| Protocollo della telecamera | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
| Disco rigido | |
| SATA | 1 interfaccia SATA |
| Capacità del disco rigido | Fino a 6TB di capacità per ogni disco |
| Interfaccia esterna | |
| Interfaccia di rete | 1, interfaccia Ethernet autoadattiva RJ-45 10/100Mbps |
| Interfaccia USB | 2 × USB 2.0 |
| Interfaccia POE | |
| Interfaccia | 8, interfaccia Ethernet autoadattabile RJ-45 10/100 Mbps |
| Potenza | ≤ 75W |
| POE Standard supportati | IEEE 802.3 af/at |
| Generale | |
| Alimentazione | 48 VDC |
| Potenza | ≤ 90W |
| Consumo (senza disco rigido e PoE) | ≤ 10 W |
| Temperatura di lavoro | Da -10 a +55º C |
| Umidità di lavoro | 10 % a 90 % |
| Telaio | Telaio 1U |
| Dimensioni | 260 × 225 × 48 mm |
| Peso | ≤ 1 kg |
| Modello | HWN-2108MH-8P |
| Marca | Hikvision |
