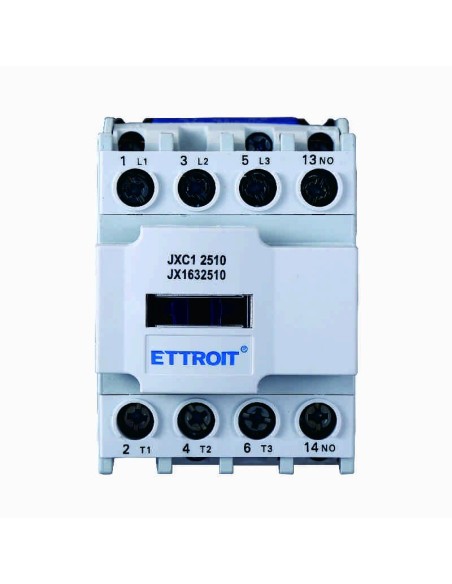

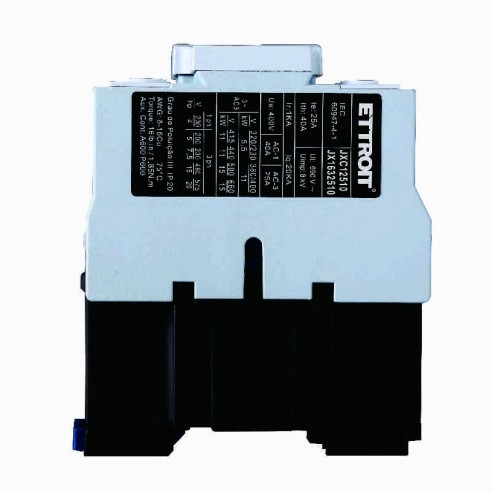

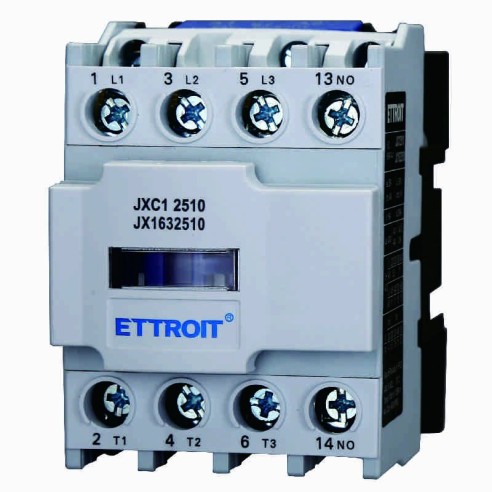

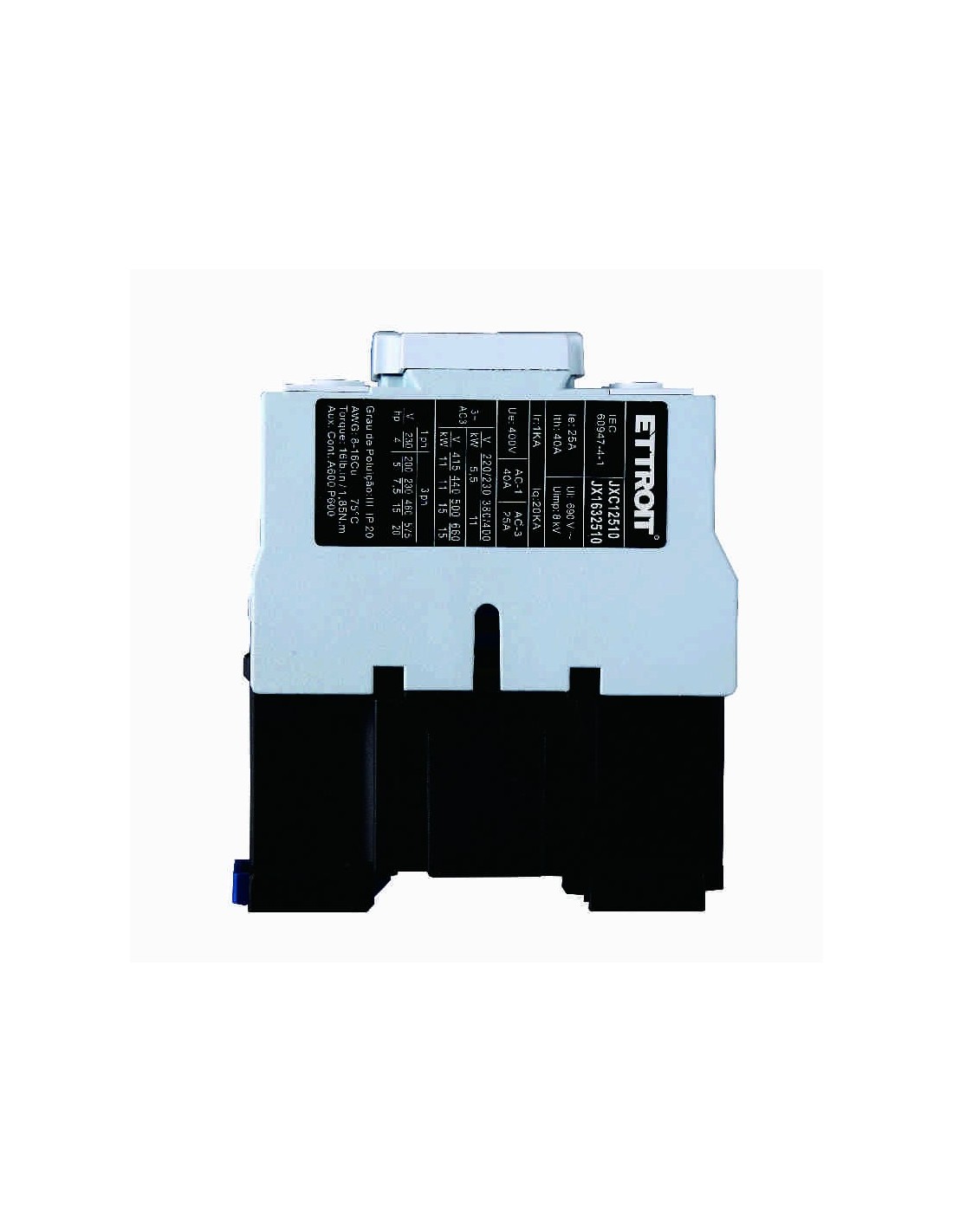

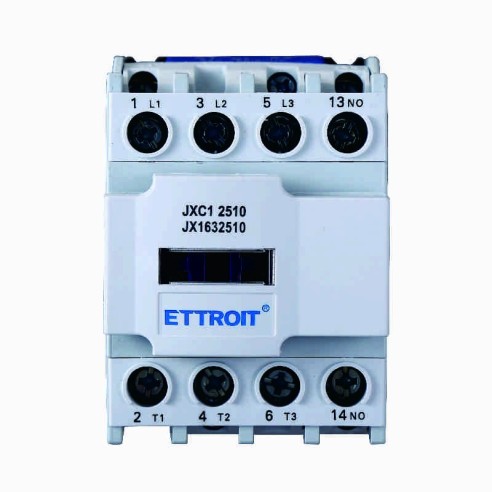

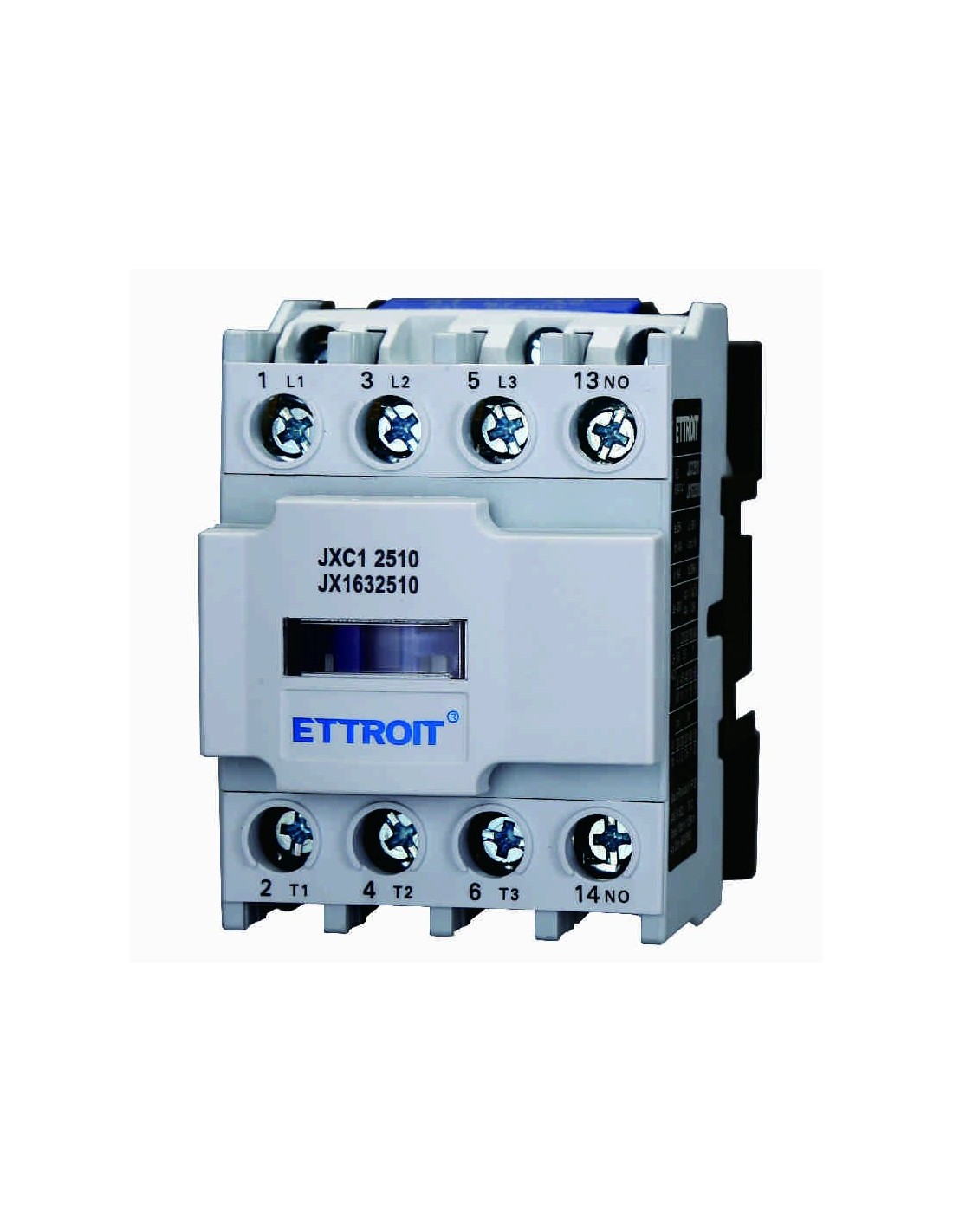

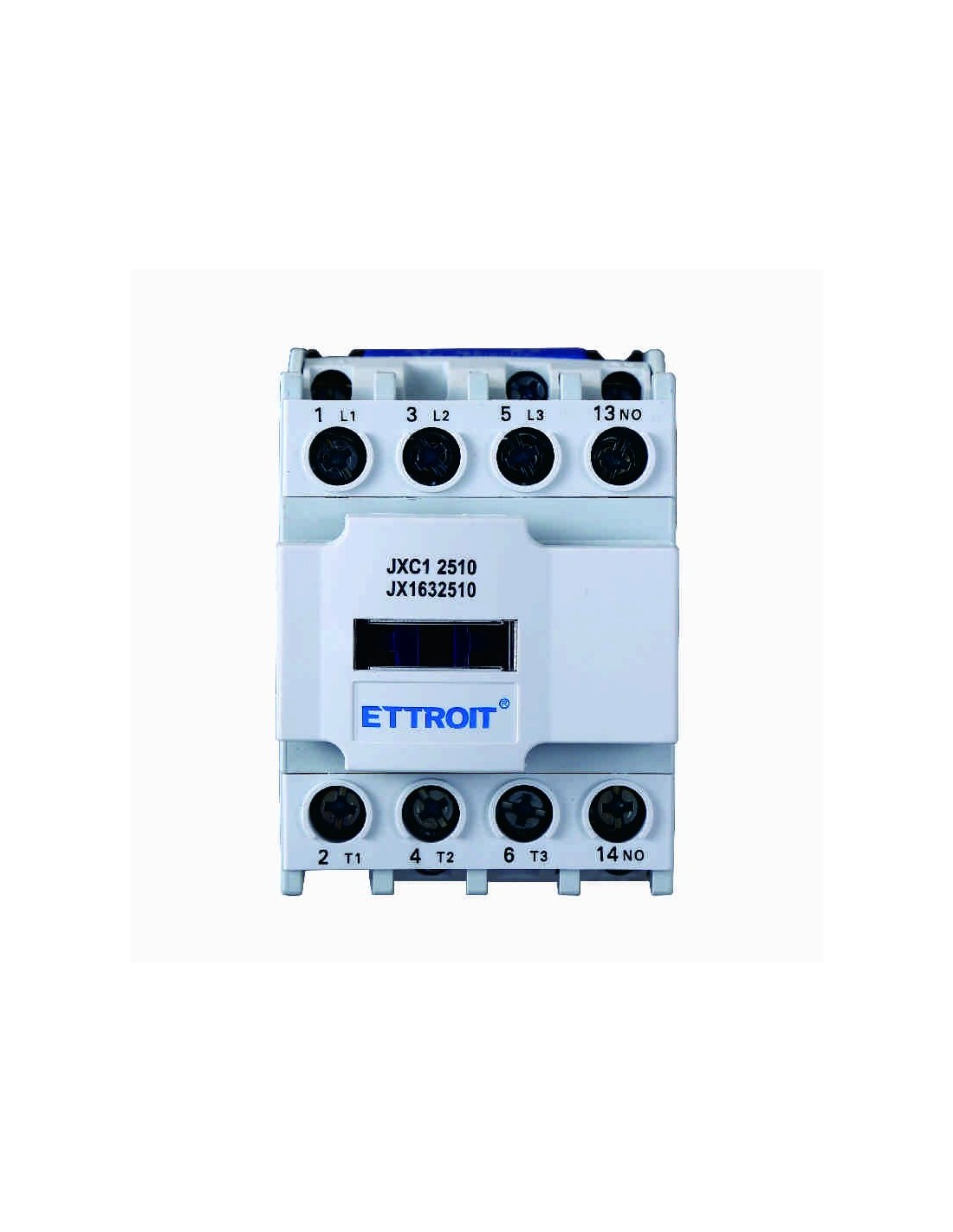

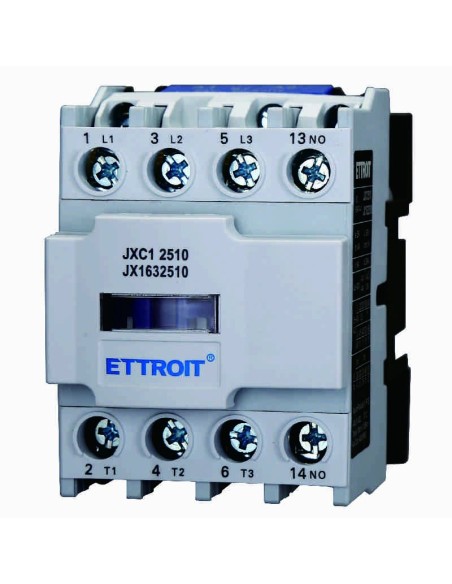

Contactor 24Vac, 3P, 25A, 3 NO contacts, 380Vac - Ettroit JX1632510
Contactor 24Vac, 3P, 25A, 3 NO contacts, 380Vac - Ettroit JX1632510
Contactor 24Vac, 3P, 25A, 3 NO contacts, 380Vac - Ettroit JX1632510

Contactor 24Vac, 3P, 25A, 3 NO contacts, 380Vac - Ettroit JX1632510

61.471.2900016
100 Items
€19.80
VAT included
An electromechanical device designed to control and switch electrical circuits, ideal for industrial and residential applications.
Equipped with a 24V 50/60Hz alternating current (AC) energised coil, this model offers high reliability and a long service life.
With its 3 normally open (NO) poles and ability to handle current ratings up to 25A (Ie), the JX1632510 is particularly suitable for controlling electric motors and other resistive or inductive load applications.
Its rated operating voltage (Ue) of 380V and compact design make it a versatile solution that can be easily integrated into switchboards.
Compliant with international standards IEC60947-4-1, this contactor ensures safe operation and conforms to the highest quality standards.

Description

TypeAC contactor with coil 24V 50/60Hz
Number of poles3P Normally Open (NO)
Rated current25 A
Rated voltage380 Vac
Category of useAC-3
Insulation Voltage690 V
Insulation Voltage6 kV
Operating temperature-25°C ~ +75°C
Regulatory complianceIEC60947-4-1
ModelJX1632510
ManufacturerEttroit

Product Details

Brand
Ettroit
Rated voltage
24Vac
Corrente nominale
25 A
Contact configuration
3 NO
Number of occupied modules
2
