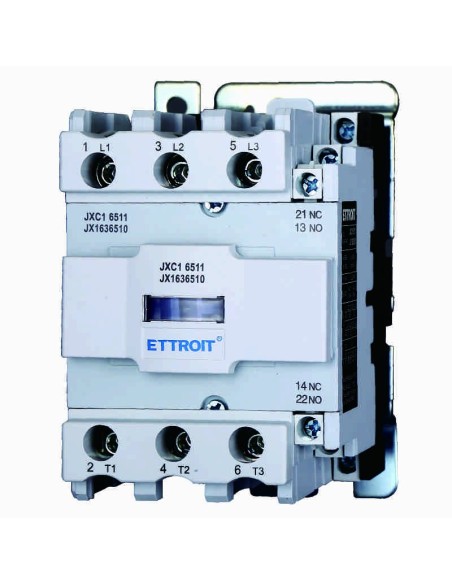

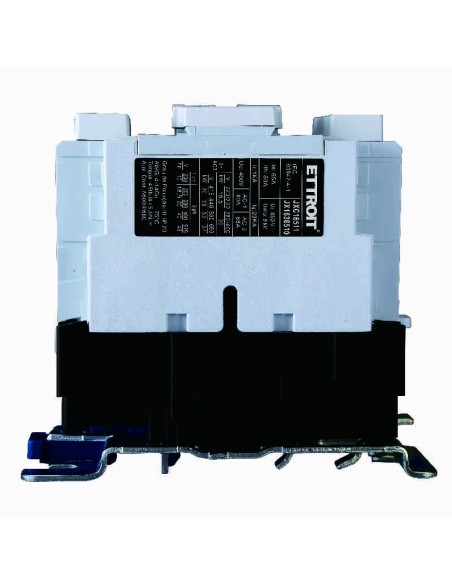

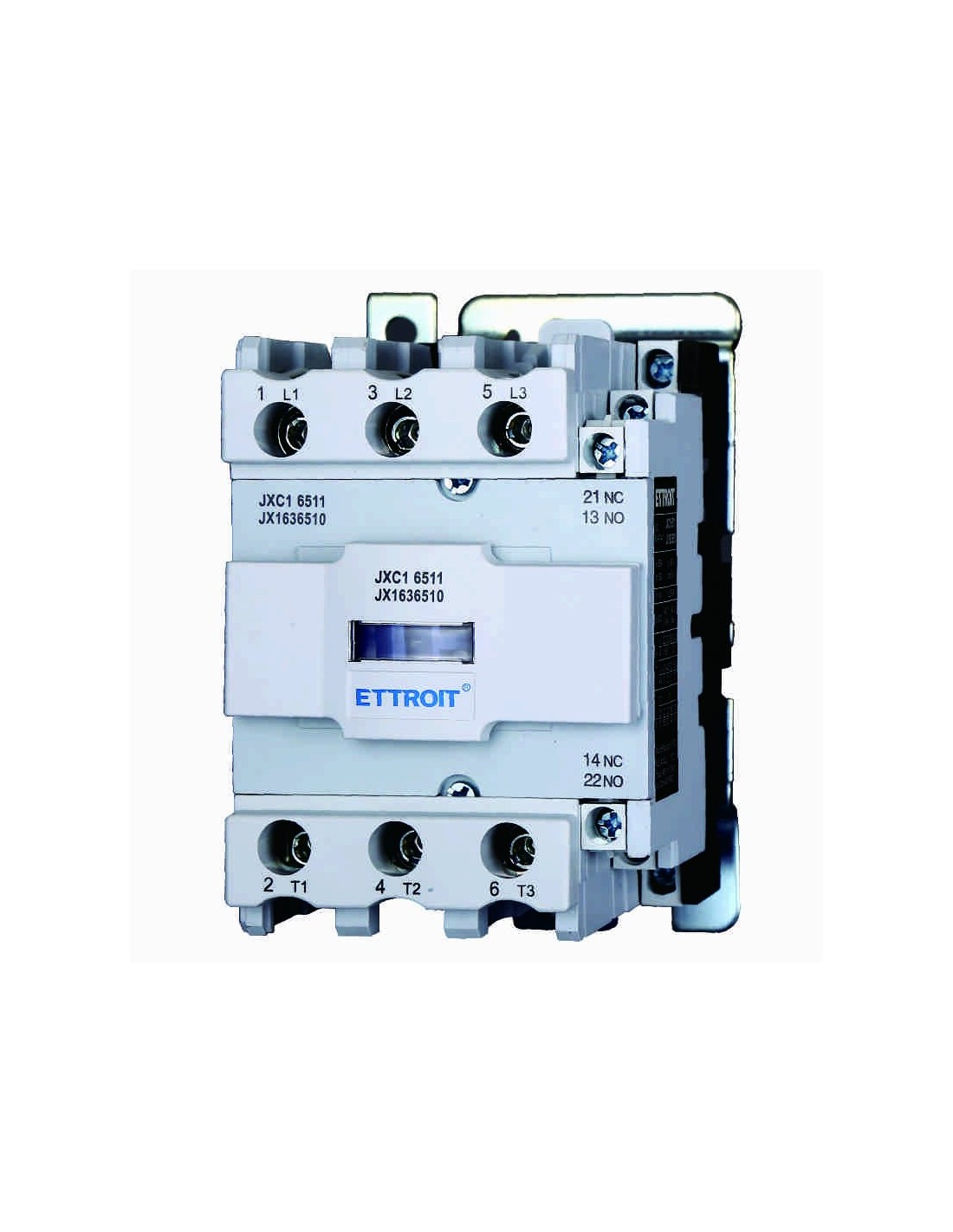

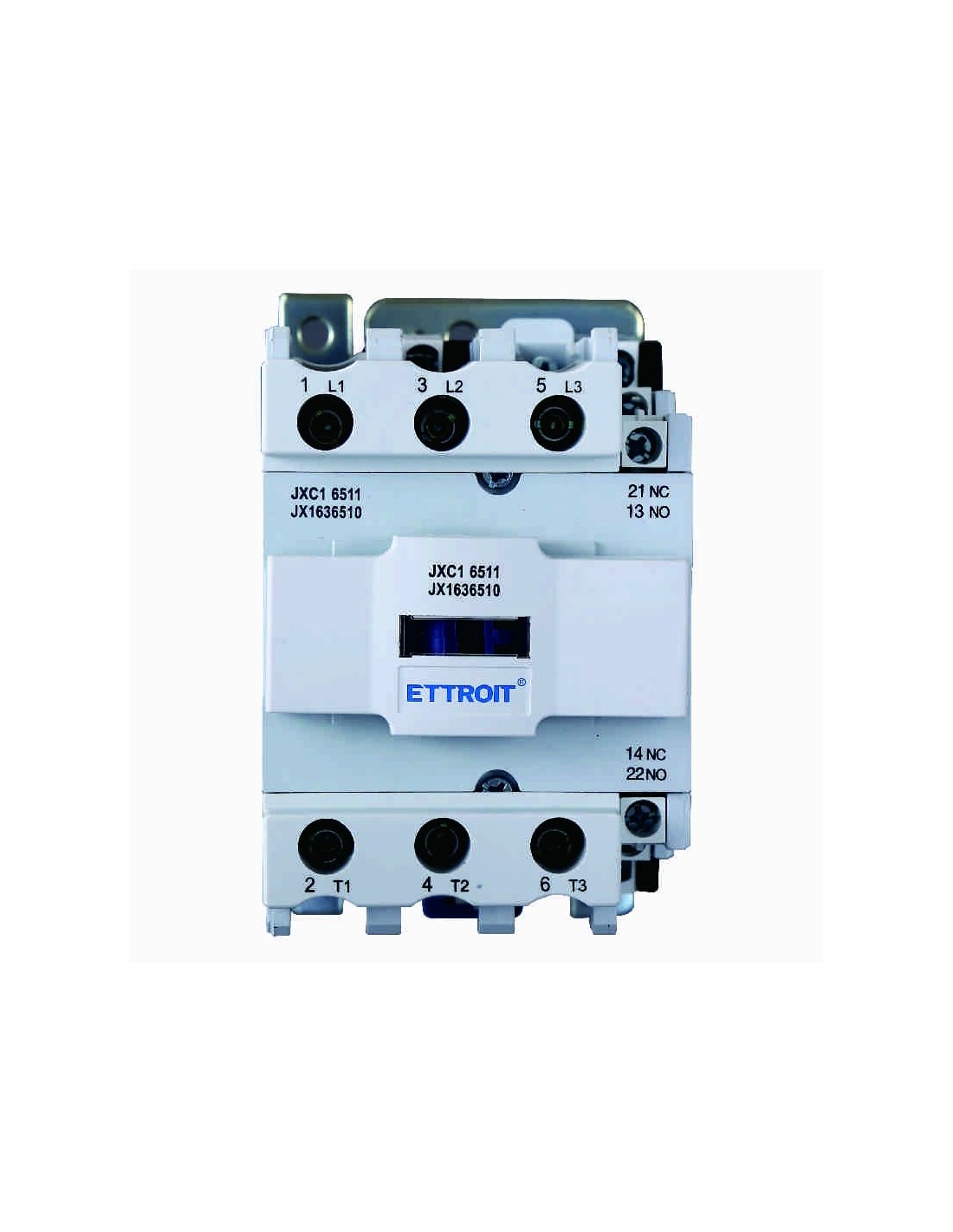

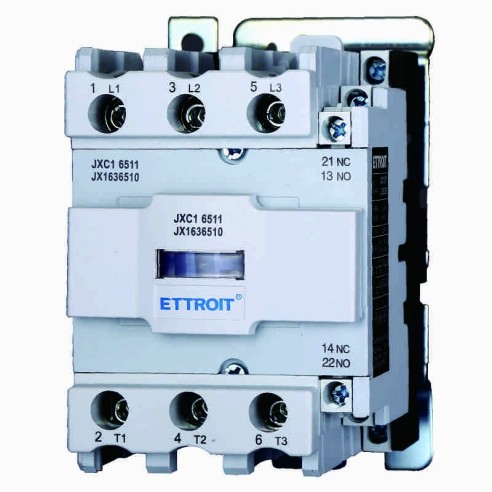

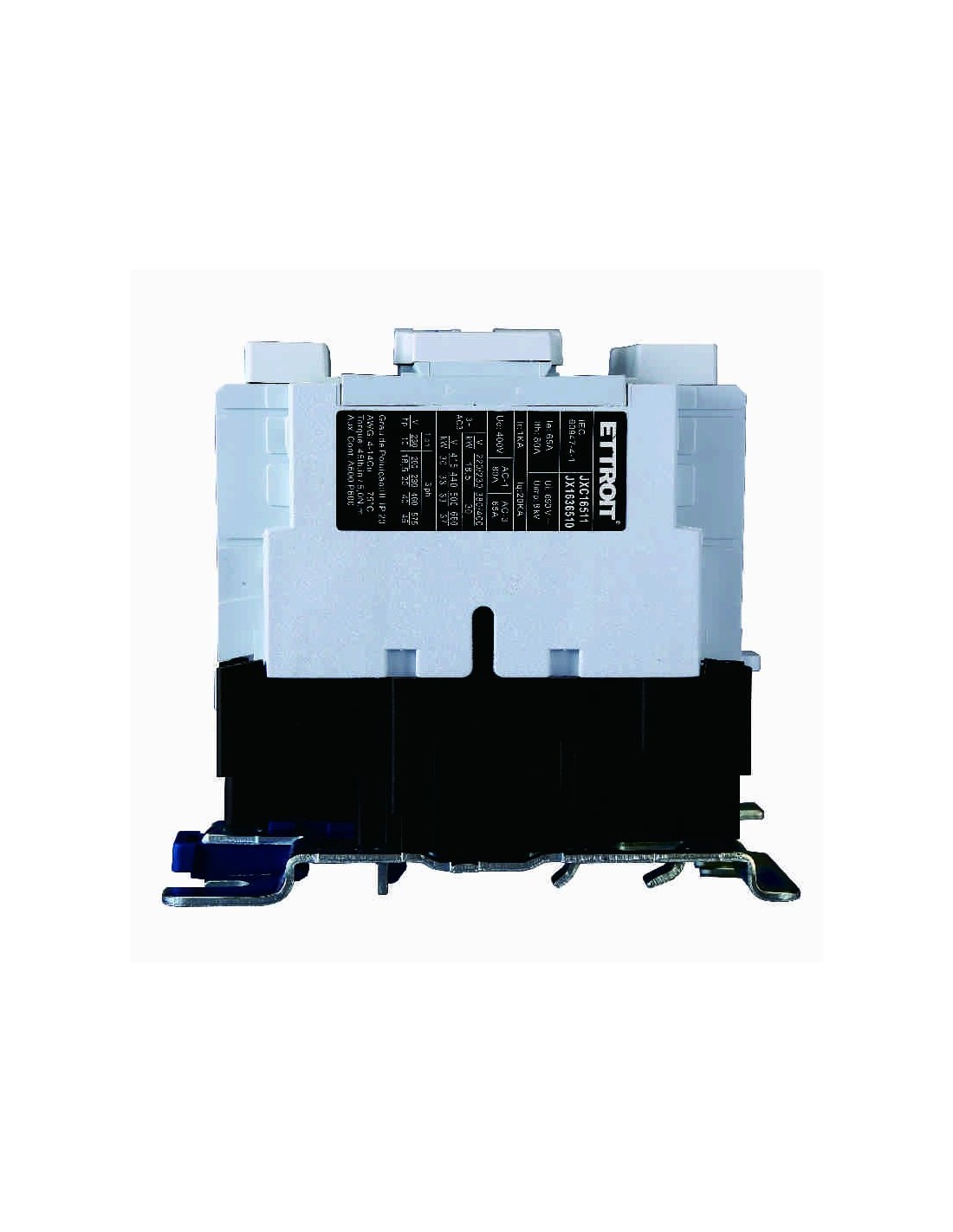

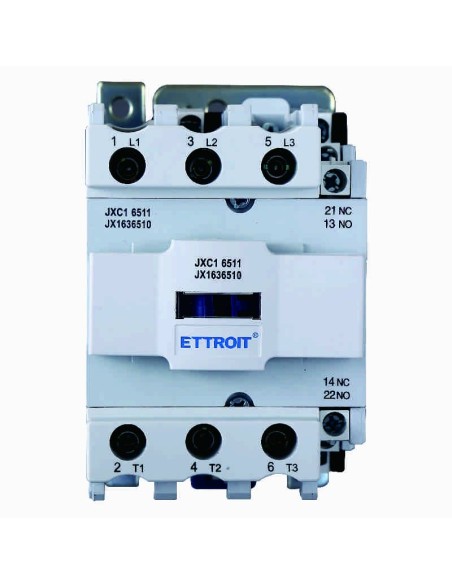

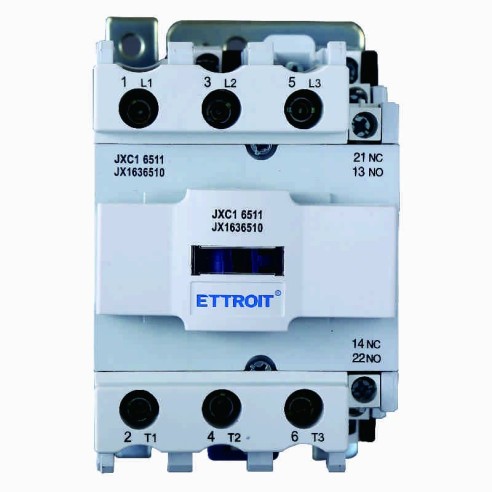

Contactor 24Vac, 3P, 65A, 3 NO contacts, 380Vac - Ettroit JX1636510

Contactor 24Vac, 3P, 65A, 3 NO contacts, 380Vac - Ettroit JX1636510

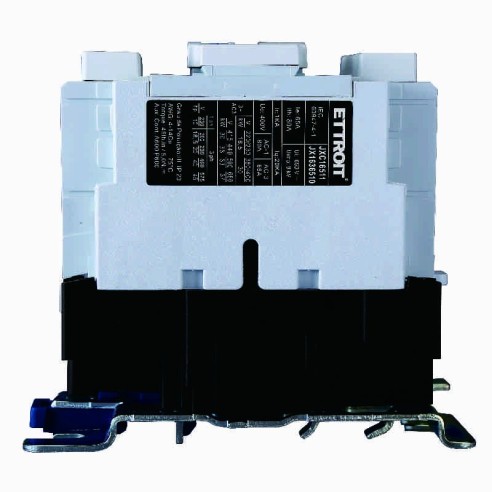

Name: Contactor 24Vac, 3P, 65A, 3 NO contacts, 380Vac - Ettroit JX1636510
Brand: Ettroit
SKU: 61.471.2900020
Price: 65.9 EUR
Availability: InStock

SKU 61.471.2900020

In stock 50 Items

€65.90

VAT included

An electromechanical device designed to control and switch electrical circuits, ideal for industrial and residential applications.
Equipped with a 24V 50/60Hz alternating current (AC) energised coil, this model offers high reliability and a long service life.
Thanks to its 3 normally open (NO) poles and ability to handle nominal currents up to 65A (Ie), the JX1636510 is particularly suitable for controlling electric motors and other resistive or inductive load applications.
Its rated operating voltage (Ue) of 380V and compact design make it a versatile solution that can be easily integrated into switchboards.
Compliant with international standards IEC60947-4-1, this contactor ensures safe operation and conforms to the highest quality standards.

Description

Type	AC contactor with coil 24V 50/60Hz
Number of poles	3P Normally Open (NO)
Rated current	65 A
Rated voltage	380 Vac
Category of use	AC-3
Insulation Voltage	690 V
Insulation Voltage	6 kV
Operating temperature	-25°C ~ +75°C
Regulatory compliance	IEC60947-4-1
Model	JX1636510
Manufacturer	Ettroit
