Digital IP vandalism camera with 4.0 Megapixel resolution (2560 × 1440p), 2.8mm fixed lens (100° angle of view) and PoE power technology.
OSD menu with adjustable functions: ATW, AWB, AGC, BLC, Real WDR 120 dB, 3D-DNR, brightness, sharpness, mirror.
It is very easy to use, through the web browser you can remote control and manage the camera.
The software supplied with the camera is designed for integrated management and surveillance of multiple network cameras.

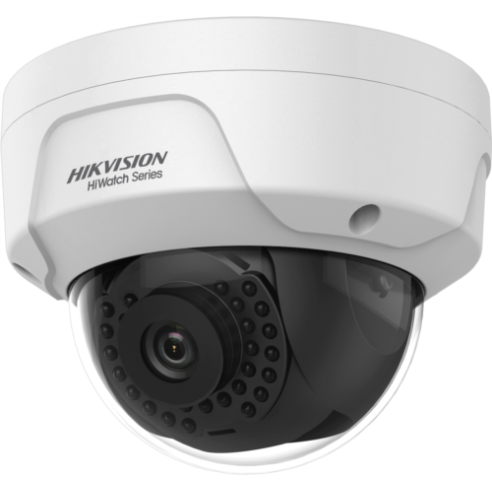

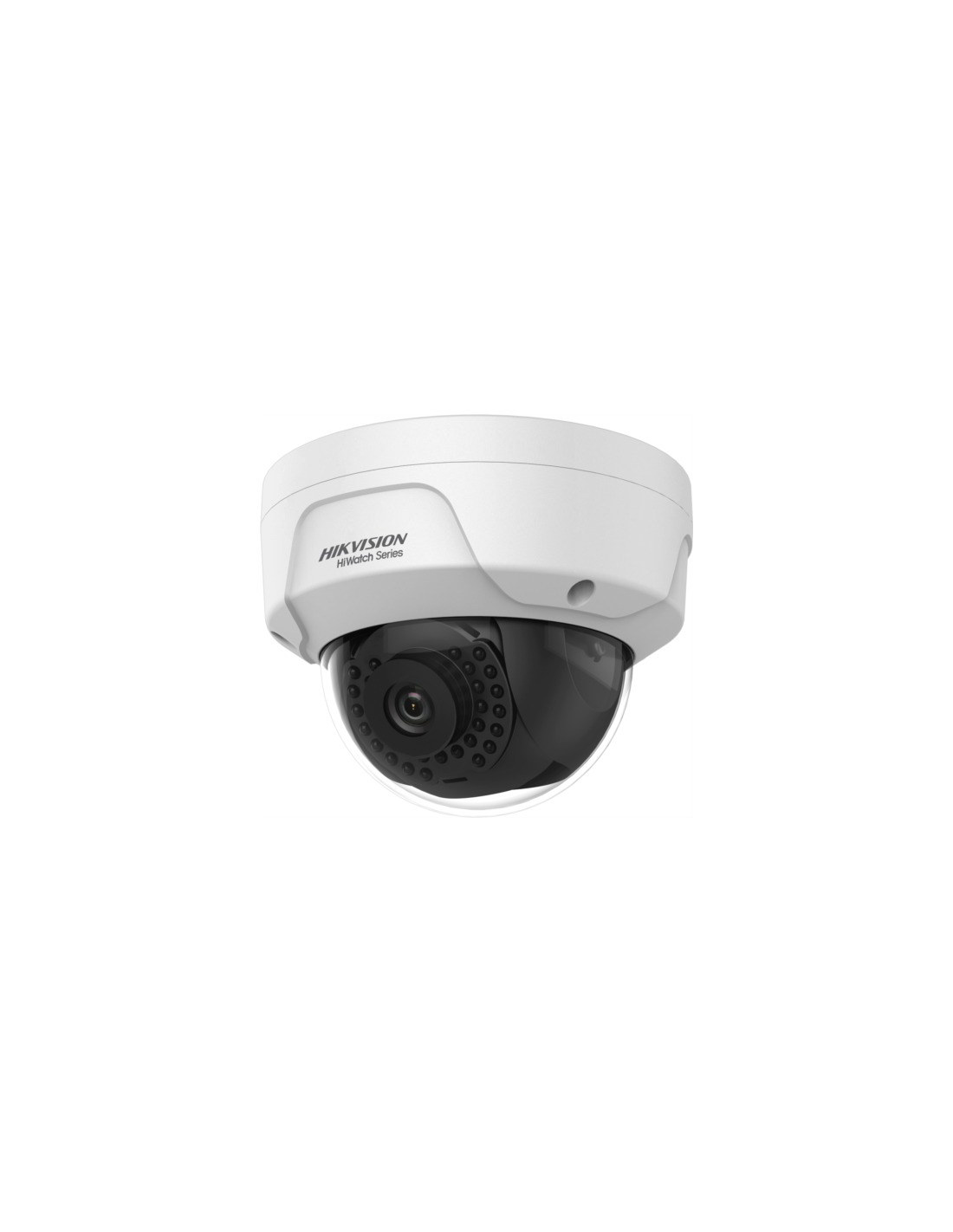

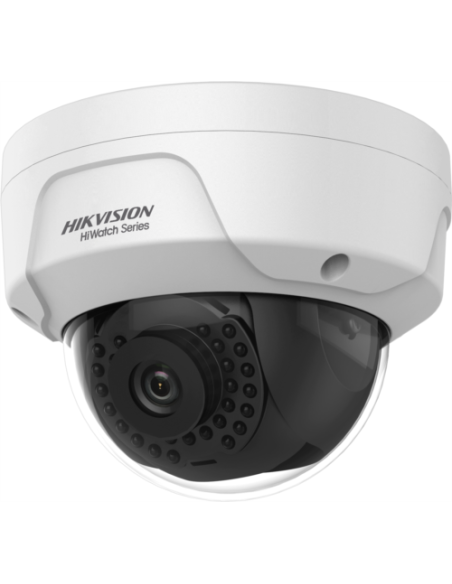

Dome camera with a vandal-proof (IK10) metal structure in white, installable indoors or outdoors (IP67) with an infrared illuminator with a real range of up to 30 metres for night vision.
The dome shape makes the product suitable for ceiling or wall installation.
| Sensor | 1/3" progressive scan CMOS |
| Minimum illumination | Colours: 0.028 Lux @ (F2.0, AGC ON) |
| Shutter speed | 1/3 s to 1/100,000 s |
| Slow shutter | Yes |
| Day / Night | IR filter |
| WDR | DWDR |
| Rotation | Horizontal 355°, vertical 75°. |
| Lens | |
| Type | fixed, 2.8mm |
| Opening | F2.0 |
| Visual angle | Horizontal 100°, Vertical 55°, Diagonal 117° |
| Lens mount | M12 |
| IR | |
| Night vision | Up to 30 metres |
| Wavelength | 850nm |
| Compression | |
| Video | Primary: H.265+/H.264+/H.265/H.264; Secondary: H.265/H.264/MJPEG |
| H.264 | Basic profile / Main profile |
| H.265 | Main profile |
| Bit rate | 32 Kbps to 8 Mbps |
| Smart functions | |
| Event | Motion detection, video tampering alarm, unauthorised access |
| Warning method | FTP upload, notification to surveillance centre, e-mail sending |
| Image | |
| Resolution | 4MP |
| Main stream frame rate | 50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| Secondary stream frame rate | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image enhancement | BLC, HLC, 3D DNR |
| Settings | Saturation, brightness, contrast, sharpness, AGC and white balance adjustable via client software or web browser |
| Day / Night | Day / Night / Car / Programme |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Functions | Anti-flicker, heartbeat, mirror, privacy |
| API | ONVIF (PROFILE S), ISAPI, SDK |
| Simultaneous display | Up to 6 channels |
| Users / Hosts | Up to 32 users, 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Central, Hik-Connect |
| Web browser | IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+ |
| Interface | |
| Communication interface | 1 RJ45 10M/100M Ethernet port |
| Reset button | Recovery via web browser and client software |
| General features | |
| Operating temperature | From -30 °C to 60 °C |
| Power supply | 12 VDC ± 25%, Ø 5.5 mm; PoE (802.3af, class 3) |
| Consumption | 12 VDC, 0.30 A, max. 3.6 W; PoE (802.3af, 36 V - 57 V), 0.2 A - 0.1 A, max. 4.5 W |
| Material | Metal, plastic cover |

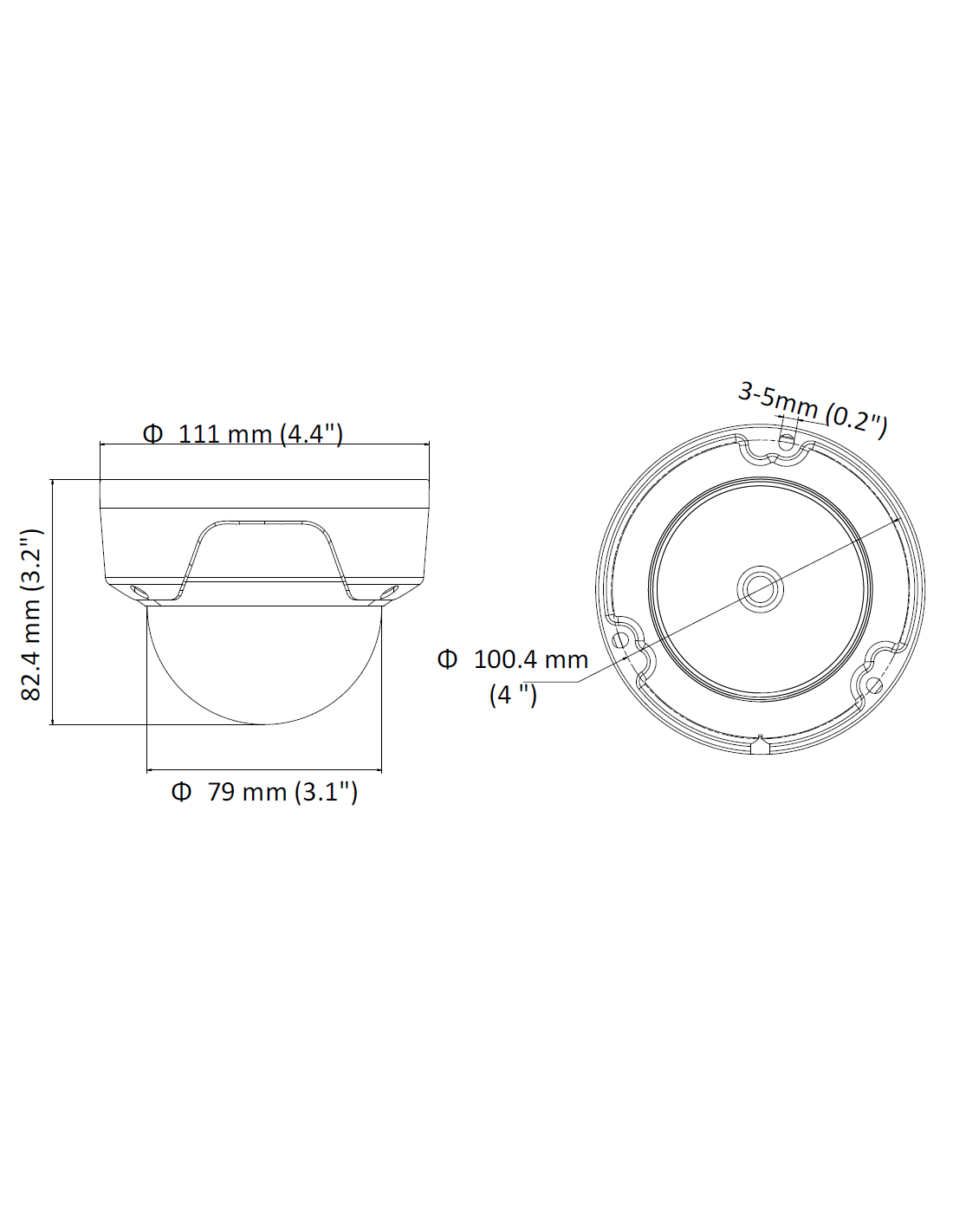

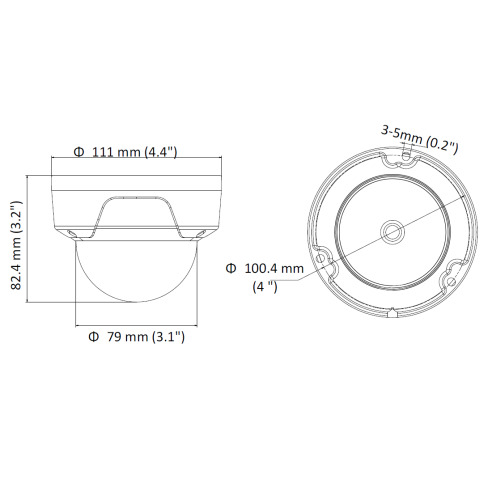

| Dimensions | Ø114 x 82.4 mm |
| Weight | 400 g |
| Model | HWI-D141H |
| Brand | Hikvision |
