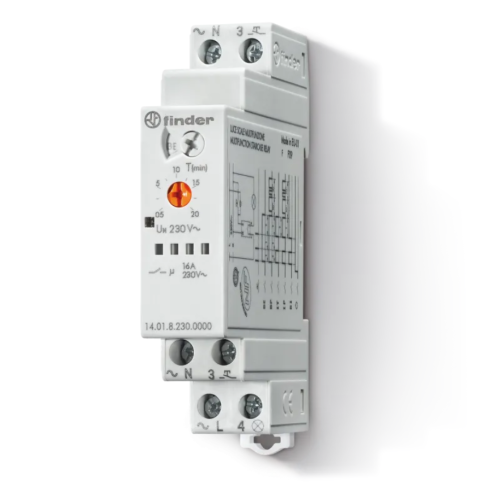

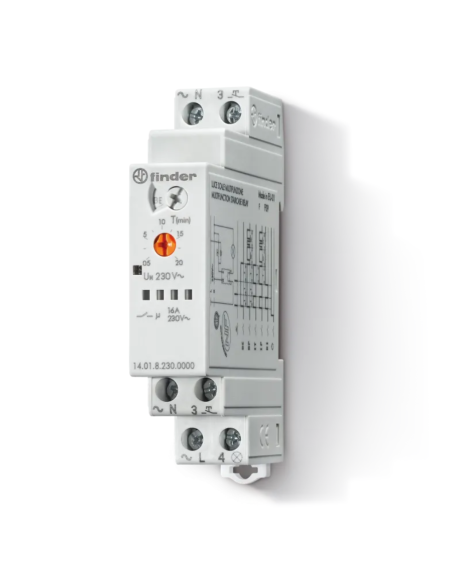

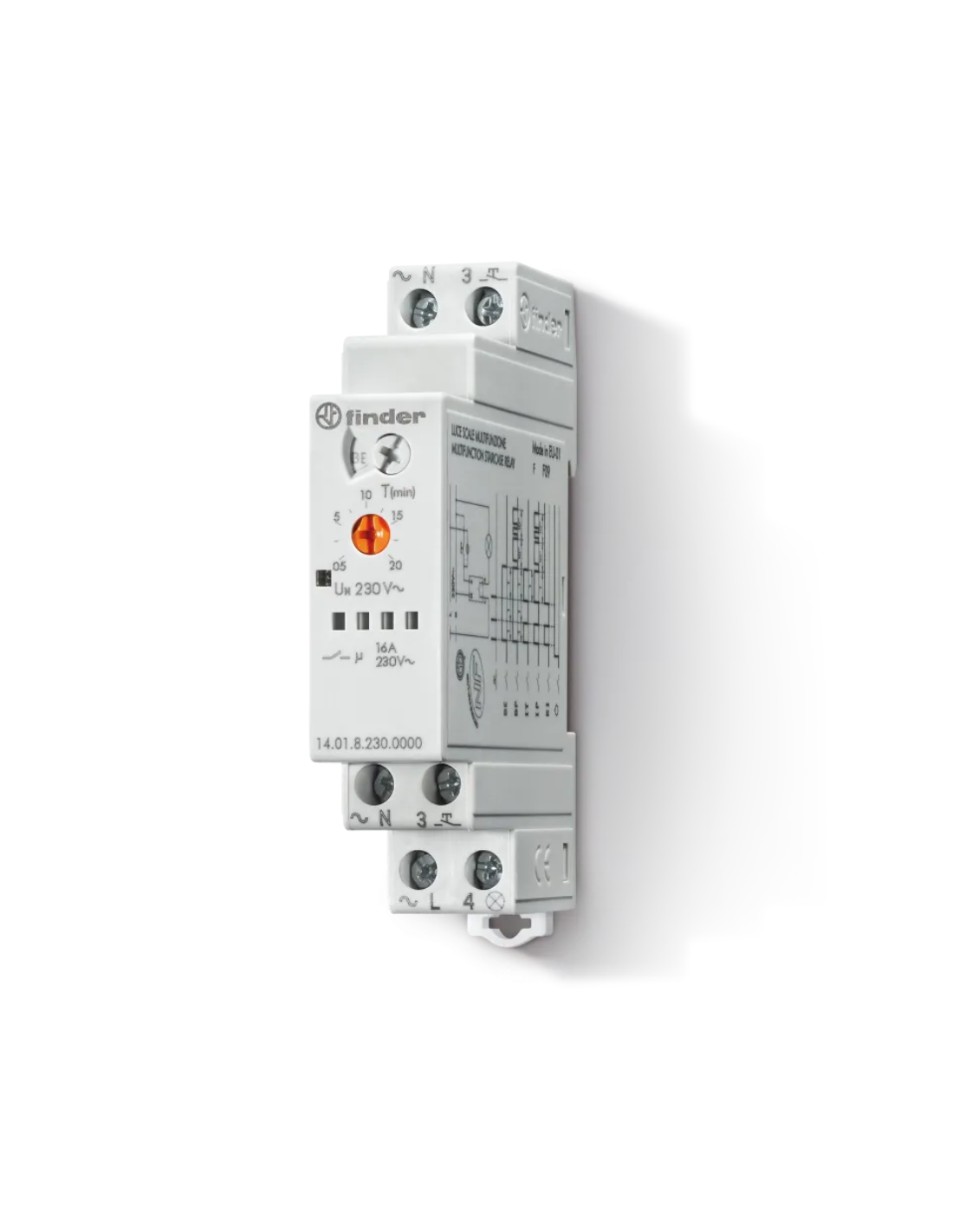

Staircase light timer Type 14.01 multifunctional, with one module width 16 A 17.5 mm and 'switch-off warning' option.

Features;
- 35 mm rail mounting (EN 60715)
- 8 functions
- 1 contact, 16 A
- Rated supply voltage 230 V, operation from 184 to 253 V
- Rated power 3 VA (AC) / 1.2 W (DC)
- Operating temperature -10 to +60 °C

Functions
- Resettable timed staircase light
- Resettable timed staircase light + Staircase cleaning
- Resettable timed staircase light with switch-off warning
- Resettable timed staircase light with switch-off warning + Staircase cleaning
- Timed impulse relay
- Timed impulse relay with switch-off warning
- Pulse relay
- Fixed light

Description

Contact configuration
Contact configuration	1 NO
Rated current/maximum instantaneous current	16A / 30A
Rated voltage	250Vac
Nominal load in AC1	3700 VA
Nominal load in AC15	750 VA
Lamp range	Incandescent, halogen: 3000W
	Fluorescents: 1500W
	CFL: 600W
	Led: 600W
	Halogen with electronic transformer: 600W
	Halogen with electromagnetic transformer: 1500W
Minimum switchable load	1000mW
Contact material	AgSnO2
Power supply characteristics
Supply voltage	230 Vac
Nominal power	3 VA / 1.2 W
General features
Electrical durability	10 x 10³ cycles
Timing adjustment	30 seconds ~ 20 minutes
Number of connectable light buttons	30
Maximum command pulse duration	Continued
Dielectric strength between open contacts	1000 Vac
IP Rating	IP20
Product features
Model	14.01.8.230.0000
Manufacturer	Finder
