Name: Staircase time switch, 4 functions, reset function, adjustment 30 s ~ 20 min, 16A, 1 NO contact - Finder 14.11.8.230.0300
Brand: Finder
SKU: 61.181.0200001
Price: 55.5 EUR
Availability: InStock

SKU 61.181.0200001

In stock 5 Items

€55.50

VAT included

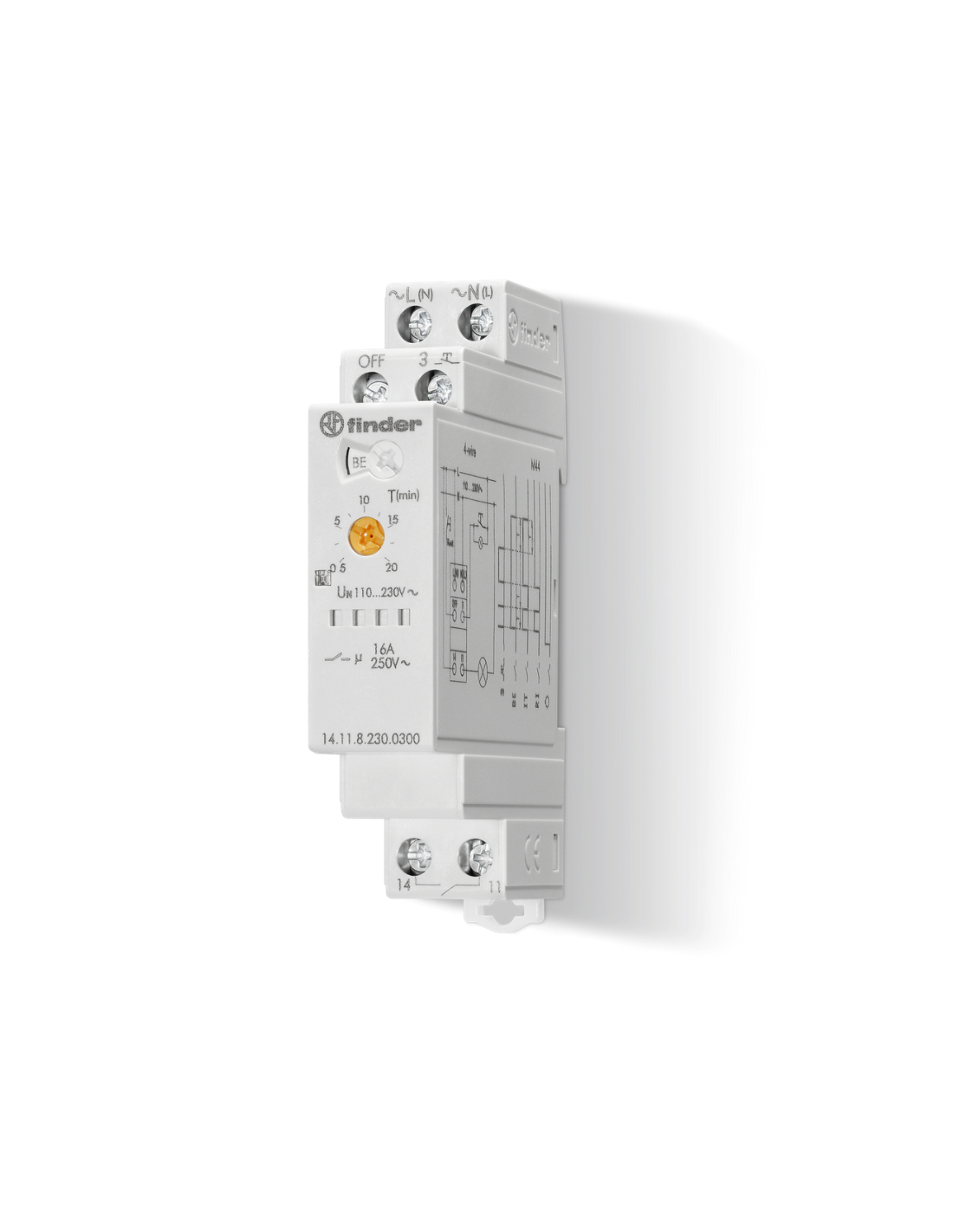

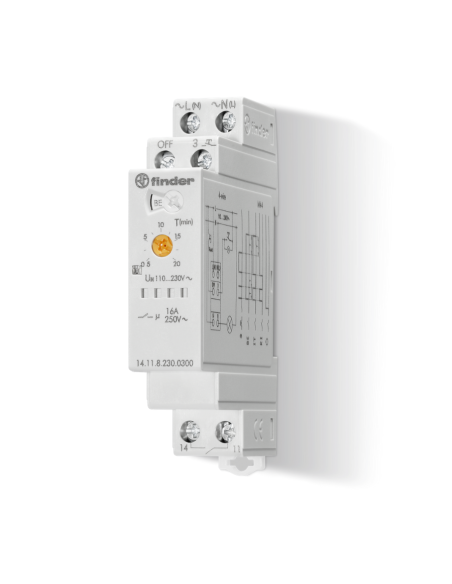

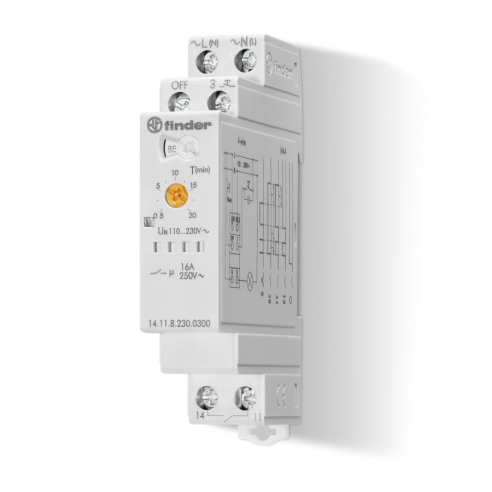

Staircase time switch Type 14.11 with reset terminal for central switch-off.
With potential-free contact 16 A 250V AC.

Features:
- 35 mm rail mounting (EN 60715)
- With reset, 4 functions
- 1 contact, 16 A
- Rated supply voltage 230 V, operation from 90 to 264 V
- Rated power 3.2 VA (AC) / 1 W (DC)
- Operating temperature -10 to +60 °C

Functions:
- Pulse relay
- Pulse relay timed
- Timed staircase light
- Fixed light

Description

Contact configuration
Contact configuration	1 NO
Rated current/maximum instantaneous current	16A / 30A
Rated / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	4000 VA
Nominal load in AC15	750 VA
Lamp range	Incandescent, halogen: 3000W
	Fluorescents: 1500W
	CFL: 600W
	Led: 600W
	Halogen with electronic transformer: 600W
	Halogen with electromagnetic transformer: 1500W
Minimum switchable load	1000mW
Contact material	AgSnO2
Power supply characteristics
Supply voltage	110 - 240 Vac
Nominal power	3 VA / 1 W
Reset time	3 seconds
General features
Electrical durability	10 x 10³ cycles
Timing adjustment	30 seconds ~ 20 minutes
Number of connectable light buttons	45
Maximum command pulse duration	Continued
Dielectric strength between open contacts	1000 Vac
IP Rating	IP20
Product features
Model	14.11.8.230.0300
Manufacturer	Finder
