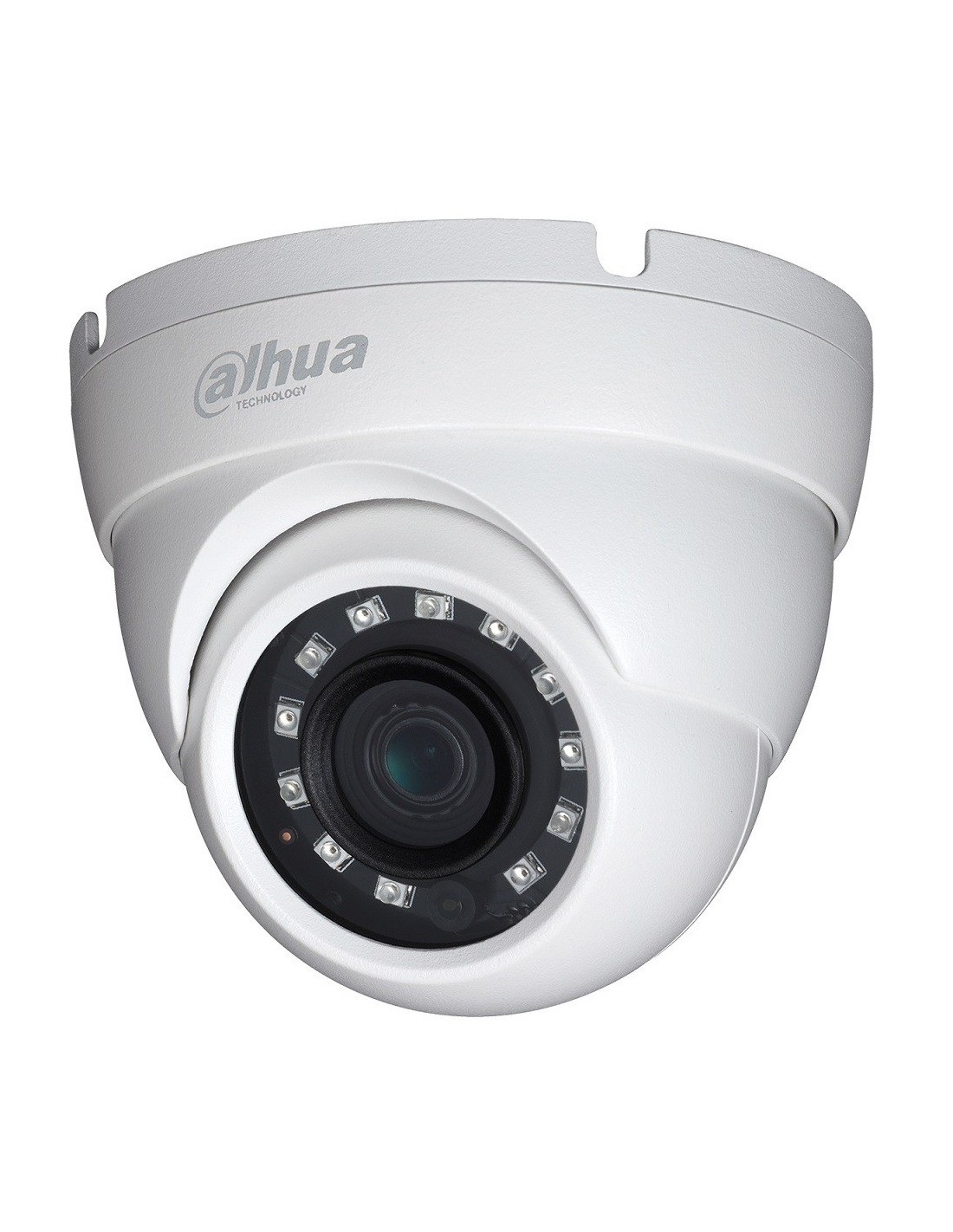

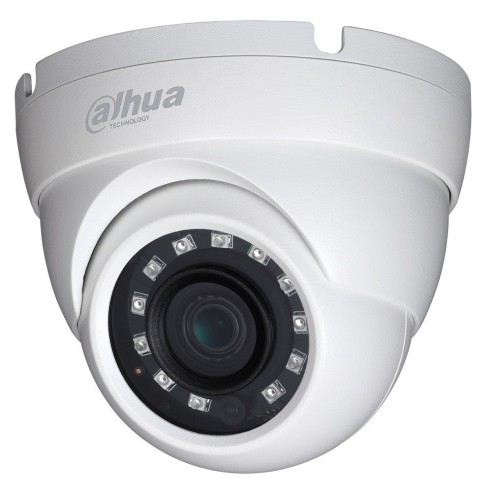

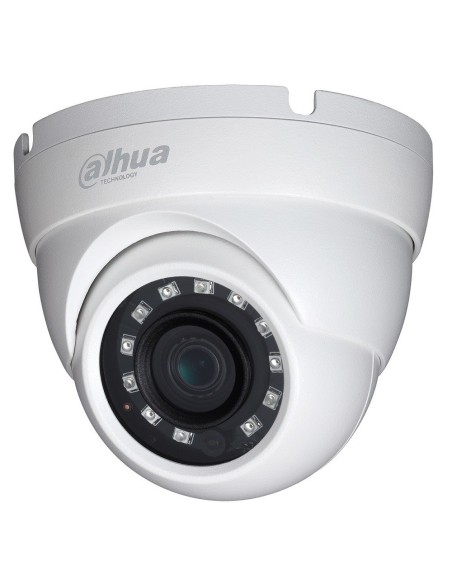

4 in 1 HD@720p 1Megapixel Eyeball Camera with 2.8mm fixed lens, compatible with all analog CCTV surveillance systems: AHD@720p, HD-CVI@720p, HD-TVI@720p, PAL (960H).
The interface AHD / HD-CVI / HD-TVI allows the transmission of the analogue video signal via a coaxial cable in 720p(1280x720p) resolution, in recording and in Live.
This allows the transmission of images with an HD resolution at a distance of up to 500m while maintaining low installation costs, there is no delay during transmission and the original high quality image is retained.
The selection or switching of the CCTV standard is done via the OSD menu (manageable via cable) or through the use of the Dahua PFM820 UTC controller (not included).
By setting the camera to PAL standard it is possible to obtain recordings with a maximum resolution of 960H (960x480p).
Thanks to the OSD menu you can manage and program various image adjustment functions, including:
AWB White balance - Several options are available to optimise the white tone depending on the type of lighting.
D-WDR - This function can provide the best image clarity in difficult lighting situations by analysing and exposing different areas of the image to different degrees of brightness. This function is automatic by the processor and cannot be set manually.
Day/Night (IR-CUT) Threshold - It is possible to program the mode of switching between colour day vision and black/white night vision.
2D-NR (Noise reduction) - This innovative function enables digital noise reduction in the image, allowing moving subjects to be captured and reproduced in a sharp, clear and blur-free image.
The DSP processor automatically manages functions such as ATW, AGC and BLC/HLC to compensate for all light conditions and exposures, improving and stabilising the image, allowing crisp, noise-free images with high image processing capacity for both day and night, thanks to SMART IR technology and the mechanical IR-CUT filter installed in the camera body.
Equipped with an infrared illuminator with a real range of up to 30M night vision.
The dome shape makes the product installable either on the ceiling, wall or surface.
| Sensor | 1/4" CMOS |
| Resolution | 1280(H)×720(V), 1MP |
| Shutter speed | PAL: 1/25~1/100000s; NTSC: 1/30~1/100000s |
| Minimum illumination | 0.05Lux/F2.0, 30IRE; 0 Lux with active IR |
| Night vision | Up to 30 metres |
| IR LED control | Manual / automatic |
| Number of IR LEDs | 12 |
| Lens | 3.6mm, fixed |
| Maximum opening | F2.0 |
| Visual angle | H: 60° (83.4°) |
| Video |
| Resolution | 720P (1280×720) |
| Frame rate | 25/30fps@720P |
| Output | BNC |
| OSD menu | Multi language |
| BLC mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Noise reduction | 2D |
| White balance | Manual / automatic |
| Smart IR | Manual / automatic |
| General features |
| Power supply | 12V DC ±25% |
| Consumption | Max. 2.8W (with active IR LEDs) |
| Operating temperature | -40°C ~ +60°C |
| IP Rating | IP67 |

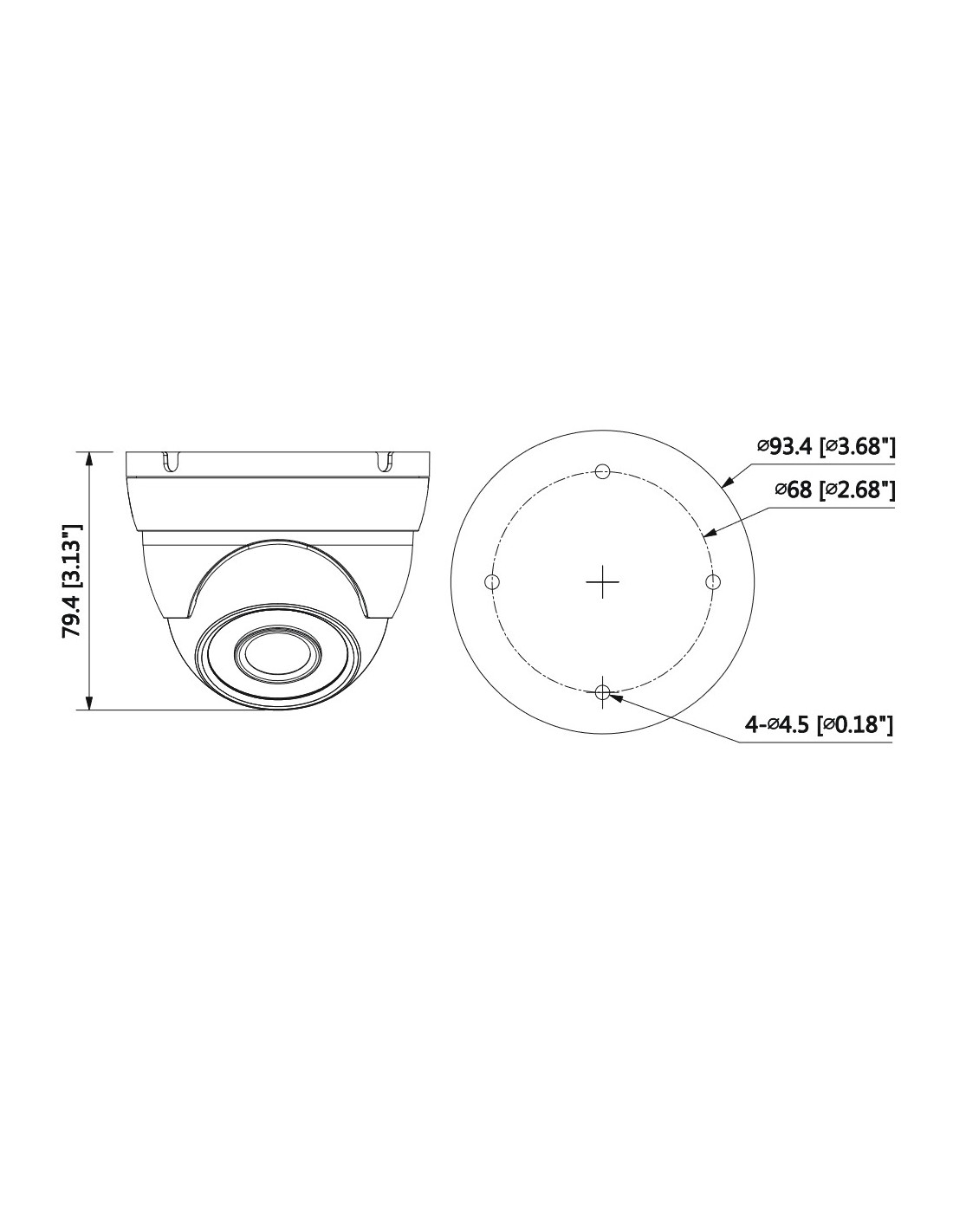

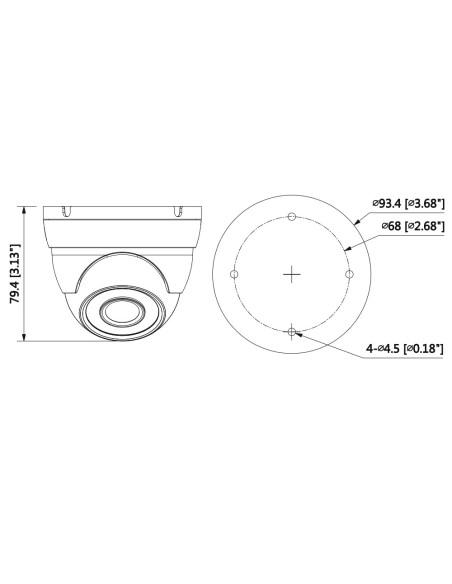

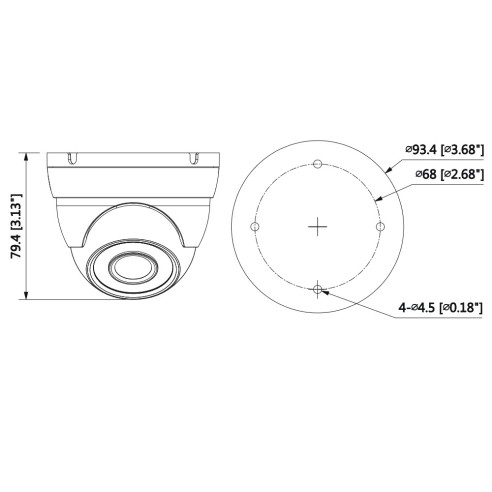

| Dimensions | Ø 93.4 x 79.4 mm |
| Weight | 280 g |
| Rotation | Horizontal 360ç, vertical 90°. |
| Model | HAC-HDW1000M-S3 |
| Brand | Dahua |
