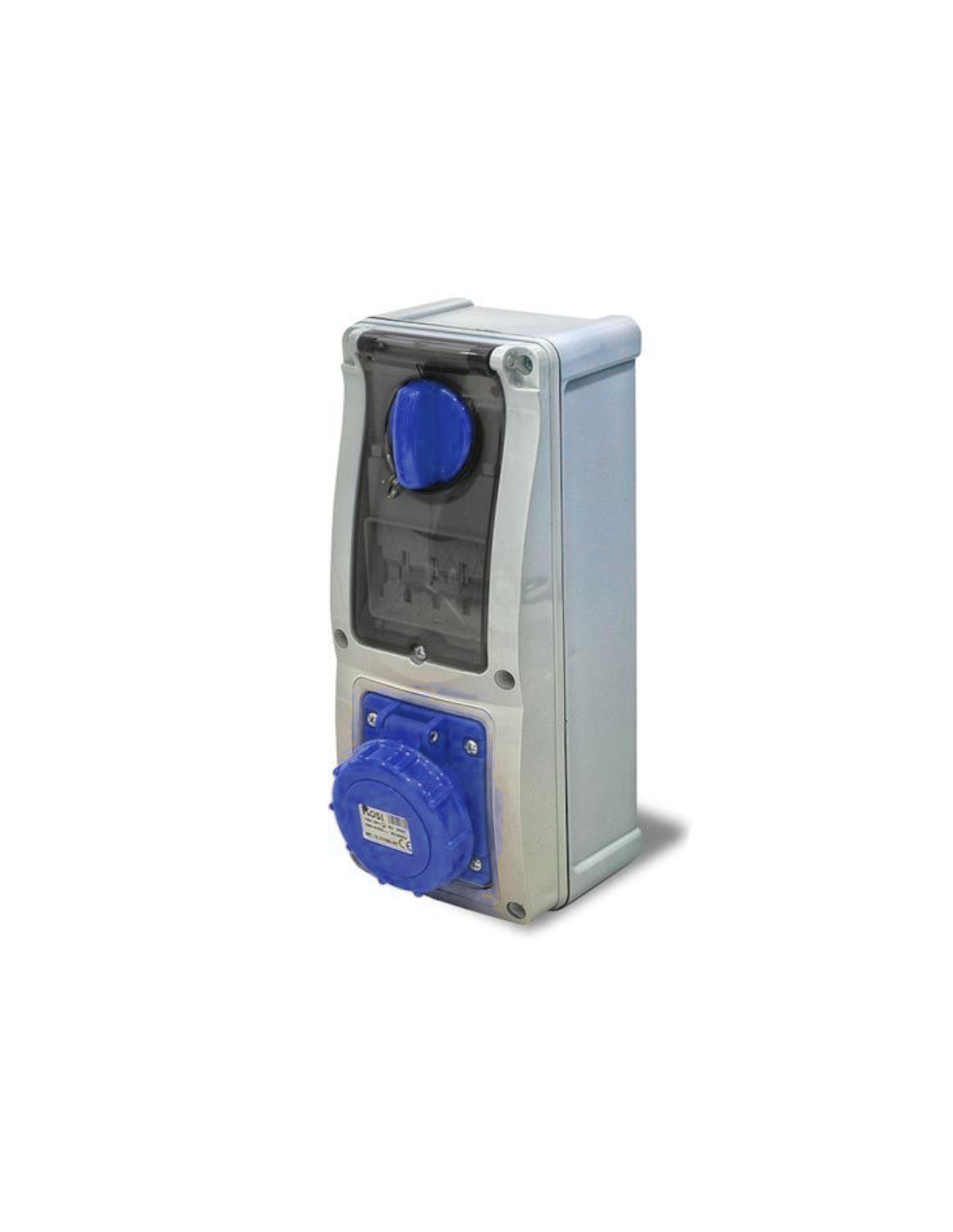

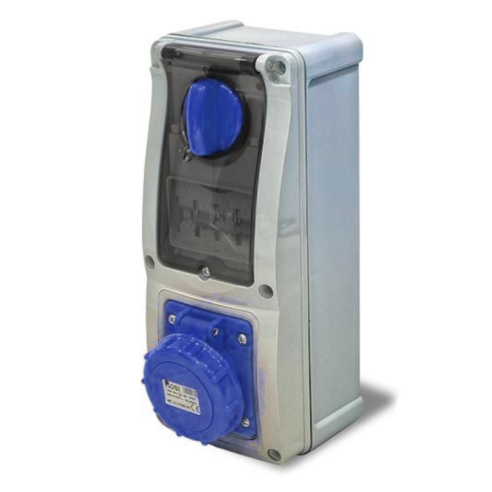

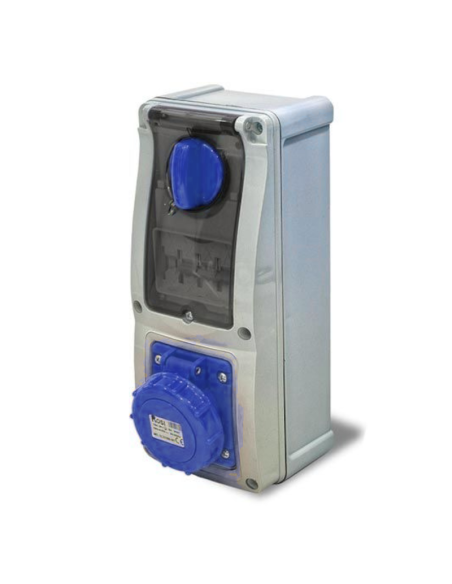

Interlocked socket outlet with switch, with base, with thermal magnetic circuit breaker, 230V, 3-pole, 63A, IP67-Rosi 16.263B6MT
Interlocked socket outlet with switch, with base, with thermal magnetic circuit breaker, 230V, 3-pole, 63A, IP67-Rosi 16.263B6MT

Interlocked socket outlet with switch, with base, with thermal magnetic circuit breaker, 230V, 3-pole, 63A, IP67-Rosi 16.263B6MT

61.402.0460014
2 Items
Last items in stock
€170.90
VAT included
The circuit breaker is activated and reset directly via the external knob without the need to open the door or covers.

Description

Commercial seriesSeries 16 IEC 309 IP67
Number of poles2P+E
Current63 A
Voltage200 ~ 250 Vac
Thermal-magnetic circuit breakerCurve C, 6kA
IP RatingIP67
IK Rating8
Operating temperature-25°C ~ +70°C
Glow wire+650 / +850 °C
MaterialAbs, nylon, rubber

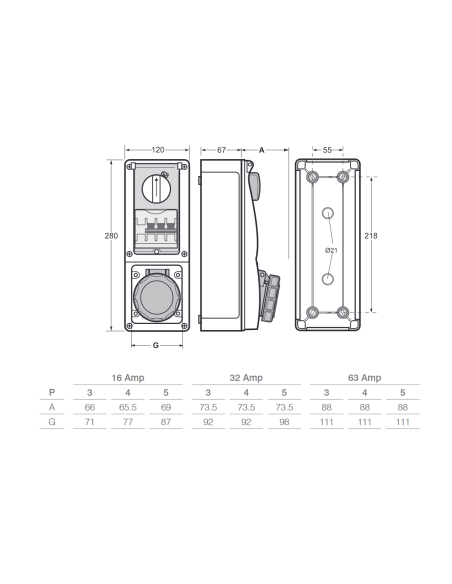

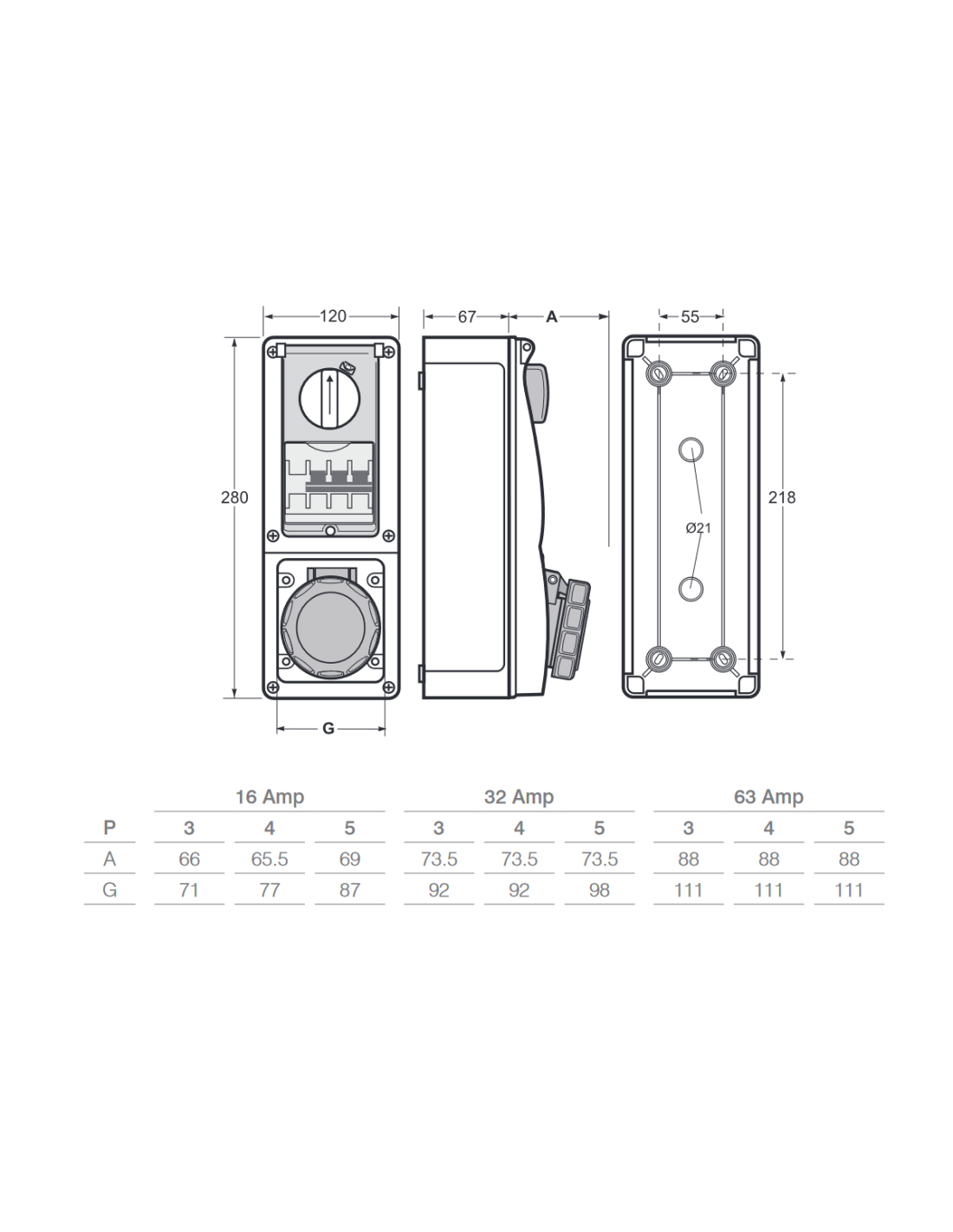

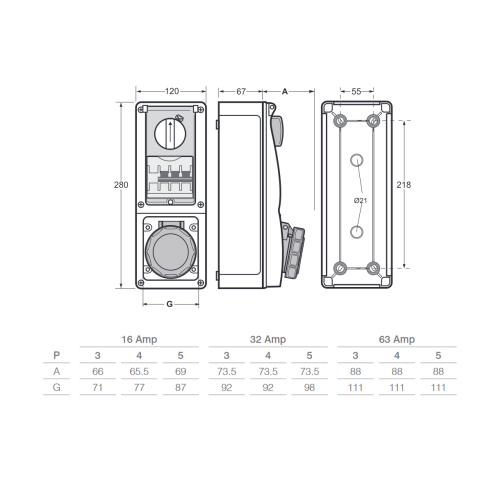

Dimensions28 x 12 x 14 cm
Weight1.15 kg
EAN8051093578992
Model16.263B6MT
ManufacturerRosi srl

Product Details

Brand
Rosi
Mounting
Wall mounting
Voltage
200 ~ 250 Vac
Number of poles
3 poles
Corrente
63 A
Protection devices
Switch magnetermic
Accessories
No
IP Rating
IP67
