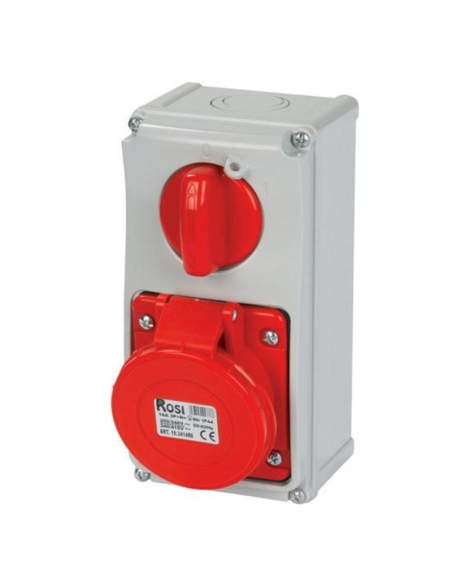

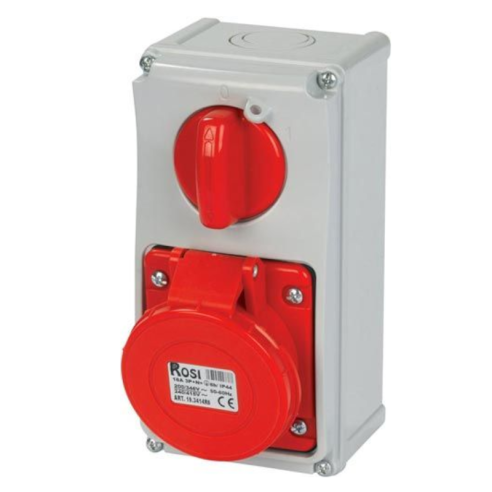

Vertical interlocked socket outlet with disconnect switch, with bottom, 380V, 5 poles, 32A, IP54 - Rosi 19.3434R6
Vertical interlocked socket outlet with disconnect switch, with bottom, 380V, 5 poles, 32A, IP54 - Rosi 19.3434R6

Vertical interlocked socket outlet with disconnect switch, with bottom, 380V, 5 poles, 32A, IP54 - Rosi 19.3434R6

61.402.0520005
6 Items
€46.90
VAT included

Description

Commercial series19 Series IEC 309 IP54
Number of poles3P+N+T
Current32 A
Voltage380 ~ 415 Vac
IP RatingIP54
IK Rating8
Operating temperature-25°C ~ +70°C
Glow wire+650 / +850 °C
MaterialAbs, nylon, rubber
Dimensions18 x 9.5 x 6 mm
Weight0.9 kg
EAN8033549927400
Model19.3434R6
ManufacturerRosi srl

Product Details

Brand
Rosi
Mounting
Wall mounting
Voltage
380 ~ 415 Vac
Number of poles
5 poles
Corrente
32 A
Protection devices
No
Accessories
No
IP Rating
IP54
