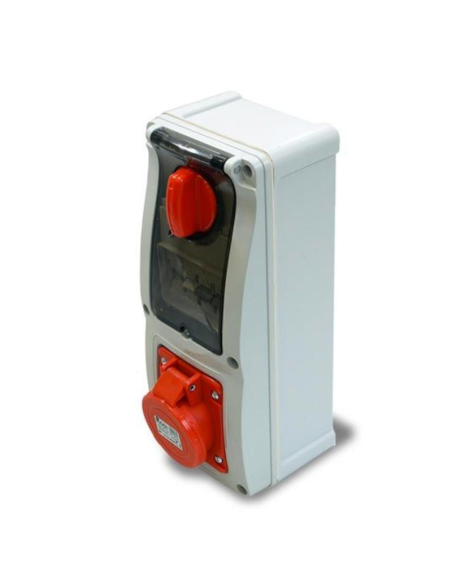

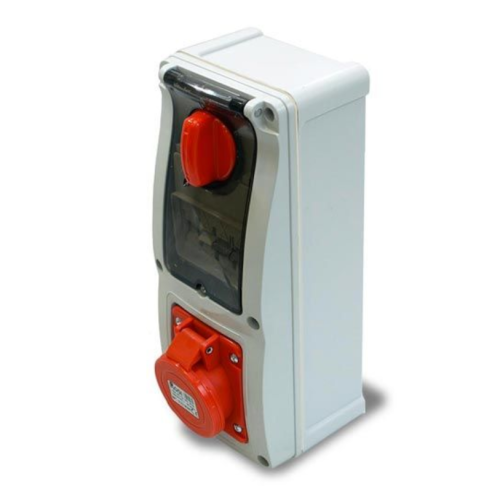

Vertical interlocked socket outlet with disconnect switch, with circuit breaker, 380V, 4-pole, 32A, IP54 - Rosi 16.3334R6MT
Vertical interlocked socket outlet with disconnect switch, with circuit breaker, 380V, 4-pole, 32A, IP54 - Rosi 16.3334R6MT

Vertical interlocked socket outlet with disconnect switch, with circuit breaker, 380V, 4-pole, 32A, IP54 - Rosi 16.3334R6MT

61.402.0500013
7 Items
€133.00
VAT included
The thermal-magnetic circuit breaker is operated and reset directly via the external knob without the need to open the door or covers.

Description

Commercial seriesSeries 16 IEC 309 IP54
Number of poles3P+E
Current32 A
Voltage380 ~ 415 Vac
Thermal-magnetic circuit breakerCurve C, 6kA
IP RatingIP54
IK Rating8
Operating temperature-25°C ~ +70°C
Glow wire+650 / +850 °C
MaterialAbs, nylon, rubber

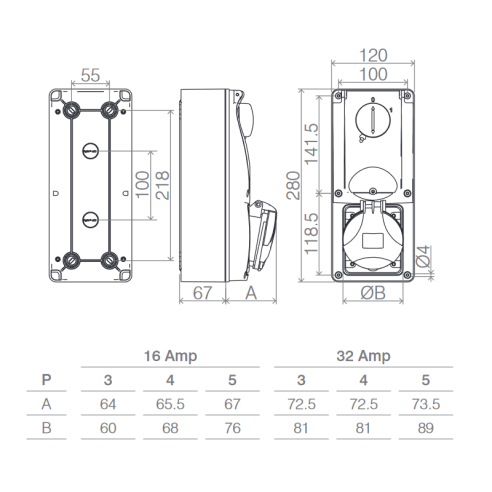

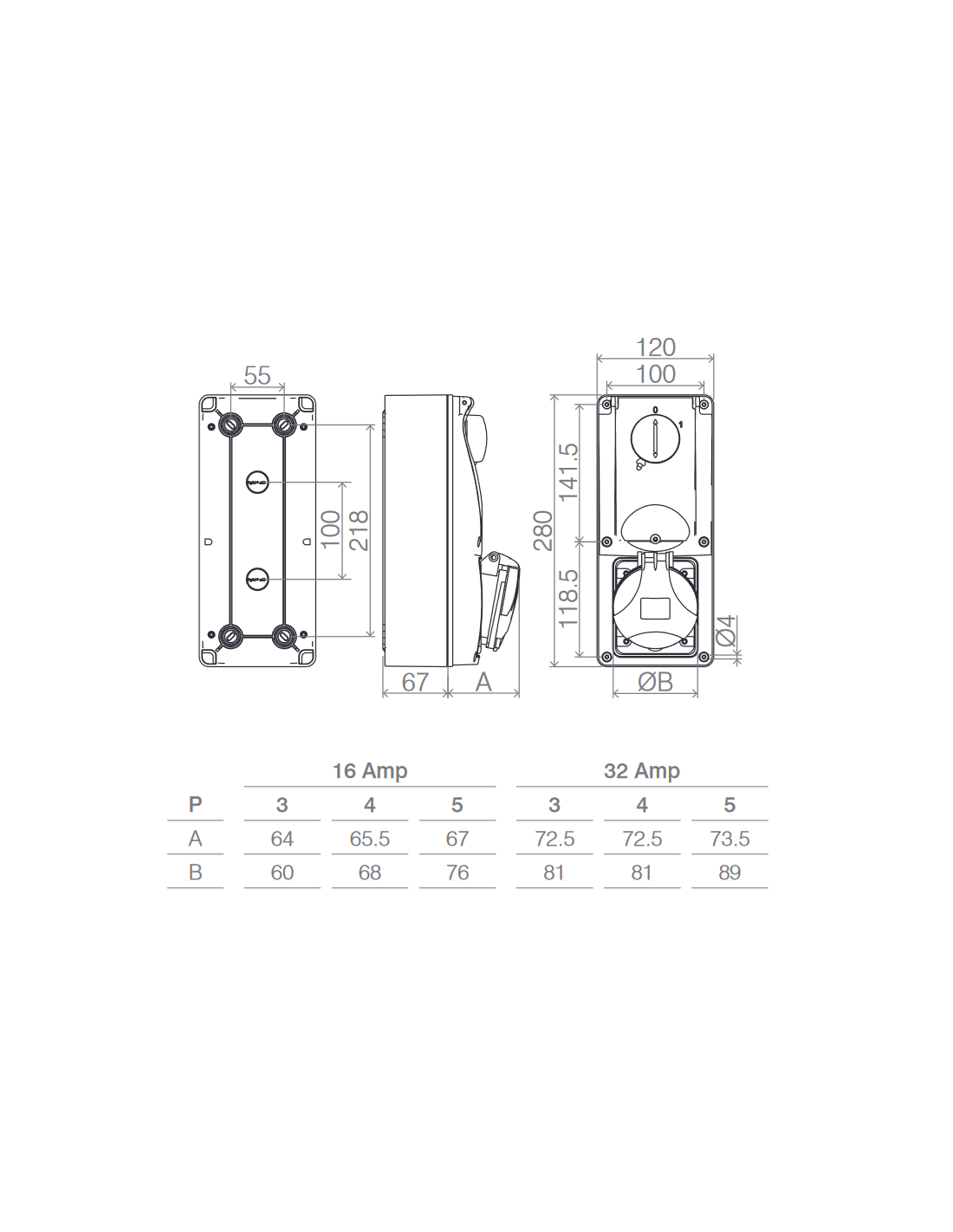

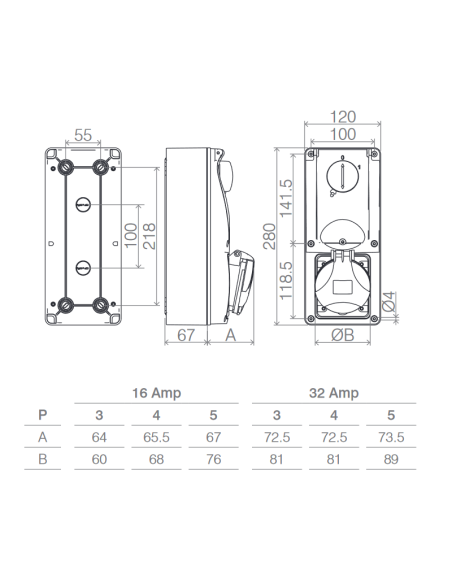

Dimensions28 x 12 x 14 cm
Weight1 kg
EAN8033509918066
Model16.3334R6MT
ManufacturerRosi srl

Product Details

Brand
Rosi
Mounting
Wall mounting
Voltage
380 ~ 415 Vac
Number of poles
4 poles
Corrente
32 A
Protection devices
Switch magnetermic
Accessories
No
IP Rating
IP54
