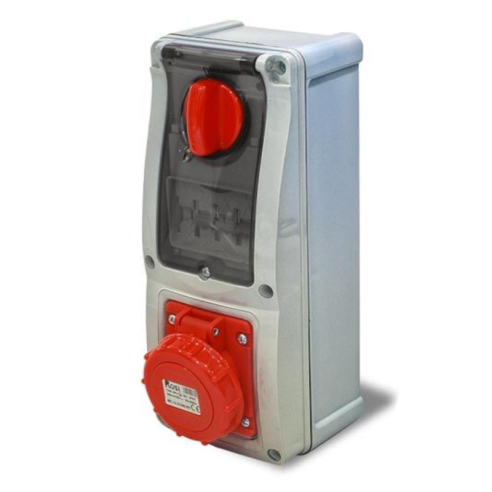

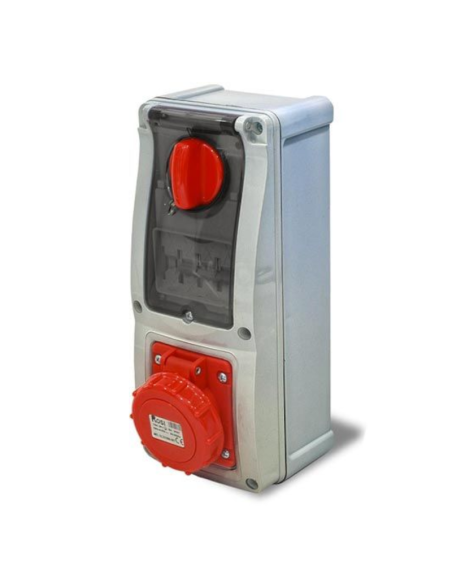

Locked socket outlet with switch, with base, with circuit breaker, 380V, 5-pole, 32A, IP67-Rosi 16.3432R6MT
Locked socket outlet with switch, with base, with circuit breaker, 380V, 5-pole, 32A, IP67-Rosi 16.3432R6MT

Locked socket outlet with switch, with base, with circuit breaker, 380V, 5-pole, 32A, IP67-Rosi 16.3432R6MT

61.402.0530013
7 Items
€169.00
VAT included
The circuit breaker is activated and reset directly via the external knob without the need to open the door or covers.

Description

Commercial seriesSeries 16 IEC 309 IP67
Number of poles3P+N+T
Current32 A
Voltage380 ~ 415 Vac
Thermal-magnetic circuit breakerCurve C, 6kA
IP RatingIP67
IK Rating8
Operating temperature-25°C ~ +70°C
Glow wire+650 / +850 °C
MaterialAbs, nylon, rubber

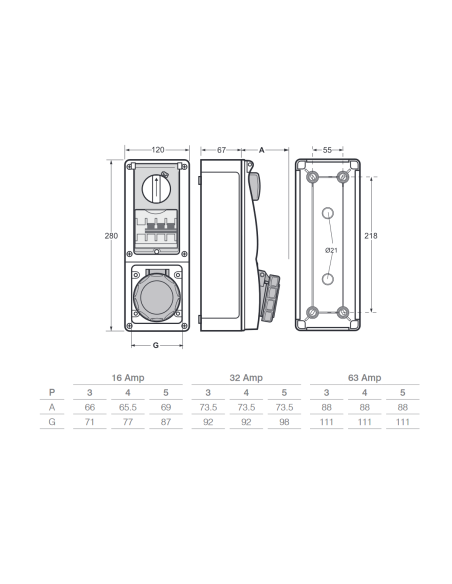

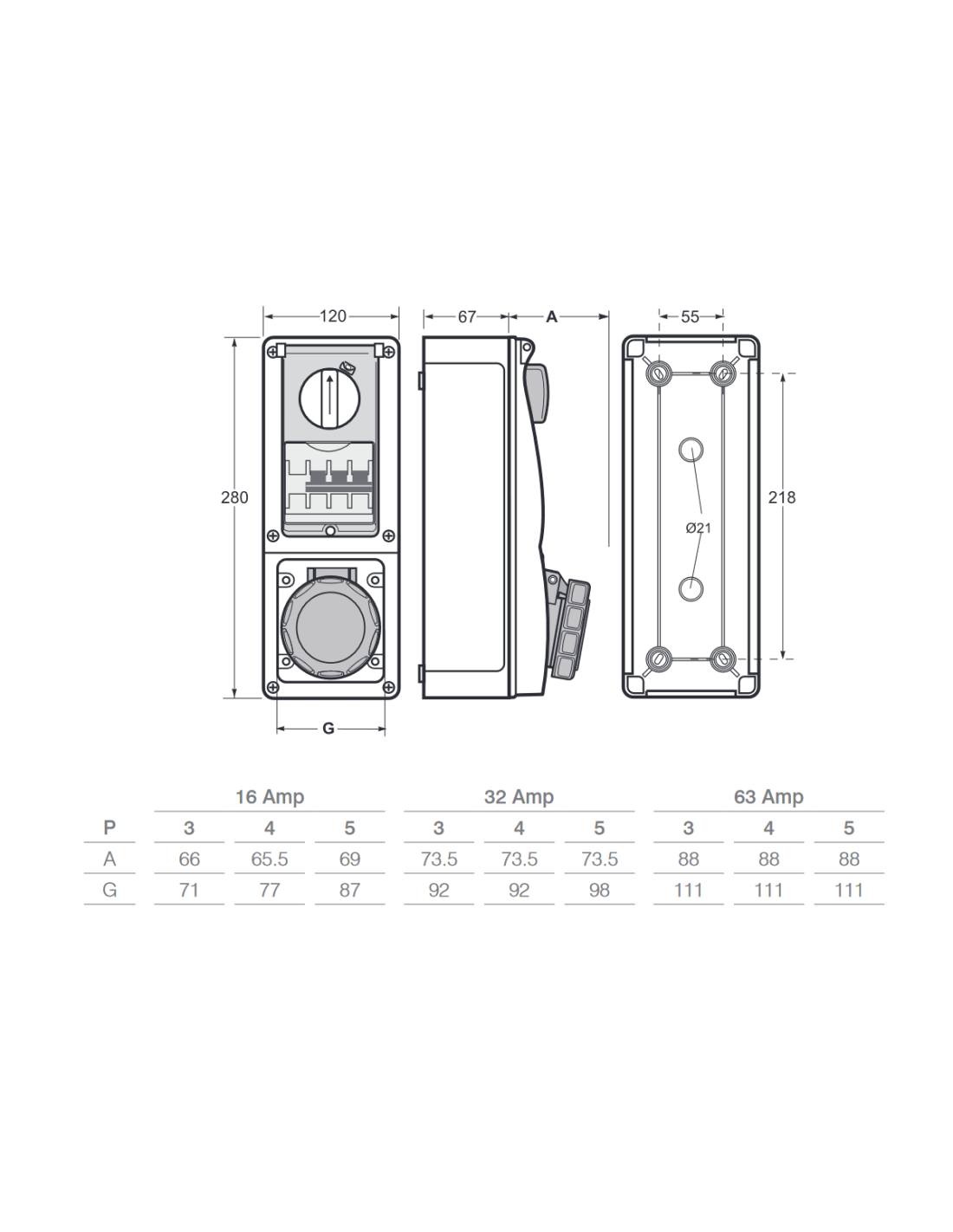

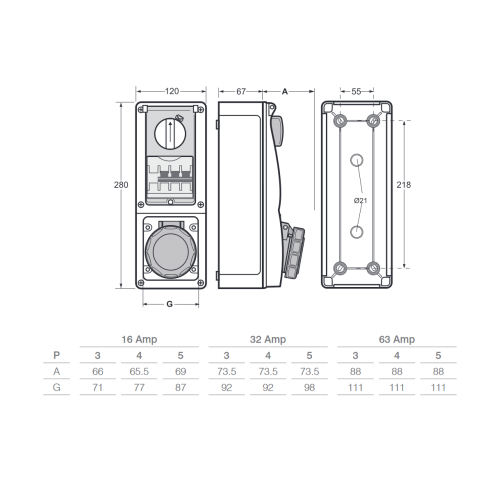

Dimensions28 x 12 x 14 cm
Weight1.31 kg
EAN8033509918608
Model16.3432R6MT
ManufacturerRosi srl

Product Details

Brand
Rosi
Mounting
Wall mounting
Voltage
380 ~ 415 Vac
Number of poles
5 poles
Corrente
32 A
Protection devices
Switch magnetermic
Accessories
No
IP Rating
IP67
