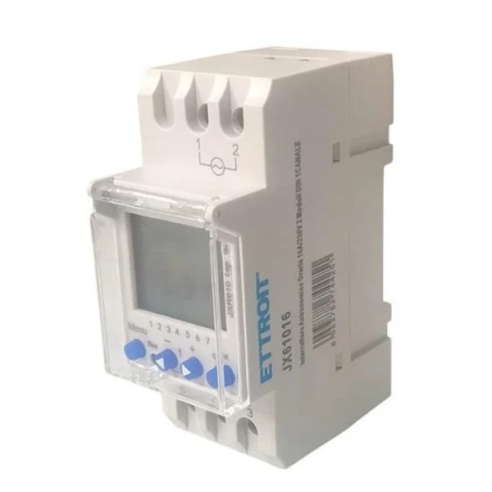

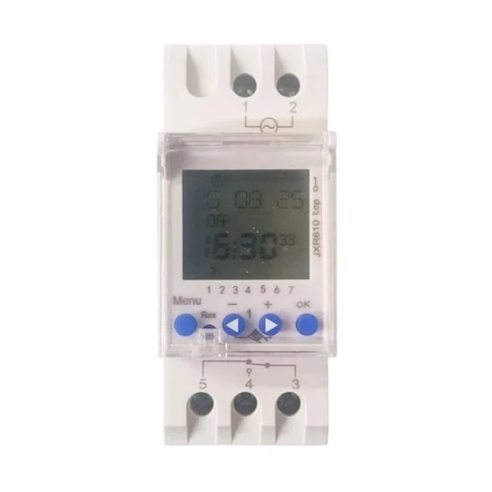

Digital astronomical switch, weekly,...
Digital astronomical switch, weekly,...

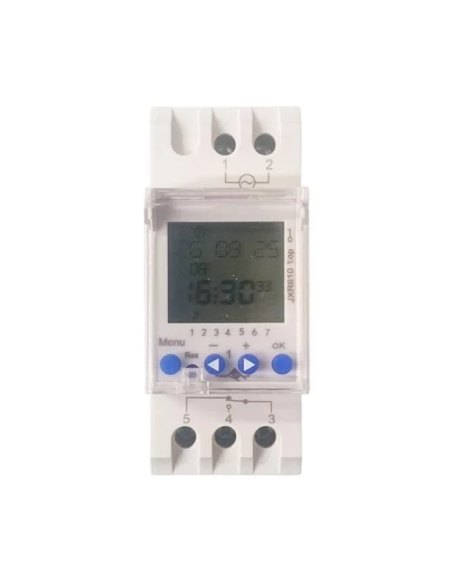

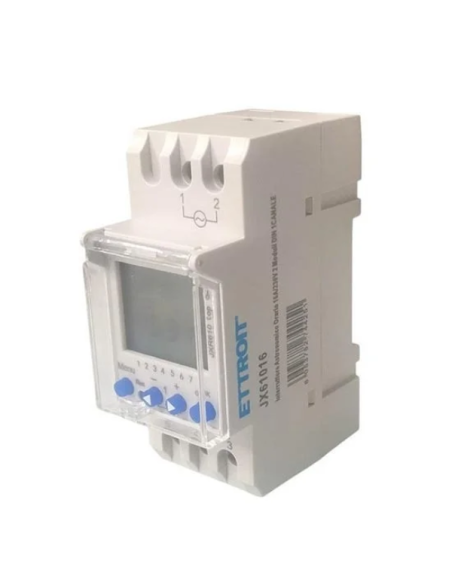

Digital astronomical switch, weekly, 1 minute interval, 1 channel, 16A, 230Vac - Ettroit JX61016
Digital astronomical switch, weekly, 1 minute interval, 1 channel, 16A, 230Vac - Ettroit JX61016

Digital astronomical switch, weekly, 1 minute interval, 1 channel, 16A, 230Vac - Ettroit JX61016

61.181.0303006
100 Items
€36.60
VAT included
DIN-rail mounted astronomical time switch (2 modules), designed for intelligent management of lighting and electrical equipment.
Thanks to the astronomical function, the switch-on and switch-off time automatically adjusts according to sunrise and sunset, optimising consumption and reducing energy costs.
It offers a wide range of weekly settings, with up to 48 ON/OFF programmes, automatic time correction and quartz accuracy.
Equipped with a backlit LCD display and programming buttons, it allows for simple and immediate operation.
With a load capacity of up to 16A, it is ideal for controlling street lighting, gardens, shop windows, signs, warehouses, heating systems and industrial installations.

Features:
- Astronomical function for sunrise and sunset;
- Weekly programming with up to 48 switching on/off;
- Automatic time correction ±60 sec/week;
- LCD display with 4 control keys;
- Quick installation on DIN rail (2 modules).

Description

Power supply230-240V AC, 50/60Hz
Number of channels1
ProgrammingWeekly, astronomical (sunrise/sunset)
Number of programmesUp to 48 ON/OFF
Contact1 × SPST
Rated current16A (cosφ=1) / 10A (cosφ=0.6)
Charging incandescent and halogen lamps2600W
LED lamp load30W (<2W), 100W (2-8W), 120W (>8W)
Fluorescent lamp load2300VA (uncorrected), 2300VA (corrected in series), 730VA (corrected in parallel)
Minimum switching current10 mA
Minimum switching time1 minute
Clock accuracy±2 s/day at 25°C
Stand-by consumption~0,8W
Maximum consumption2,6W
Mounting35mm DIN rail (EN 60715)
Number of occupied modules2
MaterialSelf-extinguishing thermoplastic
Protection classII (EN 60730-1)
IP RatingIP20
Working temperature-10°C ~ +55°C (max. 70°C)
ModelJX61016
ManufacturerEttroit

Product Details

Brand
Ettroit
Mounting
Din rail
Rated voltage
250V
Corrente nominale
16 A
Contact configuration
SPST
Time switch type
Digital, astronomical, weekly
Minimum programming interval
1 minute
