Name: Miniature Circuit Breaker, 3P, 380Vac, 160A, 35KA - Ettroit JX14396
Brand: Ettroit
SKU: 61.472.0210003
Price: 65.9 EUR
Availability: InStock

SKU 61.472.0210003

In stock 10 Items

€65.90

VAT included

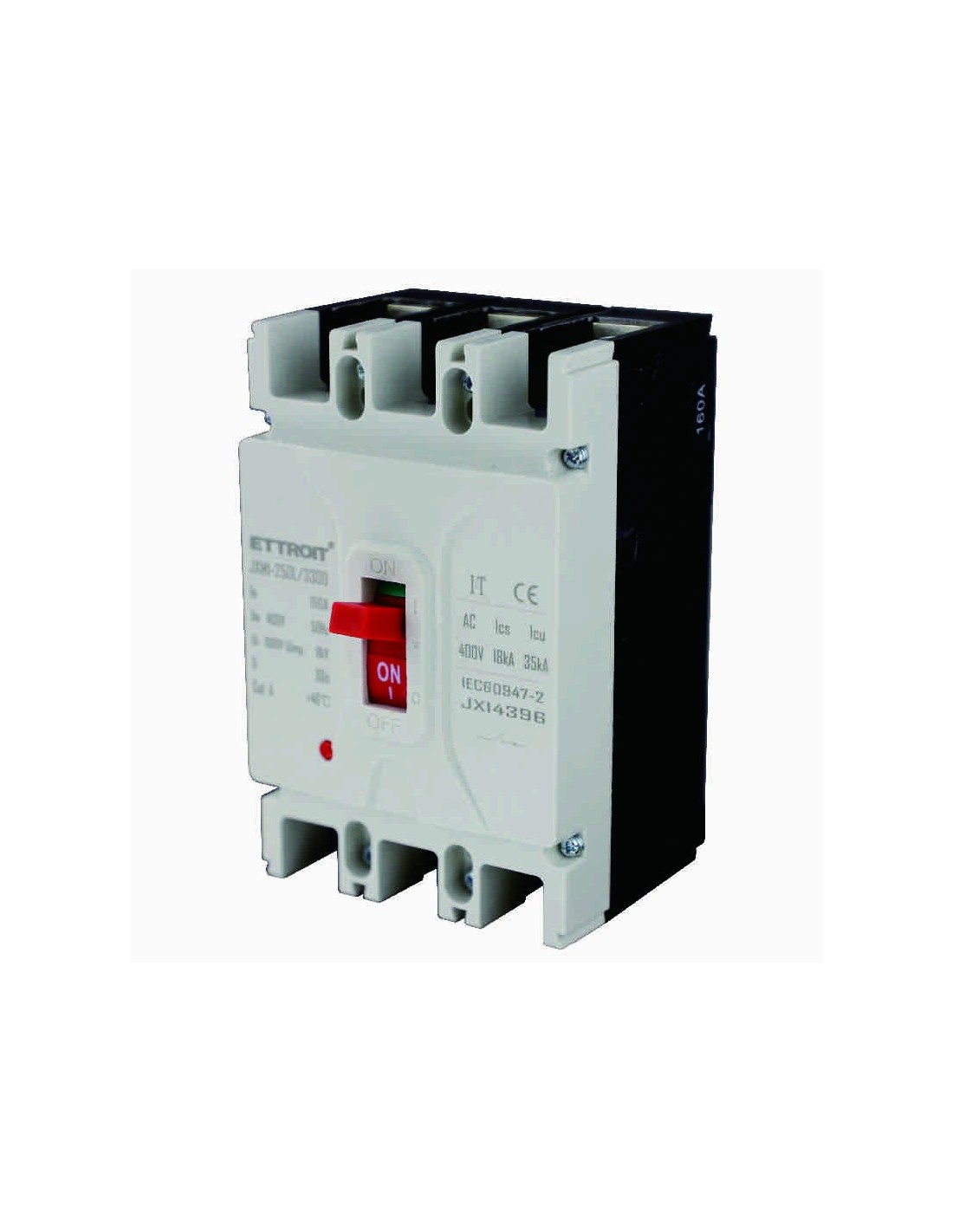

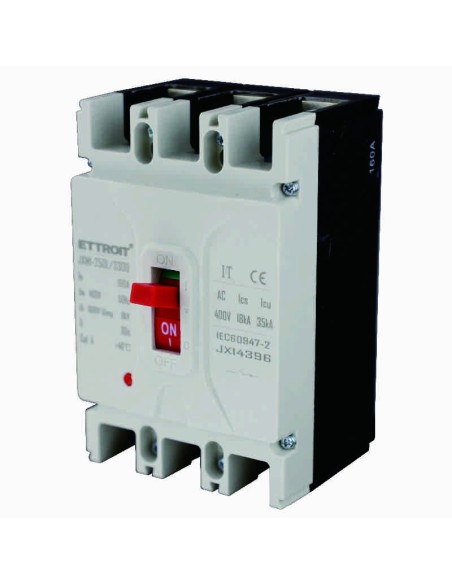

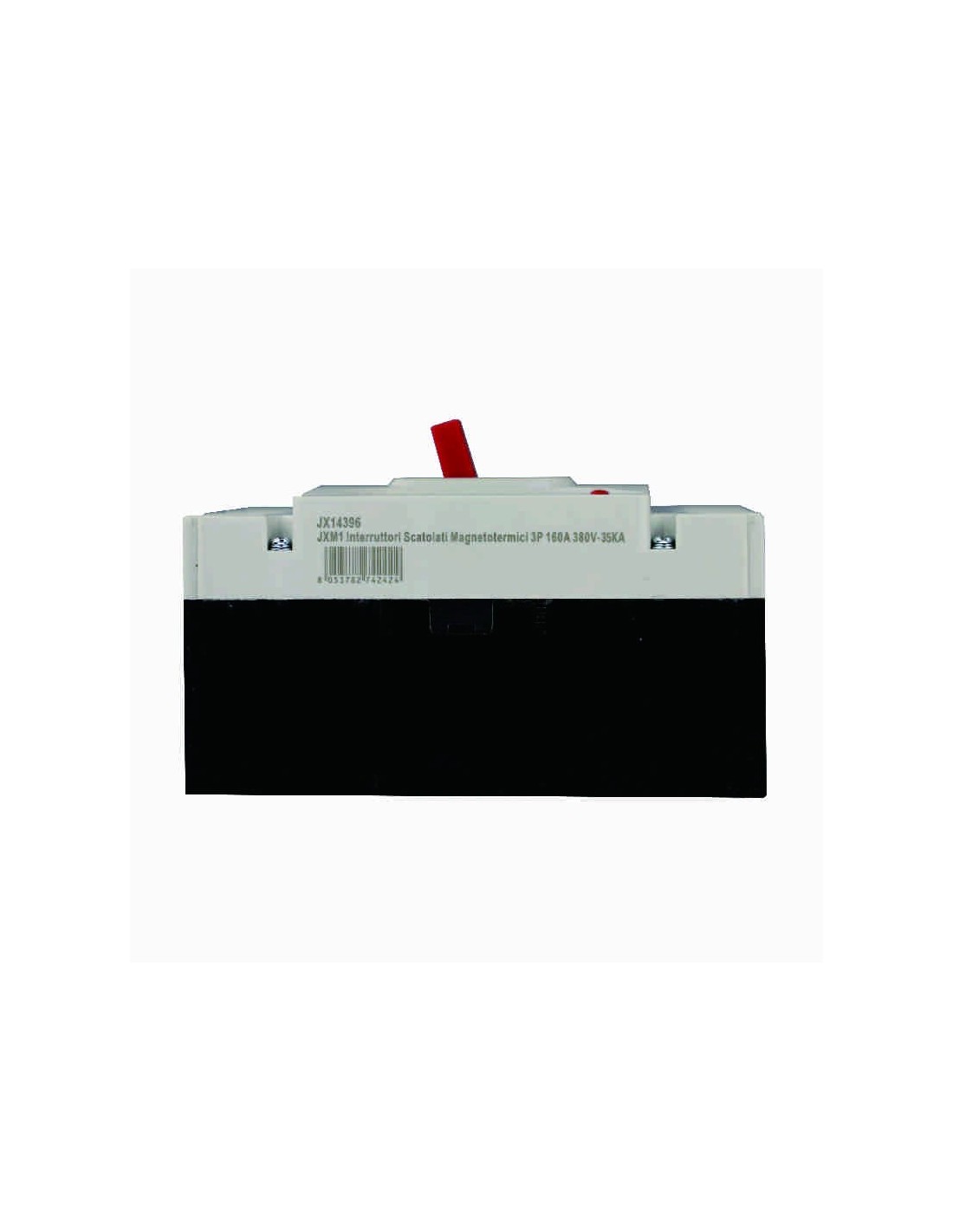

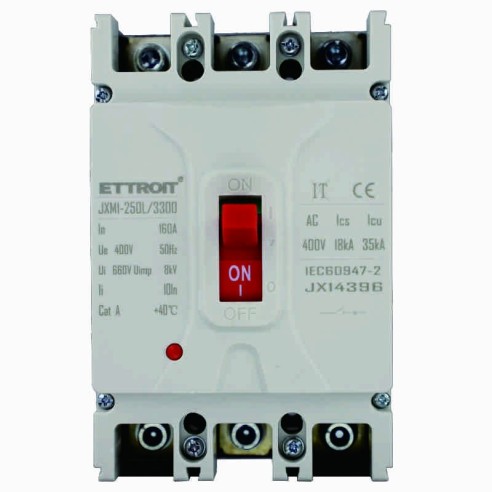

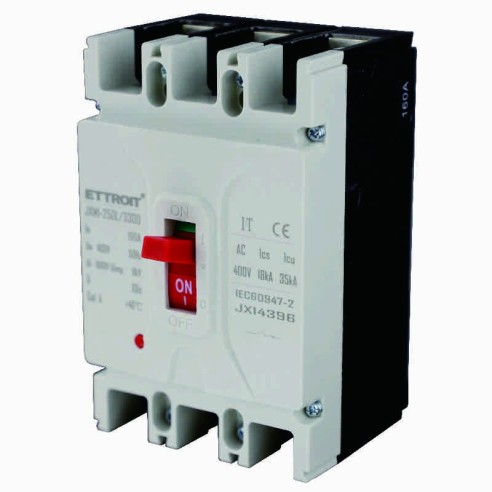

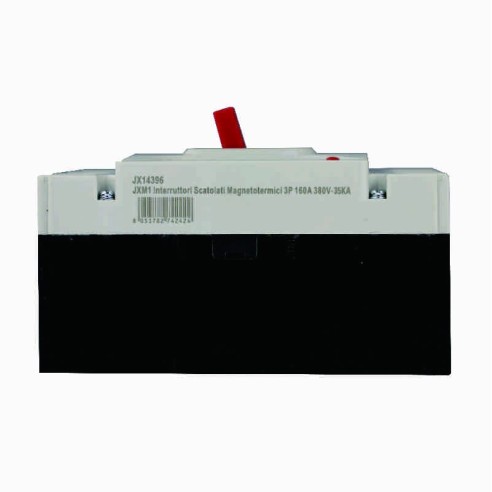

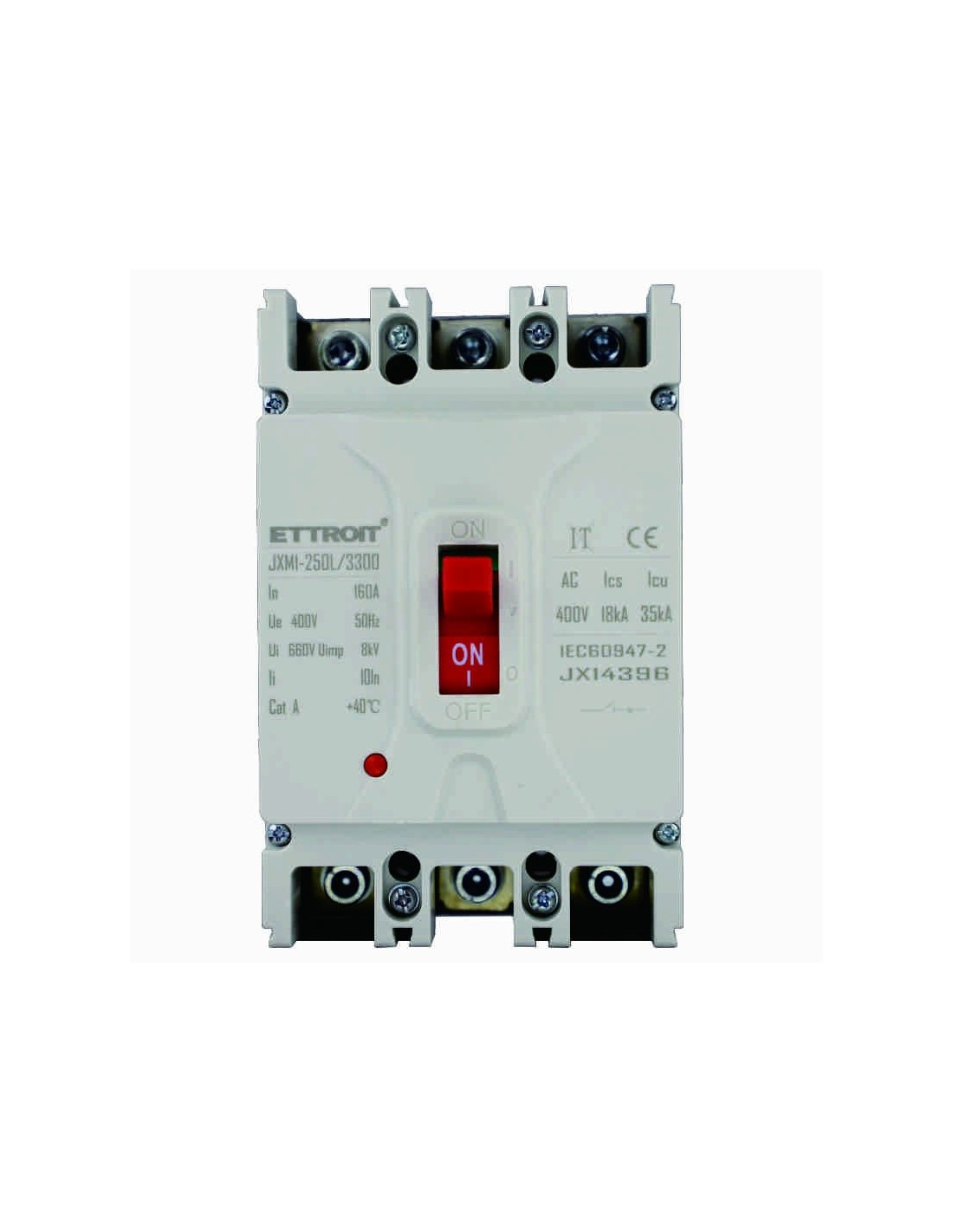

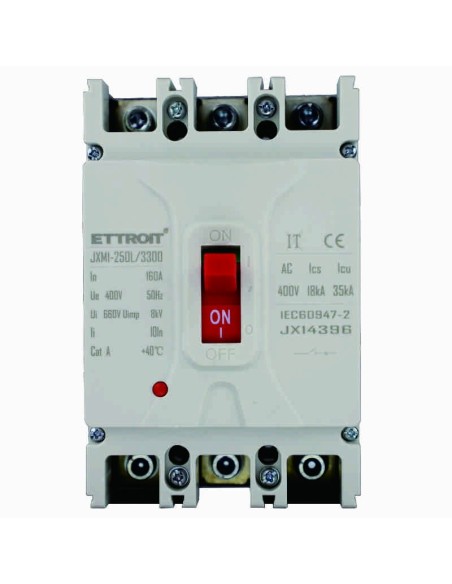

The Ettroit JX14396 moulded case circuit breaker is a reliable and versatile solution for the protection of electrical circuits in industrial and commercial environments.
Designed to withstand current ratings up to 160A and equipped with a breaking capacity of 35KA, this device ensures high standards of safety and reliability.
Robust and compact design for safe and quick installation.
Suitable for industrial and commercial environments with high loads.
Conforms to international IEC60947-2 standards for increased safety and reliability.

Features:
- Rated current (In): 160A;
- Rated voltage (Ue): 380V;
- Interrupting capacity: 35KA;
- Frequency: 50Hz;
- Rated insulation voltage (Ui): 660V;
- Rated impulse voltage (Uimp): 8KV;
- Operating temperature: Up to +40°C.

Description

Rated current	160 A
Rated voltage	380 Vac
Interruption Capability	35 KA
Frequency	50 Hz
Insulation Voltage	660 V
Nominal Pulse Voltage	8 KV
Operating temperature	Up to +40°C
Model	JX14396
Manufacturer	Ettroit
