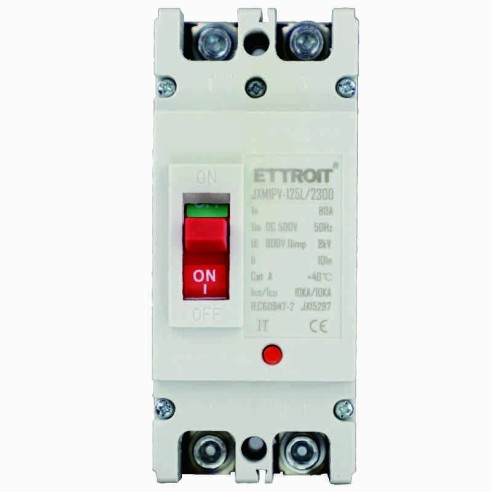

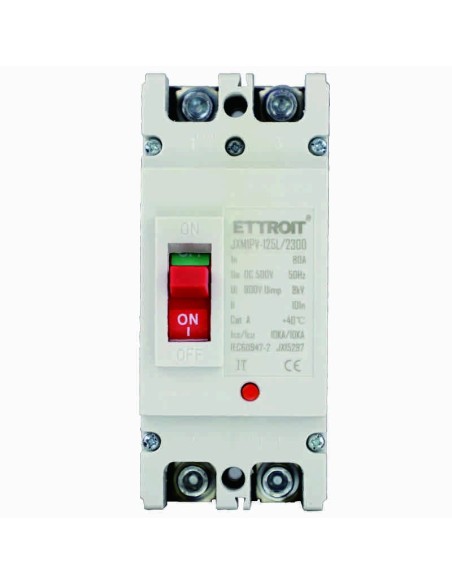

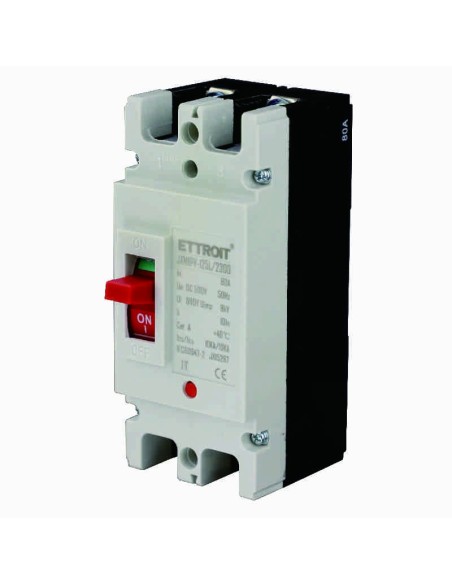

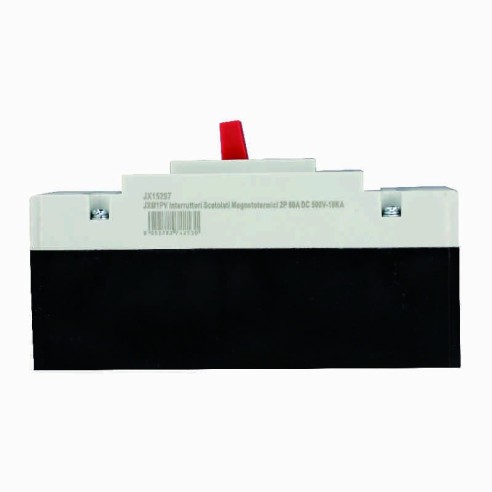

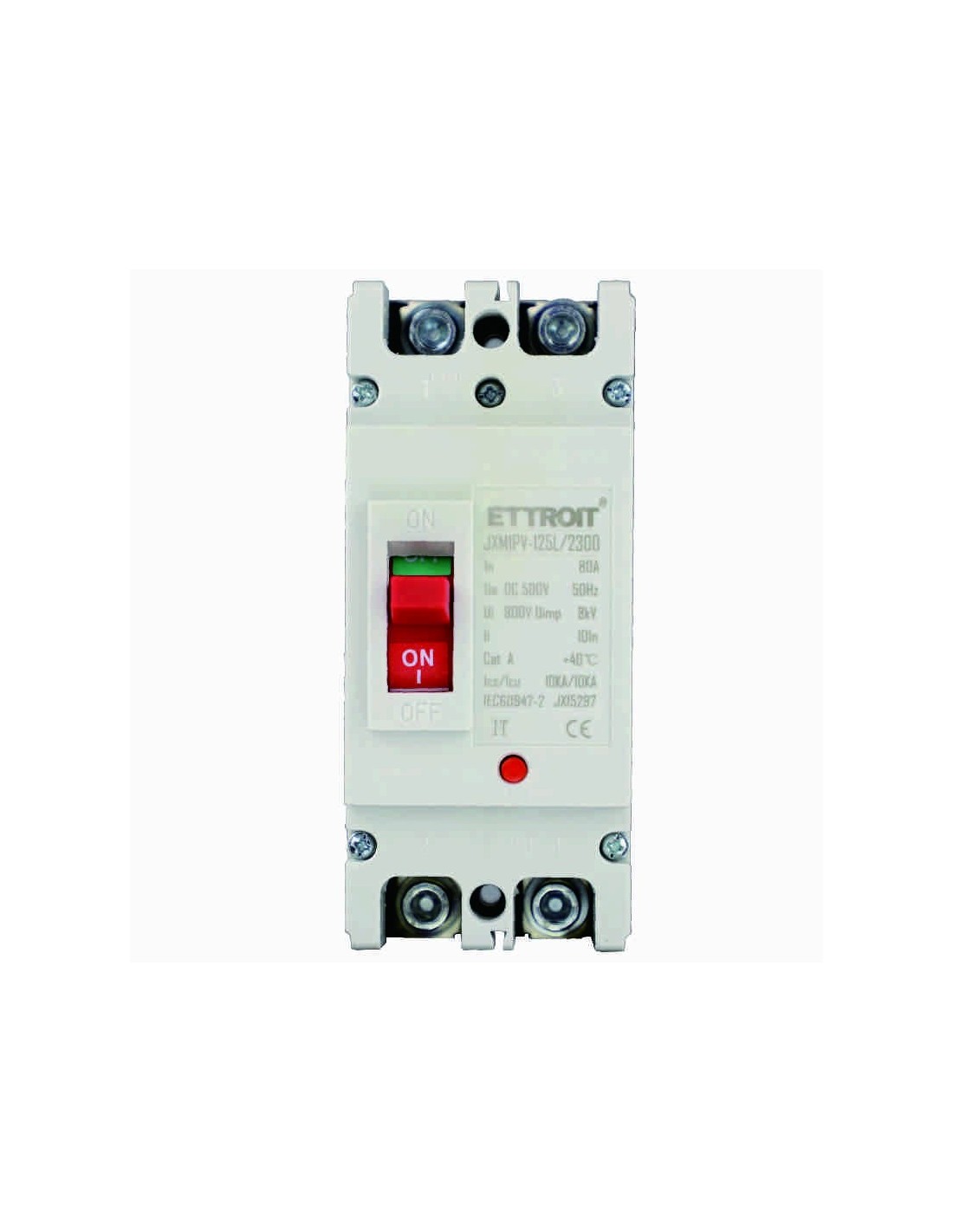

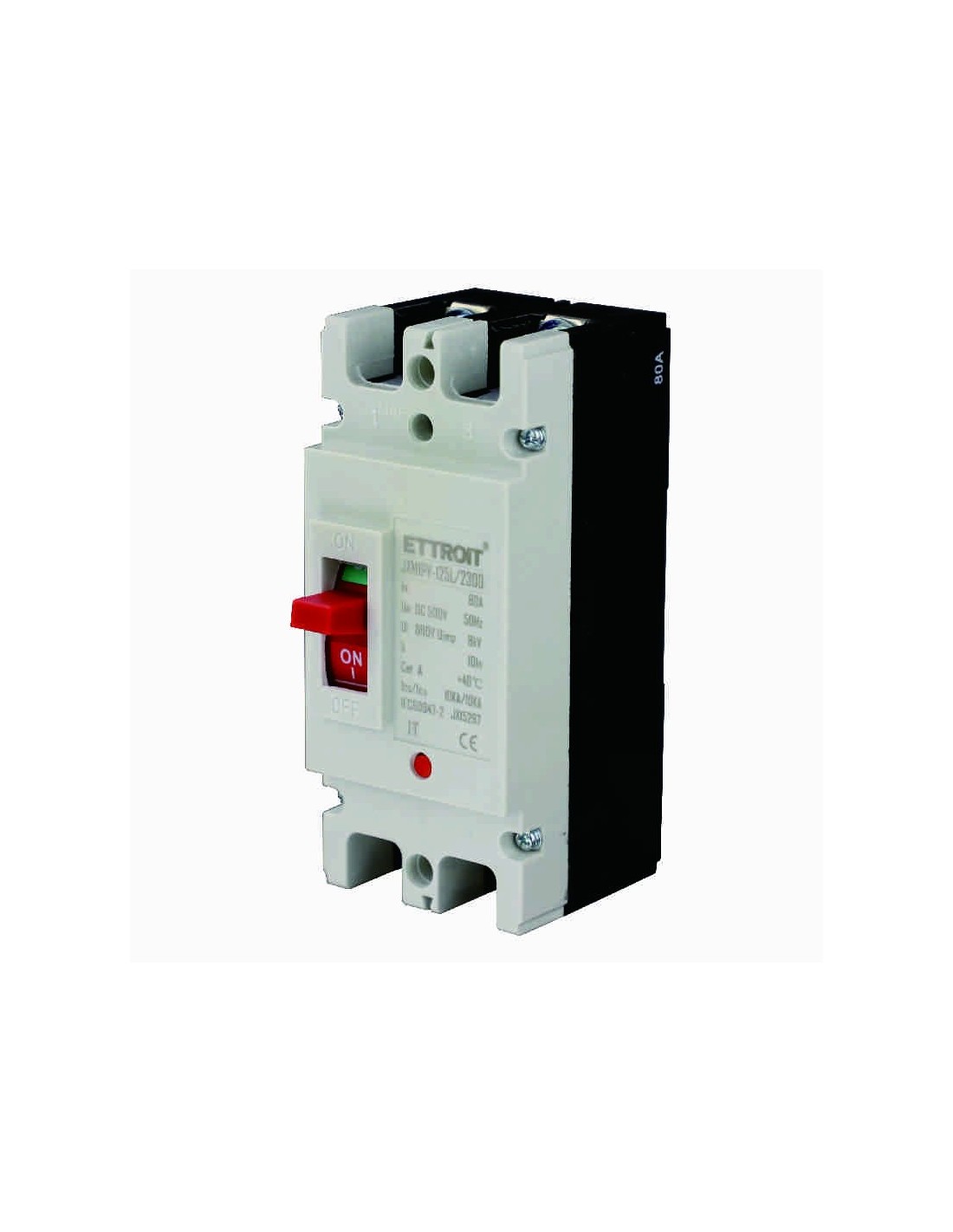

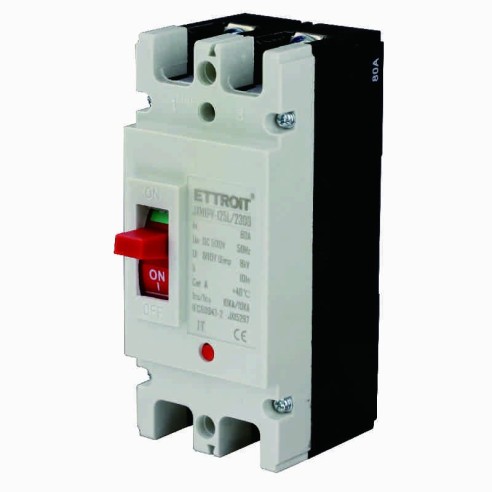

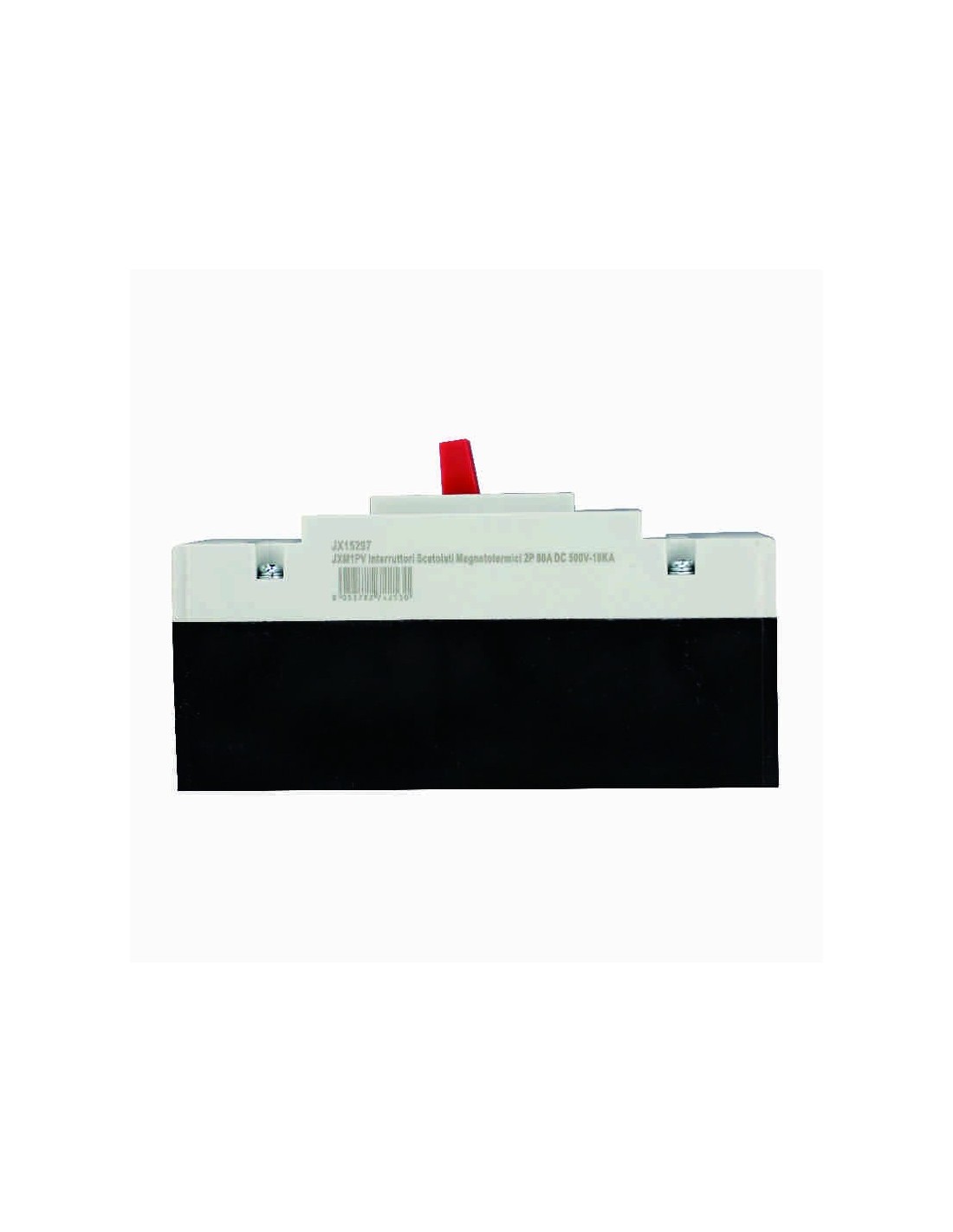

Miniature Circuit Breaker, 2P, 500Vac, 80A, 10KA - Ettroit JX15297

Miniature Circuit Breaker, 2P, 500Vac, 80A, 10KA - Ettroit JX15297

Name: Miniature Circuit Breaker, 2P, 500Vac, 80A, 10KA - Ettroit JX15297
Brand: Ettroit
SKU: 61.472.0210018
Price: 41 EUR
Availability: InStock

SKU 61.472.0210018

In stock 26 Items

€41.00

VAT included

The Ettroit JX15297 moulded case circuit breaker is a reliable and versatile solution for the protection of electrical circuits in industrial and commercial environments.
Designed to withstand current ratings up to 80A and equipped with a breaking capacity of 10KA, this device ensures high standards of safety and reliability.
Robust and compact design for safe and quick installation.
Suitable for industrial and commercial environments with high loads.
Conforms to international IEC60947-2 standards for increased safety and reliability.

Features:
- Rated current (In): 80A;
- Rated voltage (Ue): 500V;
- Interrupting capacity: 10KA;
- Frequency: 50Hz;
- Insulation voltage (Ui): 660V;
- Rated impulse voltage (Uimp): 8KV;
- Operating temperature: Up to +40°C.

Description

Rated current	80 A
Rated voltage	500 Vac
Interruption Capability	10 KA
Frequency	50 Hz
Insulation Voltage	660 V
Nominal Pulse Voltage	8 KV
Operating temperature	Up to +40°C
Model	JX15297
Manufacturer	Ettroit
