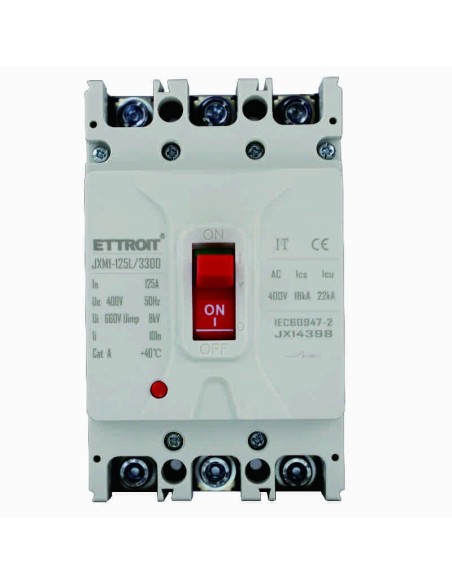

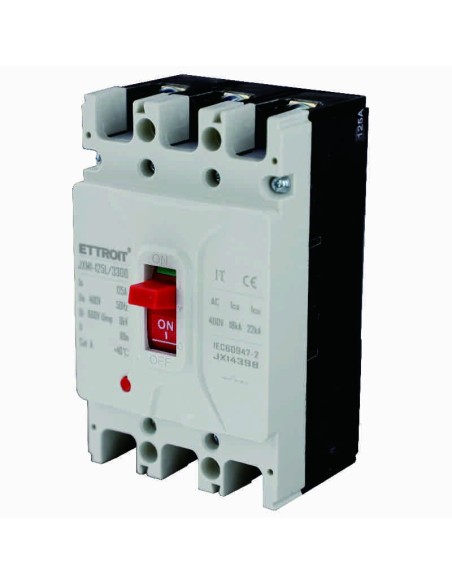

Miniature Circuit Breaker, 3P, 380Vac, 125A, 25KA - Ettroit JX14398

Miniature Circuit Breaker, 3P, 380Vac, 125A, 25KA - Ettroit JX14398

Name: Miniature Circuit Breaker, 3P, 380Vac, 125A, 25KA - Ettroit JX14398
Brand: Ettroit
SKU: 61.472.0210005
Price: 41 EUR
Availability: InStock

SKU 61.472.0210005

In stock 22 Items

€41.00

VAT included

The Ettroit JX14398 moulded case circuit breaker is a reliable and versatile solution for the protection of electrical circuits in industrial and commercial environments.
Designed to withstand current ratings up to 125A and equipped with a breaking capacity of 25KA, this device ensures high standards of safety and reliability.
Robust and compact design for safe and quick installation.
Suitable for industrial and commercial environments with high loads.
Conforms to international IEC60947-2 standards for increased safety and reliability.

Features:
- Rated current (In): 125A;
- Rated voltage (Ue): 380V;
- Interrupting capacity: 25KA;
- Frequency: 50Hz;
- Insulation voltage (Ui): 660V;
- Rated impulse voltage (Uimp): 8KV;
- Operating temperature: Up to +40°C.

Description

Rated current	125 A
Rated voltage	380 Vac
Interruption Capability	25 KA
Frequency	50 Hz
Insulation Voltage	660 V
Nominal Pulse Voltage	8 KV
Operating temperature	Up to +40°C
Model	JX14398
Manufacturer	Ettroit
