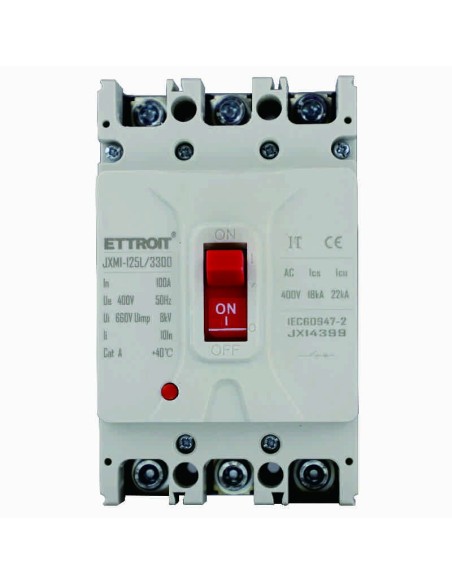

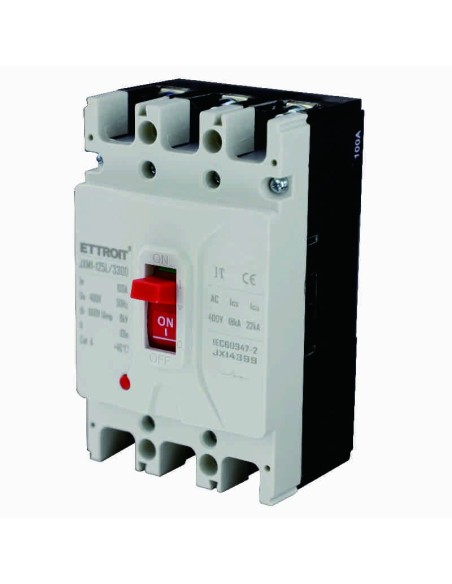

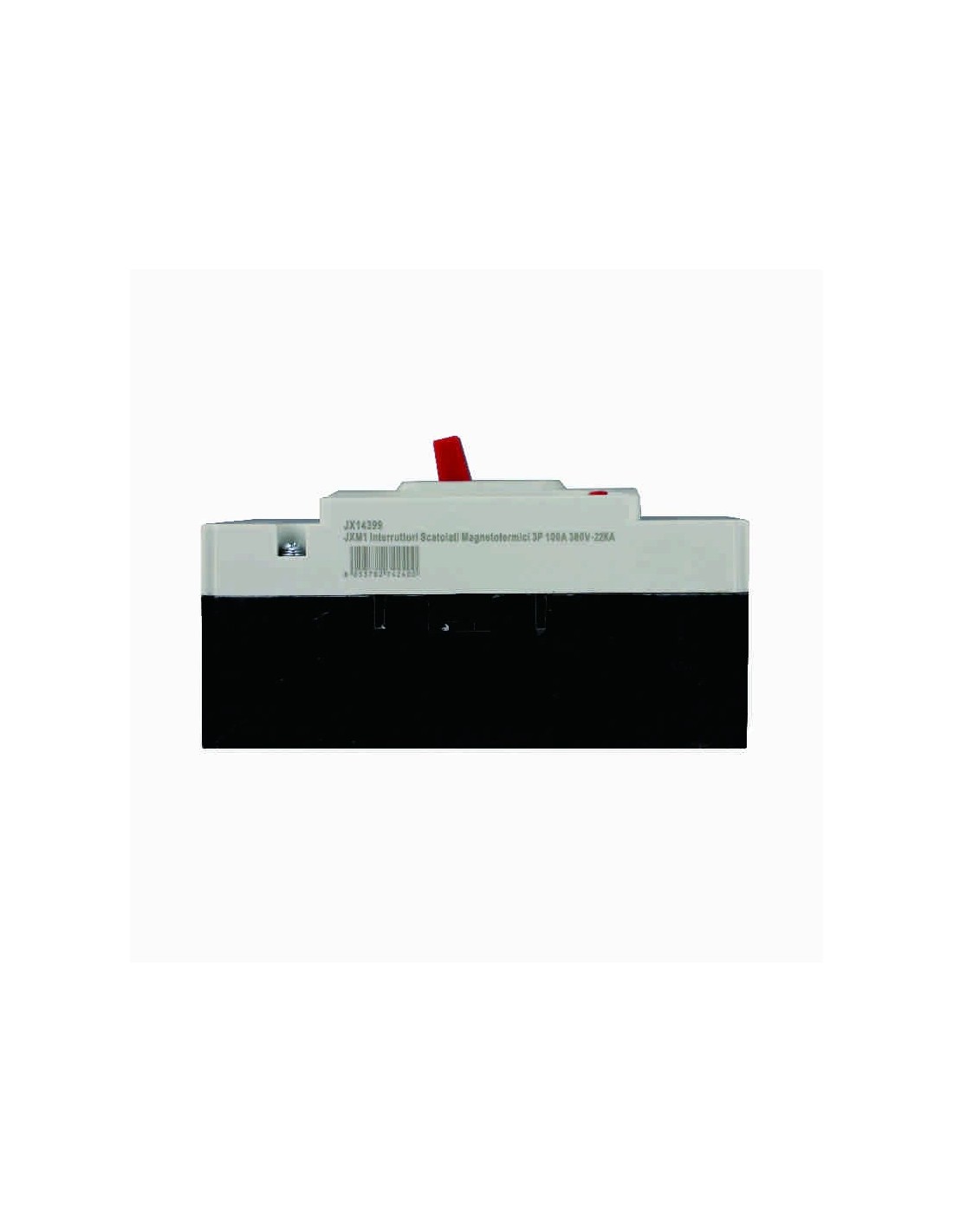

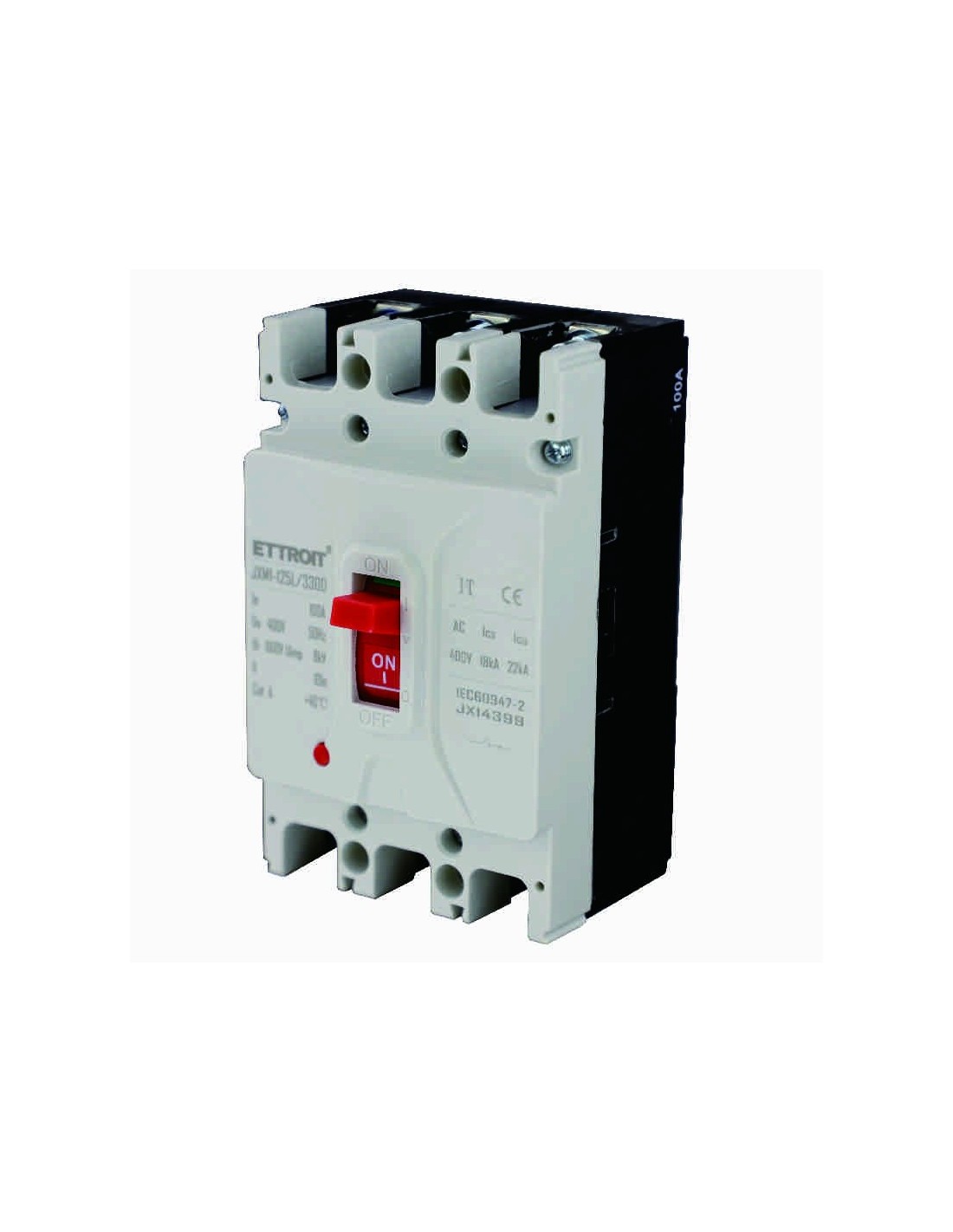

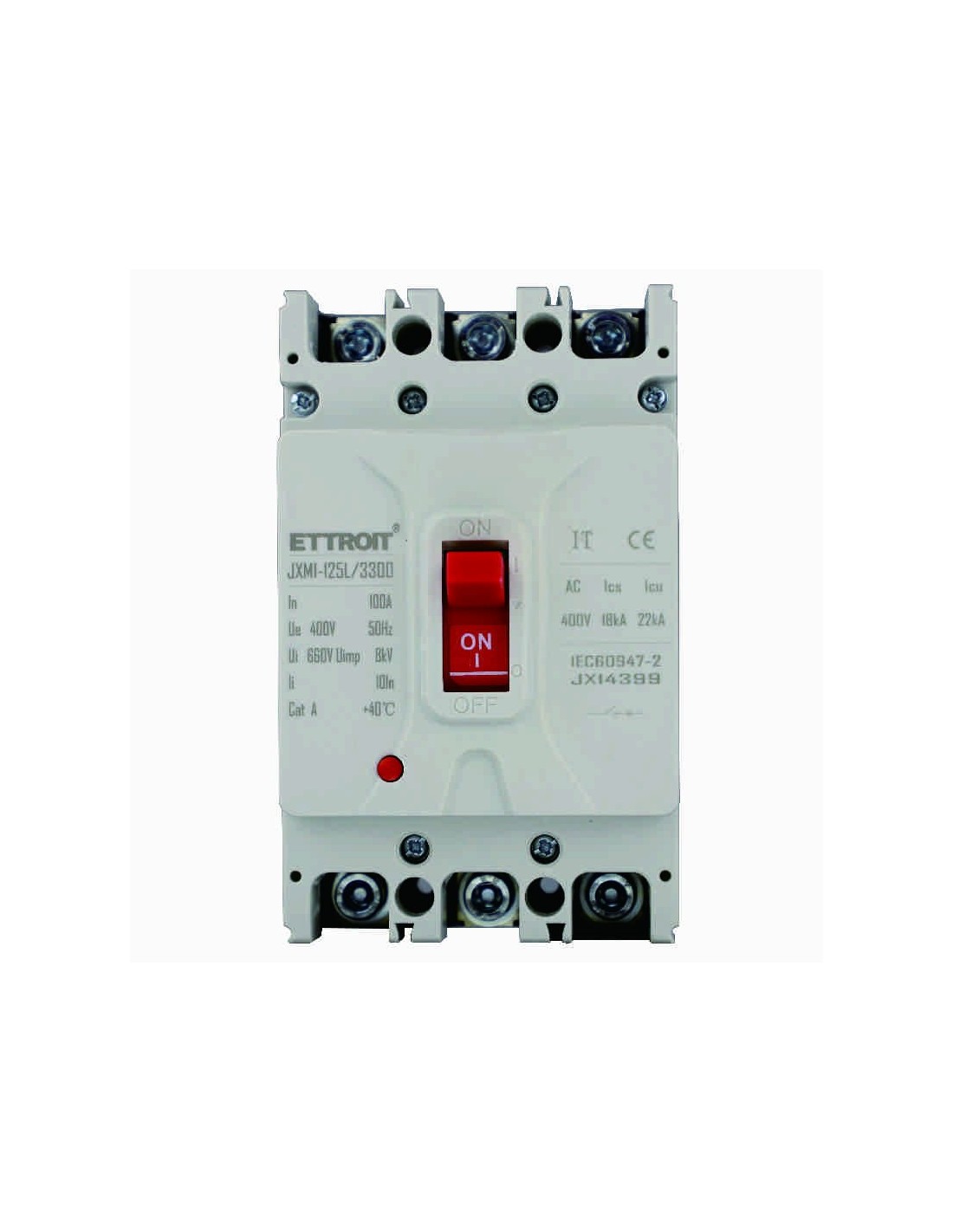

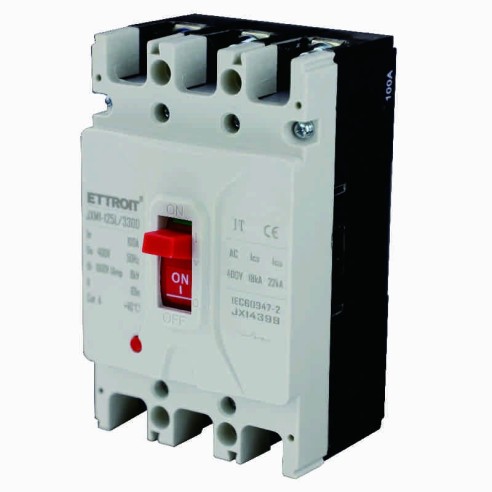

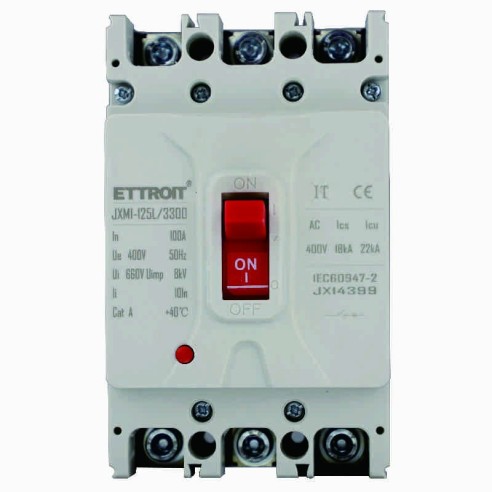

Miniature Circuit Breaker, 3P, 380Vac, 100A, 25KA - Ettroit JX14399

Miniature Circuit Breaker, 3P, 380Vac, 100A, 25KA - Ettroit JX14399

Name: Miniature Circuit Breaker, 3P, 380Vac, 100A, 25KA - Ettroit JX14399
Brand: Ettroit
SKU: 61.472.0210006
Price: 41 EUR
Availability: InStock

SKU 61.472.0210006

In stock 20 Items

€41.00

VAT included

The Ettroit JX14399 moulded case circuit breaker is a reliable and versatile solution for the protection of electrical circuits in industrial and commercial environments.
Designed to withstand current ratings up to 100A and equipped with a breaking capacity of 25KA, this device ensures high standards of safety and reliability.
Robust and compact design for safe and quick installation.
Suitable for industrial and commercial environments with high loads.
Conforms to international IEC60947-2 standards for increased safety and reliability.

Features:
- Rated current (In): 100A;
- Rated voltage (Ue): 380V;
- Interrupting capacity: 25KA;
- Frequency: 50Hz;
- Rated insulation voltage (Ui): 660V;
- Rated impulse voltage (Uimp): 8KV;
- Operating temperature: Up to +40°C.

Description

Rated current	100 A
Rated voltage	380 Vac
Interruption Capability	25 KA
Frequency	50 Hz
Insulation Voltage	660 V
Nominal Pulse Voltage	8 KV
Operating temperature	Up to +40°C
Model	JX14399
Manufacturer	Ettroit
