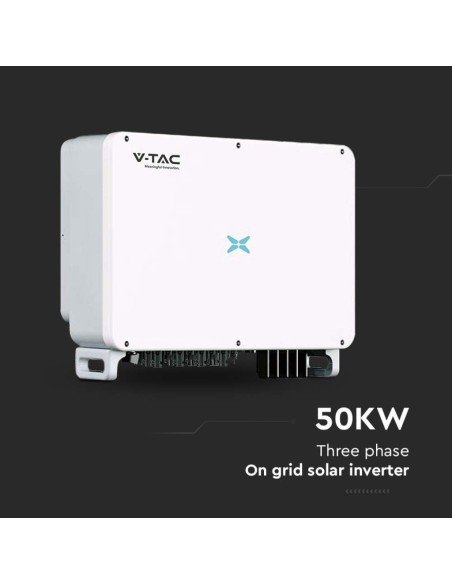

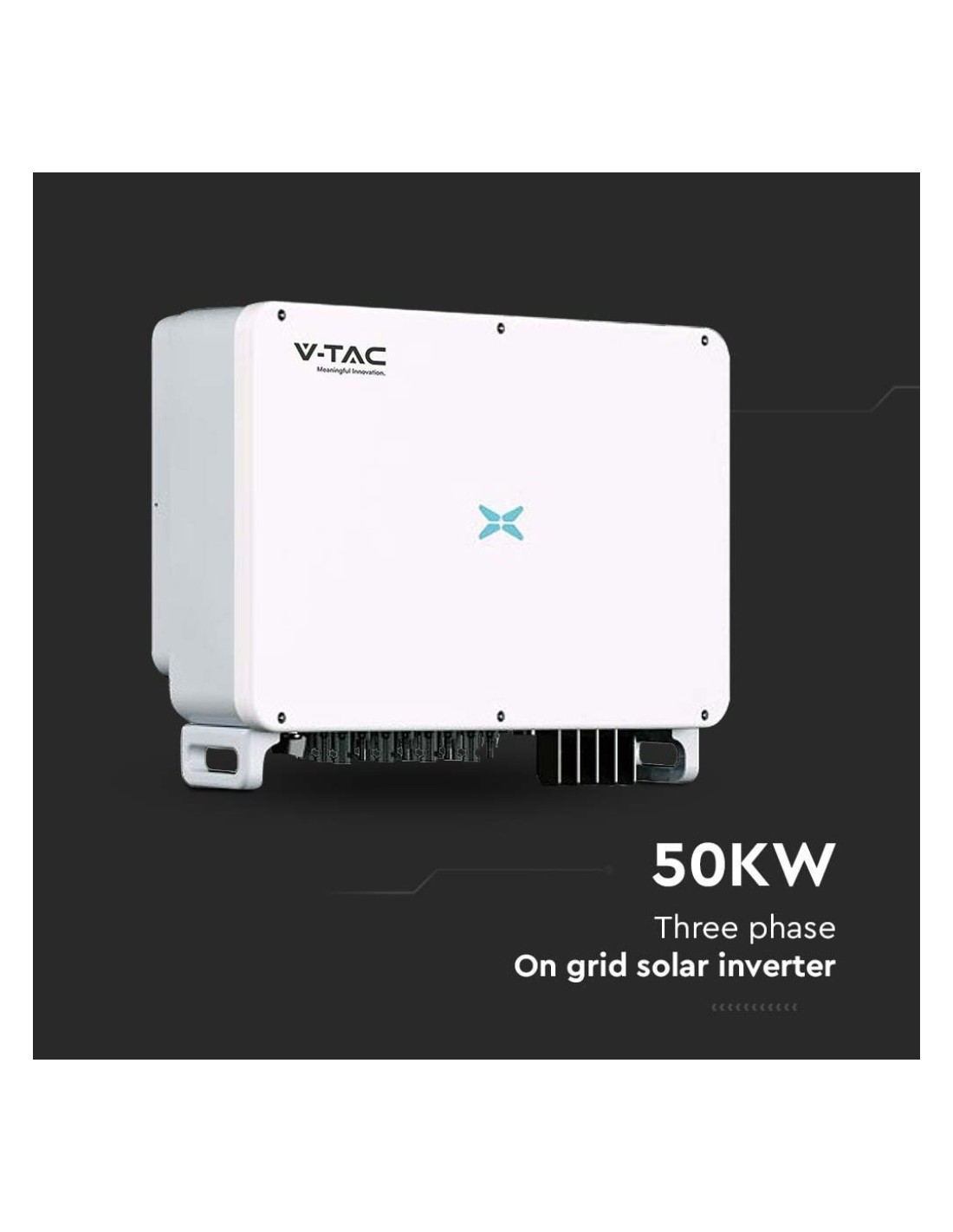

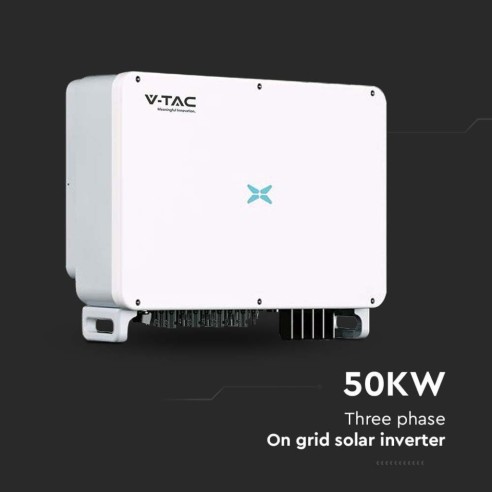

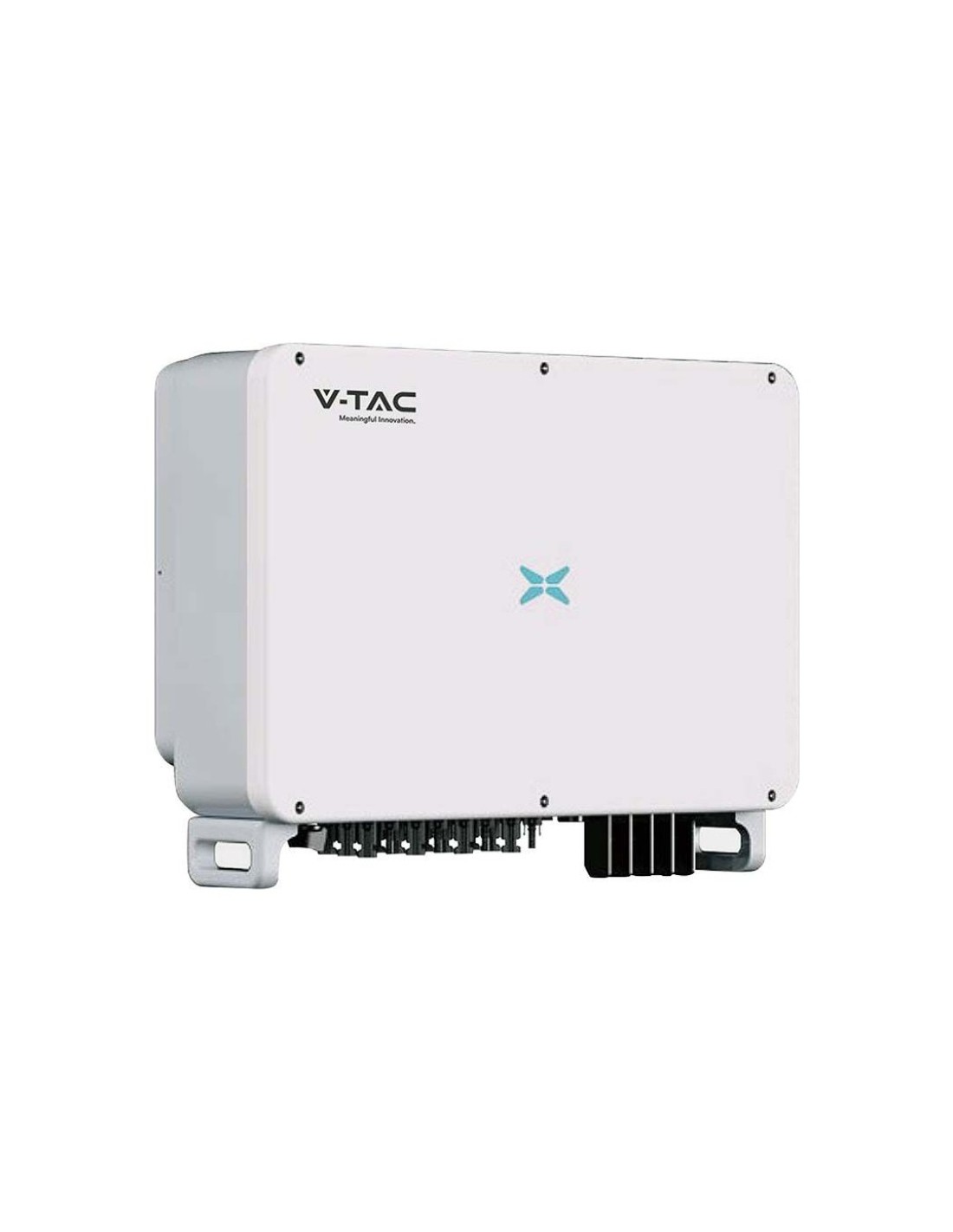

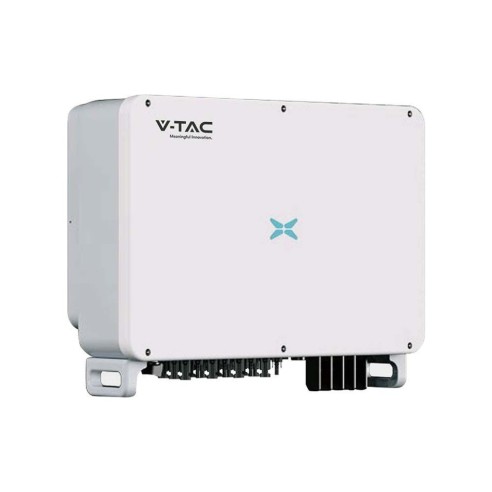

On-Grid Inverter for photovoltaic system, 50KW, three-phase, 10-year warranty - V-TAC VT-6607150 11521

On-Grid Inverter for photovoltaic system, 50KW, three-phase, 10-year warranty - V-TAC VT-6607150 11521

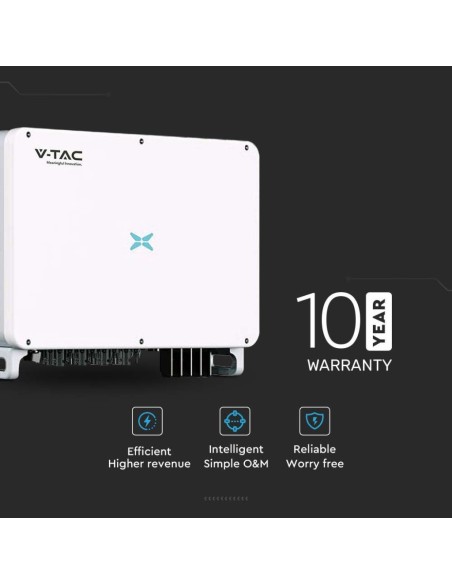

Name: On-Grid Inverter for photovoltaic system, 50KW, three-phase, 10-year warranty - V-TAC VT-6607150 11521
Brand: V-TAC
SKU: 65.012.8700000
Price: 2339.5 EUR
Availability: OutOfStock

SKU 65.012.8700000

Out-of-Stock

€2,339.50

VAT included

Description

Maximum input power	80 KW
Maximum AC power	50 KW
Maximum current per MPPT	39 A
Maximum output current	79,7 A
Maximum input voltage	1100 V
Start-up voltage	250 V
MPPT voltage range	200 - 1000 V
Nominal MPPT voltage	600 V
Output voltage	230Vac / 400Vac
Network frequency	50Hz / 60Hz
MPPT efficiency	99,9 %
Maximum efficiency	98,7 %
Cooling	Smart cooling
Maximum operating altitude	4000 m
IP Rating	IP66
Working temperature	-30°C ~ +60°C
Dimensions	650 x 450 x 260 mm
Warranty	10 years
Model	VT-6607150 11521
Brand	V-TAC

- 4 MPP trackers, high single-circuit tracking accuracy, fast dynamic response;
- DC input overdrive of 160%;
- Maximum efficiency of 98.6%. Wide MPPT voltage range: 200 V-1000 V;
- Compatible with high power modules;
- Smart I-V Curve Diagnosis function: accurately and automatically detects faults;
- Smart Fault Detection: real-time recording of AC-side voltage and current waveforms;
- RS485/USB support (WiFi/GPRS/Ethernet optional): remote monitoring and operation via PC or mobile phones;

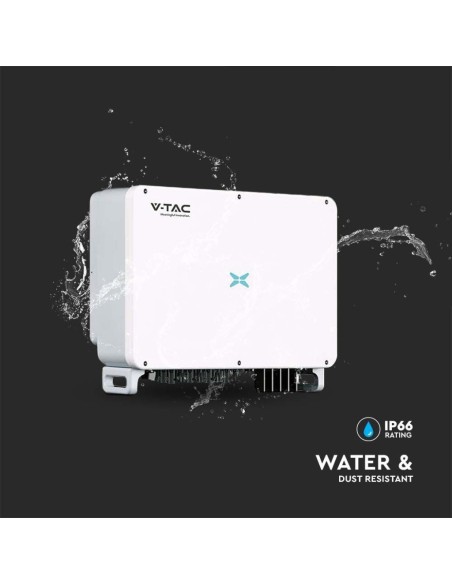

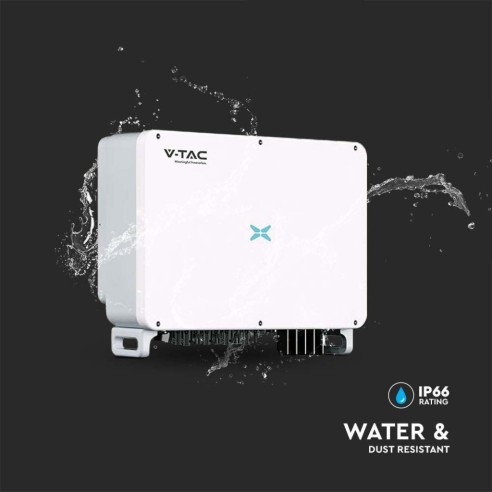

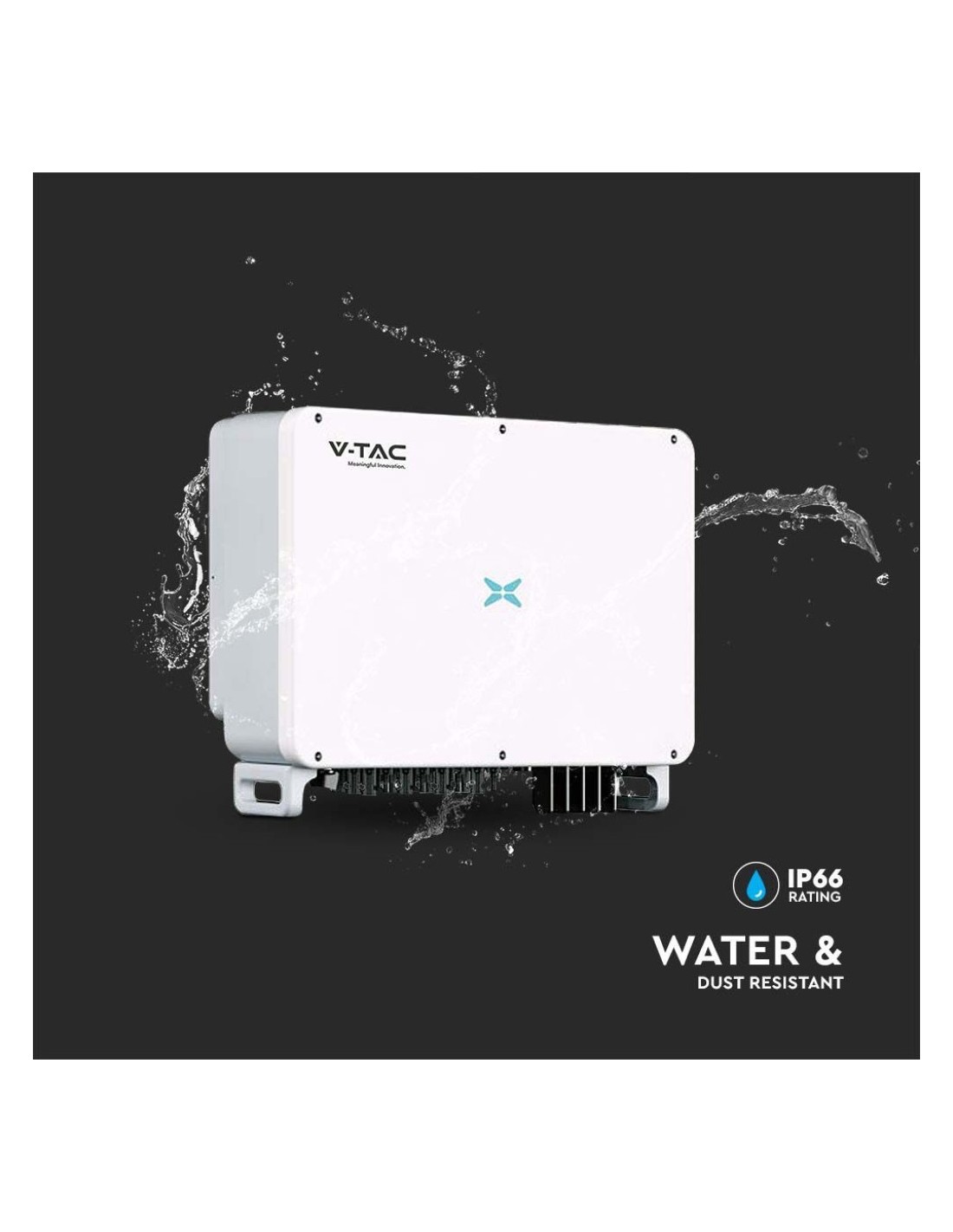

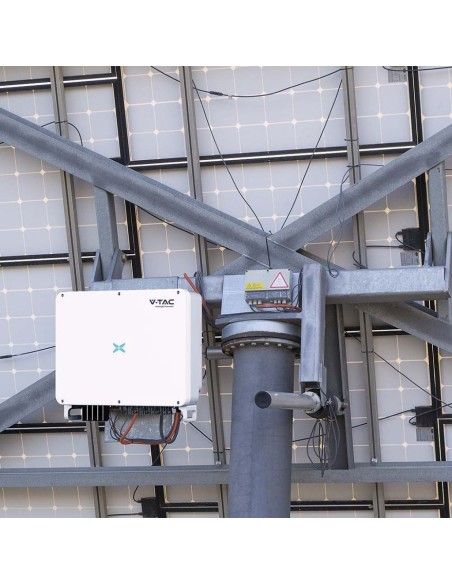

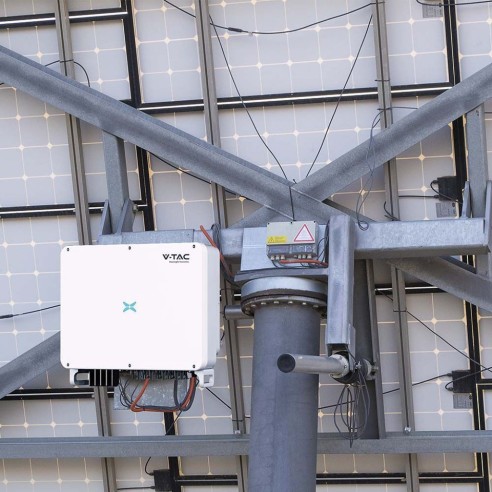

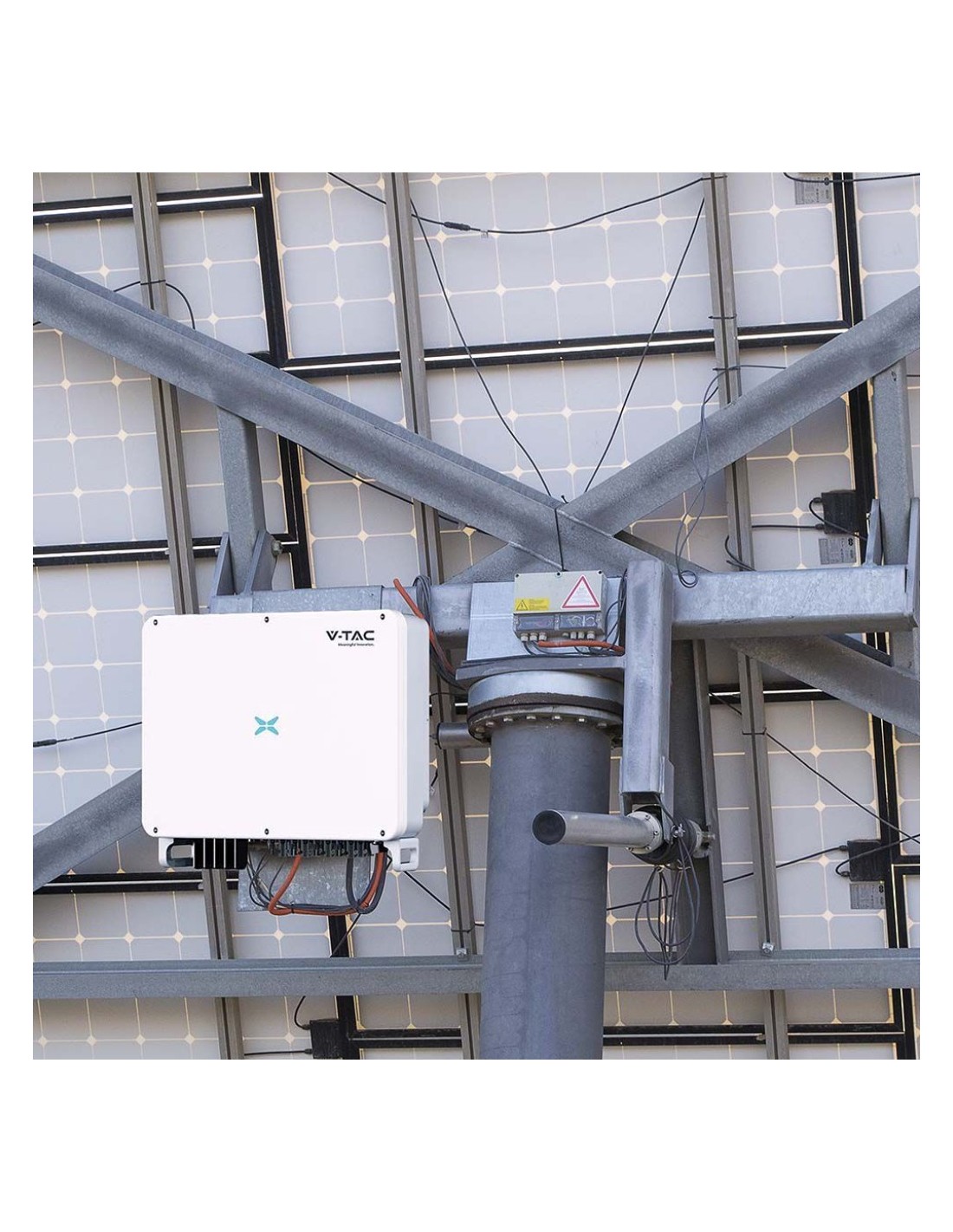

- IP66 protection: supports outdoor installation;
- SPD Type II lightning protection;
- AFCI function (optional): when a fault is detected, the inverter stops operation immediately.
