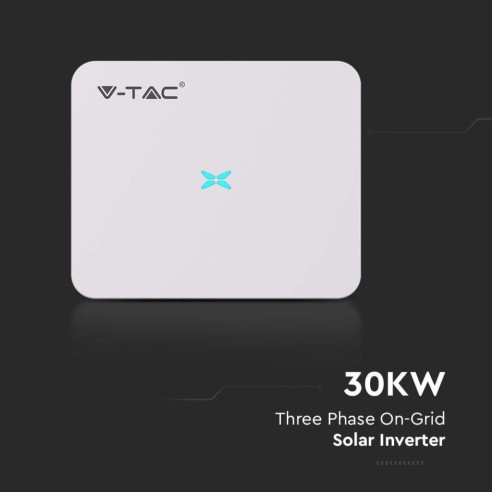

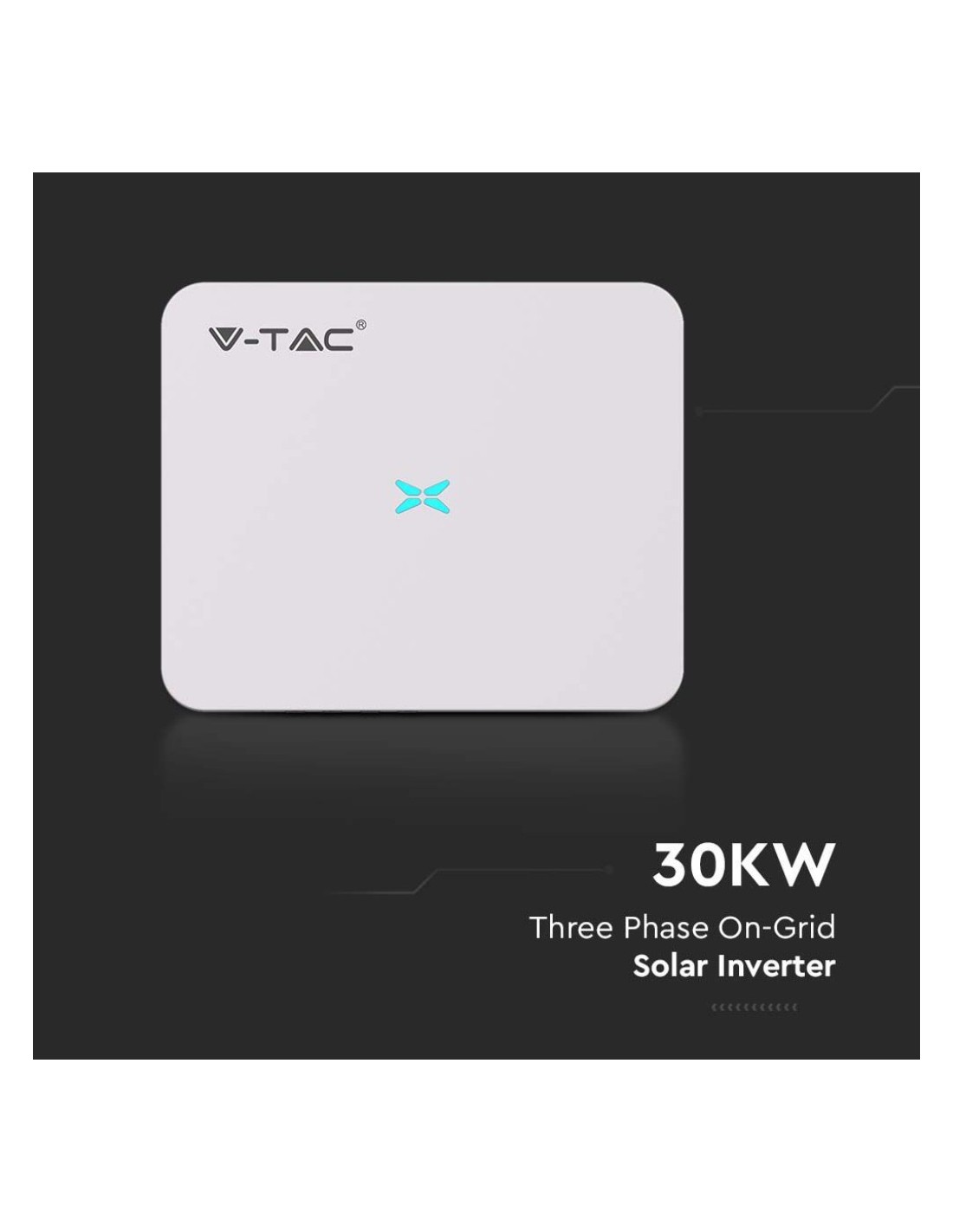

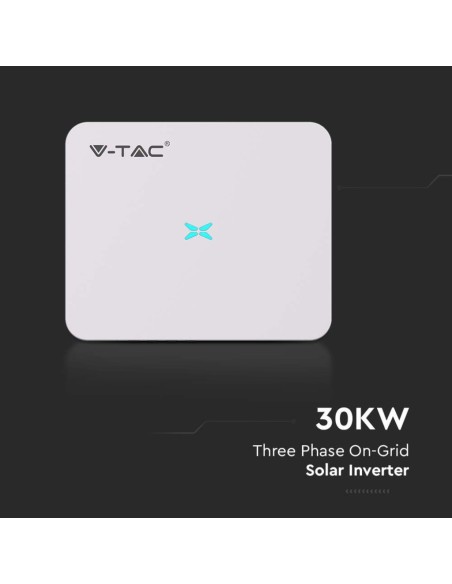

On-Grid Inverter for photovoltaic system, 30KW, three-phase, 10-year warranty, with WiFi data logger-V-TAC VT-6630305 11507

On-Grid Inverter for photovoltaic system, 30KW, three-phase, 10-year warranty, with WiFi data logger-V-TAC VT-6630305 11507

Name: On-Grid Inverter for photovoltaic system, 30KW, three-phase, 10-year warranty, with WiFi data logger-V-TAC VT-6630305 11507
Brand: TANCREDI
SKU: 65.012.8300000
Price: 2495 EUR
Availability: OutOfStock

SKU 65.012.8300000

Out-of-Stock

€2,495.00

VAT included

Description

Maximum input power	48 KW
Maximum AC power	30 KW
Maximum current per MPPT	26 A
Maximum output current	48,3 A
Maximum input voltage	1100 V
Start-up voltage	250 V
MPPT voltage range	200 - 1000 V
Nominal MPPT voltage	600 V
Output voltage	230Vac / 400Vac, 3L / N / PE
Network frequency	50Hz / 60Hz
MPPT efficiency	99,9 %
Maximum efficiency	98,7 %

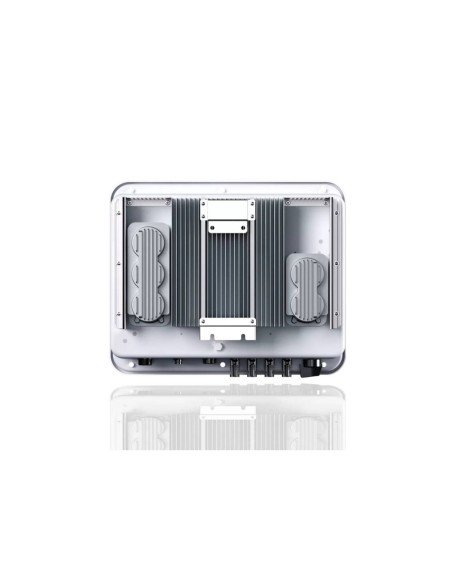

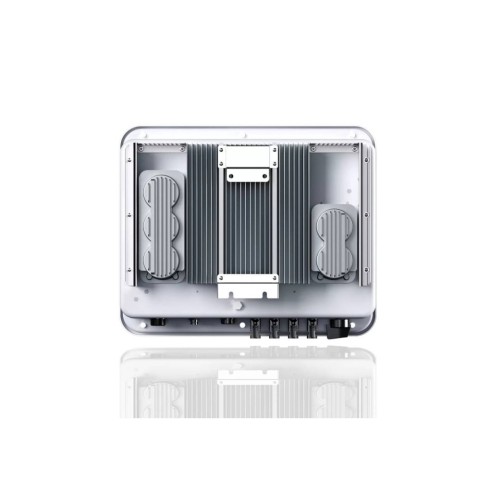

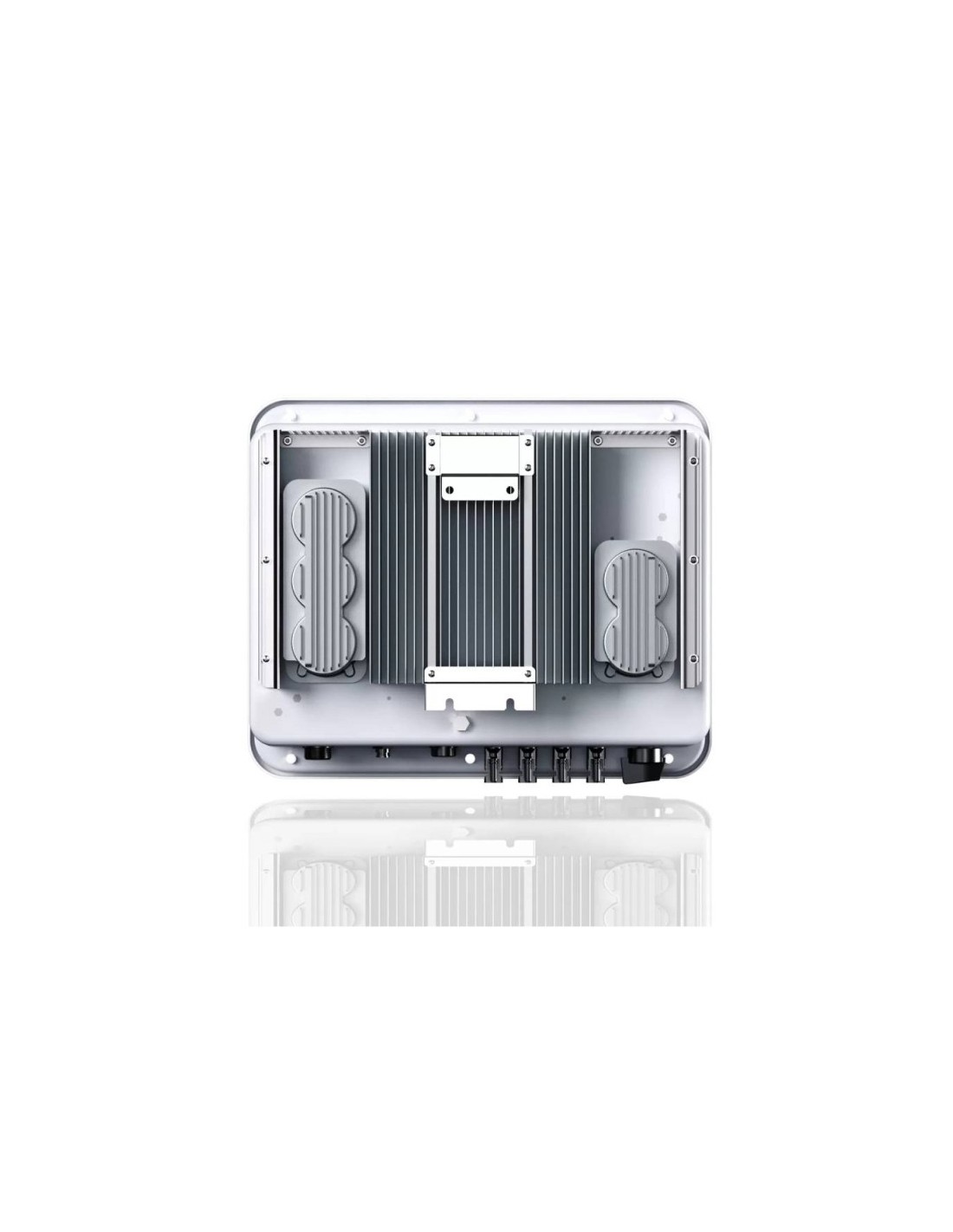

Cooling	Active
Maximum operating altitude	4000 m

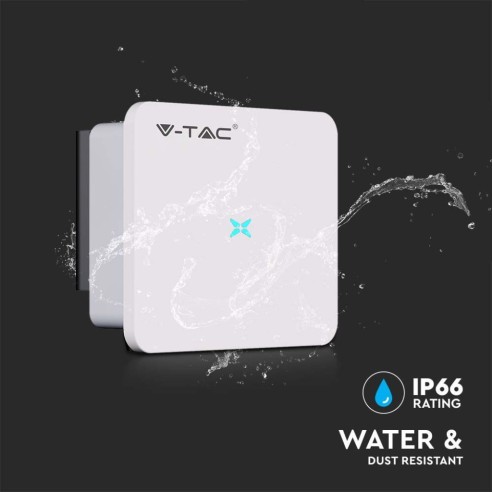

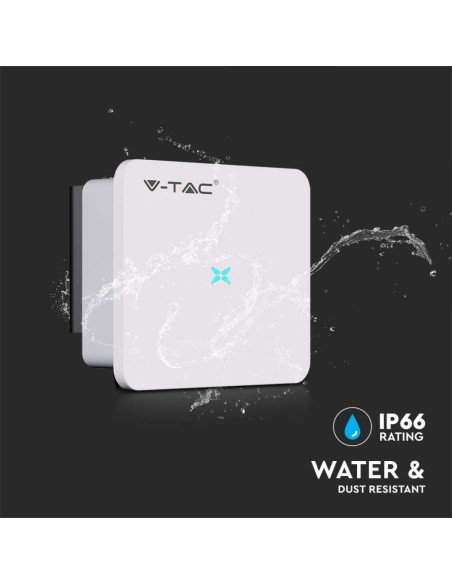

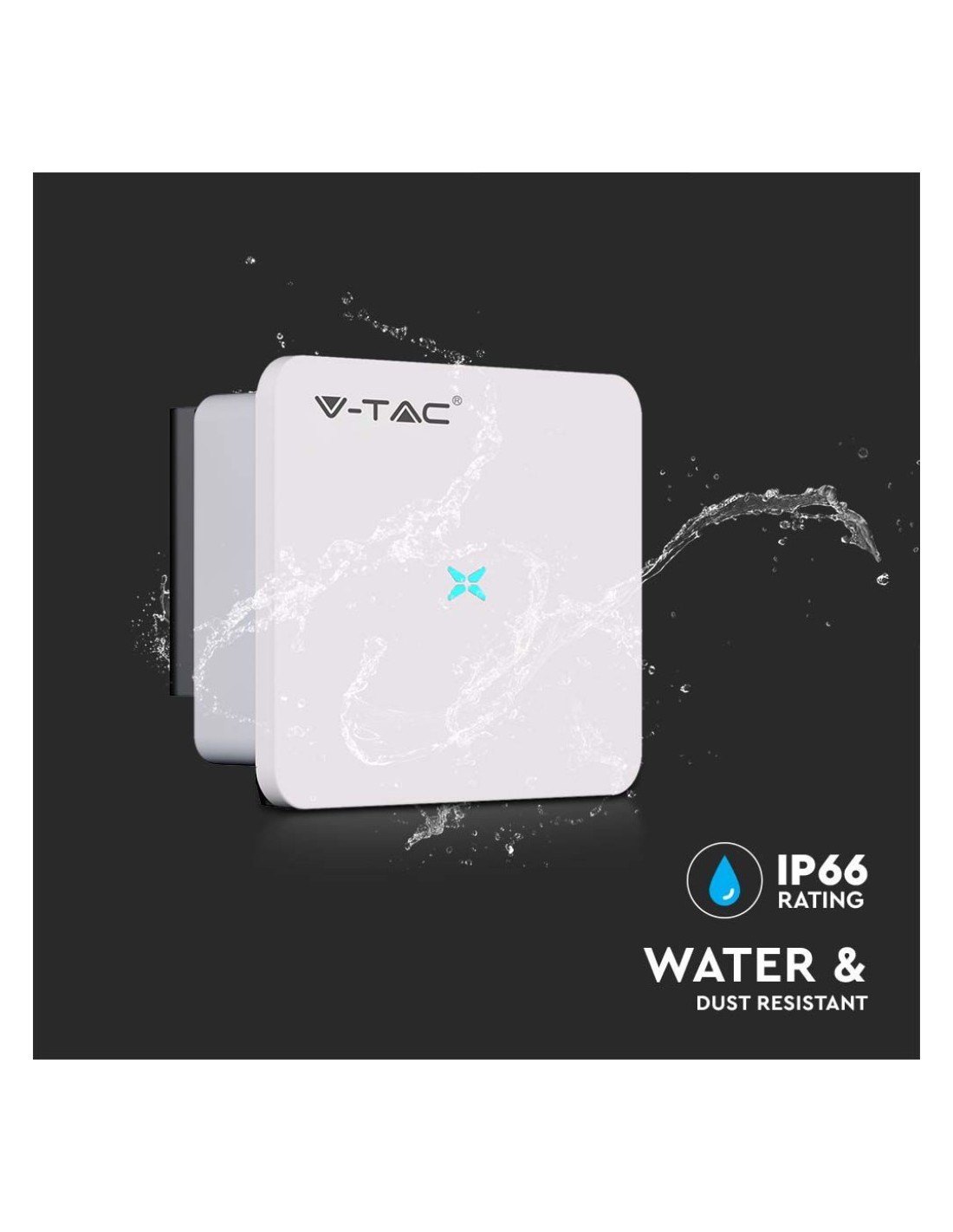

IP Rating	IP66
Working temperature	-30°C ~ +60°C

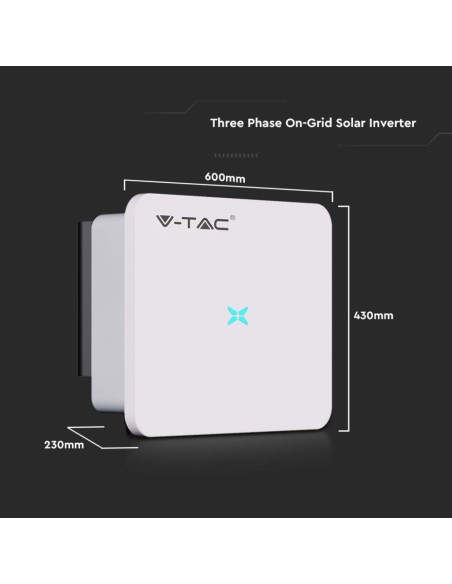

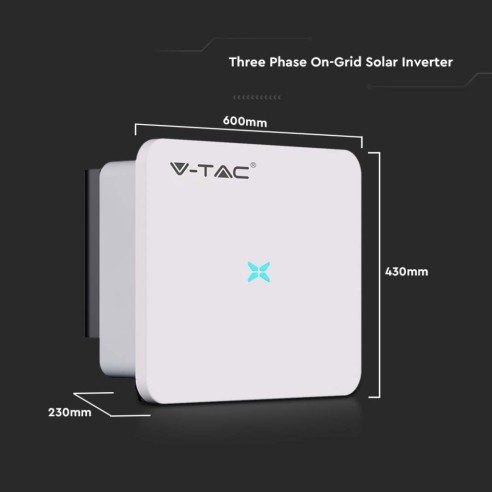

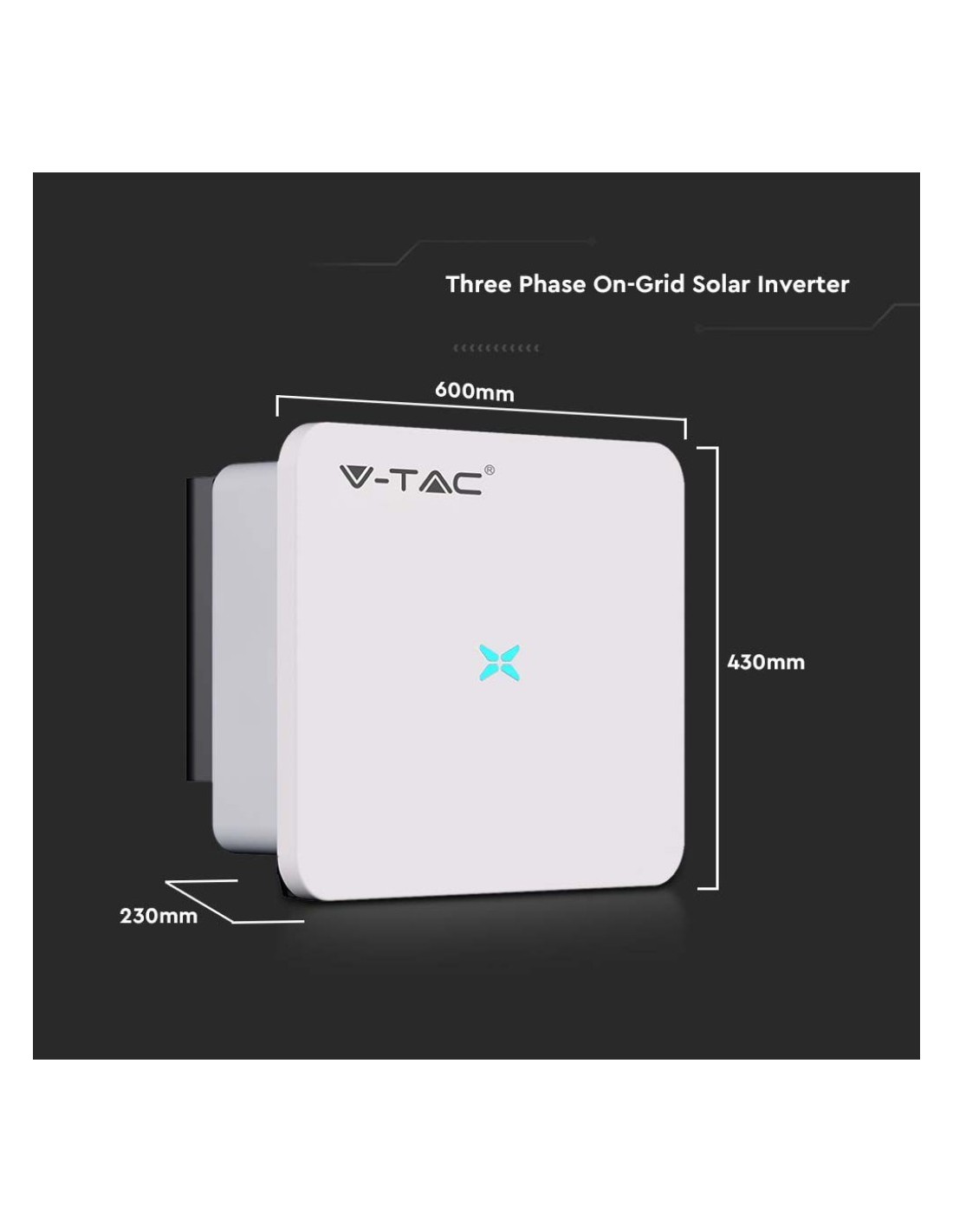

Dimensions	230 x 600 x 430 mm
Warranty	10 years
Model	VT-6630305 11507
Brand	V-TAC

Included in the package:
1x wifi data logger stick for inverter connection and monitoring, V-tac VT-660000 11378;
6x pairs of MC4 connectors for solar cable, V-tac 11413.

Features:
- 3-4 MPP tracker, high single-circuit tracking accuracy, fast dynamic response;
- DC input overdrive of 160%;
- Maximum efficiency of 98.6%. Wide MPPT voltage range: 200 V-1000 V;
- Compatible with high power modules;
- Smart I-V Curve Diagnosis function: accurately and automatically detects faults;
- Smart Fault Detection: real-time recording of AC-side voltage and current waveforms;
- RS485/USB support (WiFi/GPRS/Ethernet optional): remote monitoring and operation via PC or mobile phones

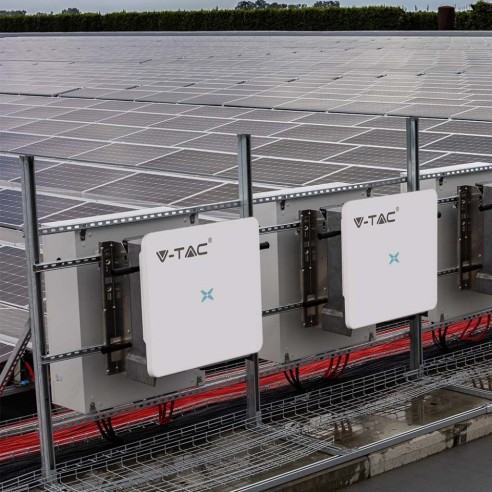

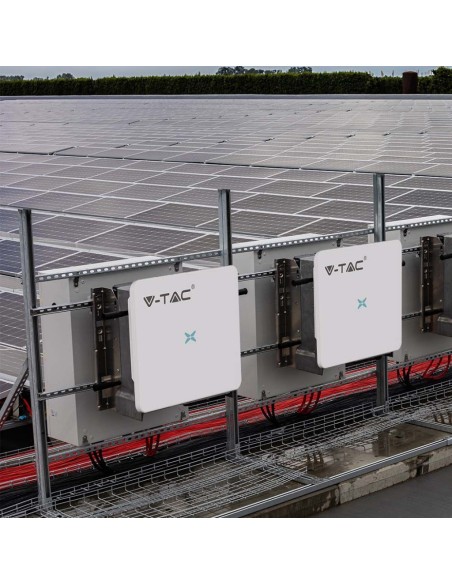

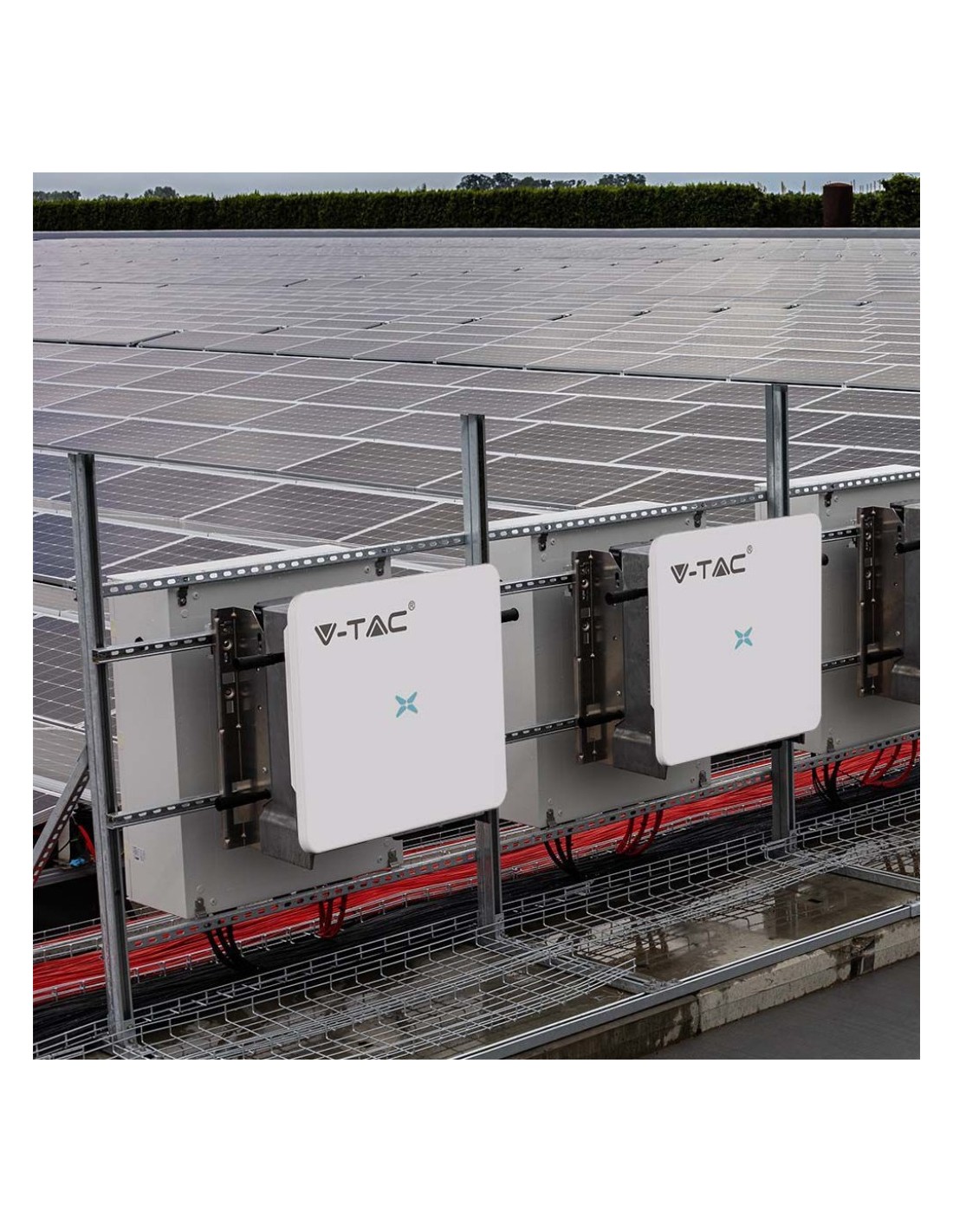

- IP66 protection: supports outdoor installation;
- SPD Type II lightning protection;
- AFCI function (optional): when a fault is detected the inverter stops operation immediately
