| Entry |
| Maximum power | 10.4 KW |
| Input voltage | 1000 V |
| MPPT voltage range | 180 - 850 V |
| Maximum current | 12 A |
| Number of MPP trackers | 2 / 1 |
| Output (AC) |
| Maximum current | 12,7 A |
| Power | 8 KW |
| Voltage | 400V, 3W + N + PE |
| Network frequency | 50Hz / 60Hz |
| THDi | <3% |
| Output (EPS) |
| Power | 8.8 KVA |
| Voltage | 400 Vac |
| Current | 12,7 A |
| Frequency | 50Hz / 60Hz |
| Overload capacity | 110%, 30s / 120%, 10s / 150%, 0.02s |
| THDu | <2% |
| Battery |
| Voltage range | 125 - 600 V |
| Maximum charging voltage | 600 V |
| Maximum charge/discharge current | 40 A |
| Battery type | Lithium/Lead |
| Communication | RS485, CAN |
| Efficiency |
| Maximum DC efficiency | 97,9% |
| MPPT efficiency | 99,5% |
| Battery charging/discharging efficiency | 96,6% |
| Communication |
| Display | LCD |
| Communication | Standard: RS485 / CAN / DRM; optional: WIFI / 4G |
| Features |

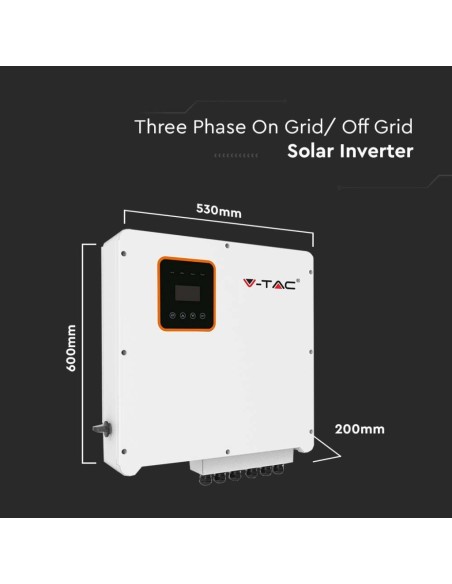

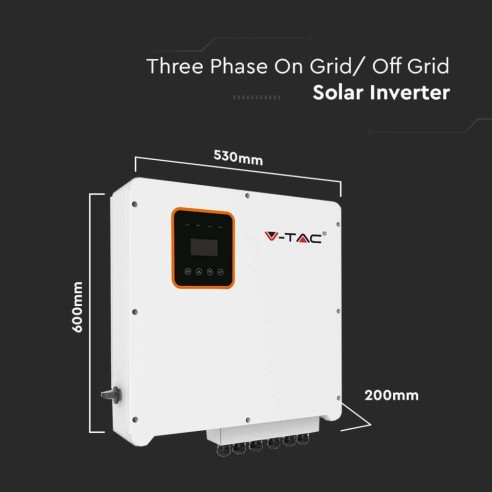

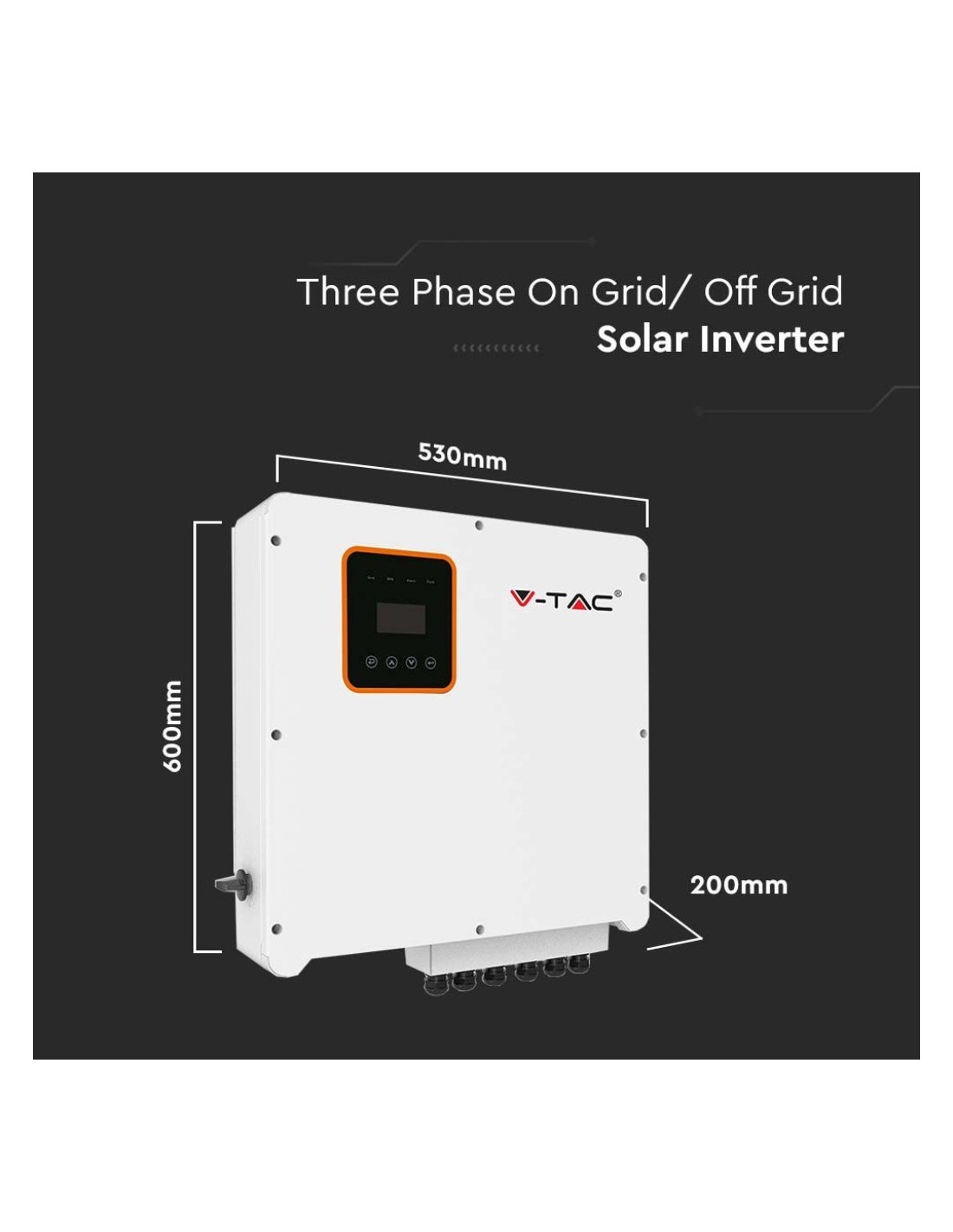

| Dimensions | 530 × 600 × 200 mm |
| Weight | 29 kg |
| Operating temperature | -25ºC~ +60ºC |
| Cooling | Passive |
| Noise | <35dB |
| Maximum operating altitude | 2000 m |

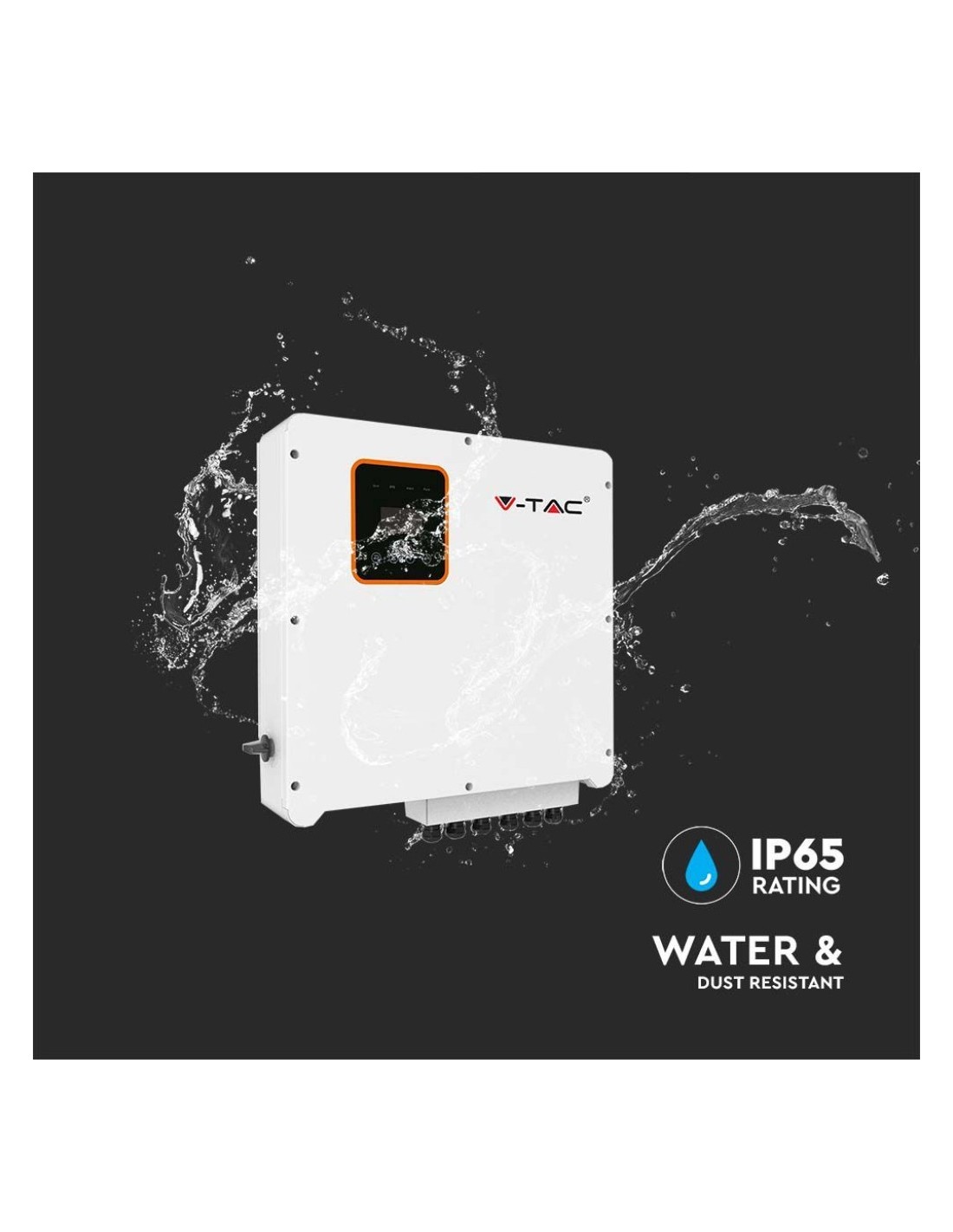

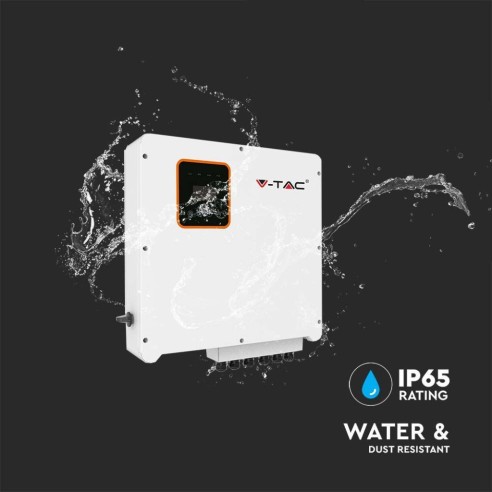

| IP Rating | IP65 |
| Stand-by consumption | <3W |
| Model | VT-6608303 11375 |
| Brand | V-TAC |
Accessories included:
- WiFi Stick Logger for Inverter, V-tac VT-660000 11378;
- 2 Pairs of MC4 Solar Cable Connectors, V-tac 11413;
- CT Current Transformer for Current Measurement, V-tac 11506.
This inverter is hybrid, so it can work with or without batteries.
Compatible with V-Tac high voltage 125V to 600V batteries: VT-204100B-W 11527 (20kWh).

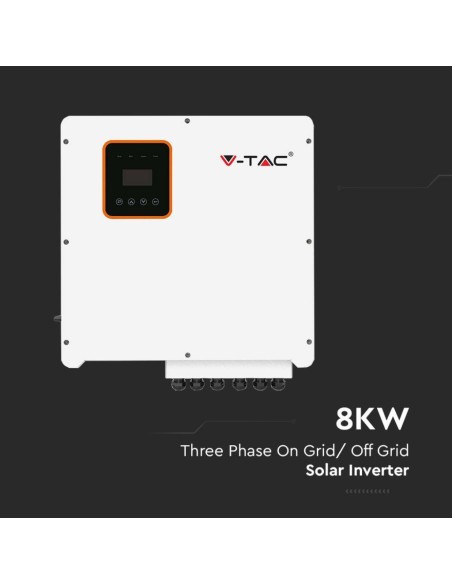

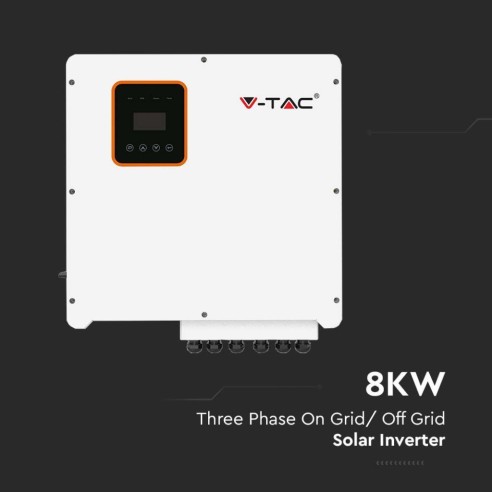

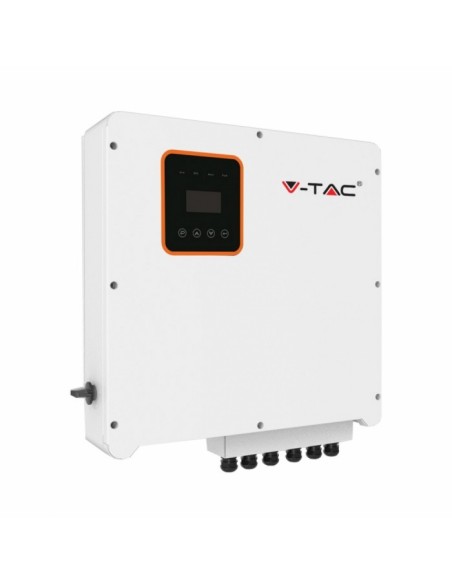

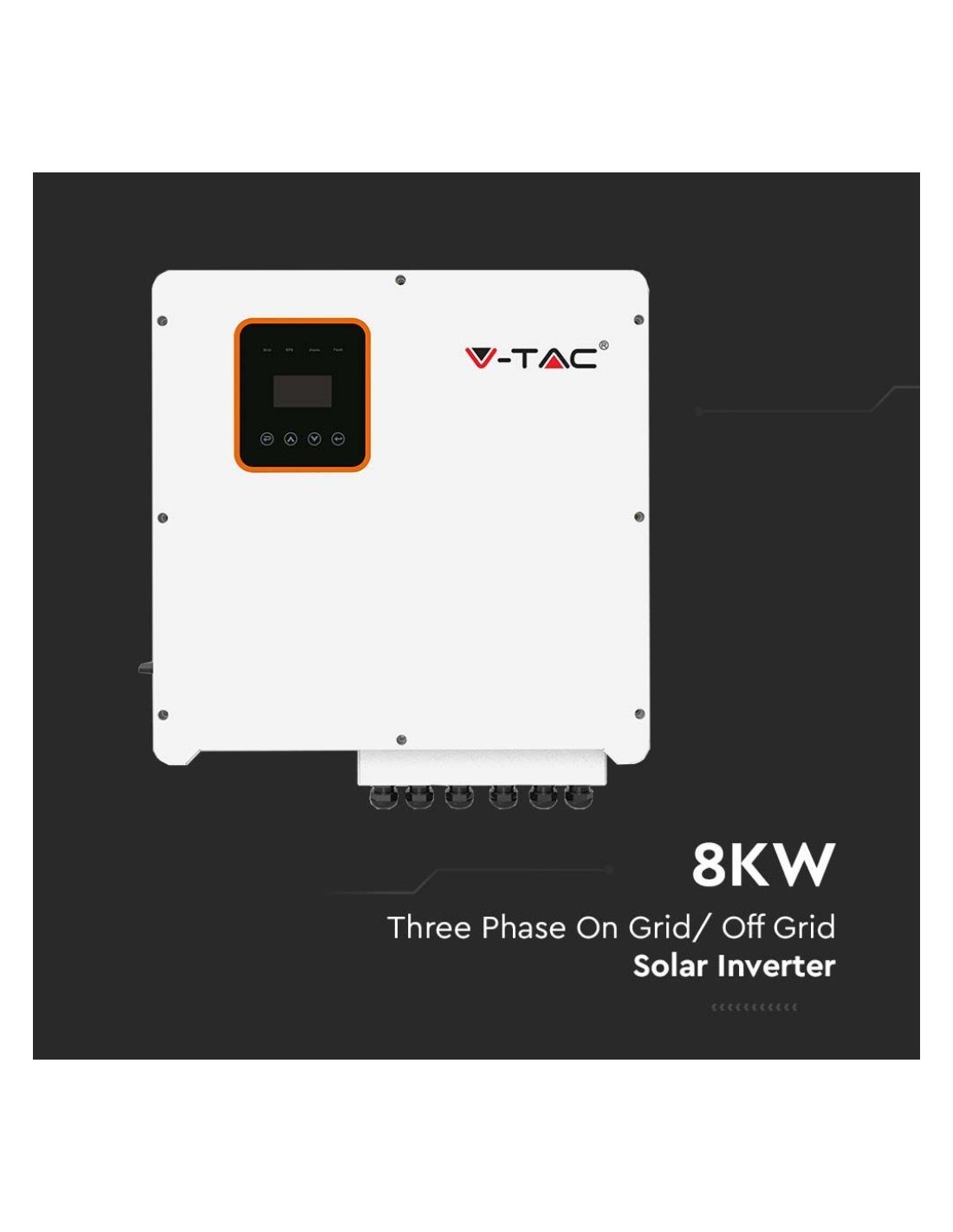

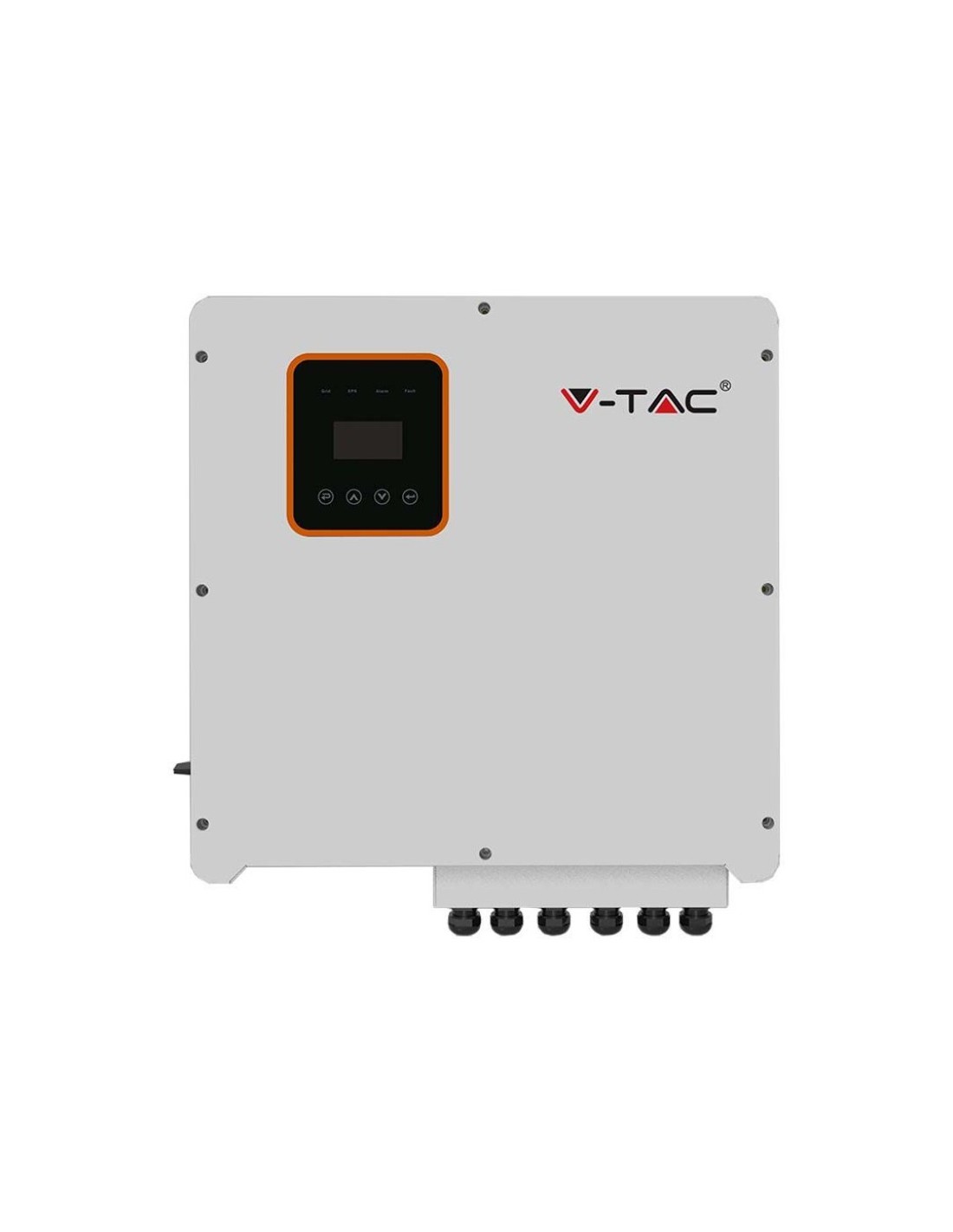

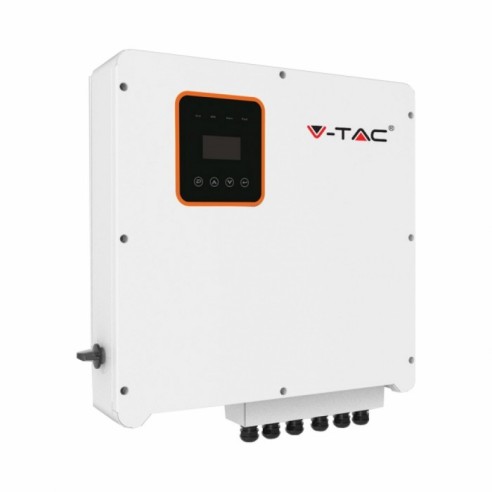

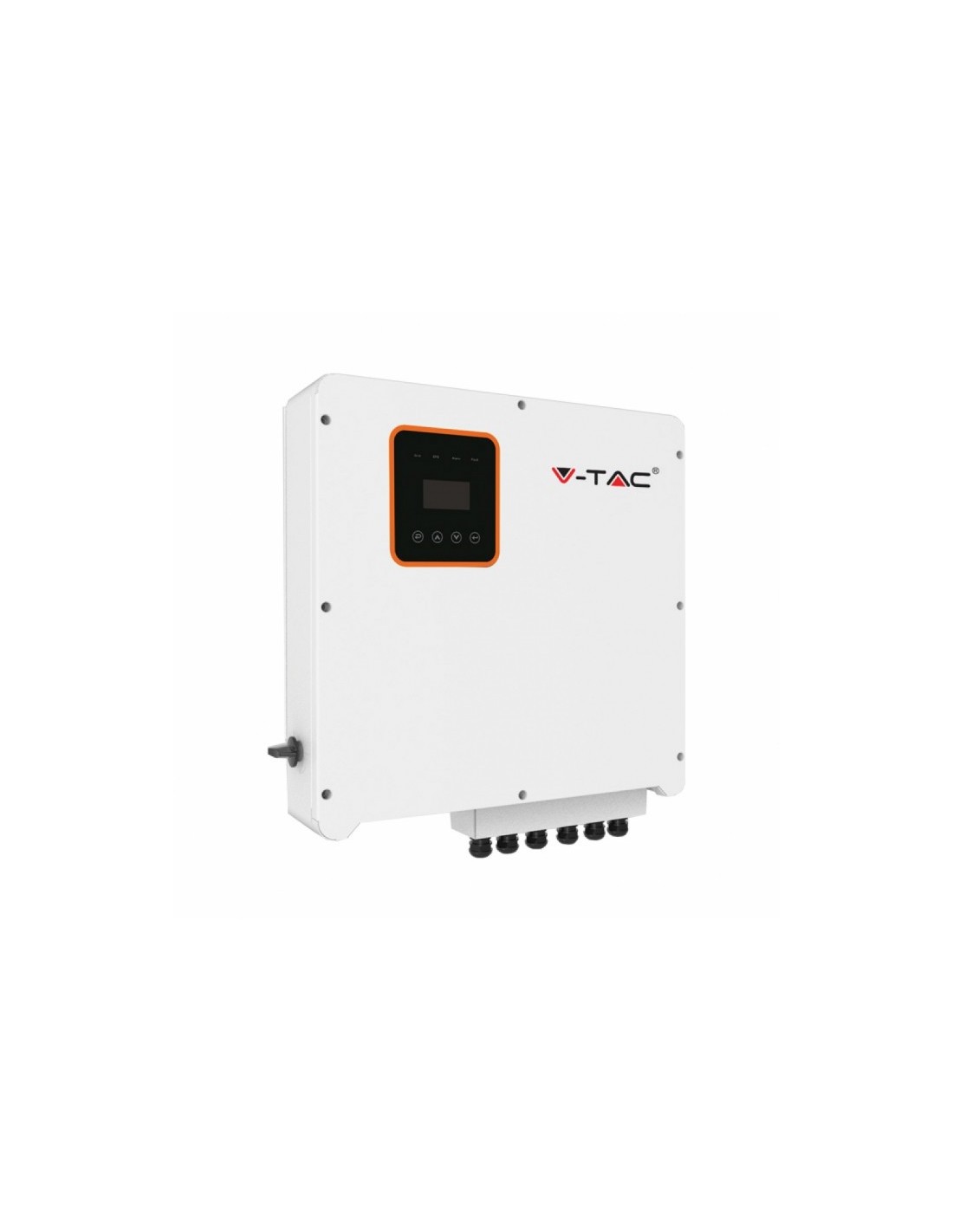

The 8kW Hybrid three-phase Dual MPPT Inverter is an electronic device for converting the direct current supplied by photovoltaic solar panels into alternating current, with a three-phase output suitable for consumption in apartment blocks, commercial and industrial premises. This inverter comes complete with accessories: CT Current Transformer, 2 pairs of MC4 Solar Connectors, USB Cable and WiFi Dongle for remote monitoring.

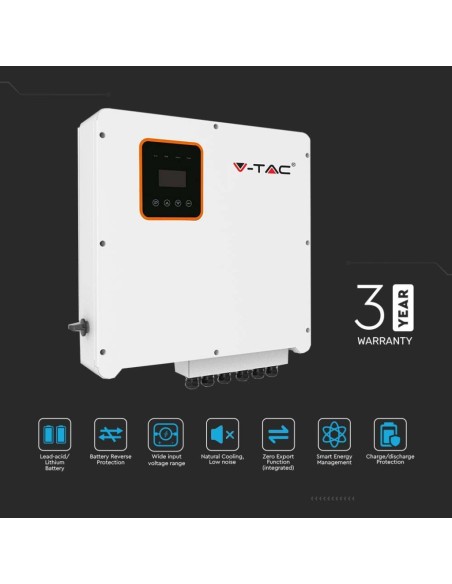

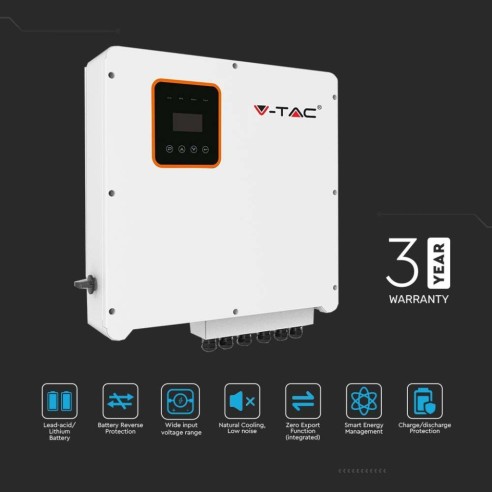

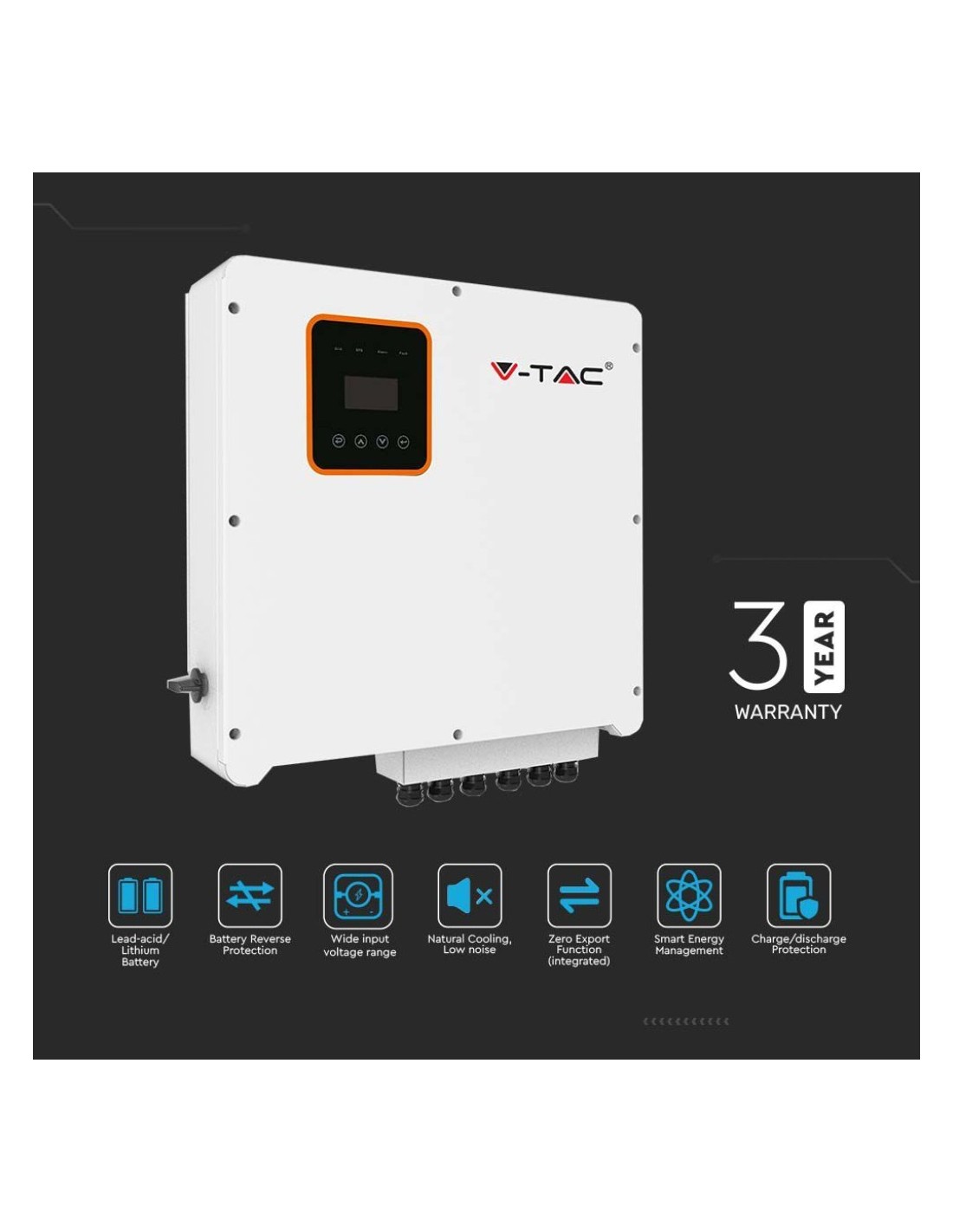

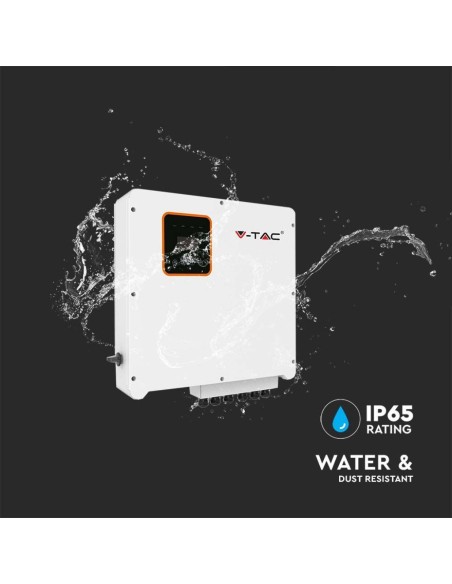

It is equipped with an LCD screen that allows you to interact with the settings. Integrated Zero Emission function. Heat dissipation is via radiators thus ensuring low noise. Equipped with charge/discharge protection. The degree of protection is IP65, so it can also be used outdoors.
