| Entry | |
| Maximum power | 7 KW |
| Input voltage | 550 V |
| MPPT voltage range | 125 - 500 V |
| Maximum current | 14 A |
| Number of MPP trackers | 2 |
| Output (AC) | |
| Maximum current | 21,7 A |
| Power | 5 KW |
| Voltage | 230V, L + N + PE |
| Operating voltage | 180V ~ 270V |
| Frequency | 50Hz / 60Hz |
| Output (EPS) | |
| Voltage range | |
| Power | 5 KVA |
| Voltage | 230 Vac |
| Current | 21,7 A |
| Frequency | 50Hz / 60Hz |
| Overload capacity | 110%, 60s / 120%, 30s / 150%, 10s |
| Battery | |
| Charge/discharge current | 95 A / 110 A |
| Battery type | LiFePo4 |
| Battery capacity | 2.4kWh ~ 14.4kWh |
| Maximum number of batteries | 6 |
| Efficiency | |
| Maximum efficiency | 97,6% |
| MPPT efficiency | 99,9% |
| Communication | |
| Display | LCD |
| Communication | Standard: RS485 / CAN / DRM; Optional: WiFi / Lan |
| Features | |

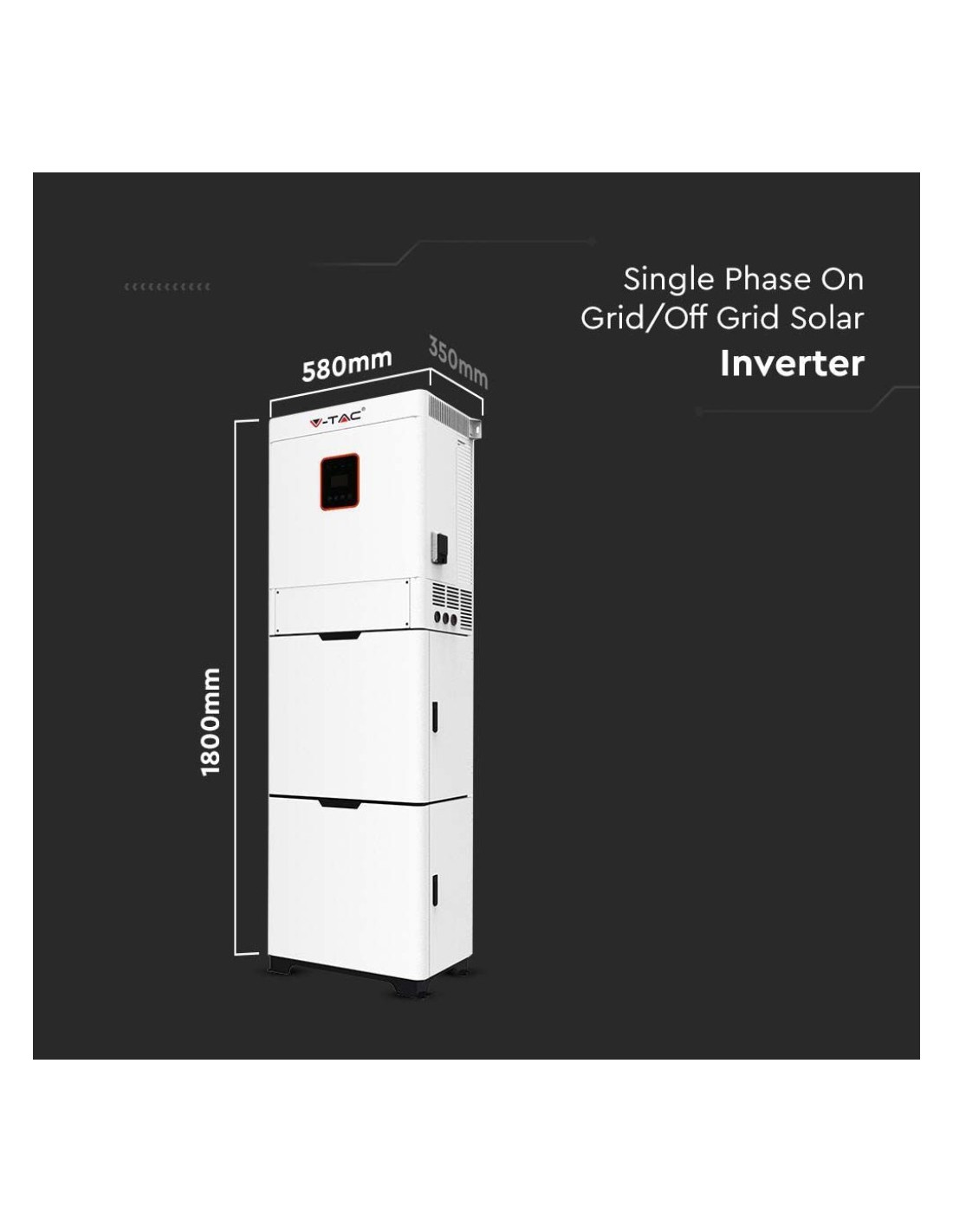

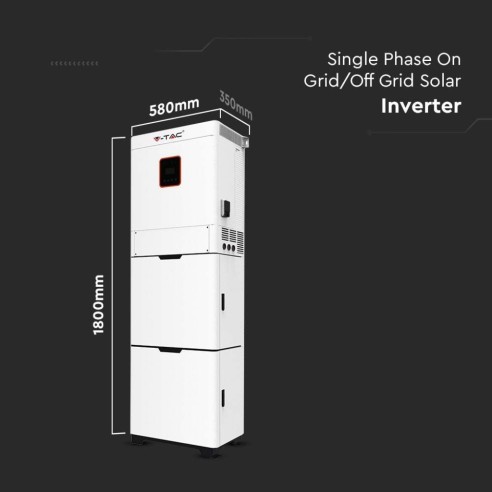

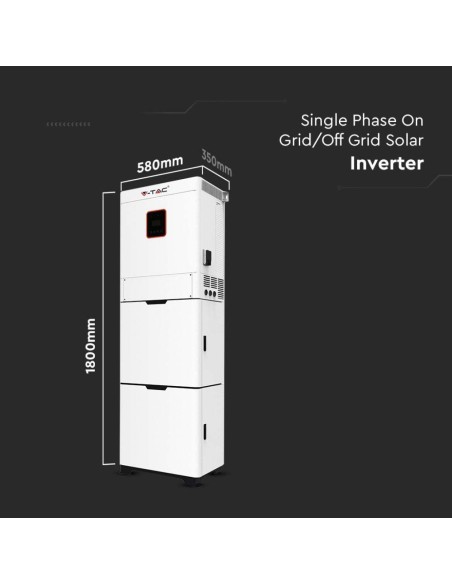

| Dimensions | 580 x 1800 x 350 mm |
| Weight | 70 Kg |
| Operating temperature | -10ºC~ +60ºC |
| Cooling | Forced |
| Noise | <50dB |
| Maximum operating altitude | 5000 m |
| IP Rating | IP20 |
| Model | VT-6605103 11376 |
| Brand | V-TAC |
Accessories included:
- WiFi Stick Logger for Inverter, V-tac VT-660000 11378;
- 2 Pairs of MC4 Solar Cable Connectors, V-tac 11413;
- CT Current Transformer for Current Measurement, V-tac 11506;
This inverter is hybrid, so it can work with or without batteries.
Compatible with V-Tac 48V batteries, VT-5139 11448 (5kWh), VT-10240 11447 (10kWh), VT-48100E-P2 11377 (5kWh Rack).

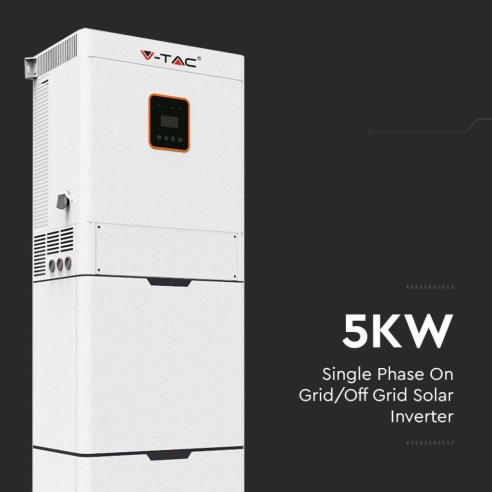

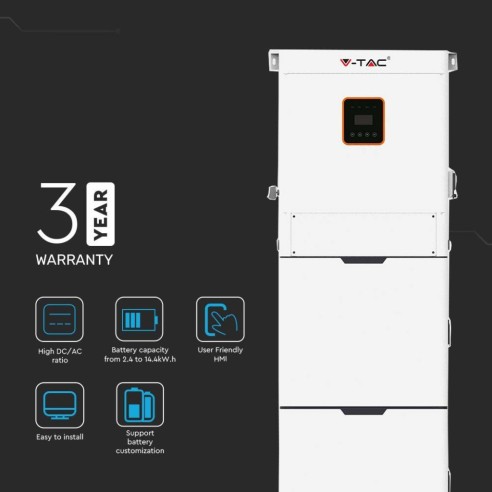

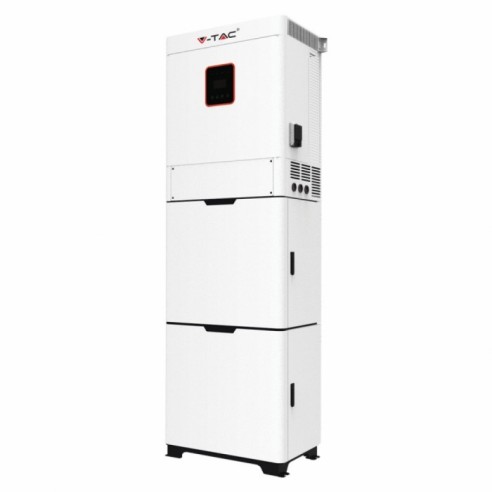

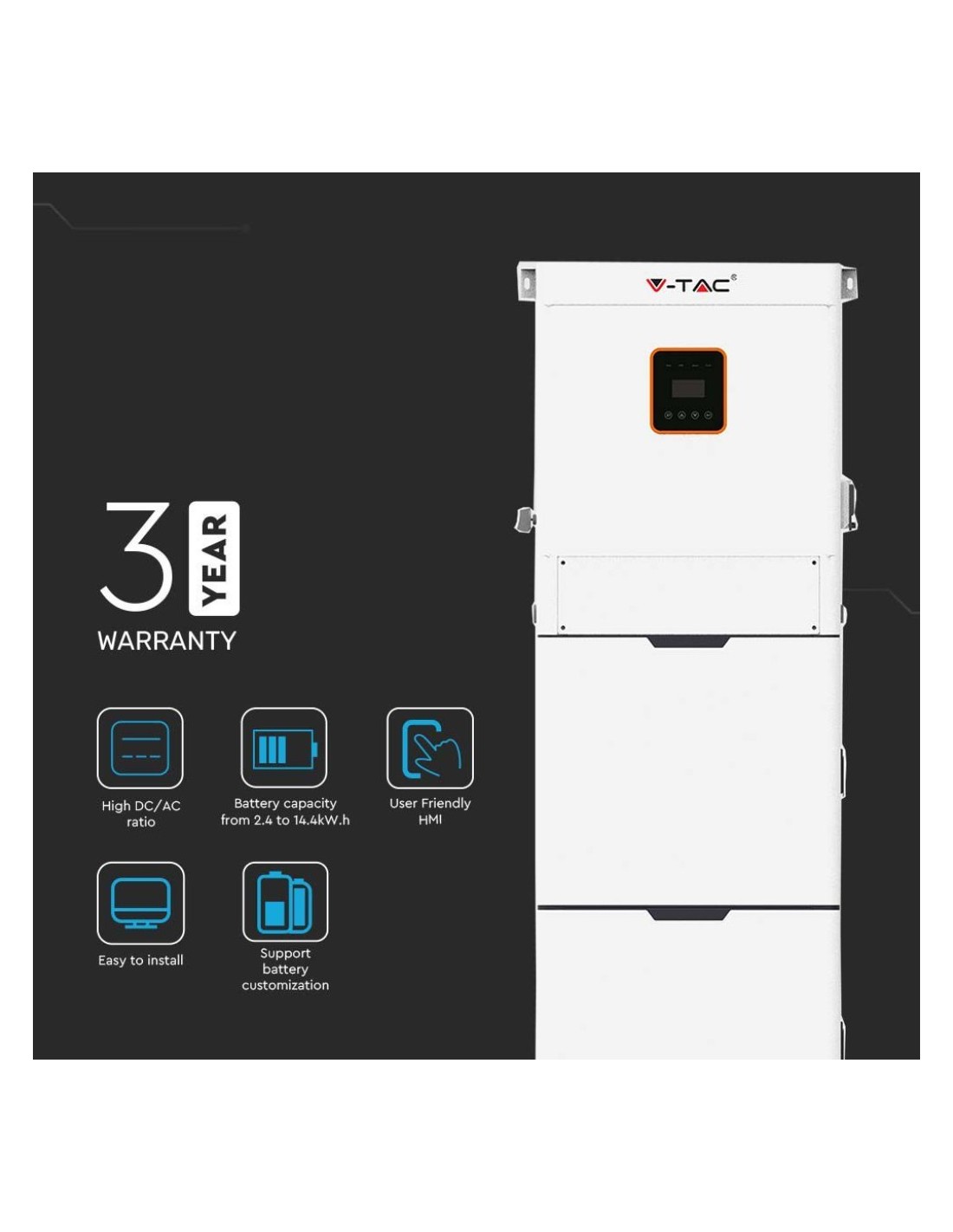

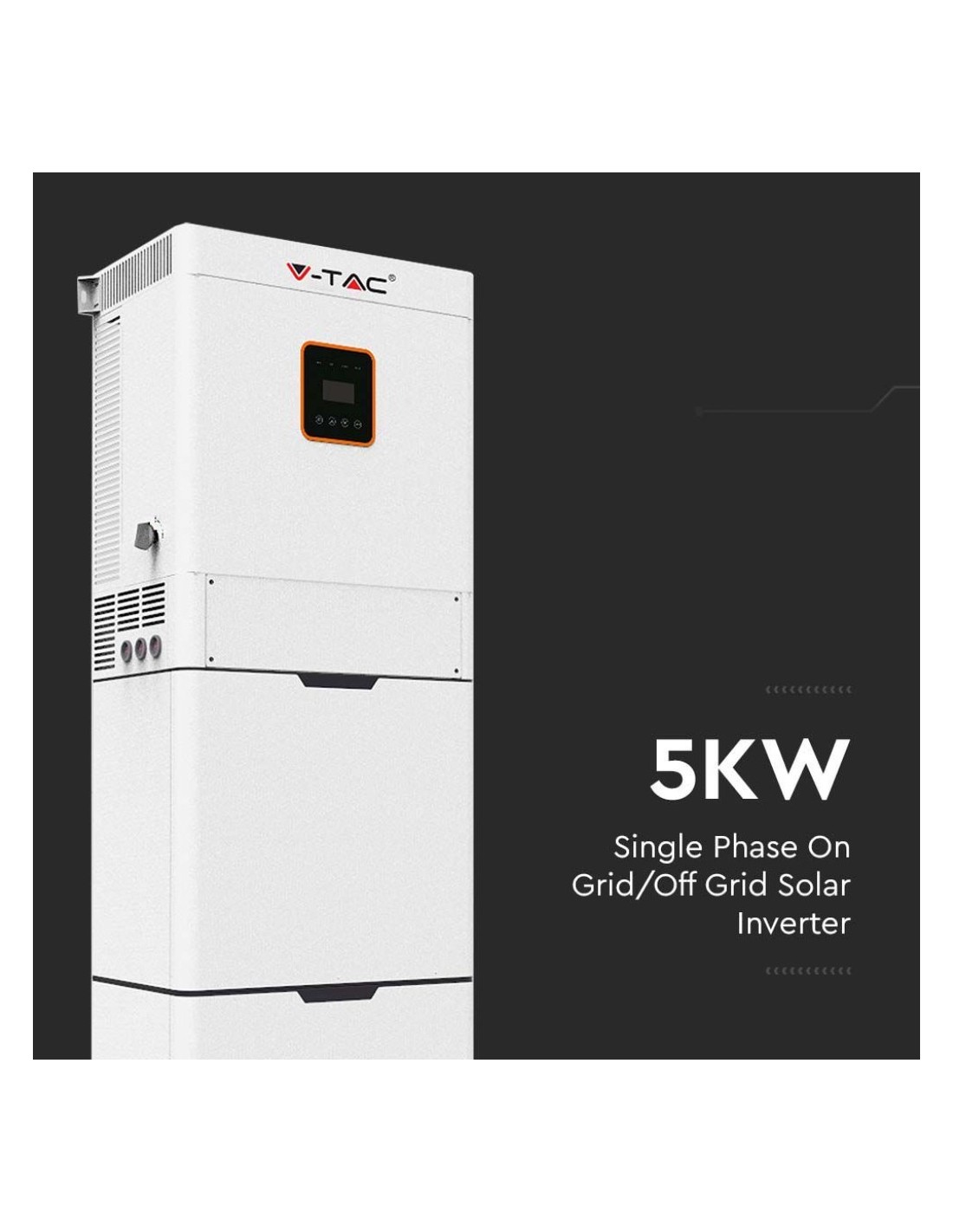

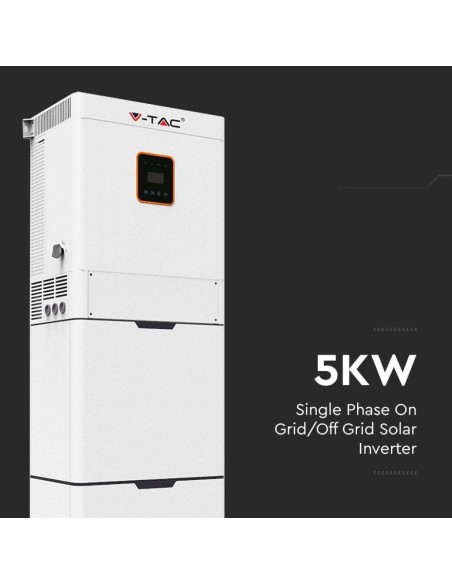

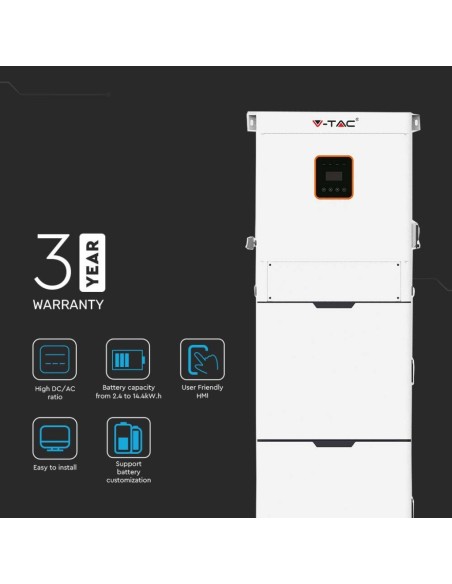

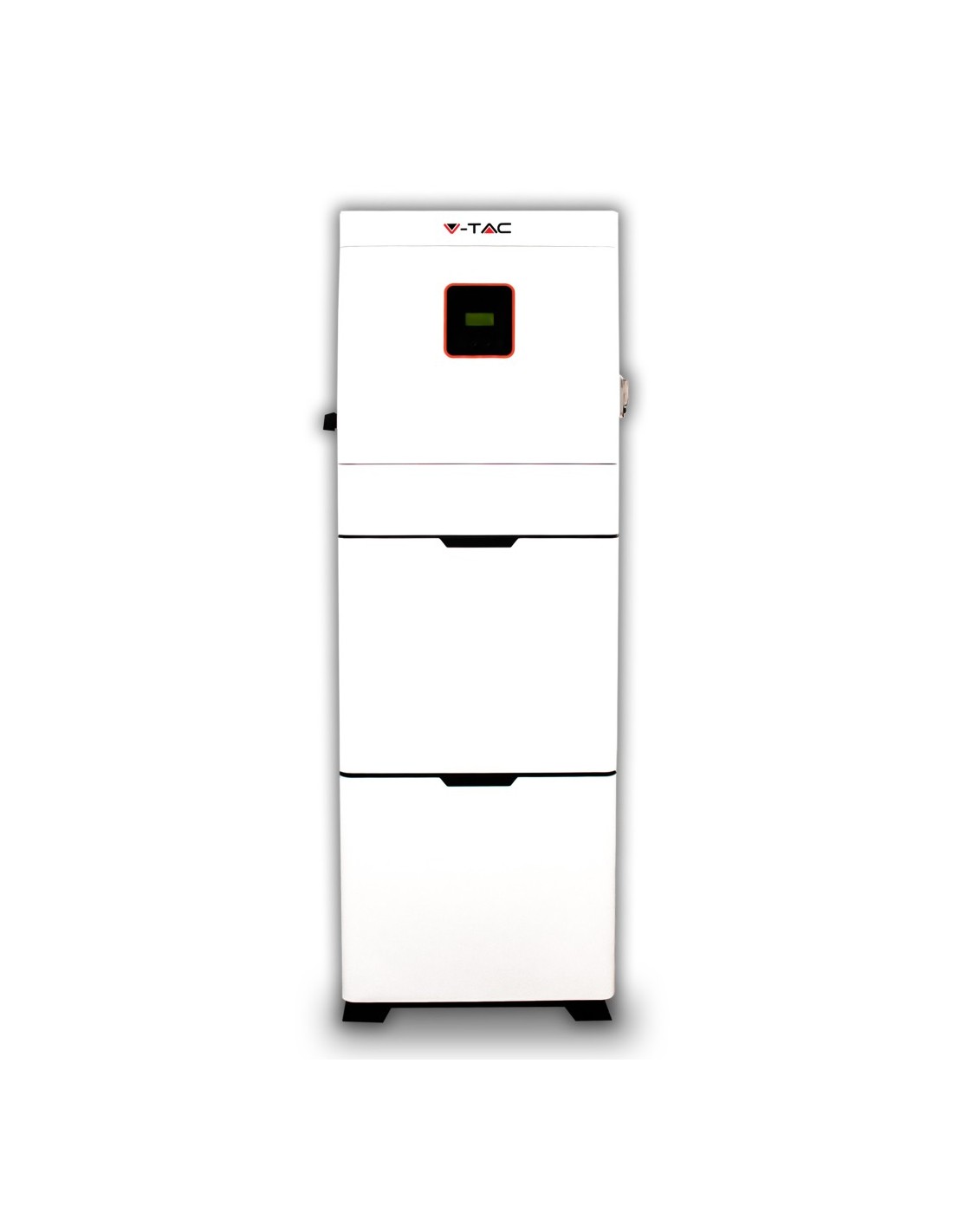

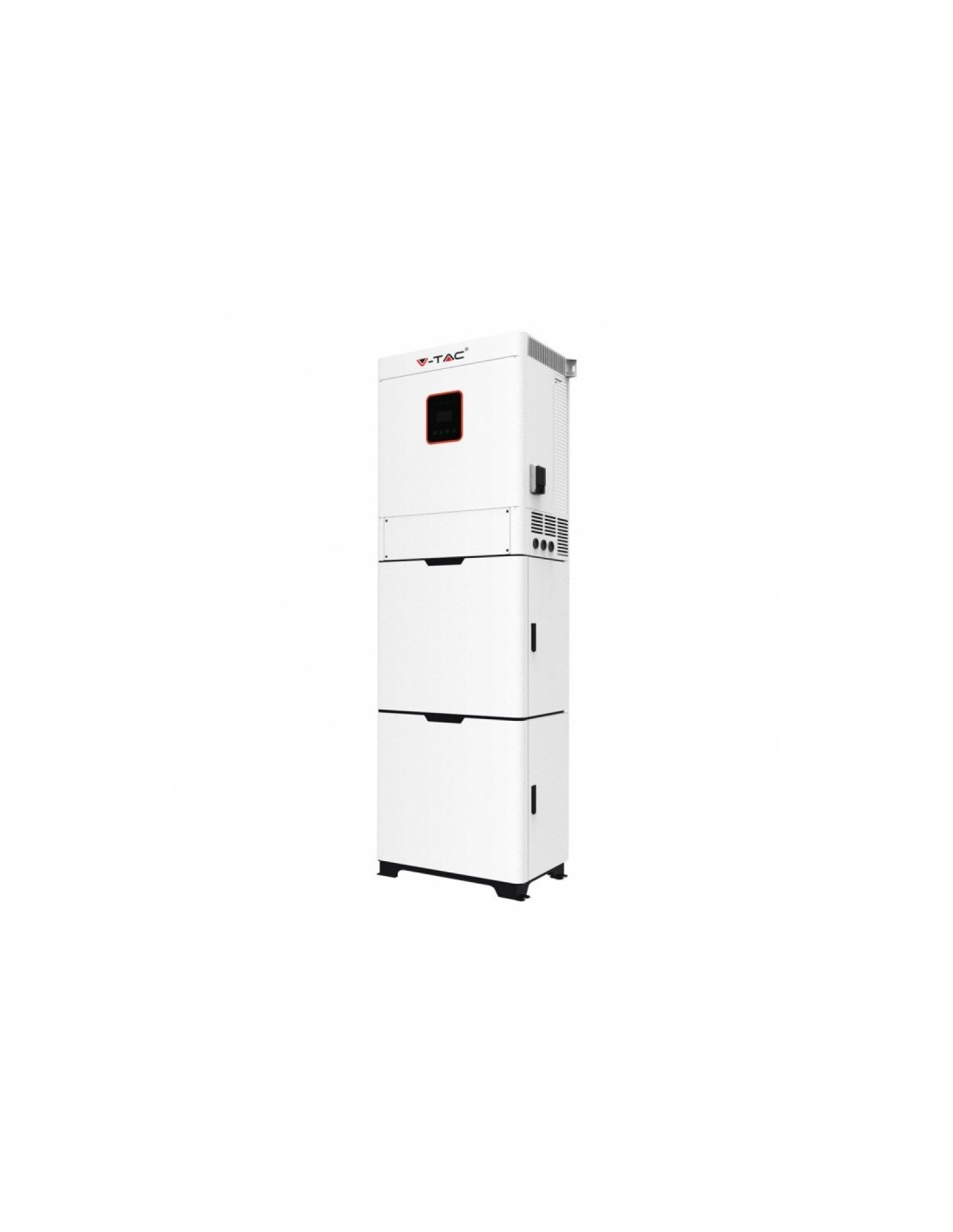

The 5kW Dual MPPT Single Phase Hybrid Inverter is an electronic device that converts the direct current supplied by photovoltaic solar panels into alternating current, with a single-phase output suitable for consumption in homes or commercial premises. This inverter comes complete with accessories: CT Current Transformer, 2 pairs of MC4 Solar Connectors, USB Cable and WiFi Dongle for remote monitoring.
It is equipped with an LCD screen that allows you to interact with the settings. Integrated Zero Emission function. Heat dissipation is via radiators thus ensuring low noise. Equipped with charge/discharge protection. The degree of protection is IP20, making it suitable for use inside dedicated rooms.

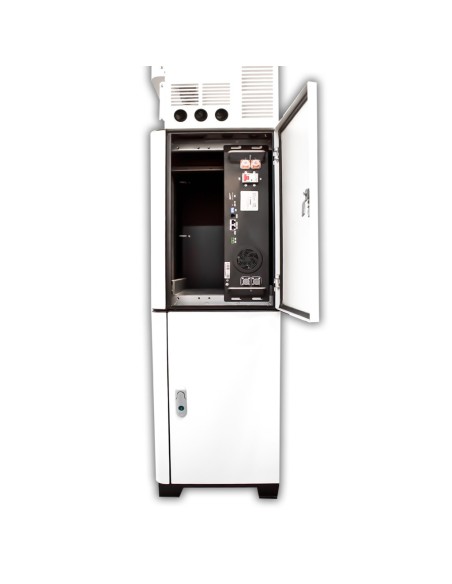

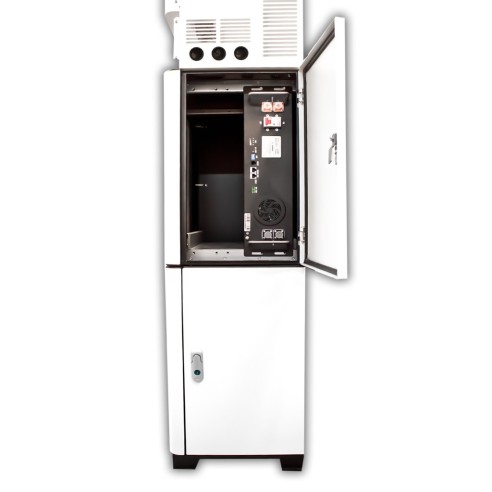

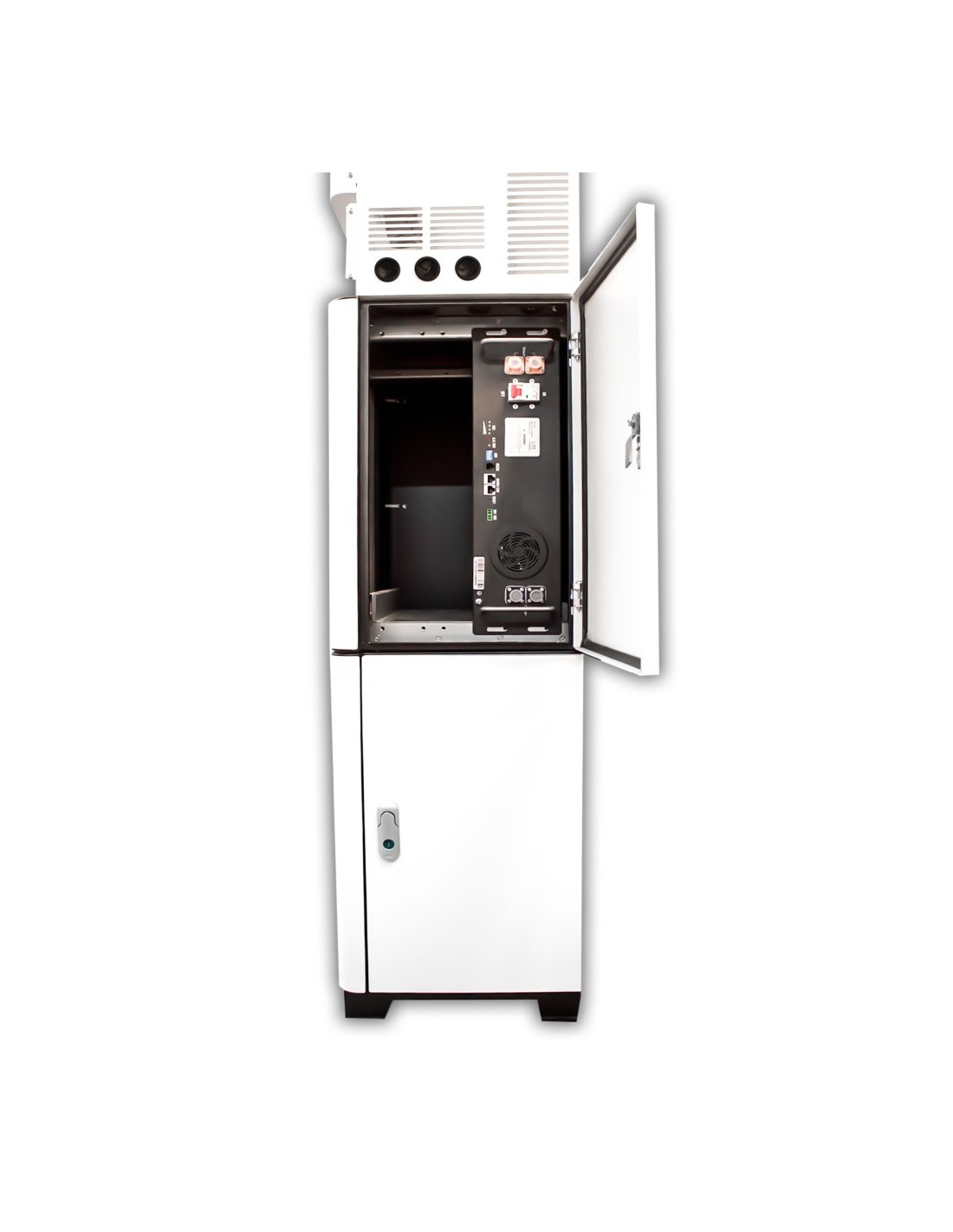

This inverter comes complete with a rack cabinet, suitable for containing up to 4 rack batteries.
