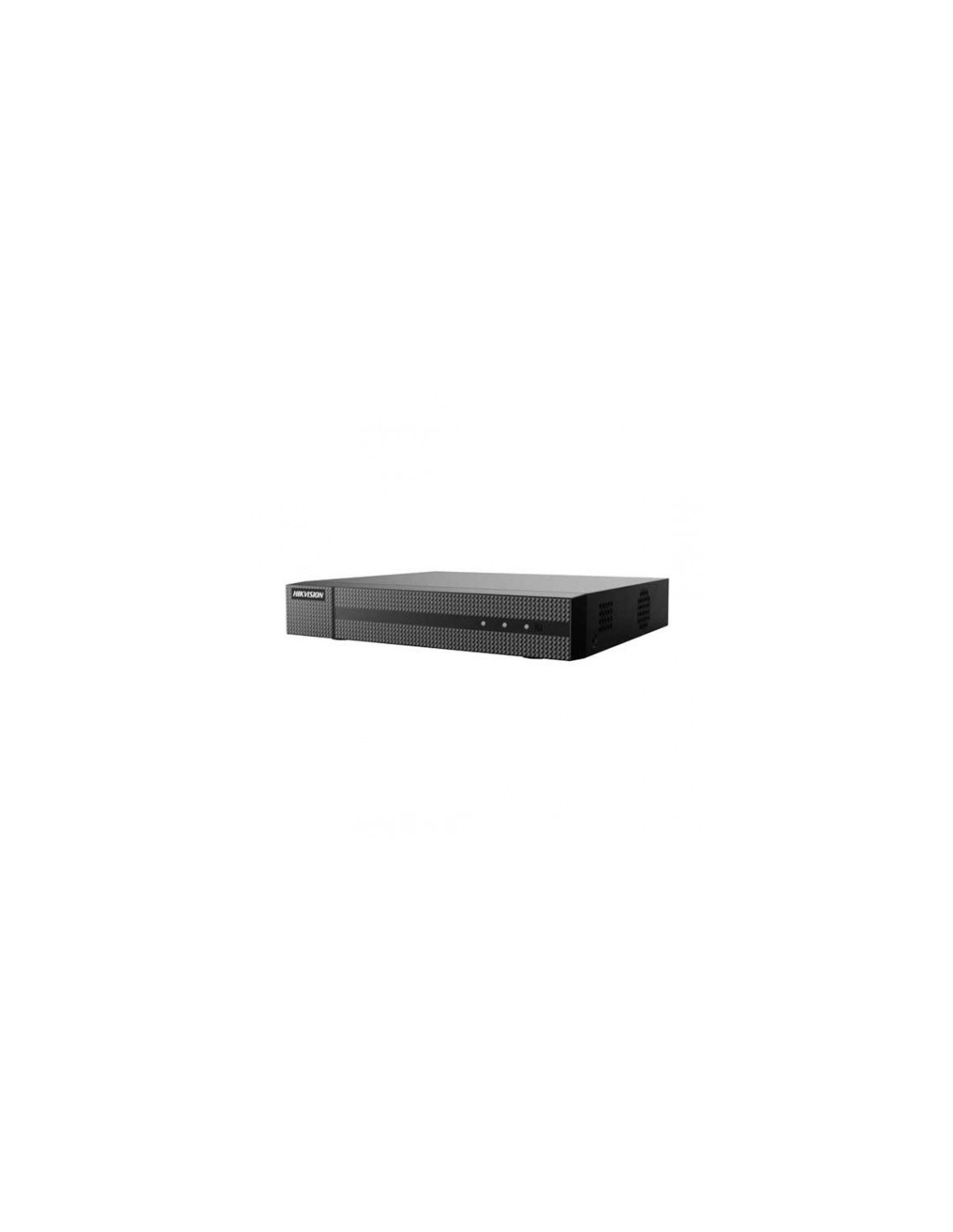

DVR HWD-5104M Hikvision Hiwatch series turbo HD 1080p 4 channels with 5IN1 CVBS/HDCVI/HDTVI/AHD + IP hybrid technology.
Full HD resolution recording at 1080p 4CH@25fps + 1 IP camera up to 960p.
Thanks to the DVR's hybrid technology, it is possible to upgrade all old video surveillance systems, giving the possibility to install the cameras at a higher resolution using the traditional micro coaxial cabling used to install analogue CVBS cameras.
The menu is designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings.
The DVR offers connectivity from any device including Windows, Mac, iPhone and Android applications.
The video security system is ideal for a wide range of applications: from companies to public administrations, from parks to institutional venues, from museums to airports, from villas to small contexts.
| Video compression | H.264+/H.264 |
| Analog video input | 4-ch |
| HDTVI input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| IP video input | 1-ch (up to 5-ch) |
| Audio compression | G.711u |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Main stream Frame rate | When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N); When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-stream Frame Rate | 2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N) |
| Video bit rate | 32 Kbps to 4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4-ch |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| SATA Interface | 1 SATA interface |
| Hard Disk Capacity | Up to 6 TB capacity for each disk |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Network interface | 1, RJ45 10M/100M Ethernet interface |
| USB interface | Rear panel: 2 × USB 2.0 |
| Power supply | 12Vdc |
| Consumption (without HDD) | ≤ 8 W |
| Working temperature | -10 ºC to +55 ºC |
| Working humidity | 10% to 90% |
| Dimensions | 260 × 222 × 45 mm |
| Weight (without HDD) | ≤ 0.8 kg |
| Model | HWD-5104M |
| Brand | Hikvision |
