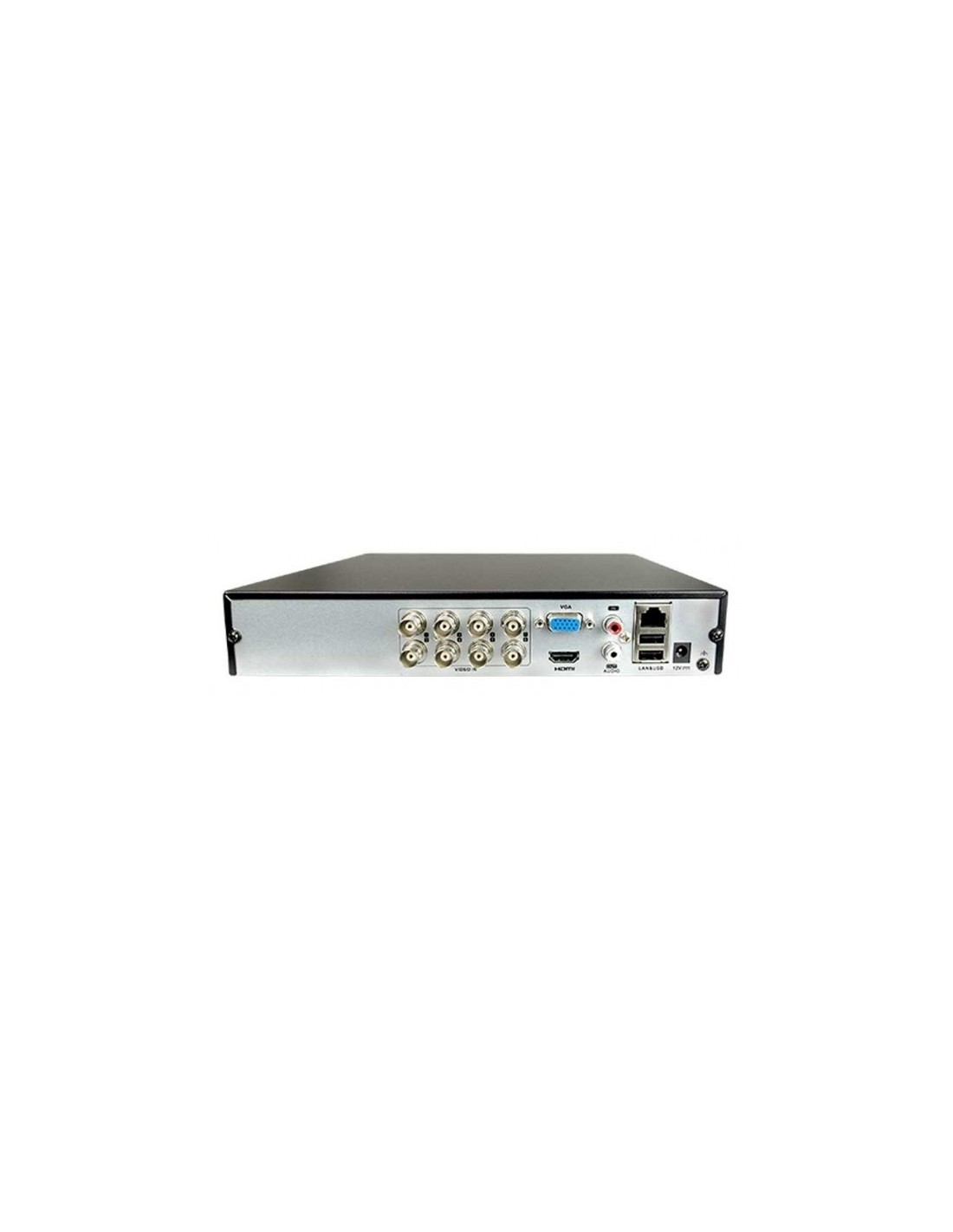

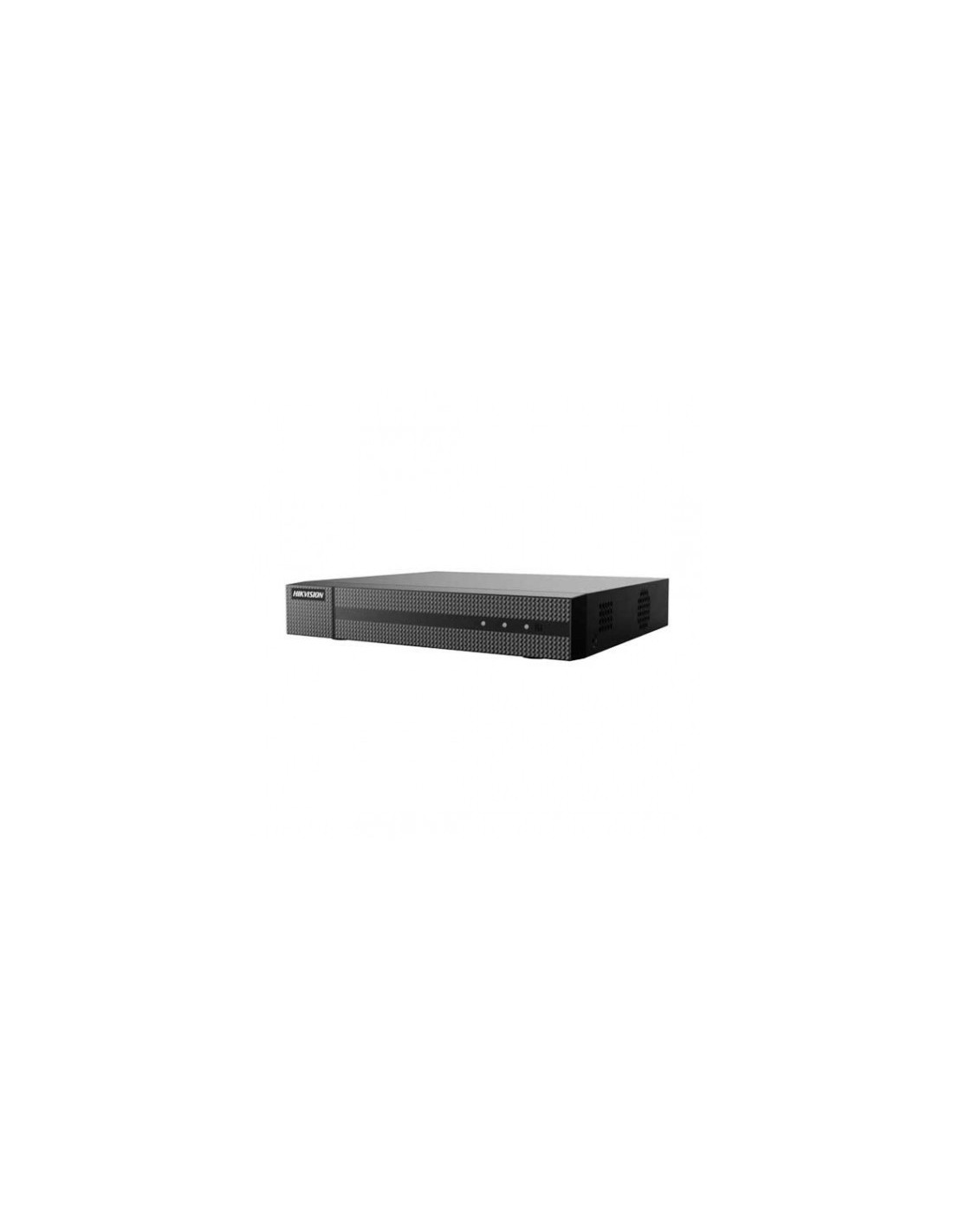

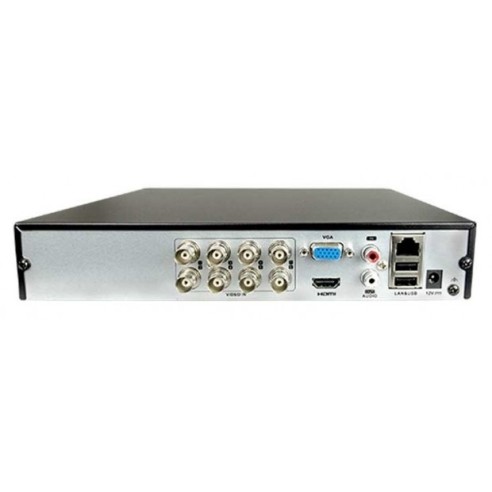

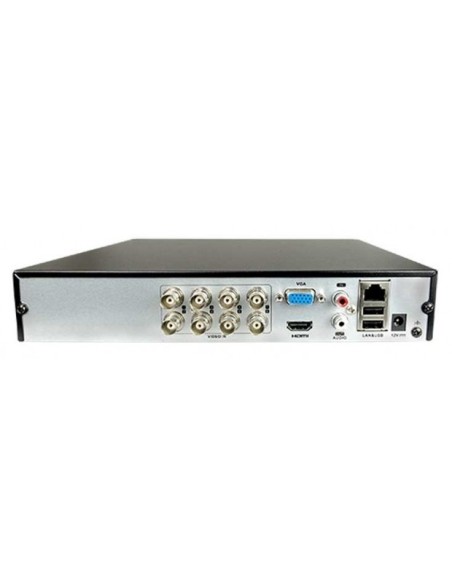

DVR HWD-5108M Hikvision Hiwatch series turbo HD 1080p 8 channels with 5IN1 CVBS/HDCVI/HDTVI/AHD + hybrid IP technology.
Full HD 1080p 8CH@25fps resolution recording + 1 IP camera up to 960p.
Thanks to the DVR's hybrid technology, it is possible to upgrade all older video surveillance systems, giving the possibility to install cameras at a higher resolution using the traditional micro coaxial cabling used to install analogue CVBS cameras.
The menu is designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings.
The DVR offers connectivity from any device, including Windows, Mac, iPhone and Android applications.
The video surveillance system is ideal for a wide range of applications: from businesses to public administrations, from parks to government offices, from museums to airports, from villas to small settings.
Specifications
- Supported CCTV Technology Standards CVBS/HDCVI/HDTVI/AHD + IP@960p, Onvif standard
- Video signal transmission over long distances (800 - 1100 metres), using coaxial or UTP cable.
- Recording (REC & Live) on all channels in 1080N 8CH@25fps
- Dual-stream H.264+/H.264 video compression.
- Simultaneous HDMI/VGA video output.
- Supports 1 SATA HDD up to 6TB , 2 USB2.0
- Multiple network monitoring: Web viewer, CMS, Smartphone via iVMS-4200, Hik-Connect y iVMS-5200 applications
- Easy P2P QR scan configuration with dedicated Hikvision Cloud Service.
- Multilingual menus
| Video/Audio input |
| Video compression | H.264+/H.264 |
| Analog video input | 8-ch |
| HDTVI input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| IP video input | 2-ch (up to 10-ch) |
| Audio compression | G.711u |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable |
| Video/Audio output |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Main stream Frame rate | When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N); When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-stream Frame Rate | CIF/QVGA/QCIF@12fps |
| Video bit rate | 32 Kbps to 4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 8-ch |
| Network management |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard disk |
| SATA Interface | 1 SATA interface |
| Hard Disk Capacity | Up to 6 TB capacity for each disk |
| External interface |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Network interface | 1, RJ45 10M/100M Ethernet interface |
| USB interface | Rear panel: 2 × USB 2.0 |
| General |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 12 W |
| Working temperature | -10 ºC to +55 ºC |
| Working humidity | 10% to 90% |
| Dimensions | 260 × 222 × 45 mm |
| Weight (without HDD) | ≤ 0.8 kg (1.8 lb) |
| Model | HWD-5108M |
| Brand | Hikvision |
