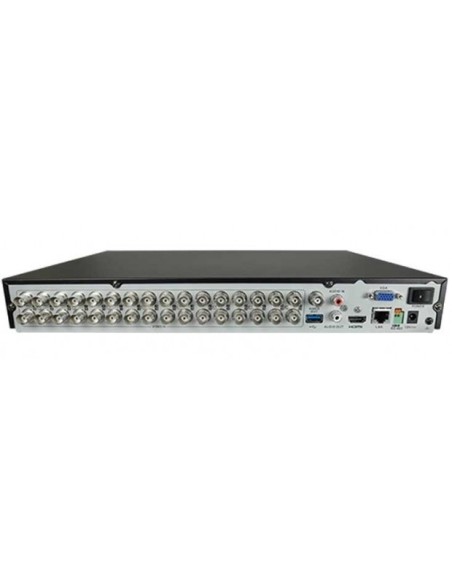

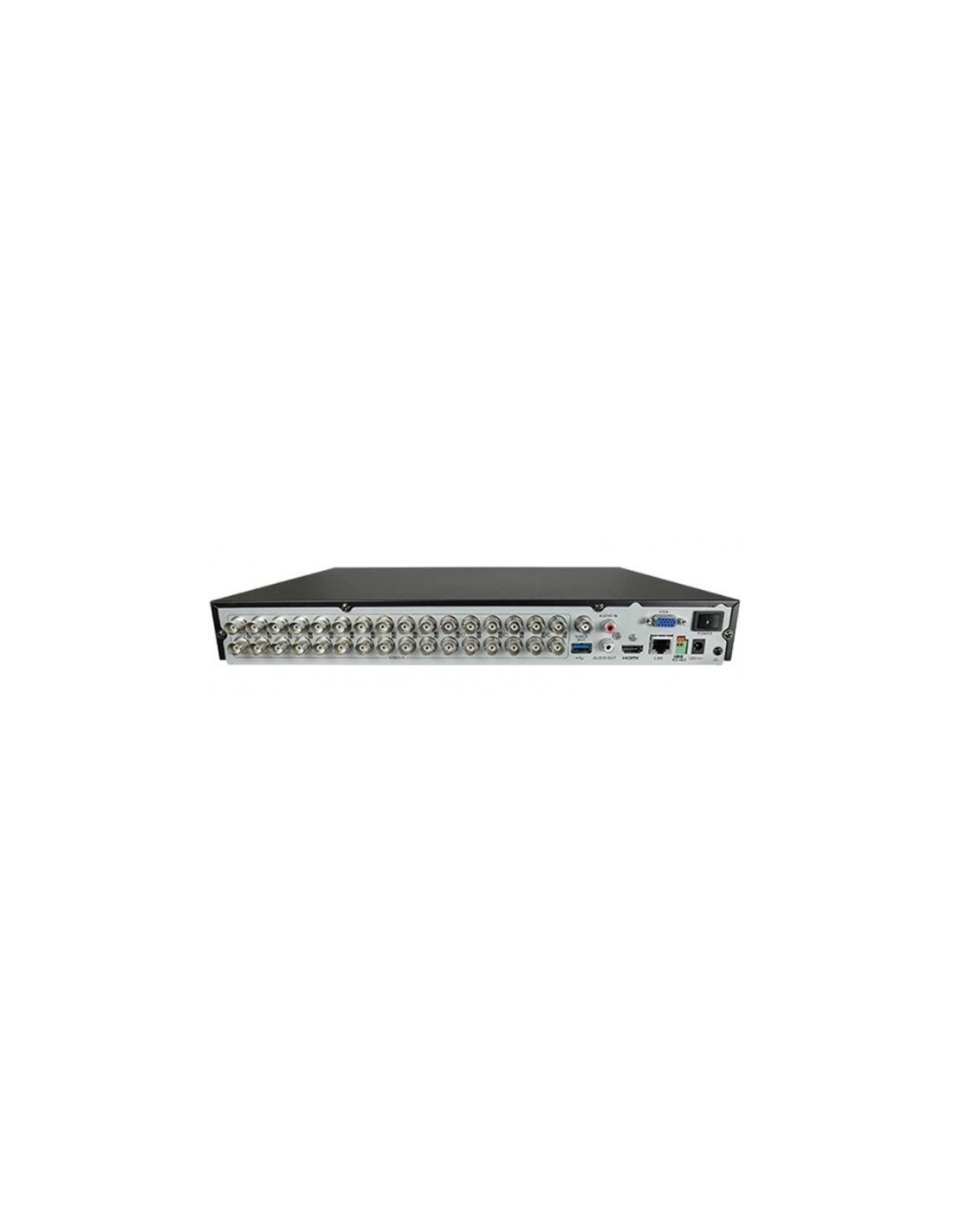

Analog DVR HWD-5232MH-G2 Hikvision Hiwatch series turbo FULL HD 1080p 32 channels with hybrid technology 5 in 1 CVBS/HDCVI/HDTVI/AHD + IP.
Recording with 1080N 32CH@25fps resolution + 2 IP cameras (up to 18) 5Mpx resolution.
Thanks to the hybrid technology of the video recorder, it is possible to upgrade all old video surveillance systems, giving the possibility to install the cameras at a higher resolution using the traditional micro coaxial cabling used for the installation of analogue CVBS cameras.
The menu is designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings. The DVR offers connectivity from any device including Windows, Mac, iPhone and Android applications.
The video security system is ideal for a wide range of applications: from companies to public administrations, from parks to institutional venues, from museums to airports, from villas to small contexts.
Specifications
- Supported CCTV Technology Standards CVBS/HDCVI/HDTVI/AHD + IP@5Mpx, Onvif Standard
- Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
- Recording (REC & Live) on all channels in HD 1080N 32CH@25fps
- Dual-stream H.265 Pro+/H.265/H.264+/H.264 video compression.
- Simultaneous HDMI/VGA video output.
- Supports 2 x SATA HDD up to 10TB , 2 x USB (Front panel 1 x USB 2.0 - Back panel 1 x USB 3.0)
- Multiple network monitoring: Web viewer, CMS, Smartphone via iVMS-4200, Hik-Connect y iVMS-5200 applications
- Easy P2P QR scan configuration with dedicated Hikvision Cloud Service.
- Multilingual menus
| Video/Audio input | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog video input | 32-ch |
| HDTVI input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
| IP video input | 2-ch (up to 18-ch) |
| Audio compression | G.711u |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video/Audio output | |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | 1080p lite/720p/VGA/WD1/4CIF/CIF |
| Main stream Frame rate | For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N); For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N); For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-stream Frame Rate | For 1080p and 720p stream access: CIF/QVGA@15fps; For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N) |
| Video bit rate | 32 Kbps to 4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 16-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard disk | |
| SATA Interface | 2, SATA interface |
| Hard Disk Capacity | Up to 10 TB capacity for each disk |
| External interface | |
| audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Network interface | 1, RJ45 10M/100M/1000M Ethernet interface |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| General | |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 18 W |
| Working temperature | -10 °C to 55 °C |
| Working humidity | 10% to 90% |
| Dimensions | 380 × 320 × 48 mm |
| Weight (without HDD) | ≤ 2.2 kg |
| Model | HWD-5232MH-G2 |
| Brand | Hikvision |
