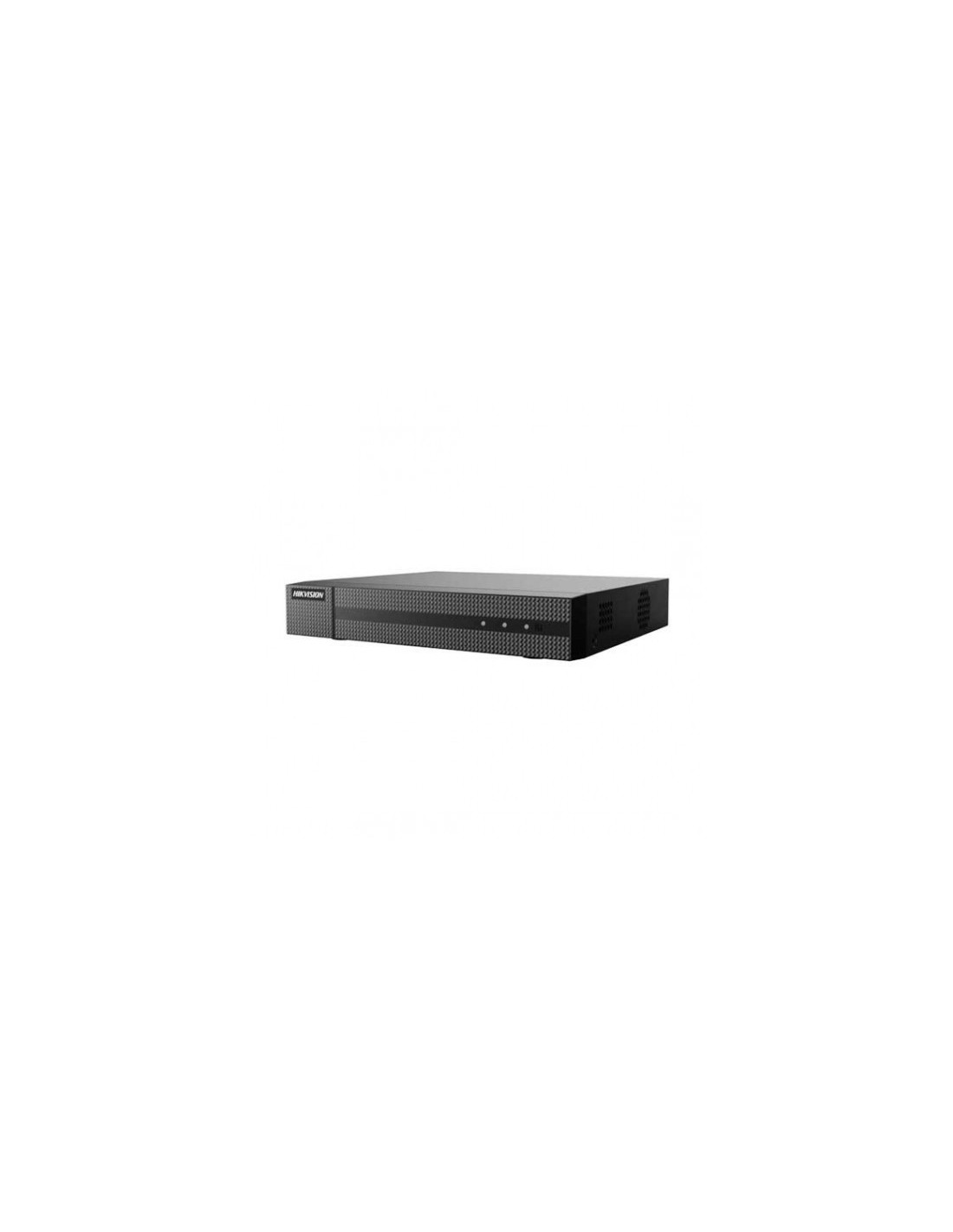

Analog DVR HWD-7216MH-G2 Hikvision Hiwatch series turbo Ultra HD 4K up to 8Mpx 16 channels with hybrid technology 5 in 1 CVBS/HDCVI/HDTVI/AHD + IP.
Ultra HD resolution recording on all channels up to 8Mpx@8fps + 6 IP cameras.
Thanks to the hybrid technology of the video recorder, it is possible to upgrade all old video surveillance systems, giving the possibility to install the cameras at a higher resolution using the traditional micro coaxial cabling used for the installation of analogue CVBS cameras.
Video recording is processed by a new video compression system identified as the H.265 codec. This technology saves up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.
The menu has been designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings. The DVR offers connectivity from any device including Windows, Mac, iPhone and Android applications.
The video security system is ideal for a wide range of applications: from companies to public administrations, from parks to institutional venues, from museums to airports, from villas to small contexts.
Specifications
- Supported CCTV Technology Standards CVBS/HDCVI/HDTVI/AHD + IP@6Mpx, Onvif Standard
- Supported HD-TVI resolutions: 8Mpx@8fps, 5Mpx@12fps, 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
- AHD resolution supported: 5Mpx@12fps, 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
- HDCVI resolution supported: 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
- Supported CVBS resolutions: 960H, 700TVL@25/30fps.
- Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
- Recording (REC & Live) on all channels in 4k ultra hd resolution 8Mpx@8fps
- Dual-stream H.265 Pro+/H.265/H.264+/H.264 video compression.
- Simultaneous HDMI/VGA video output.
- Supports 2 SATA HDD up to 10TB , 2 USB (front USB 2.0 port - rear USB 3.0 port).
- Multiple network monitoring: Web viewer, CMS, Smartphone via iVMS-4200, Hik-Connect and iVMS-5200 applications
- Easy P2P QR scan configuration with dedicated Hikvision Cloud Service.
- Multilingual menus
| Video/Audio input | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog video input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI input | 8 MP, 5 MP, 4 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| AHD input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
| IP video input | 16-ch (up to 32-ch) |
| Audio compression | G.711u |
| Audio input | 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable |
| Video/Audio output | |
| HDMI/VGA output | HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | 8 MP/5 MP/4 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Main stream Frame rate | 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| Sub-stream Frame Rate | WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video bit rate | 32 Kbps to 10 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 16-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard disk | |
| SATA Interface | 2 SATA interfaces |
| Hard Disk Capacity | Up to 10 TB capacity for each disk |
| External interface | |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Network interface | 1, RJ45 10M/100M/1000M Ethernet interface |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| General | |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 25 W |
| Working temperature | -10 °C to +55 °C |
| Working humidity | 10% to 90% |
| Dimensions | 380 × 320 × 48 mm |
| Weight (without HDD) | ≤ 2 kg |
| Model | HWD-7216MH-G2 |
| Brand | Hikvision |
