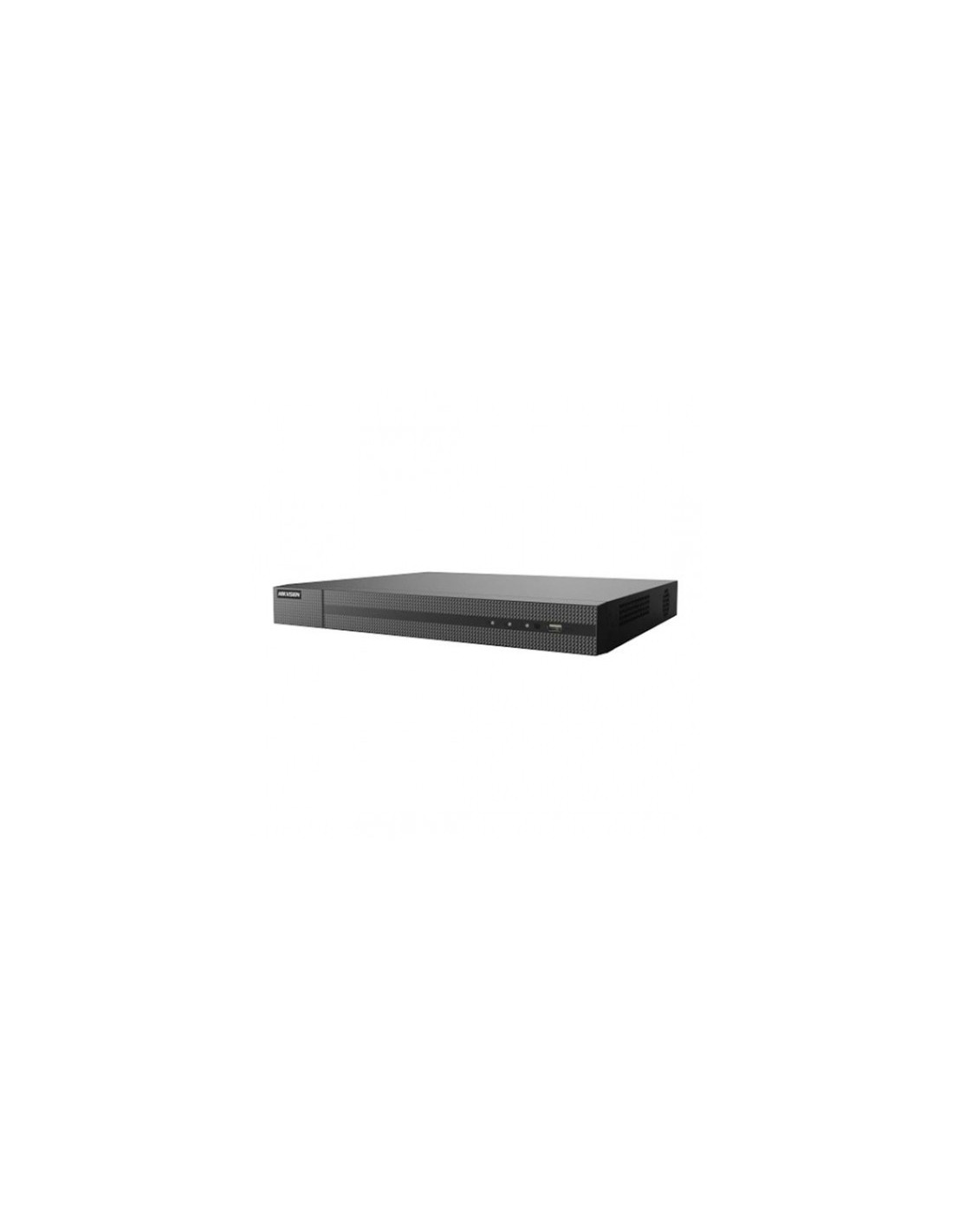

Hikvision HWN-4216MH Hiwatch series 16-channel digital NVR.
4K 8mpx resolution (160Mbps input bandwidth) with H.265+ video compression technology, Onvif (multi-brand) compatibility protocol and P2P QR scan facilitated configuration system with dedicated Cloud HIK-Connect service.
4K video recording is processed by the H.265+ compression system. This technology saves up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.
The menu is designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings.
The DVR offers connectivity from any device including Windows, Mac, iPhone and Android applications.
The video security system is ideal for a wide range of applications: from companies to public administrations, from parks to institutional venues, from museums to airports, from villas to small contexts.
Specifications:
- NVR 4K 1U 16Ch channels with high performance processor;
- Resolution supported up to 8Mpx;
- H.265+ Video Compression;
- Max 160Mbps input bandwidth;
- Remote viewing up to 128 simultaneous users.
- Supports 2 SATA HDDs up to 8TB, 2 USB(USB2.0);
- Mobile viewing on iPhone, iPad and Android;
- Supports multi-brand network cameras - Onvif protocol;
- 2 connectable SATA interface for recording and backup;
- 1 self-adaptive 10/100/1000 Mbps network interface;
| Video/Audio input | |
| IP video input | 16-ch |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth | 160 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Video/Audio output | |
| Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI output resolution | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio output | 1-ch, RCA (Linear, 1kΩ) |
| Decoding | |
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Live view/Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
| Network management | |
| Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk | |
| SATA | 2 SATA interface for 2 HDD |
| Hard Disk Capacity | Up to 6TB for each disk |
| External interface | |
| Network interface | 1, RJ-45 10/100/1000 Mbps Ethernet interface |
| USB interface | 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC |
| Consumption (without hard disk) | ≤15 W |
| Working temperature | -10 °C to +55 °C |
| Working humidity | 10 % to 90 % |
| Chassis | 1U Chassis |
| Dimensions | 385 × 315 × 52 mm |
| Weight | ≤ 1.8 kg |
| Model | HWN-4216MH |
| Brand | Hikvision |
