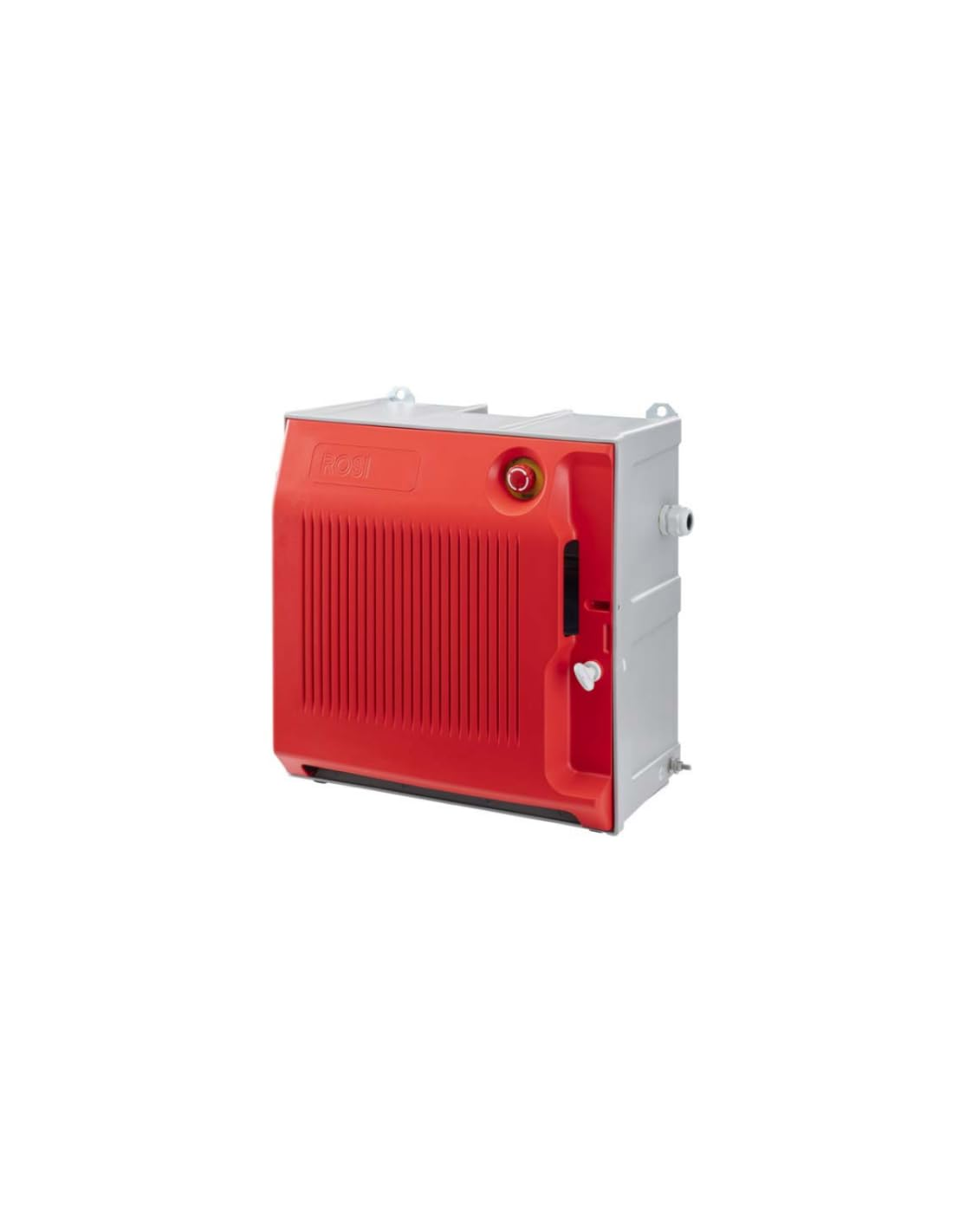

ASC construction site switchboard, 35KW, 3 sockets 16A 3P IP67 230V, 2 16A 4P IP67 400V and 1 32A 4P IP67 400V - Rosi 1003100

ASC construction site switchboard, 35KW, 3 sockets 16A 3P IP67 230V, 2 16A 4P IP67 400V and 1 32A 4P IP67 400V - Rosi 1003100

Name: ASC construction site switchboard, 35KW, 3 sockets 16A 3P IP67 230V, 2 16A 4P IP67 400V and 1 32A 4P IP67 400V - Rosi 1003100
Brand: Rosi
SKU: 61.457.0300000
Price: 749 EUR
Availability: InStock

SKU 61.457.0300000

In stock 1 Item

Last items in stock

€749.00

Tax included

Sophisticated and compact design.
Moulding technology with high impact and weather resistant technopolymer.
Facilitated closed-door cable exit.

Equipped with:
- Emergency button;
- Fixing pin for earth connection;
- Lock with triangular key included and lockable door;
- Practical integrated carrying handle;
- Brackets for wall mounting or optional stand;
- Protection by circuit breaker and earth leakage circuit breaker;
- Terminal block input.

Features:
- Suitable for environments with exposure to weather and risk;
- Impact resistance IK09;
- UV-resistant technopolymer housing.

Description

Power	35KW
Entry	Cable Gland PG29
Terminal block	1
Interlocked sockets	3x 16A 3P IP67 230V
	2x 16A 4P IP67 400V
	1x 32A 4P IP67 400V
Thermal-magnetic circuit breaker	1x 2P 16A
	1x 3P 16A
	1x 3P 32A
Differential circuit breaker	1x 63A 30mA

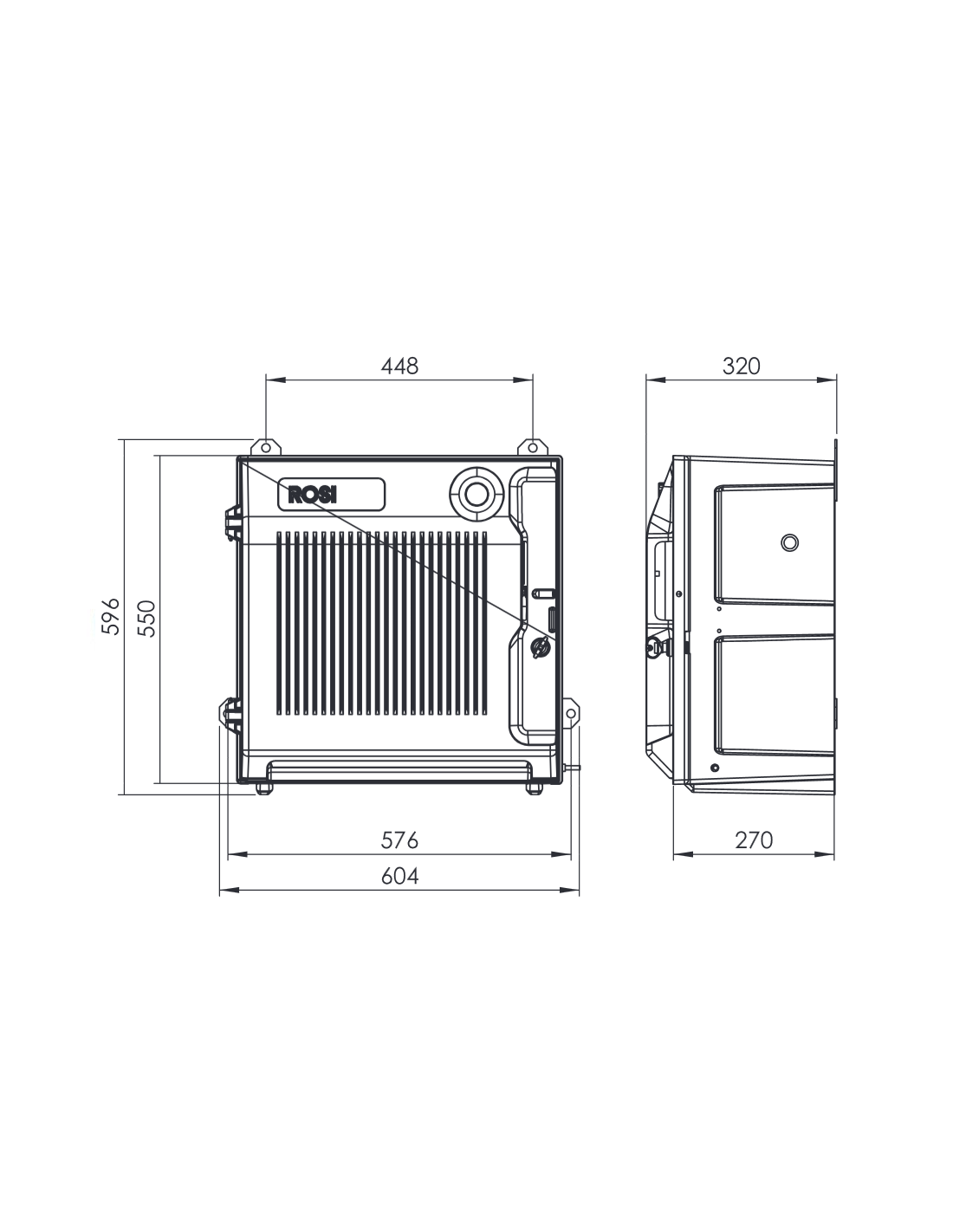

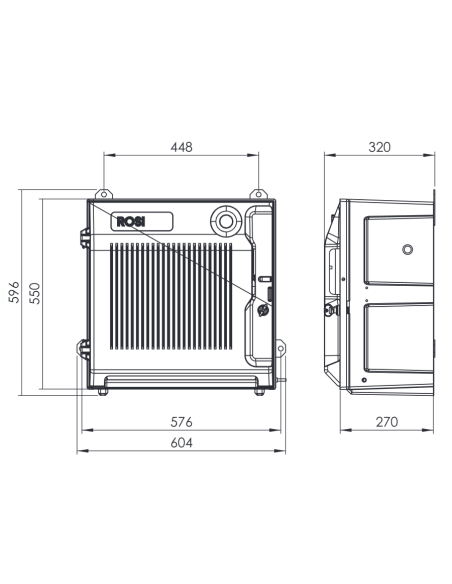

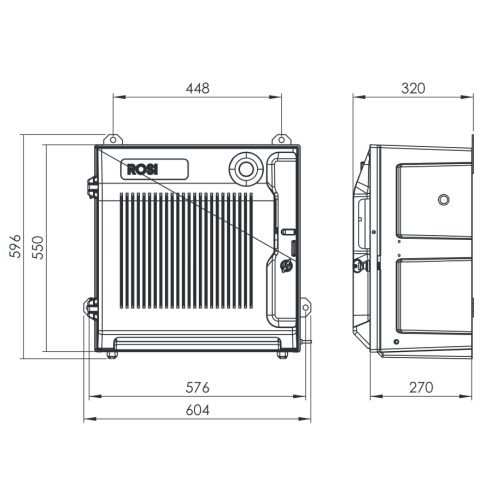

Dimensions	604x596x320mm
Impact resistance	IK09
IP Rating	IP55
Reference Standards	CEI EN 60439-1, CEI EN 60439-4
Material	Technopolymer
Operating temperature	-25°C ~ +80°C
Glow wire test	650°C
Model	1003100
Manufacturer	Rosi

Product Details

Brand: Rosi
Connector type: Interlocked socket 16A 2P+T 230V
Interlocked socket 16A 3P+T 400V
Interlocked socket 32A 3P+T 400V
Number of sockets: 6
Accessories: Circuit breaker
Emergency button
differential magnetothermal switch
Power: 35KW
IP Rating: IP55
