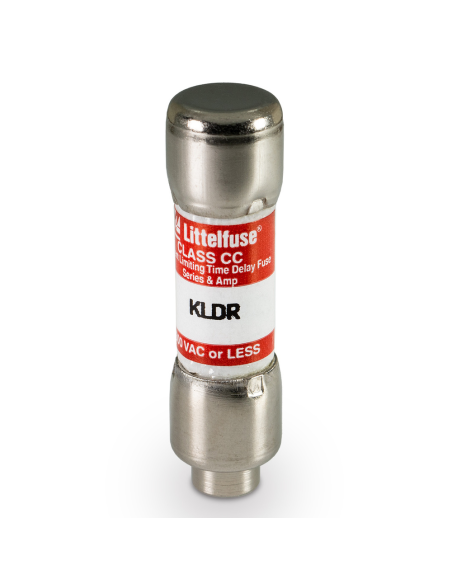

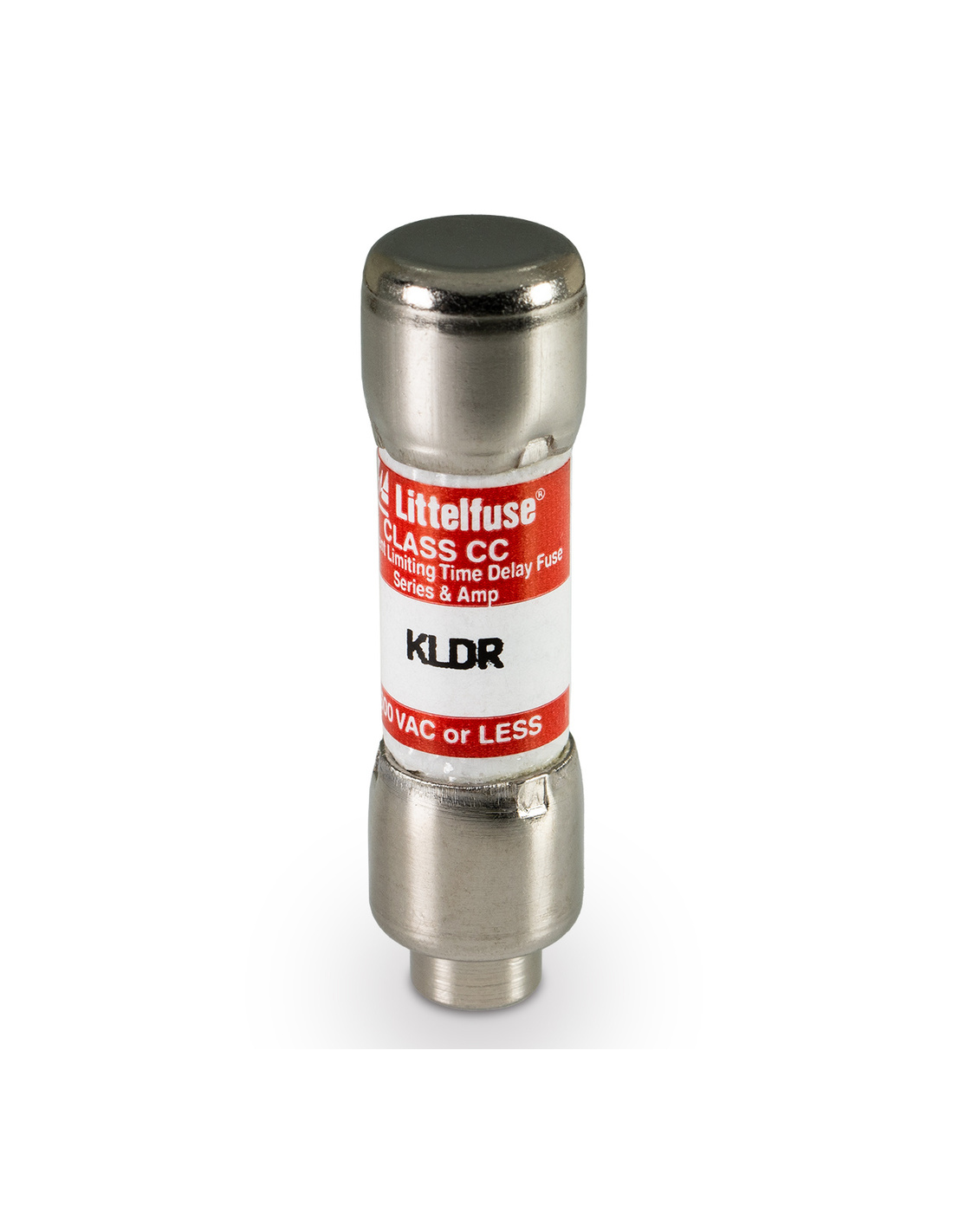

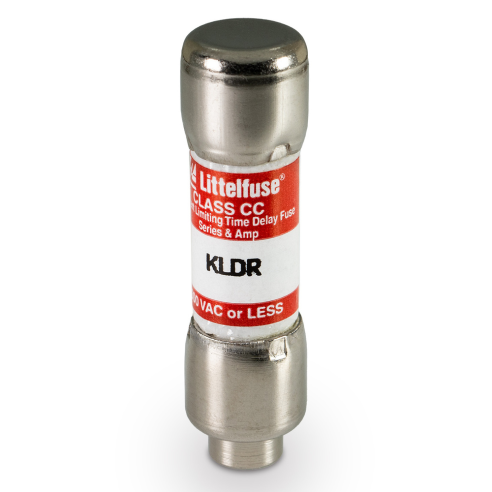

Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 2A, delayed tripping, UL-CSA standard - Littelfuse KLDR002

Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 2A, delayed tripping, UL-CSA standard - Littelfuse KLDR002

Name: Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 2A, delayed tripping, UL-CSA standard - Littelfuse KLDR002
Brand: Littelfuse
SKU: 61.001.3902701
Price: 24.5 EUR
Availability: InStock

SKU 61.001.3902701

In stock 14 Items

€24.50

Tax included

The KLDR series of time-delay fuses are designed to protect control transformers, solenoids and similar inductive components with highly magnetised currents during the first half-cycle.
These small fuses provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors.
The KLDR series fuses closely match the characteristics of most power transformers, allowing them to be sized in accordance with the latest revisions of UL 508 (industrial control) and UL 845 (motor control centres).

Description

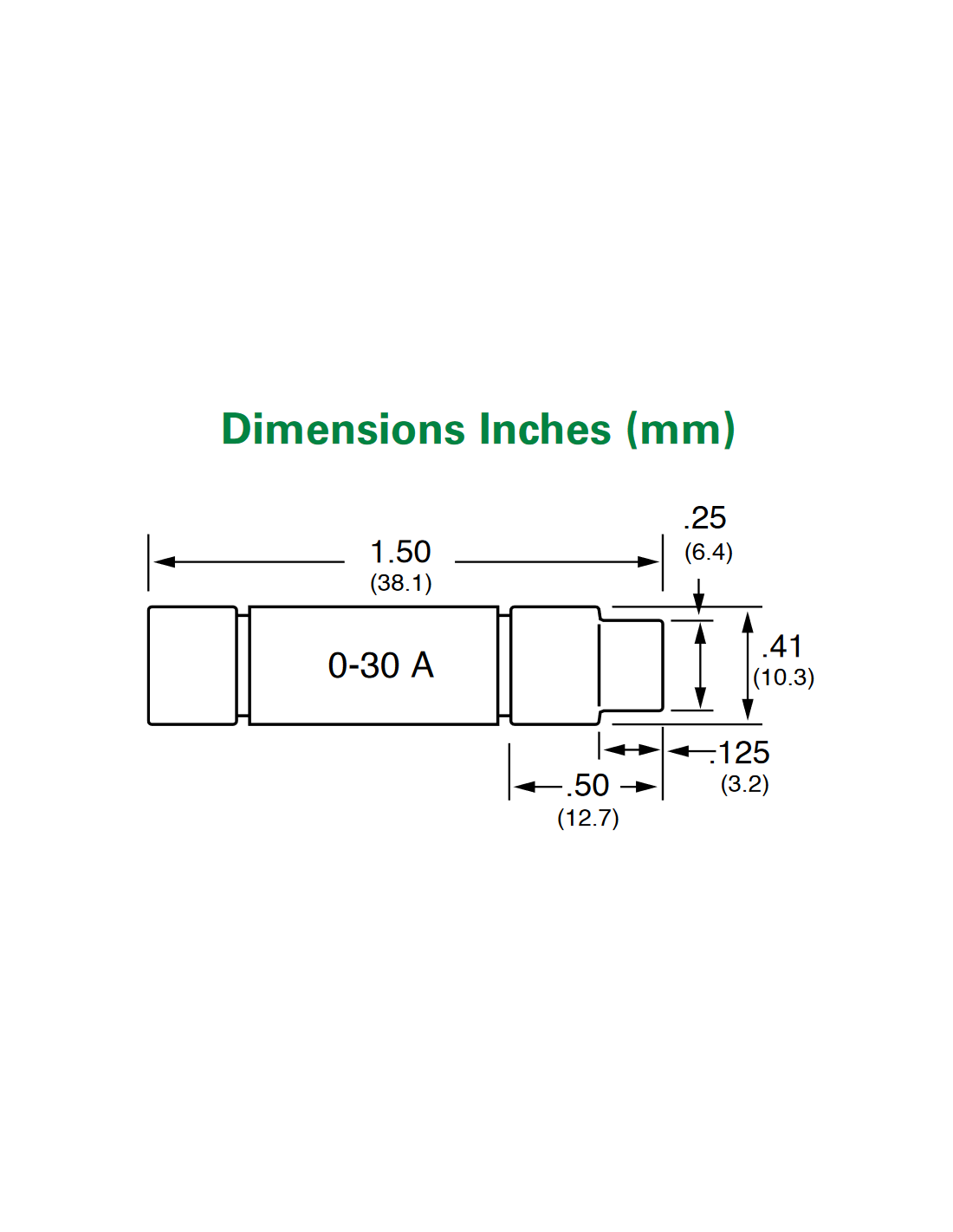

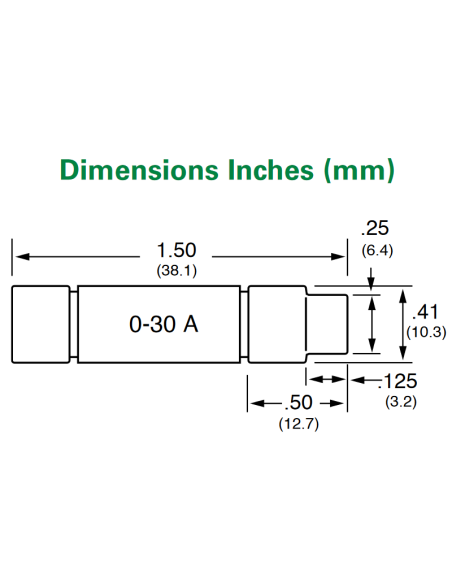

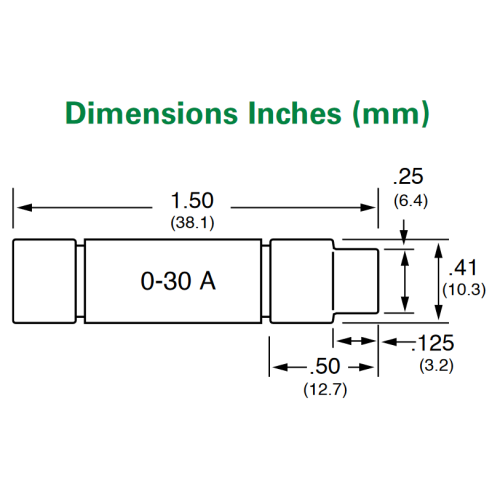

Dimensions	10.3 x 38 mm
Intervention characteristic	Delayed
Rated voltage	600 Vac; 300 Vdc
Rated current	2 A
Interrupting power (lk)	200 KA 600 Vac
Reference Standards	UL 248-4CSA C22.2
Model	KLDR002
Manufacturer	Littelfuse
