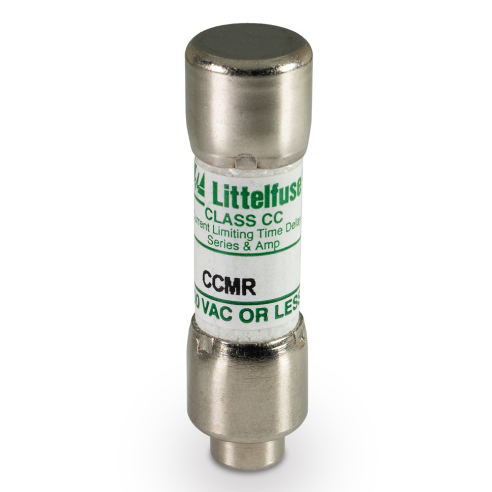

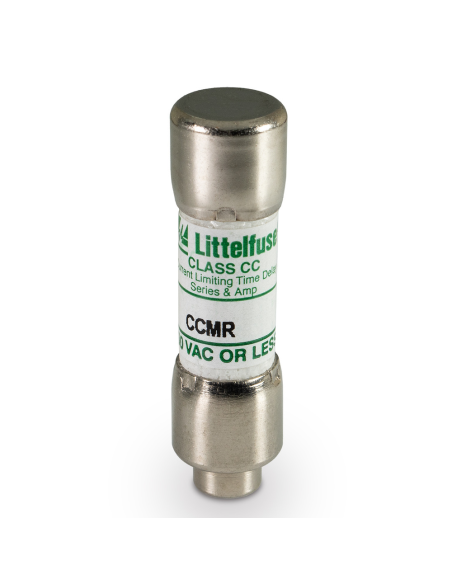

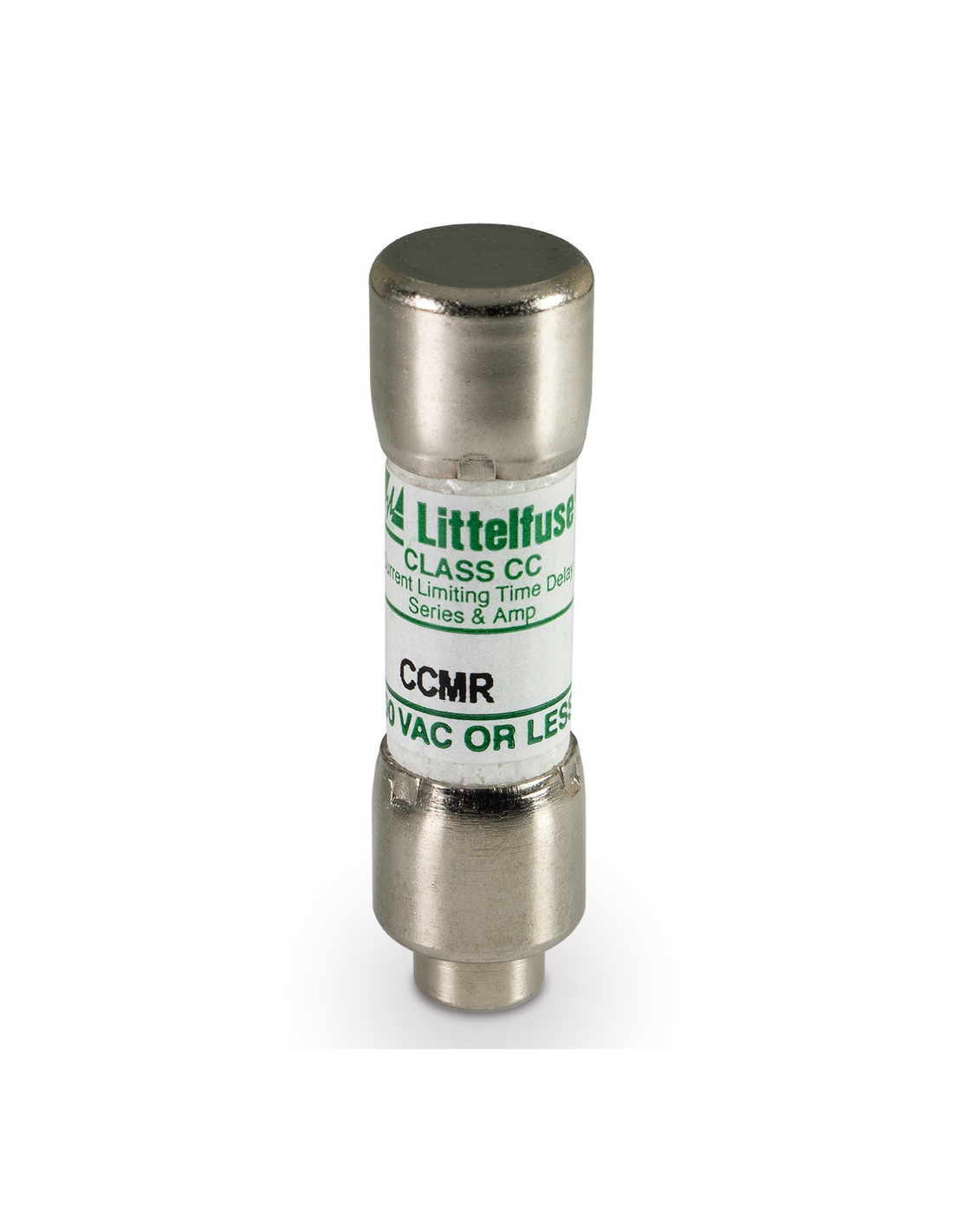

Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 8A, for motor protection, UL-CSA standard - Littelfuse CCMR008

Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 8A, for motor protection, UL-CSA standard - Littelfuse CCMR008

Name: Cylindrical industrial fuse, 10.3x38mm, class CC, 600V 8A, for motor protection, UL-CSA standard - Littelfuse CCMR008
Brand: Littelfuse
SKU: 61.001.3903302
Price: 20.3 EUR
Availability: InStock

SKU 61.001.3903302

In stock 9 Items

€20.30

Tax included

The CCMR series of delay fuses use advanced Littelfuse POWR-PRO® technology.
These fuses are ideal for protecting motor circuits up to 40 hp and are specifically designed to withstand sustained starting currents of small motors.
Their superior delay capability eliminates unnecessary downtime caused by overvoltage or equipment demands.
They provide Type 2 'No Damage' protection for NEMA and IEC motor circuit components.
The POWR-PRO performance brand products offer advanced technology protection features such as high interrupting capacity up to 200 kA, low energy losses and superior current limitation.

Description

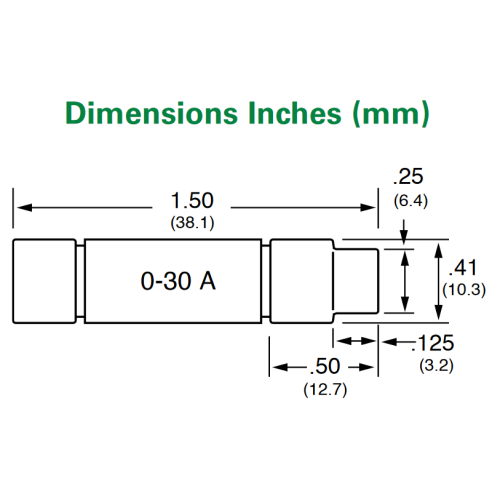

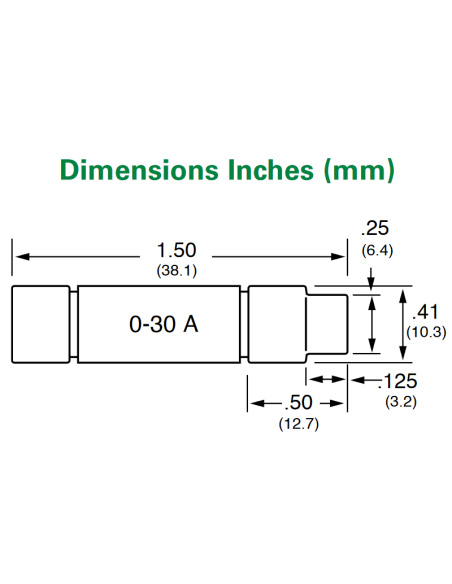

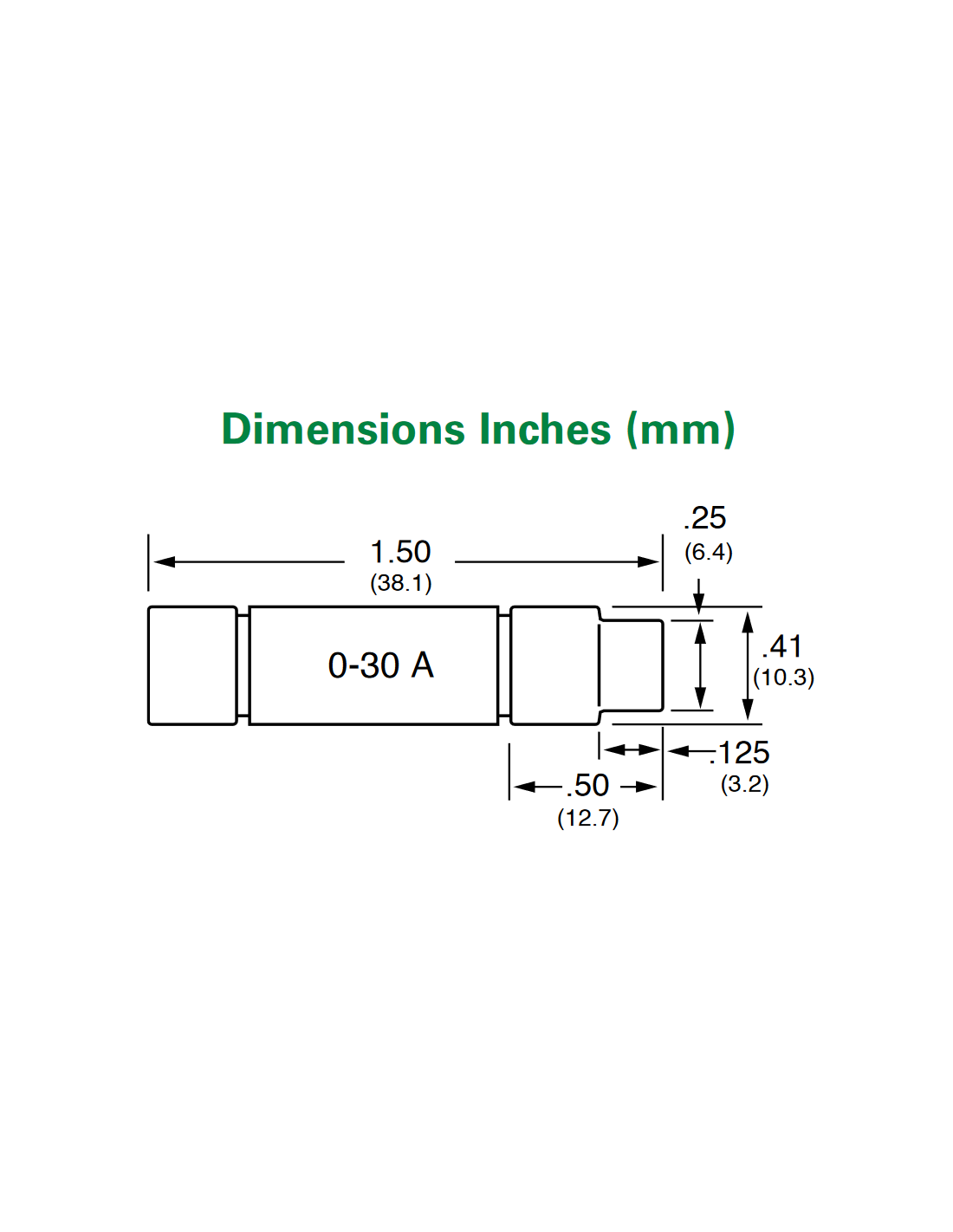

Dimensions	10.3 x 38 mm
Intervention characteristic	Delayed
Rated voltage	600 Vac; 300 Vdc
Rated current	8 A
Interrupting power (lk)	200 KA 600 Vac
Reference Standards	UL 248-4, CSA C22.2
Model	CCMR008
Manufacturer	Littelfuse
