RCBO 1P+N, 2 modules, 230Vac, 10A,...

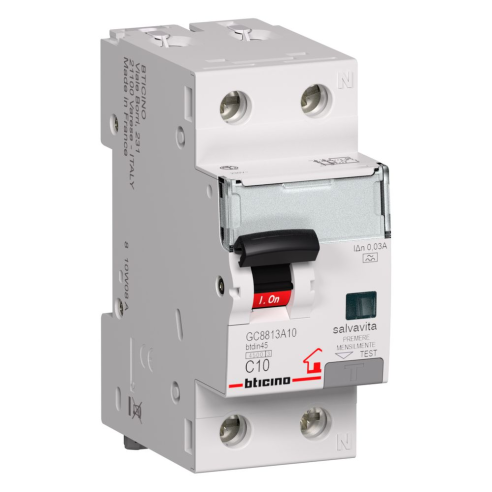

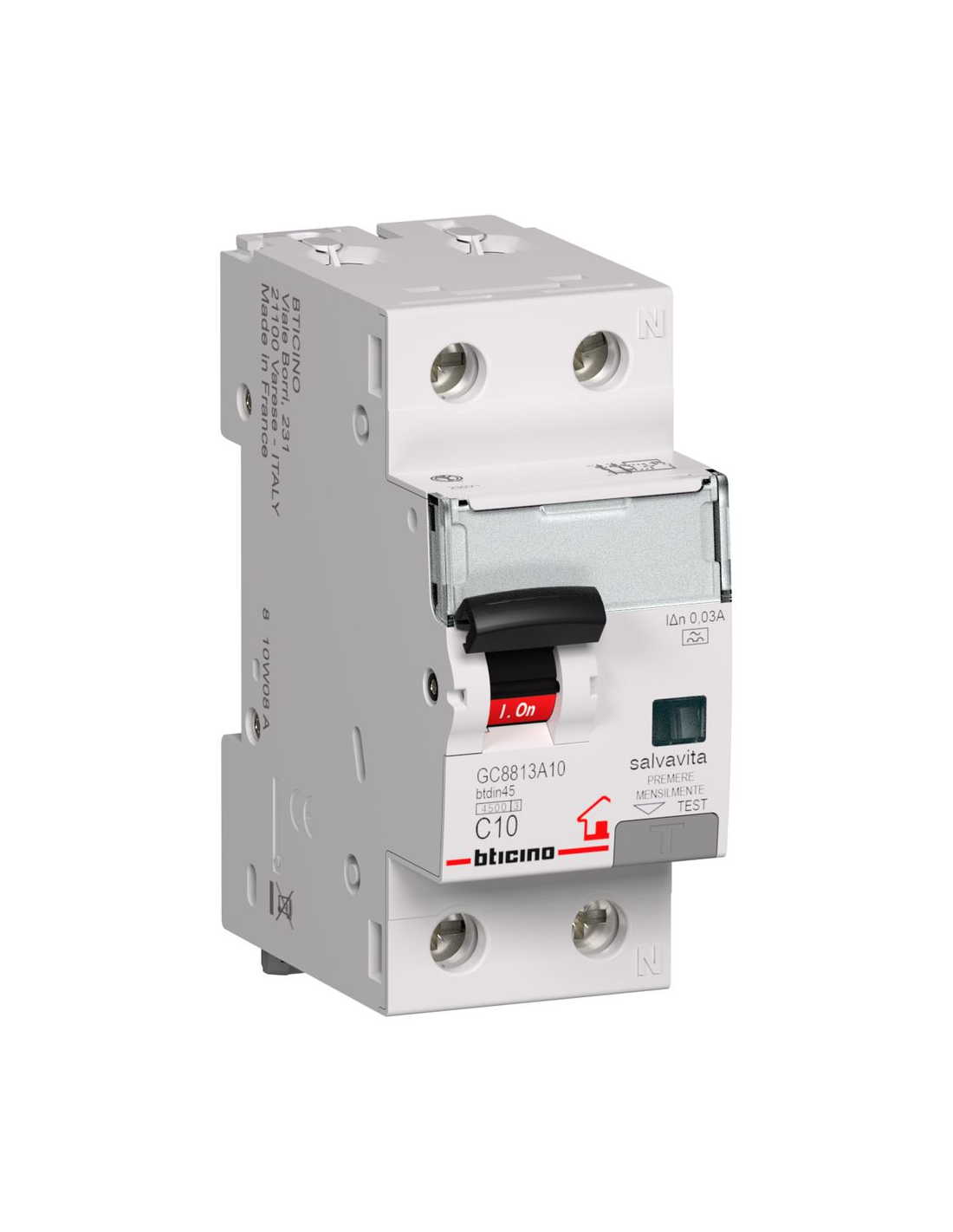

RCBO 1P+N, 2 modules, 230Vac, 10A, 30mA, 4.5kA - BTicino BTDIN-RS GC8813AC10

61.471.1010035
11 Items
€42.00
Tax included
BTDIN-RS modular RCBO 1P+N C curve AC type. In 10A, Icn 4.5kA, Idn 30mA, 230Vac, 2 modules. IP20, dimensions 83x35.6x76 mm. Compliant CEI EN 61009-1.

Description

Reference StandardCEI EN 61009-1
Rated Voltage230 Vac
Rated Current In10A
Breaking Capacity Icn4.5 kA
Trip CurveC
Residual Current Idn30 mA
Differential TypeAC
Modules2
Poles1P+N
Protection DegreeIP20
Max Cable Section25/35 mm²
Product CodeGC8813AC10
ModelBTDIN-RS
ManufacturerBTicino

Product Details

Brand
BTicino
Rated voltage
220 ~ 275 Vac
Corrente nominale
10 A
Configuration
1P+N
Rated breaking capacity
4,5 KA
Nominal sensitivity
30 mA
Number of occupied modules
2
