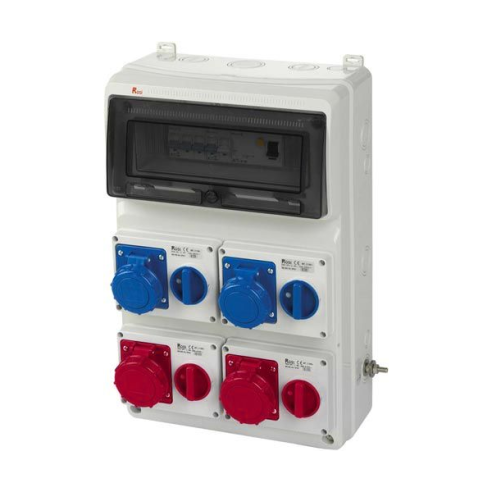

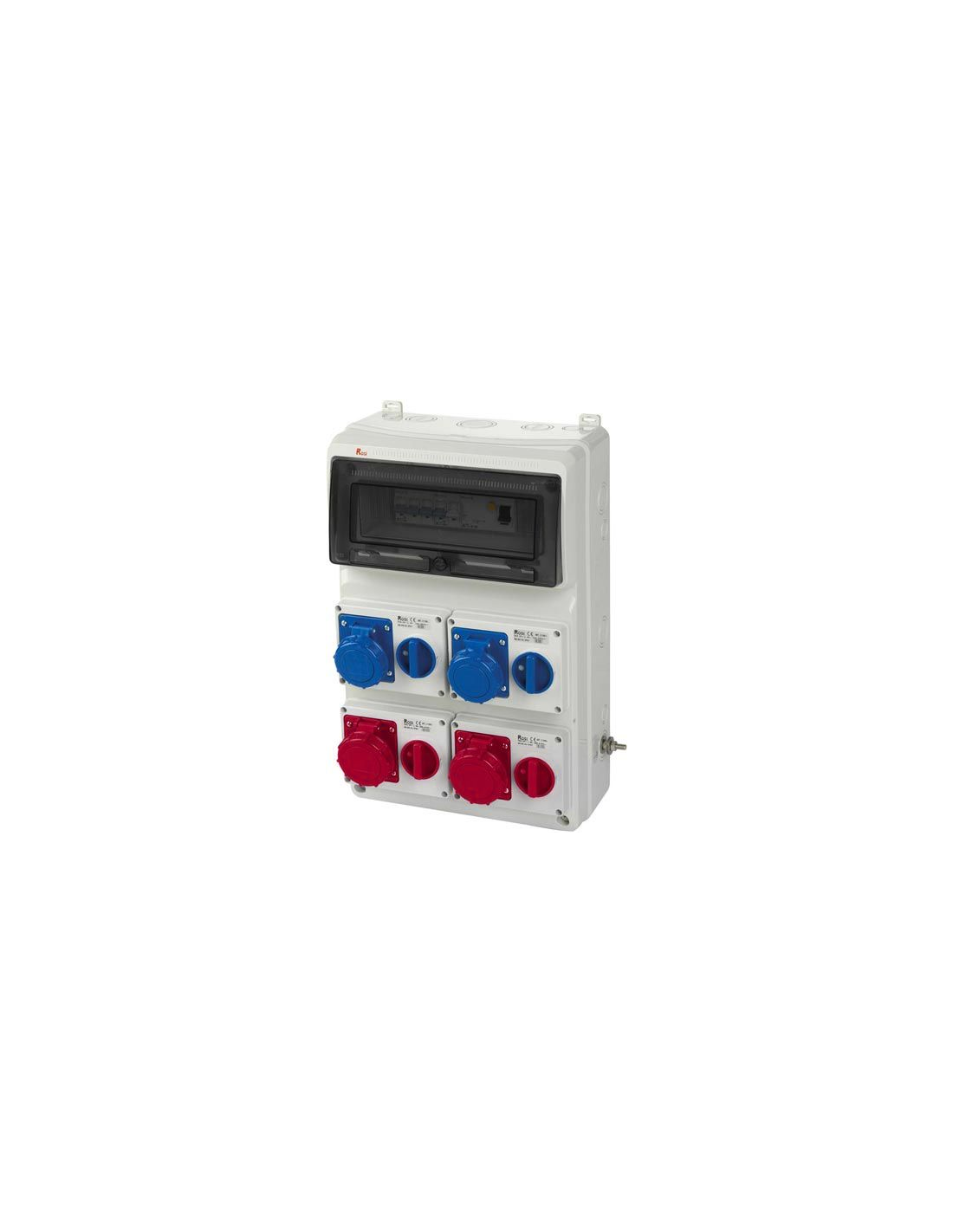

Switchboard, 12KW 400V, 2 interlocked sockets 2P+E 16A, 2 3P+E 16A, circuit breaker, differential, emergency button - Rosi 2202S

Name: Switchboard, 12KW 400V, 2 interlocked sockets 2P+E 16A, 2 3P+E 16A, circuit breaker, differential, emergency button - Rosi 2202S
Brand: Rosi
SKU: 61.457.0290001
Price: 450.9 EUR
Availability: InStock

SKU 61.457.0290001

In stock 3 Items

€450.90

Tax included

ROSI distribution boards, made of high quality materials, designed to withstand harsh environments such as construction sites or outdoor installations.
Equipped with:
- Brackets for wall mounting;
- Emergency button;
- External earth;
- General magnetothermal differential;
- Magnetothermal protection circuit breaker.

Features:
- Suitable for environments with exposure to weather and risk;
- Impact resistance IK08;
- Polycarbonate cover;
- UV-resistant ABS technopolymer casing.

Description

Power	12KW 400V
Interlocked sockets	2x 16A 2P+E 230V
	2x 16A 3P+E 400V
Magnetothermal residual current circuit breaker	40A 2P 30mA
Thermal-magnetic circuit breaker	1 for every 2 sockets
Model	2202S
Manufacturer	Rosi

Product Details

Brand: Rosi
Connector type: Interlocked socket 16A 2P+T 230V
Interlocked socket 16A 3P+T 400V
Number of sockets: 4
Accessories: Circuit breaker
Emergency button
differential magnetothermal switch
Power: 400V - 12KW
Type of distribution board: Fixed
IP Rating: IP65
