AMRA Chauvin Arnoux C.A. 1110 Digital Exposure Meter, 0.1 ~ 200000 Lux, 0.01 ~ 18580 Fc, with USB and bluetooth interface
AMRA Chauvin Arnoux C.A. 1110 Digital Exposure Meter, 0.1 ~ 200000 Lux, 0.01 ~ 18580 Fc, with USB and bluetooth interface

AMRA Chauvin Arnoux C.A. 1110 Digital Exposure Meter, 0.1 ~ 200000 Lux, 0.01 ~ 18580 Fc, with USB and bluetooth interface

40.004.0010001
2 Items
Last items in stock
€632.90
Tax included

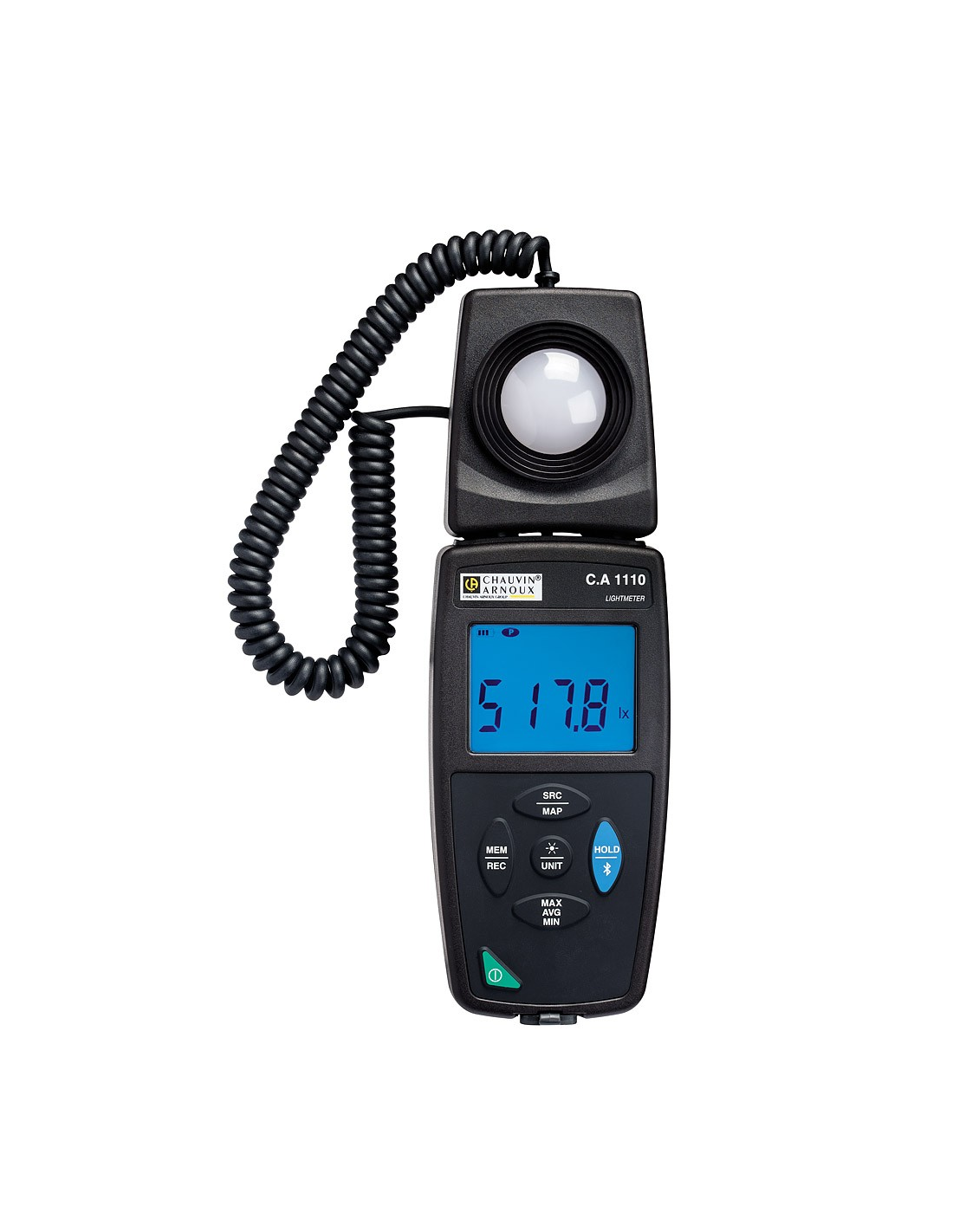

The C.A. 1110 instrument is a class C lux meter for measuring the illuminance of all light sources (LEDs, fluorescent, etc.) up to 200,000 lux, in accordance with NF C-42 710.
The MAP function allows mapping of surfaces or rooms to assess illuminance uniformity.

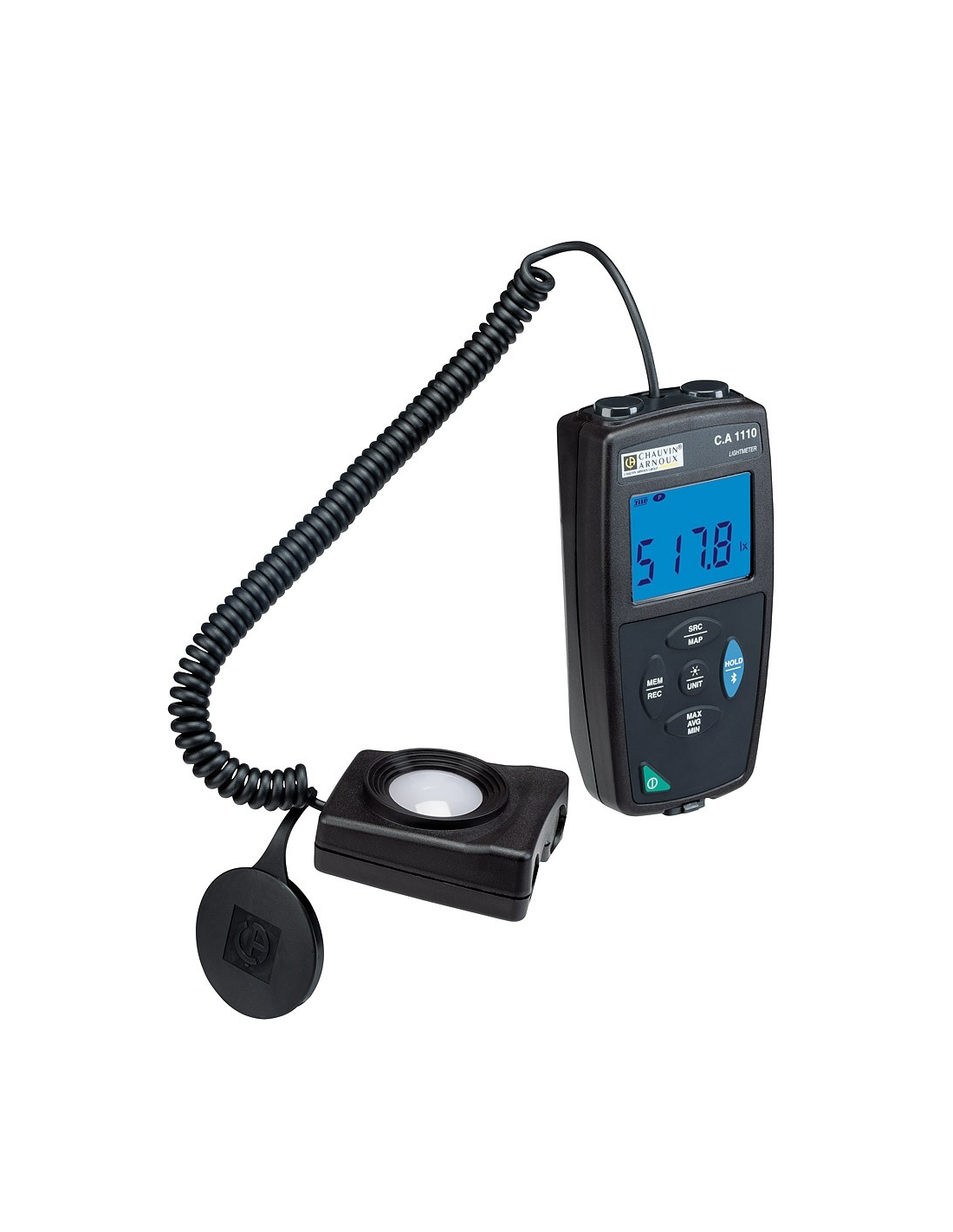

The probe can be fixed with a magnet to allow one-handed operation of the instrument and facilitate transportation; remote installation limits the risk of shadows on the sensor itself due to the presence of the operator.
The C.A 1110 luxmeter features Min, Max, Avg and Hold functions and allows point or continuous measurements to be recorded.
Downloadable free of charge, the Data Logger Transfer software allows visualisation of saved data, configuration of the instrument, access to a remote display and automatic report creation.

Features:
- Spectral response correction on LED or fluorescent sources;
- MAP function to obtain illuminance mappings on surfaces or in rooms;
- Colour correction according to C.I.E. and cosine angle correction;
- Large backlit display;
- Remote probe to limit the risk of shadows on the sensor itself due to operator presence or integrated probe for one-handed operation;
- Recording of up to 1 million points;
- Communication via USB or Bluetooth;
- Data Logger Transfer software with automatic report creation.

Description

Measuring rangefrom 0.1 lux to 200,000 lux

from 0.01 fc to 18,580 fc
Resolution (Lux)0.1 lux to 999.9 lux

1 lux (1,000 lux to 9,999 lux)

10 lux (10,000 lux to 99.99 klux)

100 lux (over)
Resolution (Fc)0.01 fc to 99.99 fc

0.1 fc (100.0 fc to 999.9 fc)

1 fc (from 1,000 fc to 9,999 fc)

Over 10 fc
Intrinsic uncertainty for lux measurement± 3% of reading with incandescent source (default)

± 6% of reading with LED source (3000 K to 6000 K)

± 9% of reading with fluorescent source
Mode with correctionLED mode: ± 4% of reading (at 4,000 K)

Fluo mode: ± 4% of reading (type F11, 4,000 K)
RegistrationManual activation and shutdown on the device

Short press MEM button: save current measurement

Long press REC button: Interval recording according to selected mode

Scheduled recording: activation date, aggregation period (1 second to 1 hour) and stop date customisable via PC software
MemoryOver 1 million points
FunctionsMin, Avg, Max, Hold
MAP ModeThe MAP function allows illuminance mapping on surfaces or in rooms; illuminance measurements are saved in a single file
Unit of measurementLux, fc
DisplayBacklit
Auto power-offYes, programmable
Power supply3x AA batteries, mains power supply, micro USB
Autonomy500 hours (battery operation) / registration: 3 years (aggregation period: 15 minutes)
Interface2 communication modes: Bluetooth wireless connection and USB
FixingThe casing is equipped with a magnet, wall-mounting system and groove for suspension installation. Compatible with Multifix accessory
Dimensions150 x 72 x 32 mm
Sensor dimensions67 x 64 x 35 mm
Weight345 grams (with batteries)
IP RatingIP50
Operating conditionsTemperature: -10 to +60°C / Humidity: 10-90% RH
ComplianceIEC61010-1 / IEC 61326-1 / Class C Luxmeter in accordance with NF C 42-710 based on CIE guidelines
Functions of the Data Logger Download software on Windows PCsGraphic representation or in the form of a table of values / Data export in graphic form or Excel table Real-time mode / Automatic report creation in Word format / Data format compatible with Dataview software (optional)
ManufacturerAMRA Chauvin Arnoux
ModelA.C. 1110
Manufacturer codeP01654110
