Name: ECO KIT motor kit for swing gates, 230V, max. 1.8 metres per leaf, flashing light, photocells - FAAC 105632445
Brand: FAAC
SKU: 25.005.1620609
Price: 630.3 EUR
Availability: OutOfStock

SKU 25.005.1620609

Out-of-Stock

€630.30

Tax included

For swing gates with a leaf length of no more than 1.8 metres.
230V power supply.

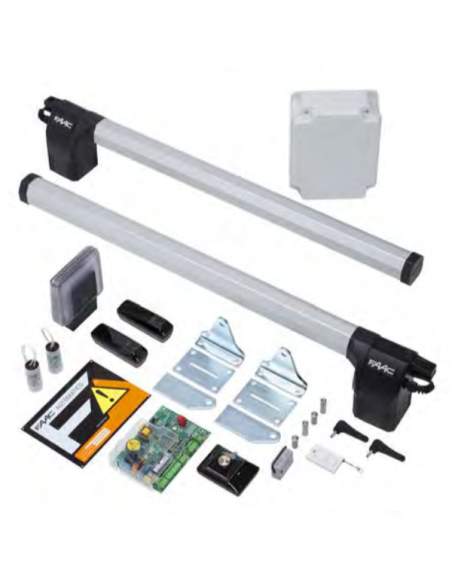

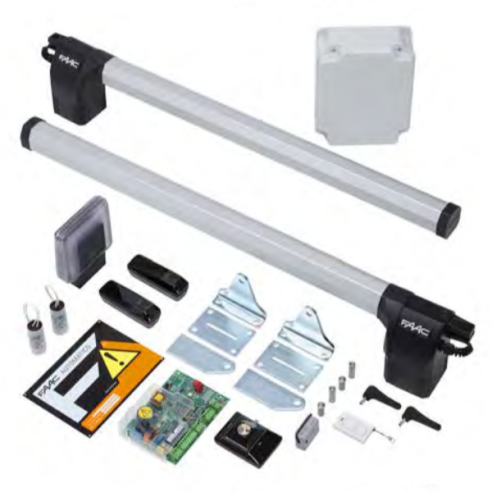

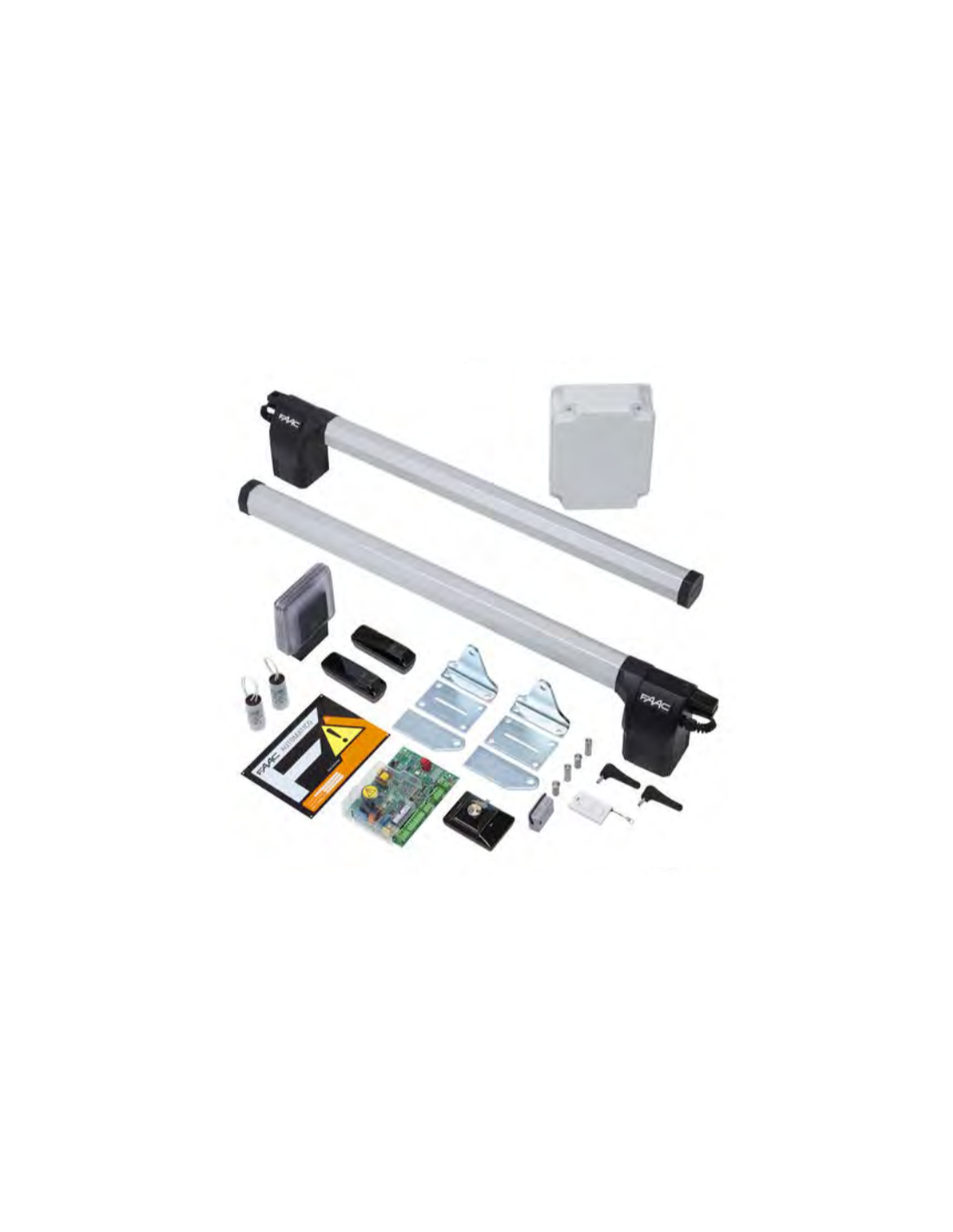

Complete with:

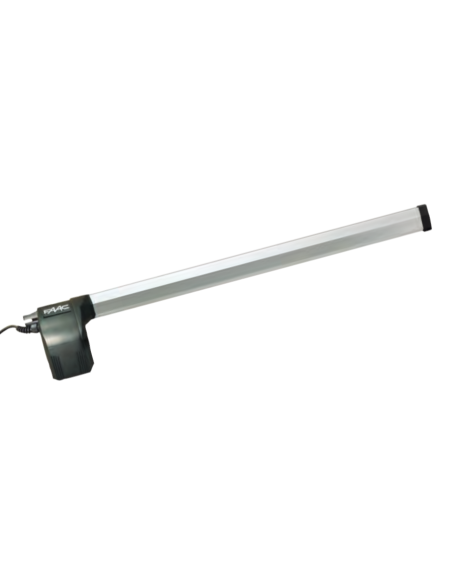

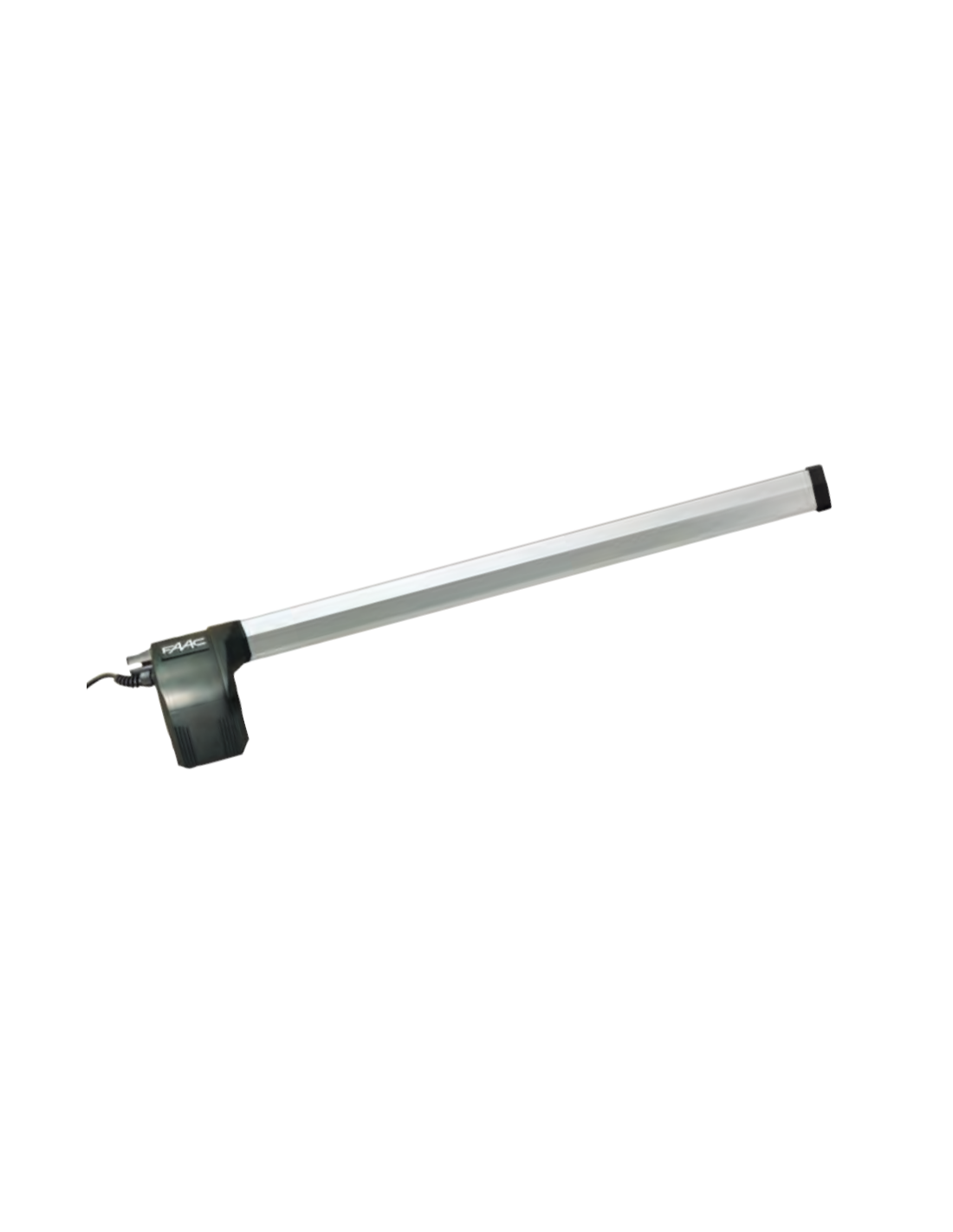

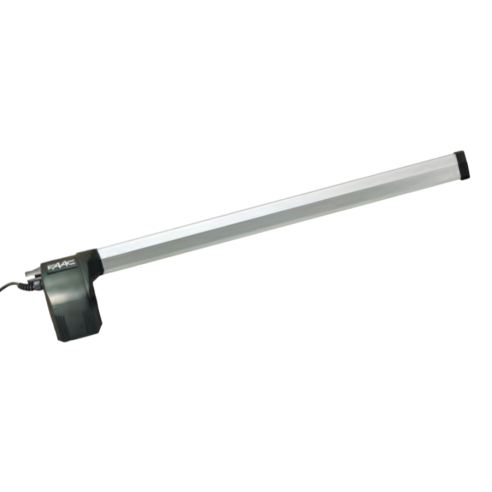

- 1 Actuator 412 right (104470)
- 1 Actuator 412 left (104471)
- 1 E045S electronic board (790077)
- 1 Model E enclosure for circuit boards (720119)

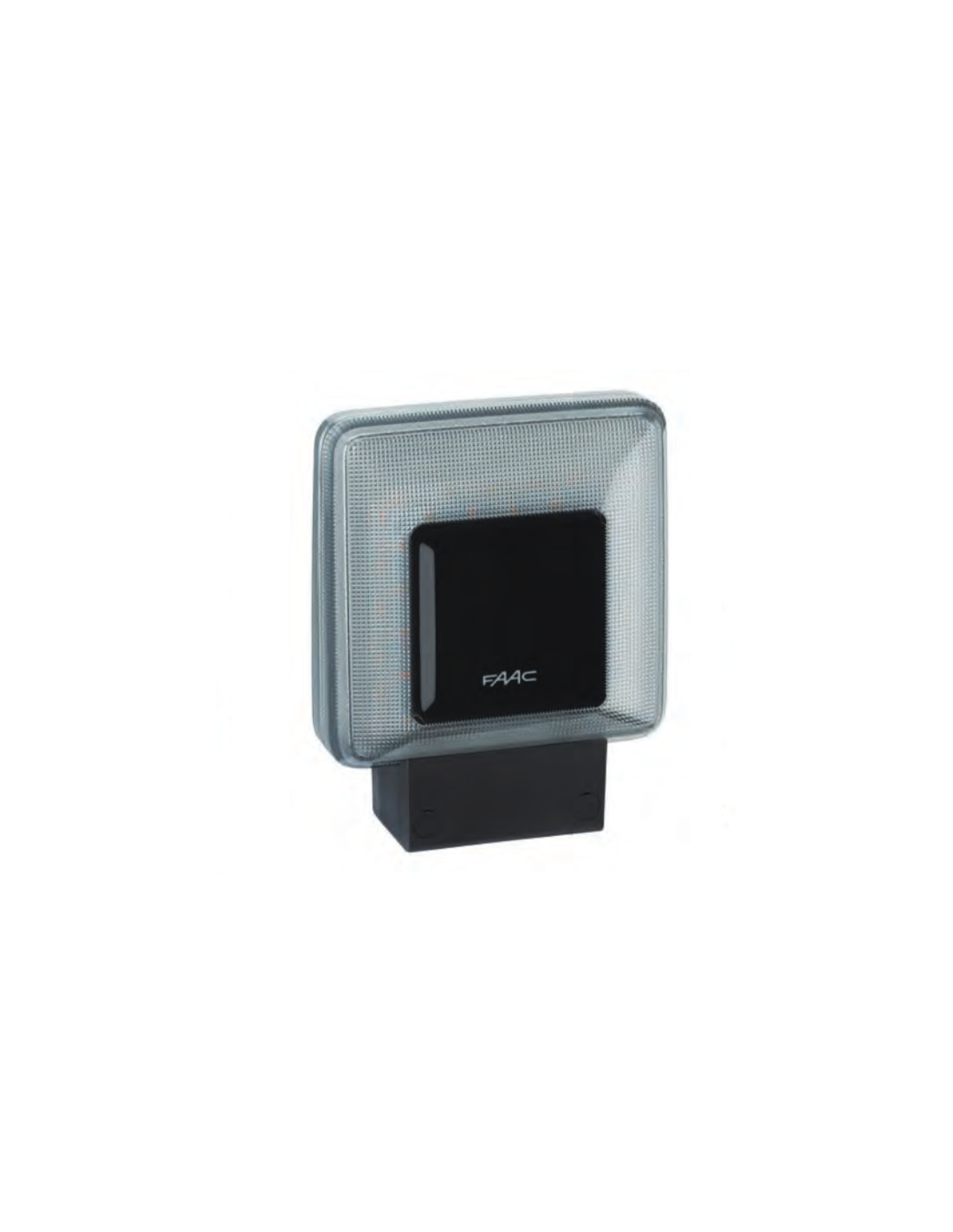

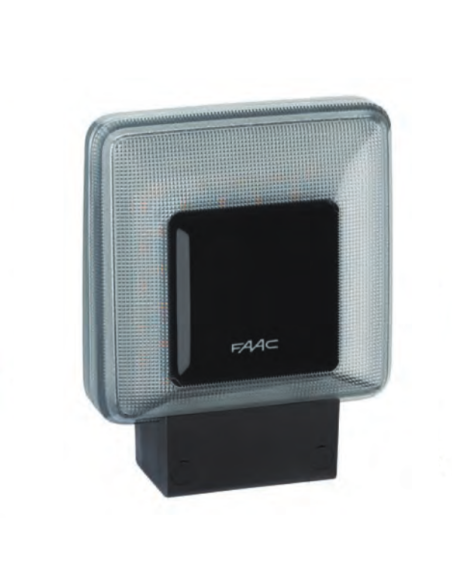

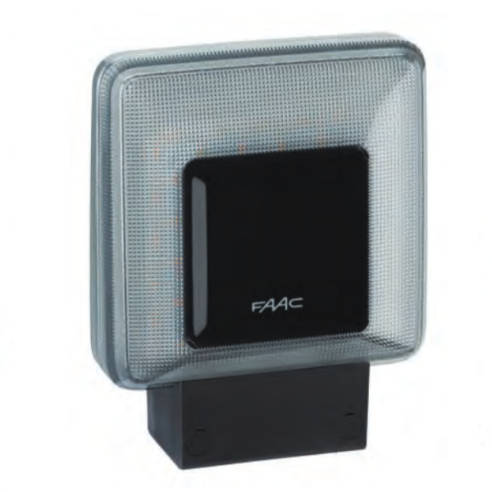

- 1 XLED flasher (410029)

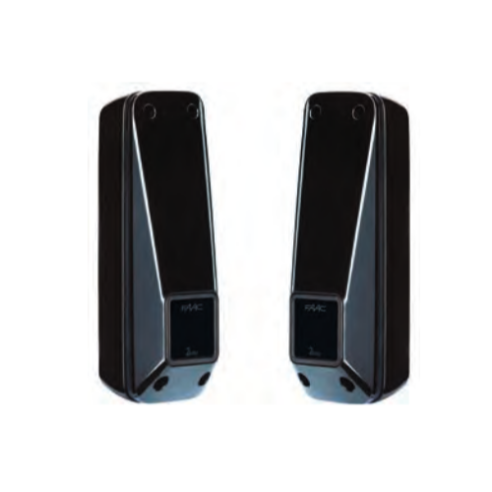

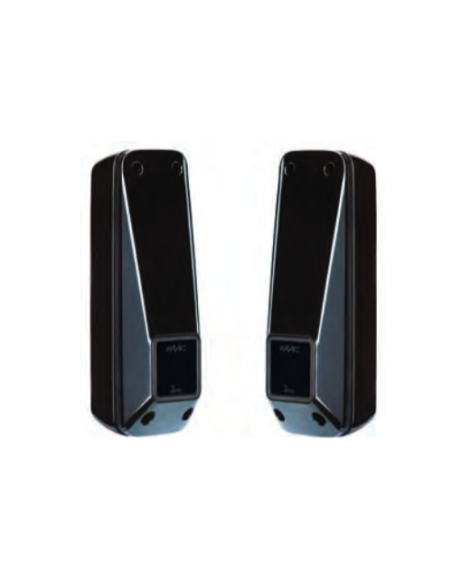

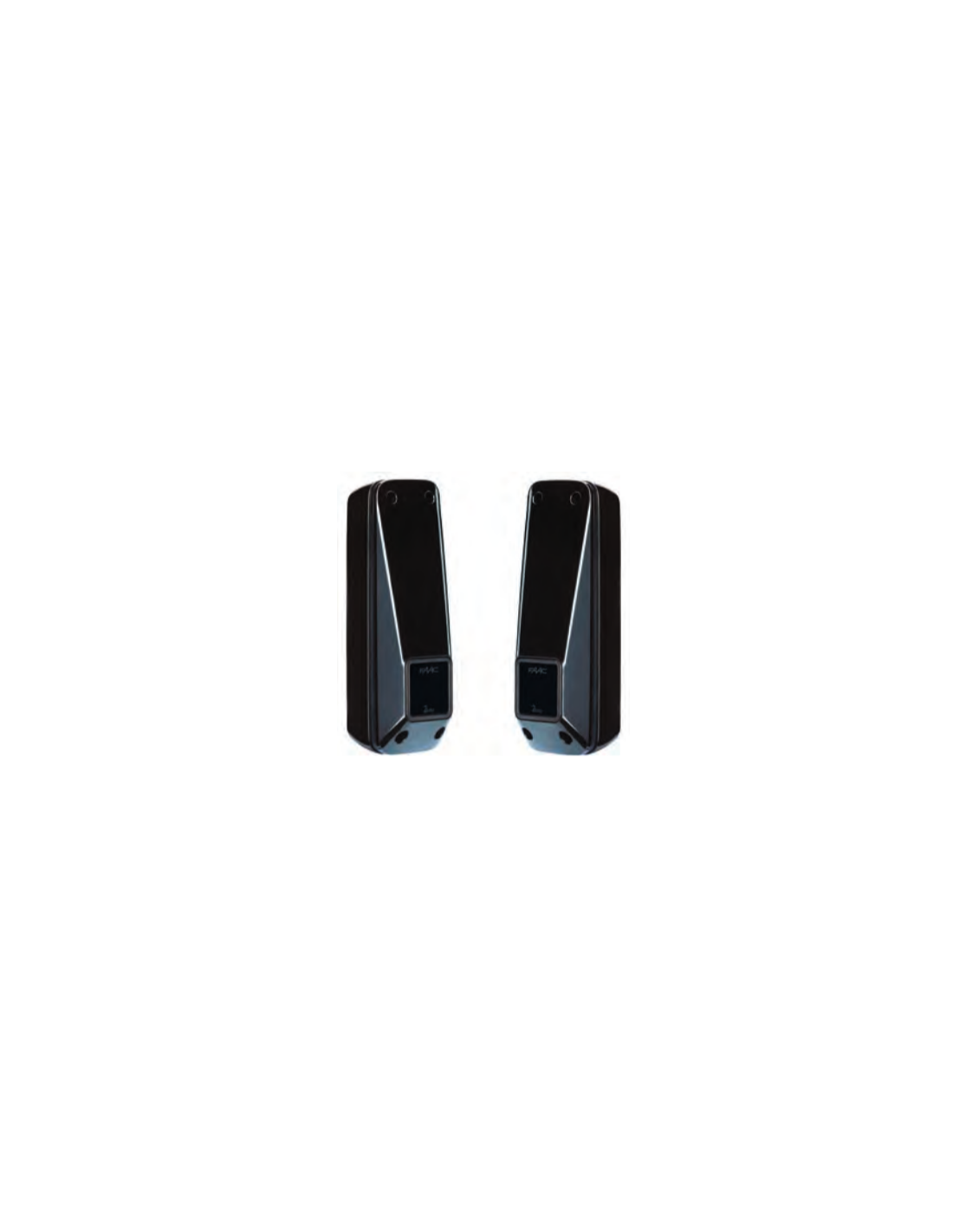

- 1 Pair of XP 20B D photocells (785103)
- 1 Key and control button XK10 B (401304)
- 1 Customised key lock (71275101)
- 1 XF 433 MHz receiver (787831)

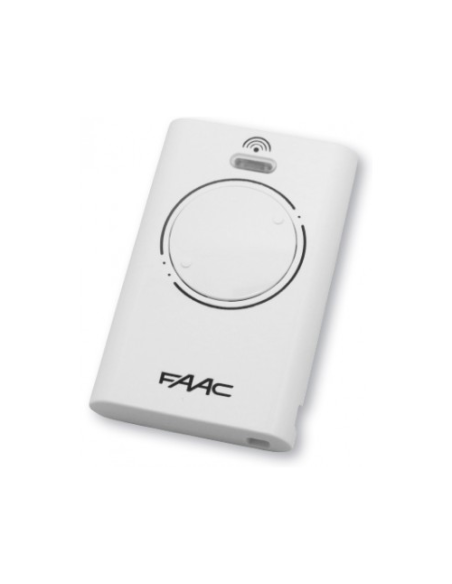

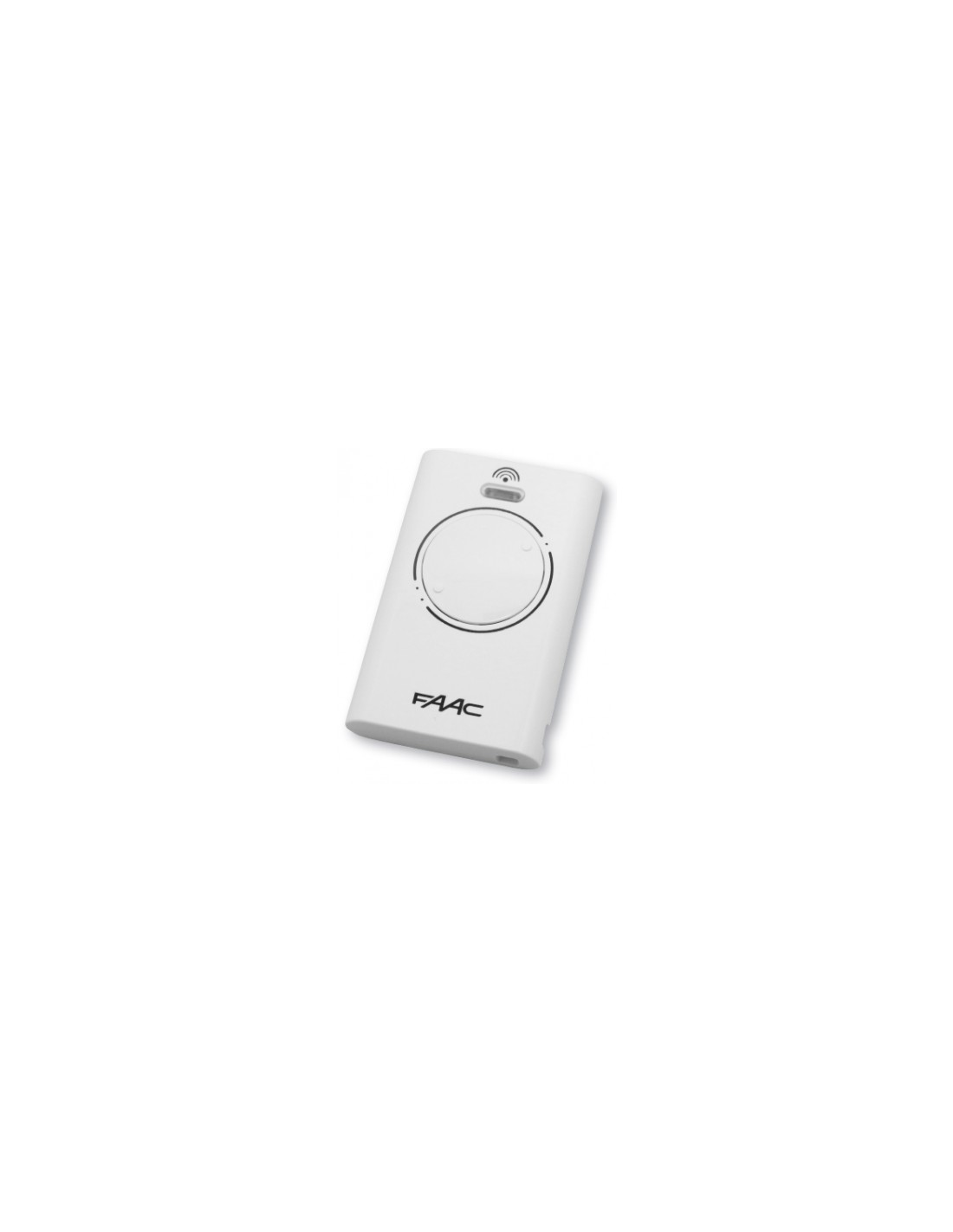

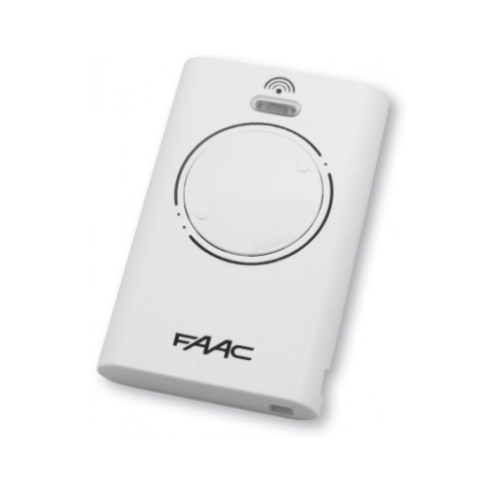

- 1 Transmitter 2 channels XT2 433 SLH LR (787007)
- 1 "Automatic FAAC" sign

Description

Motor
Model	412 dx + 412 sx
Voltage	220-240V~ 50/60 Hz
Electric motor	Single-phase asynchronous
Maximum power	280 W
Maximum thrust force	3500 N
Maximum stem speed	16 mm/s
Stem stroke	290 mm
Maximum opening angle	110°
Operating temperature	-20°C TO + 55°C
Thermal protection	140°C
IP Rating	IP44
Weight	6.5 kg
Frequency of use	18 cycles/hour
Maximum sash length	1,8 m
Fixing brackets	Weld-on/screw-on rear connection - Weld-on/screw-on front connection
Dimensions	991 x 101 x 172 mm
Kit
Model	ECO KIT
Manufacturer code	105632445
Manufacturer	FAAC
