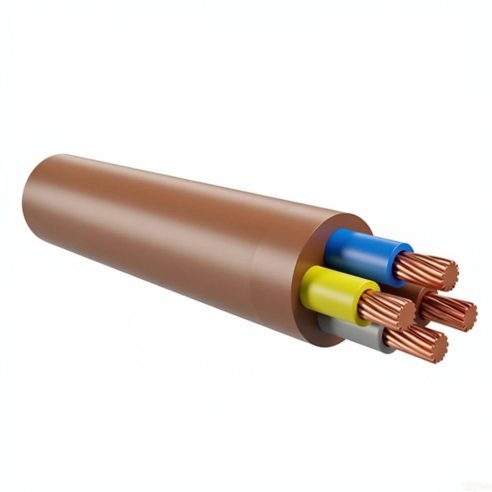

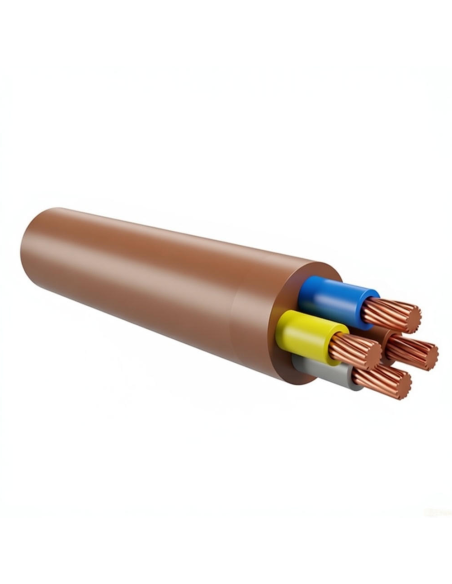

Cable FS18OR18 4G1.5, cross-section 4x1.5 mm2, 4 conductors, 450/750V, CPR Cca-s3 d1 a3, brown

SKU 62.501.3220070

In stock 19 Items

€149.80

Tax included

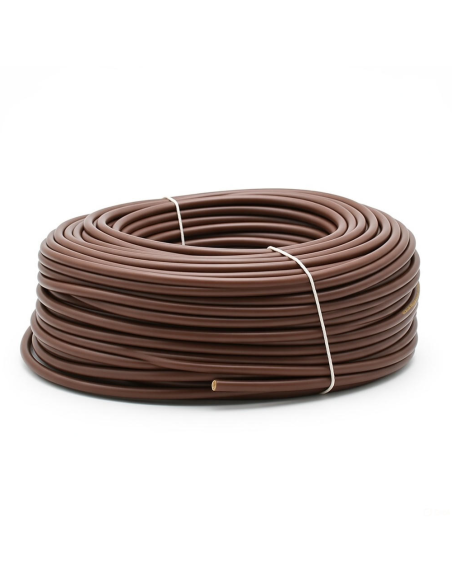

Available in hanks of 100 metres and by the metre.

Multicore power cables, insulated with PVC of S18 quality, sheathed in PVC of R18 quality, with flexible conductors for fixed laying. Fire retardant, low halogen emission (corrosive gases). Signalling and control cable for connections to mobile equipment. Suitable for installation in places with fire hazards such as trade fairs, civil, commercial and public buildings. Can be installed indoors in normal or damp environments and temporarily outdoors. Underground installation is not permitted, even if protected.

Packaging

Description

Number of conductors	4
Conductor material	Flexible annealed red copper rope, class 5
Insulation	S18 quality PVC compound
Outer sheath	R18 quality PVC compound
Rated voltage	450/750V
Operating temperature:	-15°C ~ 70°C
Minimum installation temperature:	0°C
Maximum short-circuit temperature:	160°C
Maximum tractive effort:	50 N/mm2
Colour of outer sheath	Brown
Conductor diameter	1.5 mm
Average insulation thickness	0.4 mm
Average sheath thickness	0.8 mm
Outer diameter	8.3 mm
Regulations	CPR (EU) No. 305/11 Cca - s3, d1, a3; CEI UNEL 35720; CEI EN 60332-1-2; 2014/35/EU; 2011/65/EC
Manufacturer	According to stock availability. Main suppliers: La Triveneta, Prysmian, Baldassarri Cavi.
