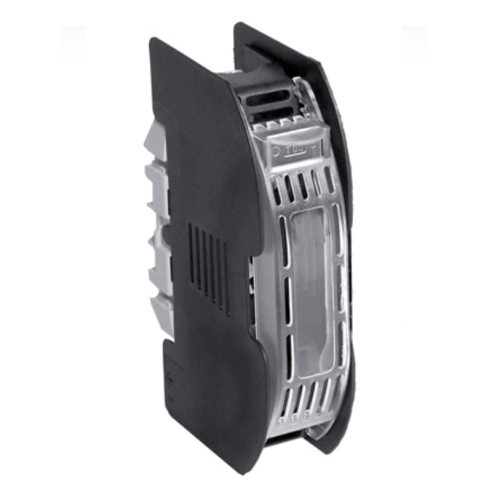

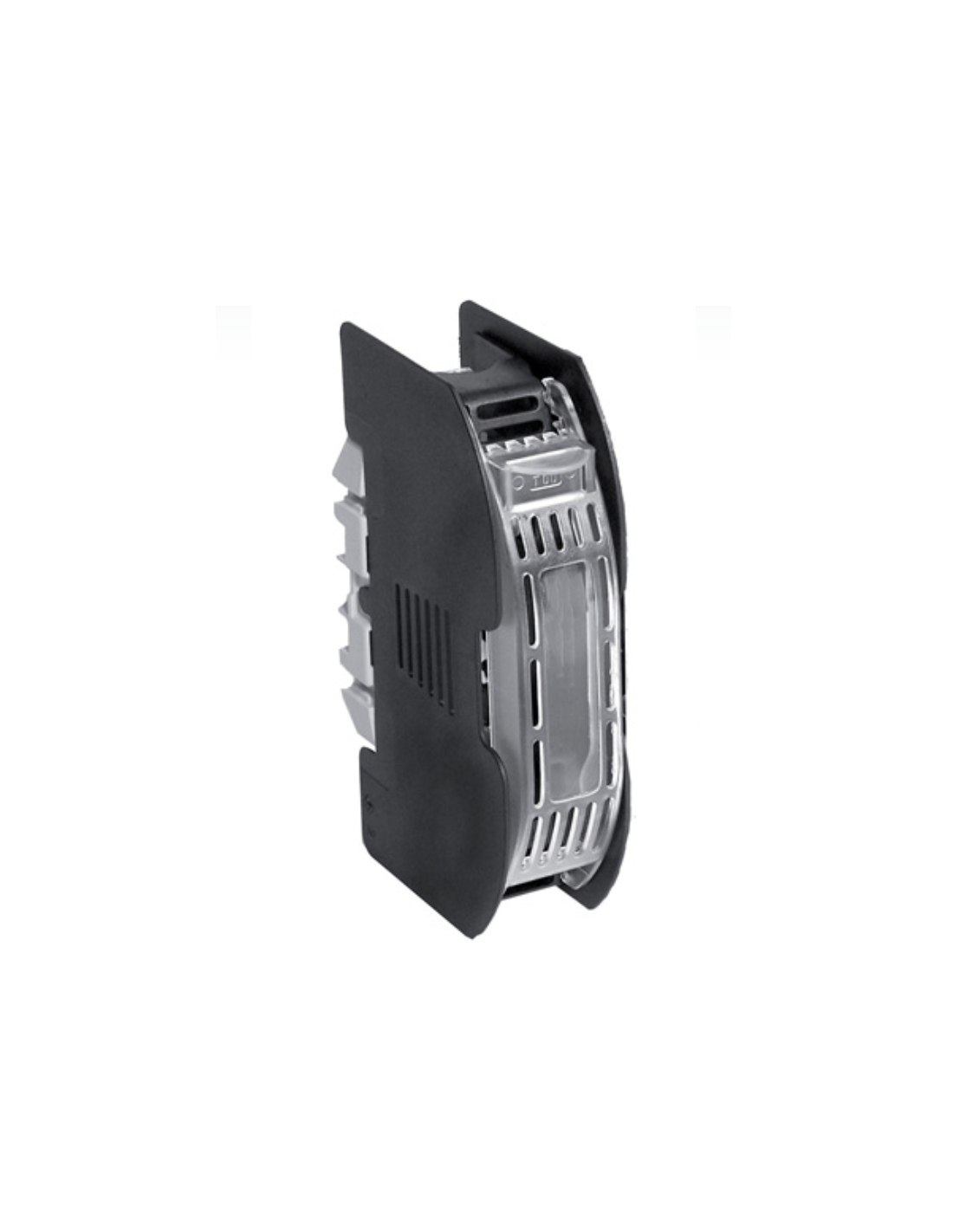

Fuse holder with fuse protection NH 3, single pole, 690V 630A, DIN rail mounting, type PNH3-DIN IP20 - Wimex 5550652D

Name: Fuse holder with fuse protection NH 3, single pole, 690V 630A, DIN rail mounting, type PNH3-DIN IP20 - Wimex 5550652D
Brand: Wimex
SKU: 61.002.0330016
Price: 66.7 EUR
Availability: InStock

SKU 61.002.0330016

In stock 9 Items

€66.70

Tax included

NH fuse bases serve as fuse housings according to DIN 43620/I.
All bases are designed for use up to 690V.
Prepared for connection of cables by means of cable lugs or connecting rods.
With IP20 protection and 2 separators.

Description

Rated voltage	690 V
Rated current	630 A
Degradation coefficient as a function of temperature	20°C: 1,00
	30°C: 0,95
	40°C: 0,90
	50°C: 0,80
Material	UL-V0 self-extinguishing polyamide
Contact	Silver-plated copper
Bolts	Steel 8.8 - M12
Power dissipation	60 W
Operating temperature	-20°C ~ +70°C
Model	5550652D
Manufacturer	Wimex
